INA KUVE..-B Monorail Assemblies (H, S, SN, HL, SL, SNL Carriages)

INA KUVE..-B Monorail Assemblies (H, S, SN, HL, SL, SNL Carriages)

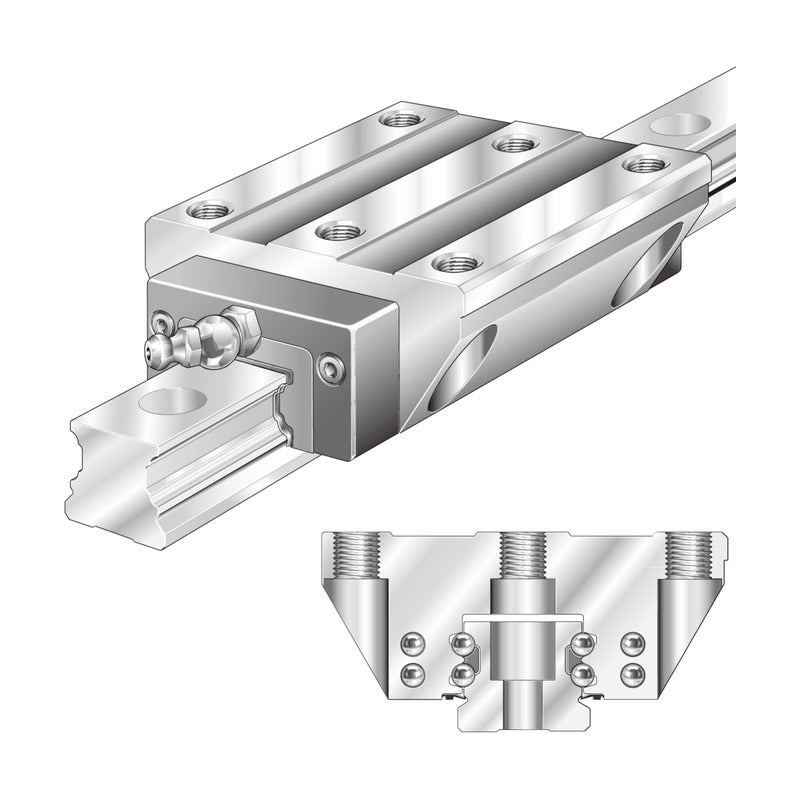

INA KUVE..-B four-row ball monorail assemblies with narrow carriages: high (H, HL), standard (S, SL) and low (SN, SNL) heights, short or long.

Key features

  • Four-row ball recirculation, full complement
  • O-arrangement contact for high moment load capacity
  • Interchangeable carriages and TKVD guideways
  • Lubrication nipple supplied loose with delivery
  • Narrow carriages for confined installation space

Specifications

Brand INA
Product type Linear Guides
Series KUVE..-B
Designations listed 33
Units mm, kN
Source INA Monorail Guidance Systems catalogue, p. 80-87
KUVE15-B-H Rail width: 15 mm | H: 28 mm | B: 34 mm | L: 59.6 mm | C: 7.2 kN | C0: 14.5 kN
KUVE15-B-S Rail width: 15 mm | H: 24 mm | B: 34 mm | L: 59.6 mm | C: 7.2 kN | C0: 14.5 kN
KUVE20-B-H Rail width: 20 mm | H: 30 mm | B: 44 mm | L: 69.8 mm | C: 13.1 kN | C0: 27 kN
KUVE20-B-S Rail width: 20 mm | H: 30 mm | B: 44 mm | L: 69.8 mm | C: 13.1 kN | C0: 27 kN
KUVE20-B-SN Rail width: 20 mm | H: 27 mm | B: 44 mm | L: 69.8 mm | C: 13.1 kN | C0: 27 kN
KUVE20-B-SL Rail width: 20 mm | H: 30 mm | B: 44 mm | L: 87.3 mm | C: 16.2 kN | C0: 36.5 kN
KUVE20-B-SNL Rail width: 20 mm | H: 27 mm | B: 44 mm | L: 87.3 mm | C: 16.2 kN | C0: 36.5 kN
KUVE25-B-H Rail width: 23 mm | H: 40 mm | B: 48 mm | L: 81.7 mm | C: 17.9 kN | C0: 37 kN
KUVE25-B-S Rail width: 23 mm | H: 36 mm | B: 48 mm | L: 81.7 mm | C: 17.9 kN | C0: 37 kN
KUVE25-B-SN Rail width: 23 mm | H: 31 mm | B: 48 mm | L: 81.7 mm | C: 17.9 kN | C0: 37 kN
KUVE25-B-HL Rail width: 23 mm | H: 40 mm | B: 48 mm | L: 107.5 mm | C: 23.4 kN | C0: 54 kN
KUVE25-B-SL Rail width: 23 mm | H: 36 mm | B: 48 mm | L: 107.5 mm | C: 23.4 kN | C0: 54 kN
KUVE25-B-SNL Rail width: 23 mm | H: 31 mm | B: 48 mm | L: 107.5 mm | C: 23.4 kN | C0: 54 kN
KUVE30-B-H Rail width: 28 mm | H: 45 mm | B: 60 mm | L: 97.4 mm | C: 27.5 kN | C0: 55 kN
KUVE30-B-S Rail width: 28 mm | H: 42 mm | B: 60 mm | L: 97.4 mm | C: 27.5 kN | C0: 55 kN
KUVE30-B-SN Rail width: 28 mm | H: 38 mm | B: 60 mm | L: 97.4 mm | C: 27.5 kN | C0: 55 kN
KUVE30-B-HL Rail width: 28 mm | H: 45 mm | B: 60 mm | L: 125.4 mm | C: 34.5 kN | C0: 74 kN
KUVE30-B-SL Rail width: 28 mm | H: 42 mm | B: 60 mm | L: 125.4 mm | C: 34.5 kN | C0: 74 kN
KUVE30-B-SNL Rail width: 28 mm | H: 38 mm | B: 60 mm | L: 125.4 mm | C: 34.5 kN | C0: 74 kN
KUVE35-B-H Rail width: 34 mm | H: 55 mm | B: 70 mm | L: 110.4 mm | C: 38 kN | C0: 72 kN
KUVE35-B-S Rail width: 34 mm | H: 48 mm | B: 70 mm | L: 110.4 mm | C: 38 kN | C0: 72 kN
KUVE35-B-SN Rail width: 34 mm | H: 44 mm | B: 70 mm | L: 110.4 mm | C: 38 kN | C0: 72 kN
KUVE35-B-HL Rail width: 34 mm | H: 55 mm | B: 70 mm | L: 143.4 mm | C: 47.5 kN | C0: 100 kN
KUVE35-B-SL Rail width: 34 mm | H: 48 mm | B: 70 mm | L: 143.4 mm | C: 47.5 kN | C0: 100 kN
KUVE35-B-SNL Rail width: 34 mm | H: 44 mm | B: 70 mm | L: 143.4 mm | C: 47.5 kN | C0: 100 kN
KUVE45-B-H Rail width: 45 mm | H: 70 mm | B: 86 mm | L: 139 mm | C: 69 kN | C0: 141 kN
KUVE45-B-S Rail width: 45 mm | H: 60 mm | B: 86 mm | L: 139 mm | C: 69 kN | C0: 141 kN
KUVE45-B-SN Rail width: 45 mm | H: 52 mm | B: 86 mm | L: 139 mm | C: 69 kN | C0: 141 kN
KUVE45-B-HL Rail width: 45 mm | H: 70 mm | B: 86 mm | L: 171.1 mm | C: 82 kN | C0: 181 kN
KUVE45-B-SL Rail width: 45 mm | H: 60 mm | B: 86 mm | L: 171.1 mm | C: 82 kN | C0: 181 kN
KUVE45-B-SNL Rail width: 45 mm | H: 52 mm | B: 86 mm | L: 171.1 mm | C: 82 kN | C0: 181 kN
KUVE55-B-S Rail width: 53 mm | H: 70 mm | B: 100 mm | L: 172 mm | C: 104 kN | C0: 213 kN
KUVE55-B-SL Rail width: 53 mm | H: 70 mm | B: 100 mm | L: 210 mm | C: 127 kN | C0: 285 kN
