INA KUVE..-B Monorail Assemblies (Standard, L, N, NL Carriages)

INA KUVE..-B Monorail Assemblies (Standard, L, N, NL Carriages)

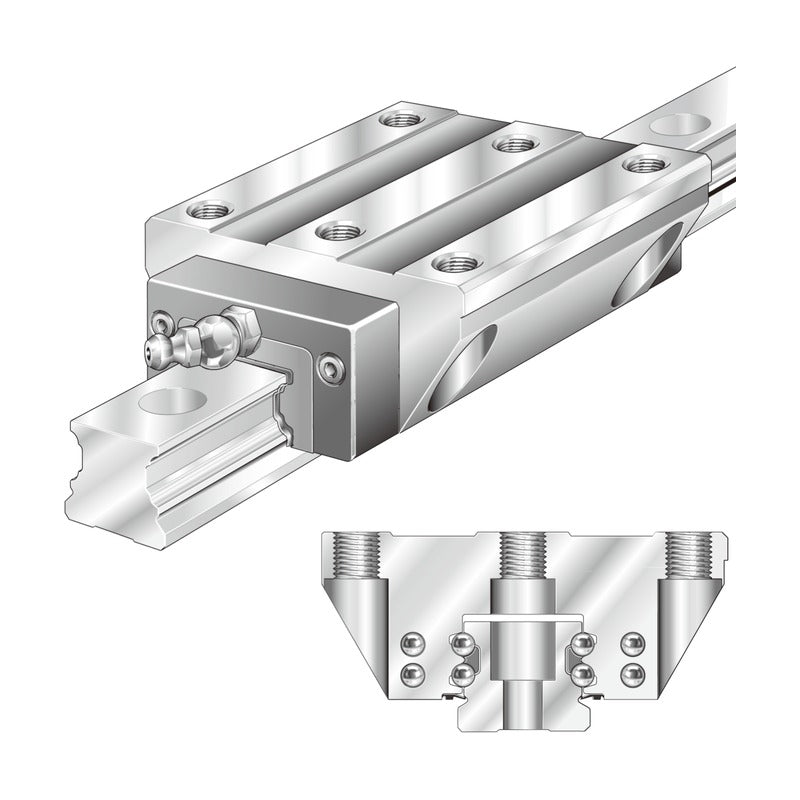

INA KUVE..-B four-row linear recirculating ball bearing and guideway assemblies with flanged standard (and long L) carriages, also in reduced-height N/NL versions.

Key features

  • Four-row ball recirculation, full complement
  • O-arrangement contact for high moment load capacity
  • Interchangeable carriages and TKVD guideways
  • Lubrication nipple supplied loose with delivery
  • Sizes 15 to 55

Specifications

Brand INA
Product type Linear Guides
Series KUVE..-B
Designations listed 23
Units mm, kN
Source INA Monorail Guidance Systems catalogue, p. 76-79
KUVE15-B Rail width: 15 mm | H: 24 mm | B: 47 mm | L: 59.6 mm | C: 7.2 kN | C0: 14.5 kN
KUVE20-B Rail width: 20 mm | H: 30 mm | B: 63 mm | L: 69.8 mm | C: 13.1 kN | C0: 27 kN
KUVE20-B-L Rail width: 20 mm | H: 30 mm | B: 63 mm | L: 87.3 mm | C: 16.2 kN | C0: 36.5 kN
KUVE20-B-N Rail width: 20 mm | H: 27 mm | B: 63 mm | L: 69.8 mm | C: 13.1 kN | C0: 27 kN
KUVE20-B-NL Rail width: 20 mm | H: 27 mm | B: 63 mm | L: 87.3 mm | C: 16.2 kN | C0: 36.5 kN
KUVE25-B Rail width: 23 mm | H: 36 mm | B: 70 mm | L: 81.7 mm | C: 17.9 kN | C0: 37 kN
KUVE25-B-L Rail width: 23 mm | H: 36 mm | B: 70 mm | L: 107.5 mm | C: 23.4 kN | C0: 54 kN
KUVE25-B-N Rail width: 23 mm | H: 31 mm | B: 70 mm | L: 81.7 mm | C: 17.9 kN | C0: 37 kN
KUVE25-B-NL Rail width: 23 mm | H: 31 mm | B: 70 mm | L: 107.5 mm | C: 23.4 kN | C0: 54 kN
KUVE30-B Rail width: 28 mm | H: 42 mm | B: 90 mm | L: 97.4 mm | C: 27.5 kN | C0: 55 kN
KUVE30-B-L Rail width: 28 mm | H: 42 mm | B: 90 mm | L: 125.4 mm | C: 34.5 kN | C0: 74 kN
KUVE30-B-N Rail width: 28 mm | H: 38 mm | B: 90 mm | L: 97.4 mm | C: 27.5 kN | C0: 55 kN
KUVE30-B-NL Rail width: 28 mm | H: 38 mm | B: 90 mm | L: 125.4 mm | C: 34.5 kN | C0: 74 kN
KUVE35-B Rail width: 34 mm | H: 48 mm | B: 100 mm | L: 110.4 mm | C: 38 kN | C0: 72 kN
KUVE35-B-L Rail width: 34 mm | H: 48 mm | B: 100 mm | L: 143.4 mm | C: 47.5 kN | C0: 100 kN
KUVE35-B-N Rail width: 34 mm | H: 44 mm | B: 100 mm | L: 110.4 mm | C: 38 kN | C0: 72 kN
KUVE35-B-NL Rail width: 34 mm | H: 44 mm | B: 100 mm | L: 143.4 mm | C: 47.5 kN | C0: 100 kN
KUVE45-B Rail width: 45 mm | H: 60 mm | B: 120 mm | L: 139 mm | C: 69 kN | C0: 141 kN
KUVE45-B-L Rail width: 45 mm | H: 60 mm | B: 120 mm | L: 171.1 mm | C: 82 kN | C0: 181 kN
KUVE45-B-N Rail width: 45 mm | H: 52 mm | B: 120 mm | L: 139 mm | C: 69 kN | C0: 141 kN
KUVE45-B-NL Rail width: 45 mm | H: 52 mm | B: 120 mm | L: 171.1 mm | C: 82 kN | C0: 181 kN
KUVE55-B Rail width: 53 mm | H: 70 mm | B: 140 mm | L: 172 mm | C: 104 kN | C0: 213 kN
KUVE55-B-L Rail width: 53 mm | H: 70 mm | B: 140 mm | L: 210 mm | C: 127 kN | C0: 285 kN
