INA KUVE..-W/WL Wide Guideway Monorail Assemblies

INA KUVE..-W/WL Wide Guideway Monorail Assemblies

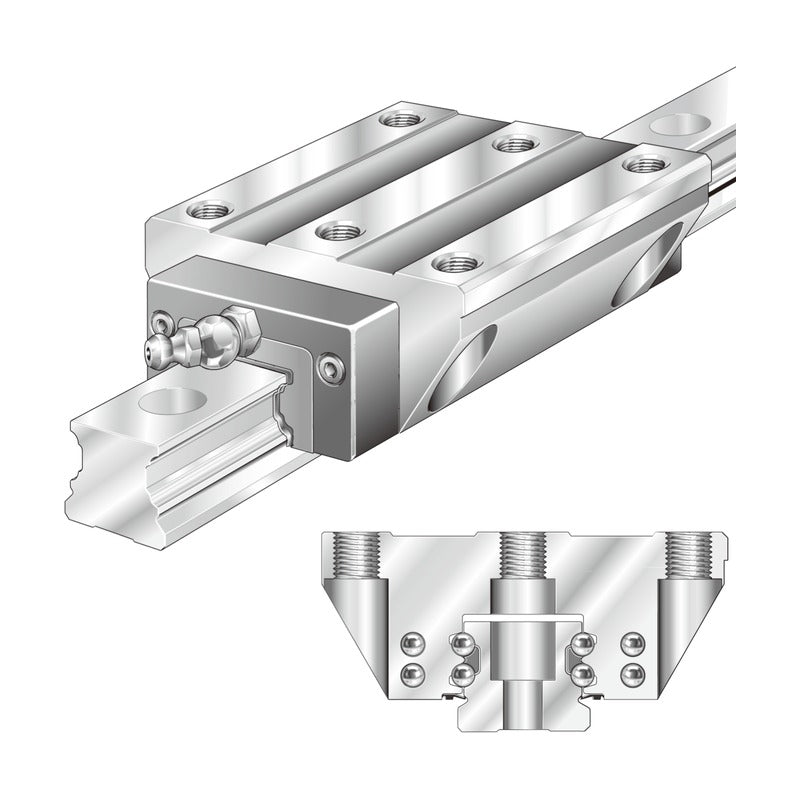

INA KUVE..-W and -WL four-row ball monorail assemblies on wide TKVD..-W guideways for high moment loads with a single guideway.

Key features

  • Four-row ball recirculation, full complement
  • O-arrangement contact for high moment load capacity
  • Interchangeable carriages and TKVD guideways
  • Lubrication nipple supplied loose with delivery
  • Wide guideway for high roll moment capacity

Specifications

Brand INA
Product type Linear Guides
Series KUVE..-W/WL
Designations listed 5
Units mm, kN
Source INA Monorail Guidance Systems catalogue, p. 96-98
KUVE15-W Rail width: 37 mm | H: 21 mm | B: 68 mm | L: 55.6 mm | C: 7.2 kN | C0: 14.5 kN
KUVE20-W Rail width: 42 mm | H: 27 mm | B: 80 mm | L: 69.8 mm | C: 13.1 kN | C0: 27 kN
KUVE25-WL Rail width: 69 mm | H: 35 mm | B: 120 mm | L: 107.5 mm | C: 23.4 kN | C0: 54 kN
KUVE30-W Rail width: 80 mm | H: 42 mm | B: 142 mm | L: 97.6 mm | C: 27.5 kN | C0: 55 kN
KUVE35-WL Rail width: 90 mm | H: 50 mm | B: 162 mm | L: 140.2 mm | C: 47.5 kN | C0: 100 kN
Linear GuidesINA
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA KUVE..-W/WL Wide Guideway Monorail Assemblies

Brand INA·Linear Guides

Available part numbers (5)

KUVE15-W, KUVE20-W, KUVE25-WL, KUVE30-W, KUVE35-WL

How to order

Send the INA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KUVE15-WRail width: 37 mm | H: 21 mm | B: 68 mm | L: 55.6 mm | C: 7.2 kN | C0: 14.5 kN
KUVE20-WRail width: 42 mm | H: 27 mm | B: 80 mm | L: 69.8 mm | C: 13.1 kN | C0: 27 kN
KUVE25-WLRail width: 69 mm | H: 35 mm | B: 120 mm | L: 107.5 mm | C: 23.4 kN | C0: 54 kN
KUVE30-WRail width: 80 mm | H: 42 mm | B: 142 mm | L: 97.6 mm | C: 27.5 kN | C0: 55 kN
KUVE35-WLRail width: 90 mm | H: 50 mm | B: 162 mm | L: 140.2 mm | C: 47.5 kN | C0: 100 kN
