INA LR6 / LR60 / LR2 Single Row Ball Bearing Track Rollers

INA LR6 / LR60 / LR2 Single Row Ball Bearing Track Rollers

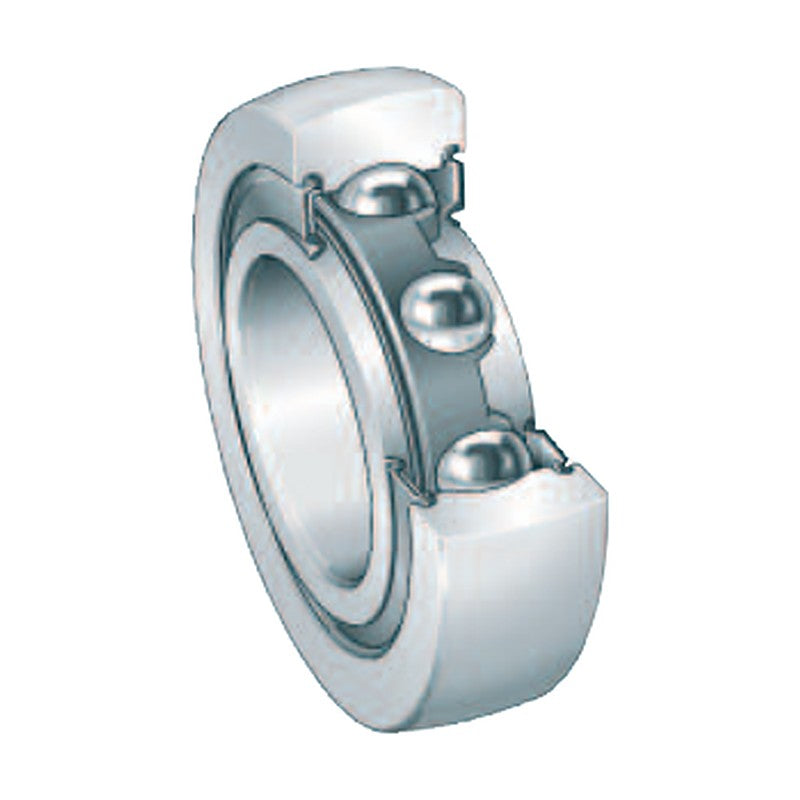

INA single row ball bearing track rollers LR6, LR60 and LR2 based on deep groove ball bearings with thick-walled outer ring, sealed (2RSR, 2RS).

Key features

  • Deep groove ball bearing with thick-walled crowned outer ring
  • X versions with cylindrical outside surface
  • Sealed on both sides; greased for life
  • For linear guidance and conveyor systems

Specifications

Brand INA
Product type Track Rollers
Design Yoke type, single row ball
Outside diameter D 13 - 90 mm
Bore d 4 - 45 mm
Designations listed 25
Source INA Rolling Bearings HR 1 catalogue, p. 864-864
LR604-2RSR D: 13 mm | d: 4 mm | C: 4 mm | Crw: 0.87 kN | C0rw: 0.35 kN | m: 10 g
LR605-2RSR D: 16 mm | d: 5 mm | C: 5 mm | Crw: 1.22 kN | C0rw: 0.51 kN | m: 10 g
LR606-2RSR D: 19 mm | d: 6 mm | C: 6 mm | Crw: 1.84 kN | C0rw: 0.79 kN | m: 10 g
LR607-2RSR D: 22 mm | d: 7 mm | C: 6 mm | Crw: 2.12 kN | C0rw: 0.88 kN | m: 10 g
LR608-2RSR D: 24 mm | d: 8 mm | C: 7 mm | Crw: 2.75 kN | C0rw: 1.24 kN | m: 20 g
LR6000-2RSR D: 28 mm | d: 10 mm | C: 8 mm | Crw: 4.55 kN | C0rw: 2.5 kN | m: 20 g
LR6001-2RSR D: 30 mm | d: 12 mm | C: 8 mm | Crw: 4.75 kN | C0rw: 2.8 kN | m: 30 g
LR200-2RS D: 32 mm | d: 10 mm | C: 9 mm | Crw: 4.85 kN | C0rw: 2.31 kN | m: 50 g
LR200-X-2RS D: 32 mm | d: 10 mm | C: 9 mm | Crw: 4.85 kN | C0rw: 2.31 kN | m: 50 g
LR201-2RSR D: 35 mm | d: 12 mm | C: 10 mm | Crw: 5.6 kN | C0rw: 2.75 kN | m: 50 g
LR201-X-2RSR D: 35 mm | d: 12 mm | C: 10 mm | Crw: 5.6 kN | C0rw: 2.75 kN | m: 50 g
LR202-2RSR D: 40 mm | d: 15 mm | C: 11 mm | Crw: 6.6 kN | C0rw: 3.35 kN | m: 70 g
LR202-X-2RSR D: 40 mm | d: 15 mm | C: 11 mm | Crw: 6.6 kN | C0rw: 3.35 kN | m: 70 g
LR203-2RSR D: 47 mm | d: 17 mm | C: 12 mm | Crw: 8.5 kN | C0rw: 4.45 kN | m: 110 g
LR203-X-2RSR D: 47 mm | d: 17 mm | C: 12 mm | Crw: 8.5 kN | C0rw: 4.45 kN | m: 110 g
LR204-2RSR D: 52 mm | d: 20 mm | C: 14 mm | Crw: 10.6 kN | C0rw: 5.7 kN | m: 150 g
LR204-X-2RSR D: 52 mm | d: 20 mm | C: 14 mm | Crw: 10.6 kN | C0rw: 5.7 kN | m: 150 g
LR205-2RSR D: 62 mm | d: 25 mm | C: 15 mm | Crw: 12.5 kN | C0rw: 7.1 kN | m: 230 g
LR205-X-2RSR D: 62 mm | d: 25 mm | C: 15 mm | Crw: 12.5 kN | C0rw: 7.1 kN | m: 230 g
LR206-2RS D: 72 mm | d: 30 mm | C: 16 mm | Crw: 16.6 kN | C0rw: 9.7 kN | m: 330 g
LR206-X-2RS D: 72 mm | d: 30 mm | C: 16 mm | Crw: 16.6 kN | C0rw: 9.7 kN | m: 330 g
LR207-2RS D: 80 mm | d: 35 mm | C: 17 mm | Crw: 20.4 kN | C0rw: 12.1 kN | m: 400 g
LR207-X-2RS D: 80 mm | d: 35 mm | C: 17 mm | Crw: 20.4 kN | C0rw: 12.1 kN | m: 400 g
LR209-2RS D: 90 mm | d: 45 mm | C: 19 mm | Crw: 22.4 kN | C0rw: 13.7 kN | m: 500 g
LR209-X-2RS D: 90 mm | d: 45 mm | C: 19 mm | Crw: 22.4 kN | C0rw: 13.7 kN | m: 500 g
Track RollersINA
25 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA LR6 / LR60 / LR2 Single Row Ball Bearing Track Rollers

Brand INA·Track Rollers

Available part numbers (25)

LR604-2RSR, LR605-2RSR, LR606-2RSR, LR607-2RSR, LR608-2RSR, LR6000-2RSR, LR6001-2RSR, LR200-2RS, LR200-X-2RS, LR201-2RSR + 15 more — see full table ↓

How to order

Send the INA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LR604-2RSRD: 13 mm | d: 4 mm | C: 4 mm | Crw: 0.87 kN | C0rw: 0.35 kN | m: 10 g
LR605-2RSRD: 16 mm | d: 5 mm | C: 5 mm | Crw: 1.22 kN | C0rw: 0.51 kN | m: 10 g
LR606-2RSRD: 19 mm | d: 6 mm | C: 6 mm | Crw: 1.84 kN | C0rw: 0.79 kN | m: 10 g
LR607-2RSRD: 22 mm | d: 7 mm | C: 6 mm | Crw: 2.12 kN | C0rw: 0.88 kN | m: 10 g
LR608-2RSRD: 24 mm | d: 8 mm | C: 7 mm | Crw: 2.75 kN | C0rw: 1.24 kN | m: 20 g
LR6000-2RSRD: 28 mm | d: 10 mm | C: 8 mm | Crw: 4.55 kN | C0rw: 2.5 kN | m: 20 g
LR6001-2RSRD: 30 mm | d: 12 mm | C: 8 mm | Crw: 4.75 kN | C0rw: 2.8 kN | m: 30 g
LR200-2RSD: 32 mm | d: 10 mm | C: 9 mm | Crw: 4.85 kN | C0rw: 2.31 kN | m: 50 g
LR200-X-2RSD: 32 mm | d: 10 mm | C: 9 mm | Crw: 4.85 kN | C0rw: 2.31 kN | m: 50 g
LR201-2RSRD: 35 mm | d: 12 mm | C: 10 mm | Crw: 5.6 kN | C0rw: 2.75 kN | m: 50 g
LR201-X-2RSRD: 35 mm | d: 12 mm | C: 10 mm | Crw: 5.6 kN | C0rw: 2.75 kN | m: 50 g
LR202-2RSRD: 40 mm | d: 15 mm | C: 11 mm | Crw: 6.6 kN | C0rw: 3.35 kN | m: 70 g
LR202-X-2RSRD: 40 mm | d: 15 mm | C: 11 mm | Crw: 6.6 kN | C0rw: 3.35 kN | m: 70 g
LR203-2RSRD: 47 mm | d: 17 mm | C: 12 mm | Crw: 8.5 kN | C0rw: 4.45 kN | m: 110 g
LR203-X-2RSRD: 47 mm | d: 17 mm | C: 12 mm | Crw: 8.5 kN | C0rw: 4.45 kN | m: 110 g
LR204-2RSRD: 52 mm | d: 20 mm | C: 14 mm | Crw: 10.6 kN | C0rw: 5.7 kN | m: 150 g
LR204-X-2RSRD: 52 mm | d: 20 mm | C: 14 mm | Crw: 10.6 kN | C0rw: 5.7 kN | m: 150 g
LR205-2RSRD: 62 mm | d: 25 mm | C: 15 mm | Crw: 12.5 kN | C0rw: 7.1 kN | m: 230 g
LR205-X-2RSRD: 62 mm | d: 25 mm | C: 15 mm | Crw: 12.5 kN | C0rw: 7.1 kN | m: 230 g
LR206-2RSD: 72 mm | d: 30 mm | C: 16 mm | Crw: 16.6 kN | C0rw: 9.7 kN | m: 330 g
LR206-X-2RSD: 72 mm | d: 30 mm | C: 16 mm | Crw: 16.6 kN | C0rw: 9.7 kN | m: 330 g
LR207-2RSD: 80 mm | d: 35 mm | C: 17 mm | Crw: 20.4 kN | C0rw: 12.1 kN | m: 400 g
LR207-X-2RSD: 80 mm | d: 35 mm | C: 17 mm | Crw: 20.4 kN | C0rw: 12.1 kN | m: 400 g
LR209-2RSD: 90 mm | d: 45 mm | C: 19 mm | Crw: 22.4 kN | C0rw: 13.7 kN | m: 500 g
LR209-X-2RSD: 90 mm | d: 45 mm | C: 19 mm | Crw: 22.4 kN | C0rw: 13.7 kN | m: 500 g
