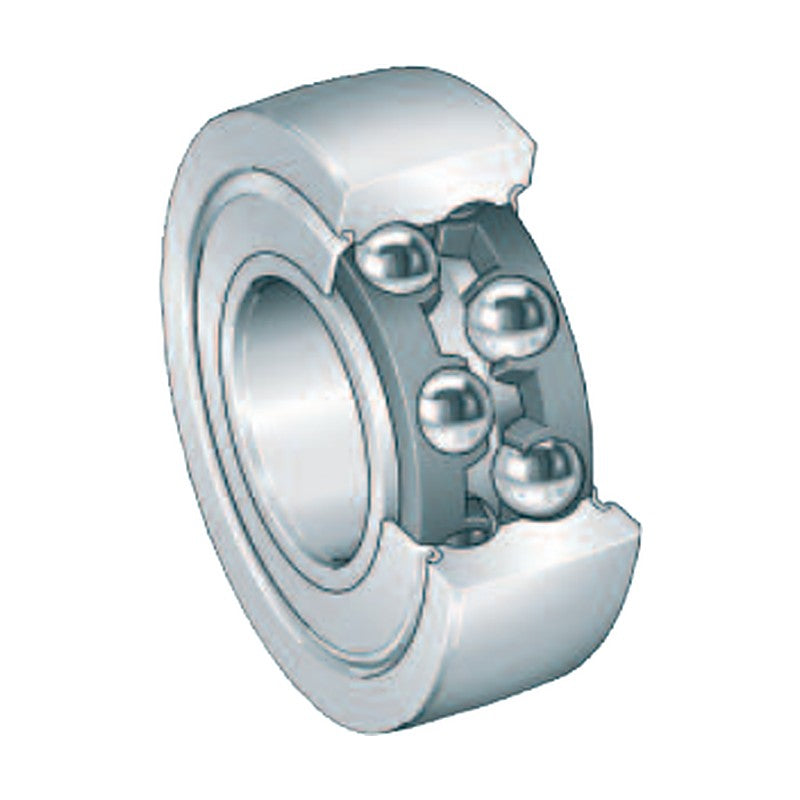

INA LR50 / LR52 / LR53 Double Row Ball Bearing Track Rollers

INA LR50 / LR52 / LR53 Double Row Ball Bearing Track Rollers

INA double row ball bearing track rollers LR50, LR52 and LR53 based on angular contact ball bearings, sealed with lip seals (2RS, 2RSR) or gap seals (2Z).

Key features

  • Double row angular contact ball design for radial and axial loads
  • Thick-walled crowned outer ring; X versions cylindrical
  • Sealed on both sides; greased
  • For guide systems and handling equipment

Specifications

Brand INA
Product type Track Rollers
Design Yoke type, double row ball
Outside diameter D 17 - 100 mm
Bore d 5 - 40 mm
Designations listed 50
Source INA Rolling Bearings HR 1 catalogue, p. 865-867
LR50/5-2RSR D: 17 mm | d: 5 mm | C: 7 mm | Crw: 1.69 kN | C0rw: 0.94 kN | m: 10 g
LR50/6-2RSR D: 19 mm | d: 6 mm | C: 9 mm | Crw: 2.7 kN | C0rw: 1.37 kN | m: 20 g
LR50/7-2RSR D: 22 mm | d: 7 mm | C: 10 mm | Crw: 3.3 kN | C0rw: 1.7 kN | m: 20 g
LR50/8-2RSR D: 24 mm | d: 8 mm | C: 11 mm | Crw: 4.3 kN | C0rw: 2.39 kN | m: 30 g
LR5000-2RS D: 28 mm | d: 10 mm | C: 12 mm | Crw: 4.75 kN | C0rw: 2.85 kN | m: 30 g
LR5001-2RS D: 30 mm | d: 12 mm | C: 12 mm | Crw: 5.1 kN | C0rw: 3.1 kN | m: 30 g
LR5200-2Z D: 32 mm | d: 10 mm | C: 14 mm | Crw: 6.8 kN | C0rw: 4.1 kN | m: 70 g
LR5200-X-2Z D: 32 mm | d: 10 mm | C: 14 mm | Crw: 6.8 kN | C0rw: 4.1 kN | m: 70 g
LR5200-2RS D: 32 mm | d: 10 mm | C: 14 mm | Crw: 6.8 kN | C0rw: 4.1 kN | m: 70 g
LR5002-2RS D: 35 mm | d: 15 mm | C: 13 mm | Crw: 6.5 kN | C0rw: 4.15 kN | m: 50 g
LR5201-2Z D: 35 mm | d: 12 mm | C: 15.9 mm | Crw: 8.7 kN | C0rw: 5.2 kN | m: 80 g
LR5201-X-2Z D: 35 mm | d: 12 mm | C: 15.9 mm | Crw: 8.7 kN | C0rw: 5.2 kN | m: 80 g
LR5201-2RS D: 35 mm | d: 12 mm | C: 15.9 mm | Crw: 8.7 kN | C0rw: 5.2 kN | m: 80 g
LR5003-2RS D: 40 mm | d: 17 mm | C: 14 mm | Crw: 7.8 kN | C0rw: 5.3 kN | m: 70 g
LR5202-2Z D: 40 mm | d: 15 mm | C: 15.9 mm | Crw: 10 kN | C0rw: 6.3 kN | m: 110 g
LR5202-X-2Z D: 40 mm | d: 15 mm | C: 15.9 mm | Crw: 10 kN | C0rw: 6.3 kN | m: 110 g
LR5202-2RS D: 40 mm | d: 15 mm | C: 15.9 mm | Crw: 10 kN | C0rw: 6.3 kN | m: 110 g
LR5004-2RS D: 47 mm | d: 20 mm | C: 16 mm | Crw: 11.7 kN | C0rw: 7.7 kN | m: 120 g
LR5203-2Z D: 47 mm | d: 17 mm | C: 17.5 mm | Crw: 12.8 kN | C0rw: 8.4 kN | m: 170 g
LR5203-X-2Z D: 47 mm | d: 17 mm | C: 17.5 mm | Crw: 12.8 kN | C0rw: 8.4 kN | m: 170 g
LR5203-2RS D: 47 mm | d: 17 mm | C: 17.5 mm | Crw: 12.8 kN | C0rw: 8.4 kN | m: 170 g
LR5005-2RS D: 52 mm | d: 25 mm | C: 16 mm | Crw: 11.8 kN | C0rw: 8.2 kN | m: 150 g
LR5204-2Z D: 52 mm | d: 20 mm | C: 20.6 mm | Crw: 16.1 kN | C0rw: 10.7 kN | m: 230 g
LR5204-X-2Z D: 52 mm | d: 20 mm | C: 20.6 mm | Crw: 16.1 kN | C0rw: 10.7 kN | m: 230 g
LR5204-2RS D: 52 mm | d: 20 mm | C: 20.6 mm | Crw: 16.1 kN | C0rw: 10.7 kN | m: 230 g
LR5303-2RS D: 52 mm | d: 17 mm | C: 22.2 mm | Crw: 17.5 kN | C0rw: 11.3 kN | m: 210 g
LR5006-2RS D: 62 mm | d: 30 mm | C: 19 mm | Crw: 16.1 kN | C0rw: 11.9 kN | m: 250 g
LR5205-2Z D: 62 mm | d: 25 mm | C: 20.6 mm | Crw: 18.8 kN | C0rw: 13.2 kN | m: 340 g
LR5205-X-2Z D: 62 mm | d: 25 mm | C: 20.6 mm | Crw: 18.8 kN | C0rw: 13.2 kN | m: 340 g
LR5205-2RS D: 62 mm | d: 25 mm | C: 20.6 mm | Crw: 18.8 kN | C0rw: 13.2 kN | m: 340 g
LR5304-2Z D: 62 mm | d: 20 mm | C: 22.2 mm | Crw: 21.5 kN | C0rw: 14.8 kN | m: 340 g
LR5304-2RS D: 62 mm | d: 20 mm | C: 22.2 mm | Crw: 21.5 kN | C0rw: 14.8 kN | m: 340 g
LR5007-2RS D: 68 mm | d: 35 mm | C: 20 mm | Crw: 17.8 kN | C0rw: 13.3 kN | m: 300 g
LR5206-2Z D: 72 mm | d: 30 mm | C: 23.8 mm | Crw: 25 kN | C0rw: 18 kN | m: 510 g
LR5206-X-2Z D: 72 mm | d: 30 mm | C: 23.8 mm | Crw: 25 kN | C0rw: 18 kN | m: 510 g
LR5206-2RS D: 72 mm | d: 30 mm | C: 23.8 mm | Crw: 25 kN | C0rw: 18 kN | m: 510 g
LR5305-2Z D: 72 mm | d: 25 mm | C: 25.4 mm | Crw: 28 kN | C0rw: 19.9 kN | m: 500 g
LR5305-2RS D: 72 mm | d: 25 mm | C: 25.4 mm | Crw: 28 kN | C0rw: 19.9 kN | m: 500 g
LR5207-2Z D: 80 mm | d: 35 mm | C: 27 mm | Crw: 31 kN | C0rw: 22.8 kN | m: 660 g
LR5207-X-2Z D: 80 mm | d: 35 mm | C: 27 mm | Crw: 31 kN | C0rw: 22.8 kN | m: 660 g
LR5207-2RS D: 80 mm | d: 35 mm | C: 27 mm | Crw: 31 kN | C0rw: 22.8 kN | m: 660 g
LR5306-2Z D: 80 mm | d: 30 mm | C: 30.2 mm | Crw: 35.5 kN | C0rw: 25.5 kN | m: 670 g
LR5306-2RS D: 80 mm | d: 30 mm | C: 30.2 mm | Crw: 35.5 kN | C0rw: 25.5 kN | m: 670 g
LR5208-2Z D: 85 mm | d: 40 mm | C: 30.2 mm | Crw: 35 kN | C0rw: 26 kN | m: 750 g
LR5208-X-2Z D: 85 mm | d: 40 mm | C: 30.2 mm | Crw: 35 kN | C0rw: 26 kN | m: 750 g
LR5208-2RS D: 85 mm | d: 40 mm | C: 30.2 mm | Crw: 35 kN | C0rw: 26 kN | m: 750 g
LR5307-2Z D: 90 mm | d: 35 mm | C: 34.9 mm | Crw: 44 kN | C0rw: 32.5 kN | m: 970 g
LR5307-2RS D: 90 mm | d: 35 mm | C: 34.9 mm | Crw: 44 kN | C0rw: 32.5 kN | m: 970 g
LR5308-2Z D: 100 mm | d: 40 mm | C: 36.5 mm | Crw: 54 kN | C0rw: 40.5 kN | m: 1200 g
LR5308-2RS D: 100 mm | d: 40 mm | C: 36.5 mm | Crw: 54 kN | C0rw: 40.5 kN | m: 1200 g
