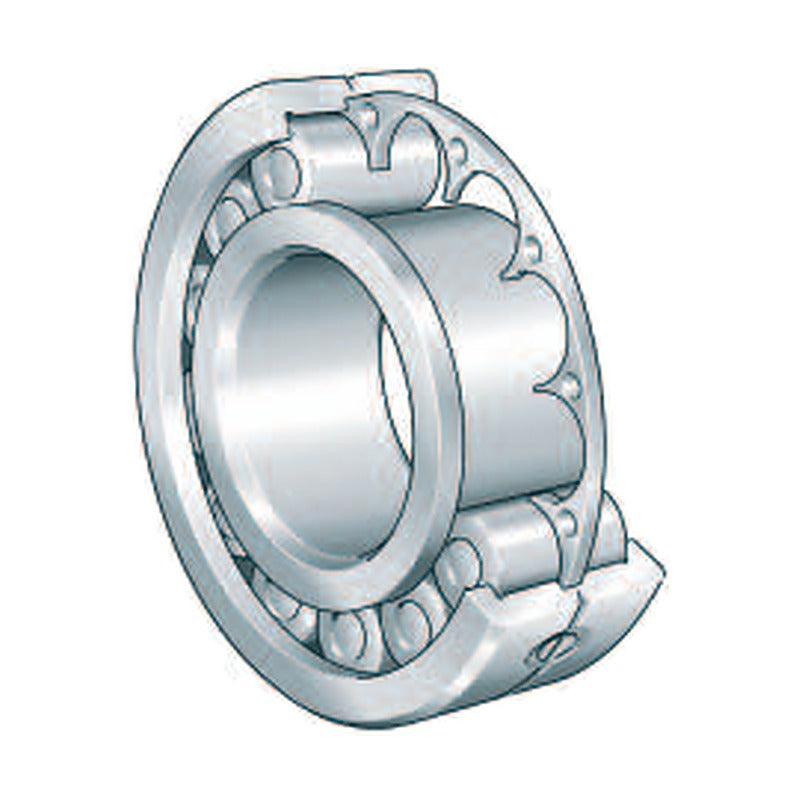

INA LSL1923 Cylindrical Roller Bearings (Disc Cage)

INA LSL1923 Cylindrical Roller Bearings (Disc Cage)

INA LSL1923 single row cylindrical roller bearings with disc cage, semi-locating, combining near full complement capacity with a cage.

Key features

  • Single row cylindrical roller bearings with disc cage
  • Semi-locating bearing, axial loads in one direction
  • Higher speed capability than full complement designs
  • TB design with increased axial capacity where printed

Specifications

Bearing type Cylindrical roller bearing, disc cage
Series LSL1923
Function Semi-locating
Operating temp. -30 to +120 C
Load ratings C dynamic, C0 static radial
Brand INA (Schaeffler)
Source INA Rolling Bearings catalogue HR 1, p. 402-403
LSL192316 d: 80 mm | D: 170 mm | B: 58 mm | C: 475 kN | C0: 495 kN | nG: 8300 rpm
LSL192317 d: 85 mm | D: 180 mm | B: 60 mm | C: 500 kN | C0: 520 kN | nG: 7800 rpm
LSL192318-TB d: 90 mm | D: 190 mm | B: 64 mm | C: 590 kN | C0: 610 kN | nG: 7400 rpm
LSL192319-TB d: 95 mm | D: 200 mm | B: 67 mm | C: 610 kN | C0: 660 kN | nG: 6900 rpm
LSL192320-TB d: 100 mm | D: 215 mm | B: 73 mm | C: 750 kN | C0: 790 kN | nG: 6500 rpm
LSL192322-TB d: 110 mm | D: 240 mm | B: 80 mm | C: 880 kN | C0: 930 kN | nG: 5800 rpm
LSL192324-TB d: 120 mm | D: 260 mm | B: 86 mm | C: 1060 kN | C0: 1140 kN | nG: 5300 rpm
LSL192326-TB d: 130 mm | D: 280 mm | B: 93 mm | C: 1190 kN | C0: 1280 kN | nG: 4950 rpm
LSL192328-TB d: 140 mm | D: 300 mm | B: 102 mm | C: 1340 kN | C0: 1460 kN | nG: 4600 rpm
LSL192330-TB d: 150 mm | D: 320 mm | B: 108 mm | C: 1410 kN | C0: 1760 kN | nG: 4250 rpm
LSL192332-TB d: 160 mm | D: 340 mm | B: 114 mm | C: 1600 kN | C0: 2010 kN | nG: 3950 rpm
LSL192334-TB d: 170 mm | D: 360 mm | B: 120 mm | C: 1740 kN | C0: 2210 kN | nG: 3800 rpm
LSL192336-TB d: 180 mm | D: 380 mm | B: 126 mm | C: 1840 kN | C0: 2430 kN | nG: 3600 rpm
LSL192338-TB d: 190 mm | D: 400 mm | B: 132 mm | C: 2100 kN | C0: 2750 kN | nG: 3450 rpm
LSL192340-TB d: 200 mm | D: 420 mm | B: 138 mm | C: 2340 kN | C0: 3050 kN | nG: 3250 rpm
LSL192344-TB d: 220 mm | D: 460 mm | B: 145 mm | C: 2500 kN | C0: 3200 kN | nG: 2900 rpm
LSL192348-TB d: 240 mm | D: 500 mm | B: 155 mm | C: 2750 kN | C0: 3550 kN | nG: 2750 rpm
LSL192352-TB d: 260 mm | D: 540 mm | B: 165 mm | C: 3350 kN | C0: 4350 kN | nG: 2470 rpm
LSL192356-TB d: 280 mm | D: 580 mm | B: 175 mm | C: 3700 kN | C0: 4850 kN | nG: 2330 rpm
LSL192360-TB d: 300 mm | D: 620 mm | B: 185 mm | C: 4150 kN | C0: 5500 kN | nG: 2220 rpm
Cylindrical Roller BearingsINA
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA LSL1923 Cylindrical Roller Bearings (Disc Cage)

Brand INA·Cylindrical Roller Bearings

Available part numbers (20)

LSL192316, LSL192317, LSL192318-TB, LSL192319-TB, LSL192320-TB, LSL192322-TB, LSL192324-TB, LSL192326-TB, LSL192328-TB, LSL192330-TB + 10 more — see full table ↓

How to order

Send the INA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LSL192316d: 80 mm | D: 170 mm | B: 58 mm | C: 475 kN | C0: 495 kN | nG: 8300 rpm
LSL192317d: 85 mm | D: 180 mm | B: 60 mm | C: 500 kN | C0: 520 kN | nG: 7800 rpm
LSL192318-TBd: 90 mm | D: 190 mm | B: 64 mm | C: 590 kN | C0: 610 kN | nG: 7400 rpm
LSL192319-TBd: 95 mm | D: 200 mm | B: 67 mm | C: 610 kN | C0: 660 kN | nG: 6900 rpm
LSL192320-TBd: 100 mm | D: 215 mm | B: 73 mm | C: 750 kN | C0: 790 kN | nG: 6500 rpm
LSL192322-TBd: 110 mm | D: 240 mm | B: 80 mm | C: 880 kN | C0: 930 kN | nG: 5800 rpm
LSL192324-TBd: 120 mm | D: 260 mm | B: 86 mm | C: 1060 kN | C0: 1140 kN | nG: 5300 rpm
LSL192326-TBd: 130 mm | D: 280 mm | B: 93 mm | C: 1190 kN | C0: 1280 kN | nG: 4950 rpm
LSL192328-TBd: 140 mm | D: 300 mm | B: 102 mm | C: 1340 kN | C0: 1460 kN | nG: 4600 rpm
LSL192330-TBd: 150 mm | D: 320 mm | B: 108 mm | C: 1410 kN | C0: 1760 kN | nG: 4250 rpm
LSL192332-TBd: 160 mm | D: 340 mm | B: 114 mm | C: 1600 kN | C0: 2010 kN | nG: 3950 rpm
LSL192334-TBd: 170 mm | D: 360 mm | B: 120 mm | C: 1740 kN | C0: 2210 kN | nG: 3800 rpm
LSL192336-TBd: 180 mm | D: 380 mm | B: 126 mm | C: 1840 kN | C0: 2430 kN | nG: 3600 rpm
LSL192338-TBd: 190 mm | D: 400 mm | B: 132 mm | C: 2100 kN | C0: 2750 kN | nG: 3450 rpm
LSL192340-TBd: 200 mm | D: 420 mm | B: 138 mm | C: 2340 kN | C0: 3050 kN | nG: 3250 rpm
LSL192344-TBd: 220 mm | D: 460 mm | B: 145 mm | C: 2500 kN | C0: 3200 kN | nG: 2900 rpm
LSL192348-TBd: 240 mm | D: 500 mm | B: 155 mm | C: 2750 kN | C0: 3550 kN | nG: 2750 rpm
LSL192352-TBd: 260 mm | D: 540 mm | B: 165 mm | C: 3350 kN | C0: 4350 kN | nG: 2470 rpm
LSL192356-TBd: 280 mm | D: 580 mm | B: 175 mm | C: 3700 kN | C0: 4850 kN | nG: 2330 rpm
LSL192360-TBd: 300 mm | D: 620 mm | B: 185 mm | C: 4150 kN | C0: 5500 kN | nG: 2220 rpm
