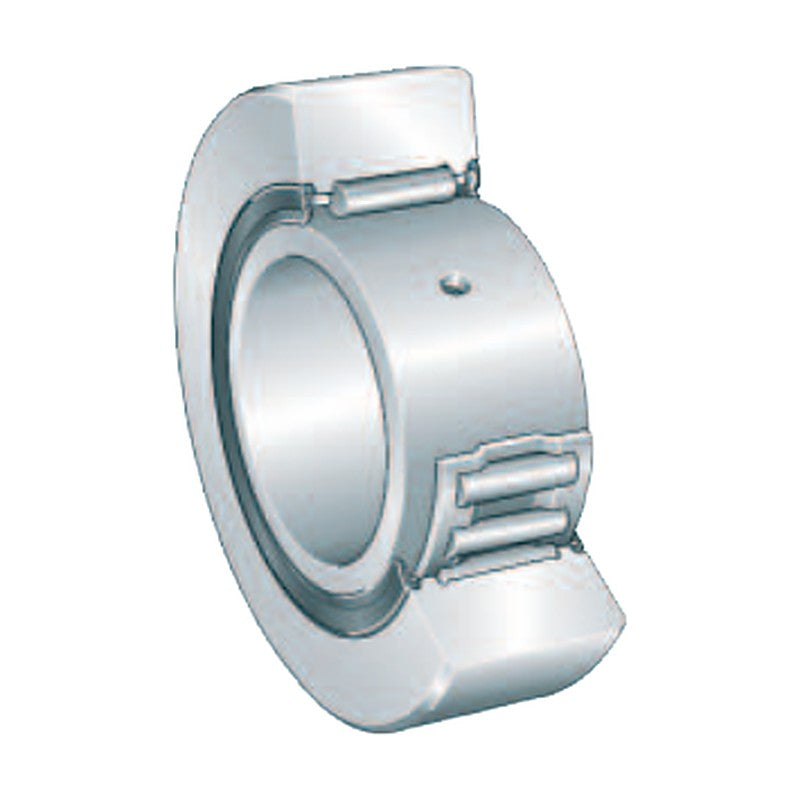

INA NA22..-2RSR Yoke Type Track Rollers with Inner Ring

INA NA22..-2RSR Yoke Type Track Rollers with Inner Ring

INA yoke type track rollers NA22..-2RSR with inner ring, sealed on both sides, without axial guidance.

Key features

  • Lip seals on both sides; greased
  • With inner ring for mounting on bolt or shaft
  • Without axial guidance
  • Crowned outer ring

Specifications

Brand INA
Product type Track Rollers
Design Yoke type, sealed, inner ring
Outside diameter D 19 - 90 mm
Bore d 6 - 50 mm
Designations listed 12
Source INA Rolling Bearings HR 1 catalogue, p. 843-843
NA22/6-2RSR D: 19 mm | d: 6 mm | C: 11.8 mm | Crw: 3.9 kN | C0rw: 3.7 kN | m: 22 g
NA22/8-2RSR D: 24 mm | d: 8 mm | C: 11.8 mm | Crw: 4.8 kN | C0rw: 4.3 kN | m: 34 g
NA2200-2RSR D: 30 mm | d: 10 mm | C: 13.8 mm | Crw: 7 kN | C0rw: 6.9 kN | m: 60 g
NA2201-2RSR D: 32 mm | d: 12 mm | C: 13.8 mm | Crw: 7.5 kN | C0rw: 8.3 kN | m: 67 g
NA2202-2RSR D: 35 mm | d: 15 mm | C: 13.8 mm | Crw: 7.6 kN | C0rw: 9.8 kN | m: 75 g
NA2203-2RSR D: 40 mm | d: 17 mm | C: 15.8 mm | Crw: 9.9 kN | C0rw: 14 kN | m: 112 g
NA2204-2RSR D: 47 mm | d: 20 mm | C: 17.8 mm | Crw: 14 kN | C0rw: 19.1 kN | m: 177 g
NA2205-2RSR D: 52 mm | d: 25 mm | C: 17.8 mm | Crw: 14.4 kN | C0rw: 20.8 kN | m: 209 g
NA2206-2RSR D: 62 mm | d: 30 mm | C: 19.8 mm | Crw: 17.1 kN | C0rw: 26 kN | m: 324 g
NA2207-2RSR D: 72 mm | d: 35 mm | C: 22.7 mm | Crw: 21.5 kN | C0rw: 36 kN | m: 505 g
NA2208-2RSR D: 80 mm | d: 40 mm | C: 22.7 mm | Crw: 26 kN | C0rw: 41 kN | m: 628 g
NA2210-2RSR D: 90 mm | d: 50 mm | C: 22.7 mm | Crw: 26 kN | C0rw: 43 kN | m: 690 g
Track RollersINA
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA NA22..-2RSR Yoke Type Track Rollers with Inner Ring

Brand INA·Track Rollers

Available part numbers (12)

NA22/6-2RSR, NA22/8-2RSR, NA2200-2RSR, NA2201-2RSR, NA2202-2RSR, NA2203-2RSR, NA2204-2RSR, NA2205-2RSR, NA2206-2RSR, NA2207-2RSR + 2 more — see full table ↓

How to order

Send the INA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NA22/6-2RSRD: 19 mm | d: 6 mm | C: 11.8 mm | Crw: 3.9 kN | C0rw: 3.7 kN | m: 22 g
NA22/8-2RSRD: 24 mm | d: 8 mm | C: 11.8 mm | Crw: 4.8 kN | C0rw: 4.3 kN | m: 34 g
NA2200-2RSRD: 30 mm | d: 10 mm | C: 13.8 mm | Crw: 7 kN | C0rw: 6.9 kN | m: 60 g
NA2201-2RSRD: 32 mm | d: 12 mm | C: 13.8 mm | Crw: 7.5 kN | C0rw: 8.3 kN | m: 67 g
NA2202-2RSRD: 35 mm | d: 15 mm | C: 13.8 mm | Crw: 7.6 kN | C0rw: 9.8 kN | m: 75 g
NA2203-2RSRD: 40 mm | d: 17 mm | C: 15.8 mm | Crw: 9.9 kN | C0rw: 14 kN | m: 112 g
NA2204-2RSRD: 47 mm | d: 20 mm | C: 17.8 mm | Crw: 14 kN | C0rw: 19.1 kN | m: 177 g
NA2205-2RSRD: 52 mm | d: 25 mm | C: 17.8 mm | Crw: 14.4 kN | C0rw: 20.8 kN | m: 209 g
NA2206-2RSRD: 62 mm | d: 30 mm | C: 19.8 mm | Crw: 17.1 kN | C0rw: 26 kN | m: 324 g
NA2207-2RSRD: 72 mm | d: 35 mm | C: 22.7 mm | Crw: 21.5 kN | C0rw: 36 kN | m: 505 g
NA2208-2RSRD: 80 mm | d: 40 mm | C: 22.7 mm | Crw: 26 kN | C0rw: 41 kN | m: 628 g
NA2210-2RSRD: 90 mm | d: 50 mm | C: 22.7 mm | Crw: 26 kN | C0rw: 43 kN | m: 690 g
