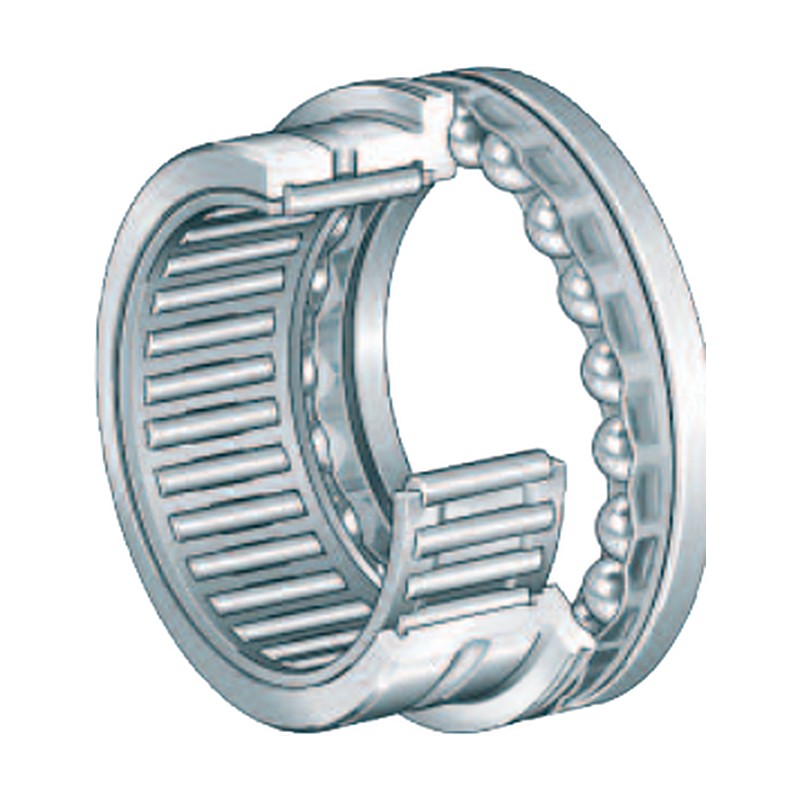

INA NKX / NKX..-Z Needle Roller / Axial Deep Groove Ball Bearings

INA NKX / NKX..-Z Needle Roller / Axial Deep Groove Ball Bearings

INA combined needle roller / axial deep groove ball bearings NKX without end cap and NKX..-Z with end cap, without inner ring.

Key features

  • Radial needle bearing and full complement axial ball bearing in one unit
  • Axial load capacity in one direction
  • NKX..-Z with end cap for grease retention
  • Suitable inner rings IR listed separately

Specifications

Brand INA
Product type Needle Roller Bearings
Design Needle / axial ball
Inner ring Without (IR separately)
Shaft (Fw) 10 - 70 mm
Outside diameter D 19 - 85 mm
Source INA Rolling Bearings HR 1 catalogue, p. 700-701
NKX10-TV Fw: 10 mm | D: 19 mm | C: 23 mm | Cr: 7 kN | Ca: 10 kN | m: 34 g
NKX10-Z-TV Fw: 10 mm | D: 19 mm | C: 23 mm | Cr: 7 kN | Ca: 10 kN | m: 36 g
NKX12 Fw: 12 mm | D: 21 mm | C: 23 mm | Cr: 10.1 kN | Ca: 10.3 kN | m: 38 g
NKX12-Z Fw: 12 mm | D: 21 mm | C: 23 mm | Cr: 10.1 kN | Ca: 10.3 kN | m: 40 g
NKX15 Fw: 15 mm | D: 24 mm | C: 23 mm | Cr: 12.1 kN | Ca: 10.5 kN | m: 44 g
NKX15-Z Fw: 15 mm | D: 24 mm | C: 23 mm | Cr: 12.1 kN | Ca: 10.5 kN | m: 47 g
NKX17 Fw: 17 mm | D: 26 mm | C: 25 mm | Cr: 13.5 kN | Ca: 10.8 kN | m: 53 g
NKX17-Z Fw: 17 mm | D: 26 mm | C: 25 mm | Cr: 13.5 kN | Ca: 10.8 kN | m: 55 g
NKX20 Fw: 20 mm | D: 30 mm | C: 30 mm | Cr: 18.6 kN | Ca: 14.3 kN | m: 83 g
NKX20-Z Fw: 20 mm | D: 30 mm | C: 30 mm | Cr: 18.6 kN | Ca: 14.3 kN | m: 90 g
NKX25 Fw: 25 mm | D: 37 mm | C: 30 mm | Cr: 21.3 kN | Ca: 19.6 kN | m: 125 g
NKX25-Z Fw: 25 mm | D: 37 mm | C: 30 mm | Cr: 21.3 kN | Ca: 19.6 kN | m: 132 g
NKX30 Fw: 30 mm | D: 42 mm | C: 30 mm | Cr: 25.5 kN | Ca: 20.4 kN | m: 141 g
NKX30-Z Fw: 30 mm | D: 42 mm | C: 30 mm | Cr: 25.5 kN | Ca: 20.4 kN | m: 148 g
NKX35 Fw: 35 mm | D: 47 mm | C: 30 mm | Cr: 27.5 kN | Ca: 21.2 kN | m: 163 g
NKX35-Z Fw: 35 mm | D: 47 mm | C: 30 mm | Cr: 27.5 kN | Ca: 21.2 kN | m: 168 g
NKX40 Fw: 40 mm | D: 52 mm | C: 32 mm | Cr: 29.5 kN | Ca: 27 kN | m: 200 g
NKX40-Z Fw: 40 mm | D: 52 mm | C: 32 mm | Cr: 29.5 kN | Ca: 27 kN | m: 208 g
NKX45 Fw: 45 mm | D: 58 mm | C: 32 mm | Cr: 31 kN | Ca: 28 kN | m: 252 g
NKX45-Z Fw: 45 mm | D: 58 mm | C: 32 mm | Cr: 31 kN | Ca: 28 kN | m: 265 g
NKX50 Fw: 50 mm | D: 62 mm | C: 35 mm | Cr: 43 kN | Ca: 29 kN | m: 280 g
NKX50-Z Fw: 50 mm | D: 62 mm | C: 35 mm | Cr: 43 kN | Ca: 29 kN | m: 300 g
NKX60 Fw: 60 mm | D: 72 mm | C: 40 mm | Cr: 47.5 kN | Ca: 41.5 kN | m: 360 g
NKX60-Z Fw: 60 mm | D: 72 mm | C: 40 mm | Cr: 47.5 kN | Ca: 41.5 kN | m: 380 g
NKX70 Fw: 70 mm | D: 85 mm | C: 40 mm | Cr: 50 kN | Ca: 43 kN | m: 500 g
NKX70-Z Fw: 70 mm | D: 85 mm | C: 40 mm | Cr: 50 kN | Ca: 43 kN | m: 520 g
Needle Roller BearingsINA
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA NKX / NKX..-Z Needle Roller / Axial Deep Groove Ball Bearings

Brand INA·Needle Roller Bearings

Available part numbers (26)

NKX10-TV, NKX10-Z-TV, NKX12, NKX12-Z, NKX15, NKX15-Z, NKX17, NKX17-Z, NKX20, NKX20-Z + 16 more — see full table ↓

How to order

Send the INA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NKX10-TVFw: 10 mm | D: 19 mm | C: 23 mm | Cr: 7 kN | Ca: 10 kN | m: 34 g
NKX10-Z-TVFw: 10 mm | D: 19 mm | C: 23 mm | Cr: 7 kN | Ca: 10 kN | m: 36 g
NKX12Fw: 12 mm | D: 21 mm | C: 23 mm | Cr: 10.1 kN | Ca: 10.3 kN | m: 38 g
NKX12-ZFw: 12 mm | D: 21 mm | C: 23 mm | Cr: 10.1 kN | Ca: 10.3 kN | m: 40 g
NKX15Fw: 15 mm | D: 24 mm | C: 23 mm | Cr: 12.1 kN | Ca: 10.5 kN | m: 44 g
NKX15-ZFw: 15 mm | D: 24 mm | C: 23 mm | Cr: 12.1 kN | Ca: 10.5 kN | m: 47 g
NKX17Fw: 17 mm | D: 26 mm | C: 25 mm | Cr: 13.5 kN | Ca: 10.8 kN | m: 53 g
NKX17-ZFw: 17 mm | D: 26 mm | C: 25 mm | Cr: 13.5 kN | Ca: 10.8 kN | m: 55 g
NKX20Fw: 20 mm | D: 30 mm | C: 30 mm | Cr: 18.6 kN | Ca: 14.3 kN | m: 83 g
NKX20-ZFw: 20 mm | D: 30 mm | C: 30 mm | Cr: 18.6 kN | Ca: 14.3 kN | m: 90 g
NKX25Fw: 25 mm | D: 37 mm | C: 30 mm | Cr: 21.3 kN | Ca: 19.6 kN | m: 125 g
NKX25-ZFw: 25 mm | D: 37 mm | C: 30 mm | Cr: 21.3 kN | Ca: 19.6 kN | m: 132 g
NKX30Fw: 30 mm | D: 42 mm | C: 30 mm | Cr: 25.5 kN | Ca: 20.4 kN | m: 141 g
NKX30-ZFw: 30 mm | D: 42 mm | C: 30 mm | Cr: 25.5 kN | Ca: 20.4 kN | m: 148 g
NKX35Fw: 35 mm | D: 47 mm | C: 30 mm | Cr: 27.5 kN | Ca: 21.2 kN | m: 163 g
NKX35-ZFw: 35 mm | D: 47 mm | C: 30 mm | Cr: 27.5 kN | Ca: 21.2 kN | m: 168 g
NKX40Fw: 40 mm | D: 52 mm | C: 32 mm | Cr: 29.5 kN | Ca: 27 kN | m: 200 g
NKX40-ZFw: 40 mm | D: 52 mm | C: 32 mm | Cr: 29.5 kN | Ca: 27 kN | m: 208 g
NKX45Fw: 45 mm | D: 58 mm | C: 32 mm | Cr: 31 kN | Ca: 28 kN | m: 252 g
NKX45-ZFw: 45 mm | D: 58 mm | C: 32 mm | Cr: 31 kN | Ca: 28 kN | m: 265 g
NKX50Fw: 50 mm | D: 62 mm | C: 35 mm | Cr: 43 kN | Ca: 29 kN | m: 280 g
NKX50-ZFw: 50 mm | D: 62 mm | C: 35 mm | Cr: 43 kN | Ca: 29 kN | m: 300 g
NKX60Fw: 60 mm | D: 72 mm | C: 40 mm | Cr: 47.5 kN | Ca: 41.5 kN | m: 360 g
NKX60-ZFw: 60 mm | D: 72 mm | C: 40 mm | Cr: 47.5 kN | Ca: 41.5 kN | m: 380 g
NKX70Fw: 70 mm | D: 85 mm | C: 40 mm | Cr: 50 kN | Ca: 43 kN | m: 500 g
NKX70-ZFw: 70 mm | D: 85 mm | C: 40 mm | Cr: 50 kN | Ca: 43 kN | m: 520 g
