• INA NNTR..-2ZL Yoke Type Track Rollers (Double Row Cylindrical Roller)
1 1

INA NNTR..-2ZL Yoke Type Track Rollers (Double Row Cylindrical Roller)

INA NNTR..-2ZL Yoke Type Track Rollers (Double Row Cylindrical Roller)

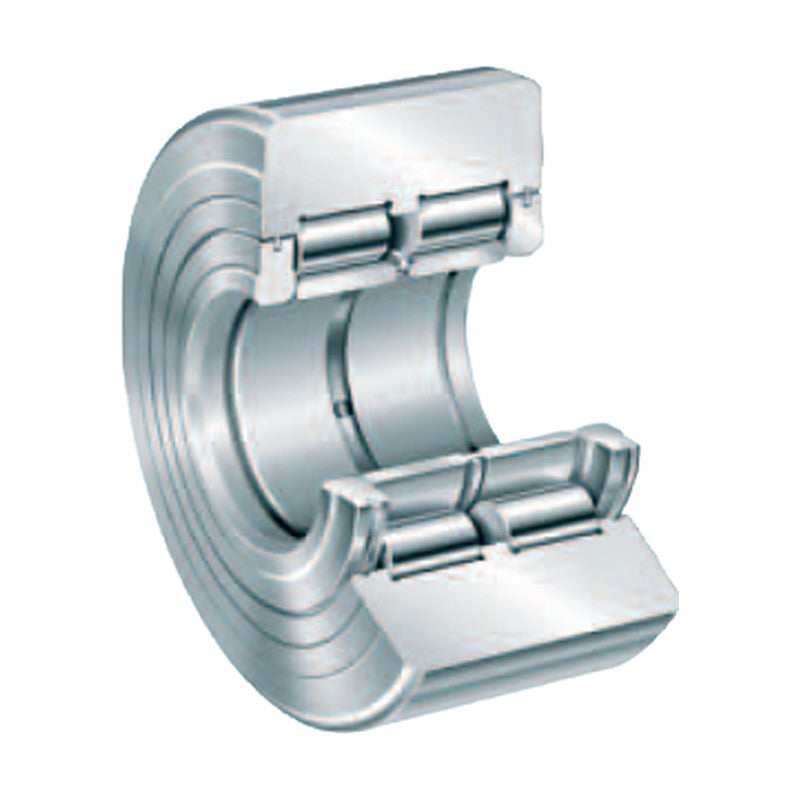

INA heavy duty yoke type track rollers NNTR..-2ZL with double row full complement cylindrical rollers and labyrinth seals.

Key features

  • Double row full complement cylindrical rollers
  • Very high radial and axial load capacity
  • Labyrinth seals on both sides (2ZL)
  • Crowned outer ring for heavy duty applications
  • Relubrication via lubrication holes

Specifications

Brand INA
Product type Track Rollers
Design Yoke type, cylindrical rollers
Outside diameter D 130 - 310 mm
Bore d 50 - 130 mm
Designations listed 11
Source INA Rolling Bearings HR 1 catalogue, p. 845-845
NNTR50X130X65-2ZL D: 130 mm | d: 50 mm | B: 65 mm | Crw: 193 kN | C0rw: 265 kN | m: 5.2 kg
NNTR55X140X70-2ZL D: 140 mm | d: 55 mm | B: 70 mm | Crw: 226 kN | C0rw: 315 kN | m: 6.4 kg
NNTR60X150X75-2ZL D: 150 mm | d: 60 mm | B: 75 mm | Crw: 255 kN | C0rw: 365 kN | m: 7.8 kg
NNTR65X160X75-2ZL D: 160 mm | d: 65 mm | B: 75 mm | Crw: 280 kN | C0rw: 395 kN | m: 8.8 kg
NNTR70X180X85-2ZL D: 180 mm | d: 70 mm | B: 85 mm | Crw: 355 kN | C0rw: 510 kN | m: 13 kg
NNTR80X200X90-2ZL D: 200 mm | d: 80 mm | B: 90 mm | Crw: 415 kN | C0rw: 610 kN | m: 16.8 kg
NNTR90X220X100-2ZL D: 220 mm | d: 90 mm | B: 100 mm | Crw: 500 kN | C0rw: 750 kN | m: 22.5 kg
NNTR100X240X105-2ZL D: 240 mm | d: 100 mm | B: 105 mm | Crw: 560 kN | C0rw: 870 kN | m: 28 kg
NNTR110X260X115-2ZL D: 260 mm | d: 110 mm | B: 115 mm | Crw: 670 kN | C0rw: 1050 kN | m: 35.6 kg
NNTR120X290X135-2ZL D: 290 mm | d: 120 mm | B: 135 mm | Crw: 880 kN | C0rw: 1400 kN | m: 52.8 kg
NNTR130X310X146-2ZL D: 310 mm | d: 130 mm | B: 146 mm | Crw: 1010 kN | C0rw: 1630 kN | m: 65.2 kg
Track RollersINA
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA NNTR..-2ZL Yoke Type Track Rollers (Double Row Cylindrical Roller)

Brand INA·Track Rollers

Available part numbers (11)

NNTR50X130X65-2ZL, NNTR55X140X70-2ZL, NNTR60X150X75-2ZL, NNTR65X160X75-2ZL, NNTR70X180X85-2ZL, NNTR80X200X90-2ZL, NNTR90X220X100-2ZL, NNTR100X240X105-2ZL, NNTR110X260X115-2ZL, NNTR120X290X135-2ZL + 1 more — see full table ↓

How to order

Send the INA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NNTR50X130X65-2ZLD: 130 mm | d: 50 mm | B: 65 mm | Crw: 193 kN | C0rw: 265 kN | m: 5.2 kg
NNTR55X140X70-2ZLD: 140 mm | d: 55 mm | B: 70 mm | Crw: 226 kN | C0rw: 315 kN | m: 6.4 kg
NNTR60X150X75-2ZLD: 150 mm | d: 60 mm | B: 75 mm | Crw: 255 kN | C0rw: 365 kN | m: 7.8 kg
NNTR65X160X75-2ZLD: 160 mm | d: 65 mm | B: 75 mm | Crw: 280 kN | C0rw: 395 kN | m: 8.8 kg
NNTR70X180X85-2ZLD: 180 mm | d: 70 mm | B: 85 mm | Crw: 355 kN | C0rw: 510 kN | m: 13 kg
NNTR80X200X90-2ZLD: 200 mm | d: 80 mm | B: 90 mm | Crw: 415 kN | C0rw: 610 kN | m: 16.8 kg
NNTR90X220X100-2ZLD: 220 mm | d: 90 mm | B: 100 mm | Crw: 500 kN | C0rw: 750 kN | m: 22.5 kg
NNTR100X240X105-2ZLD: 240 mm | d: 100 mm | B: 105 mm | Crw: 560 kN | C0rw: 870 kN | m: 28 kg
NNTR110X260X115-2ZLD: 260 mm | d: 110 mm | B: 115 mm | Crw: 670 kN | C0rw: 1050 kN | m: 35.6 kg
NNTR120X290X135-2ZLD: 290 mm | d: 120 mm | B: 135 mm | Crw: 880 kN | C0rw: 1400 kN | m: 52.8 kg
NNTR130X310X146-2ZLD: 310 mm | d: 130 mm | B: 146 mm | Crw: 1010 kN | C0rw: 1630 kN | m: 65.2 kg
