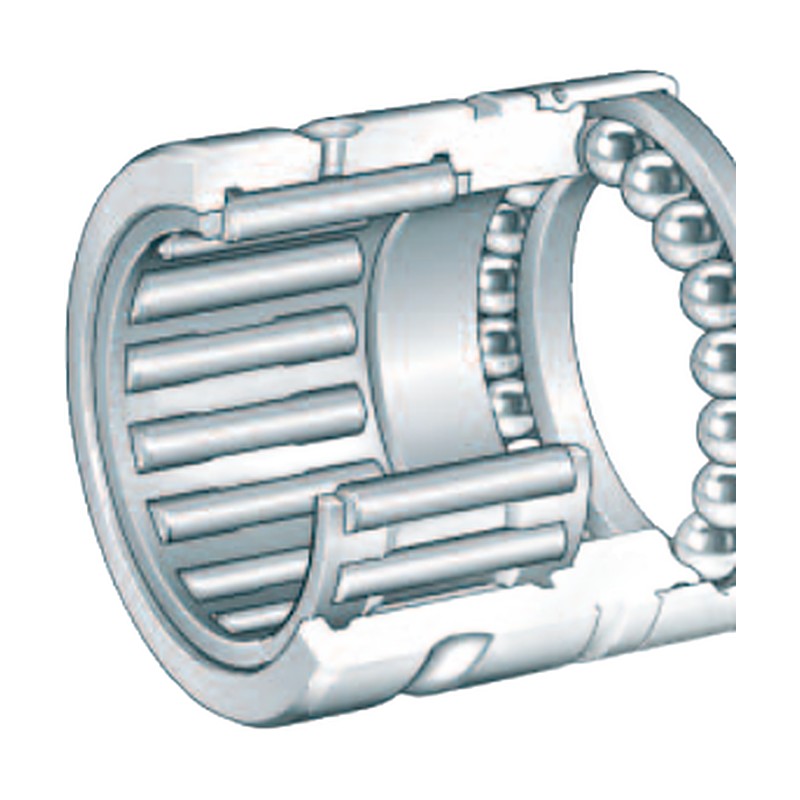

INA NX / NX..-Z Needle Roller / Axial Deep Groove Ball Bearings

INA combined needle roller / axial deep groove ball bearings NX (oil lubrication) and NX..-Z (grease lubrication, with cover cap), without inner ring.

Key features

Radial needle bearing combined with single direction axial ball bearing
Supports radial loads and axial loads in one direction
NX for oil lubrication, NX..-Z with cap for grease lubrication
Press fit in housing; snap ring groove variants available
Recommended inner ring and snap rings listed in catalogue

Specifications

Brand	INA
Product type	Needle Roller Bearings
Design	Needle / axial ball
Inner ring	Without (IR separately)
Shaft (Fw)	7 - 35 mm
Outside diameter D	14 - 47 mm
Source	INA Rolling Bearings HR 1 catalogue, p. 698-699

NX7-TV		Fw: 7 mm \| D: 14 mm \| C: 18 mm \| Cr: 3.25 kN \| Ca: 3.15 kN \| m: 14 g
NX7-Z-TV		Fw: 7 mm \| D: 14 mm \| C: 18 mm \| Cr: 3.25 kN \| Ca: 3.15 kN \| m: 14 g
NX10		Fw: 10 mm \| D: 19 mm \| C: 18 mm \| Cr: 5 kN \| Ca: 4.6 kN \| m: 25 g
NX10-Z		Fw: 10 mm \| D: 19 mm \| C: 18 mm \| Cr: 5 kN \| Ca: 4.6 kN \| m: 25 g
NX12		Fw: 12 mm \| D: 21 mm \| C: 18 mm \| Cr: 5.4 kN \| Ca: 4.85 kN \| m: 28 g
NX12-Z		Fw: 12 mm \| D: 21 mm \| C: 18 mm \| Cr: 5.4 kN \| Ca: 4.85 kN \| m: 28 g
NX15		Fw: 15 mm \| D: 24 mm \| C: 28 mm \| Cr: 12.1 kN \| Ca: 5.6 kN \| m: 48 g
NX15-Z		Fw: 15 mm \| D: 24 mm \| C: 28 mm \| Cr: 12.1 kN \| Ca: 5.6 kN \| m: 48 g
NX17		Fw: 17 mm \| D: 26 mm \| C: 28 mm \| Cr: 13.5 kN \| Ca: 5.8 kN \| m: 53 g
NX17-Z		Fw: 17 mm \| D: 26 mm \| C: 28 mm \| Cr: 13.5 kN \| Ca: 5.8 kN \| m: 53 g
NX20		Fw: 20 mm \| D: 30 mm \| C: 28 mm \| Cr: 14.6 kN \| Ca: 7 kN \| m: 68 g
NX20-Z		Fw: 20 mm \| D: 30 mm \| C: 28 mm \| Cr: 14.6 kN \| Ca: 7 kN \| m: 68 g
NX25		Fw: 25 mm \| D: 37 mm \| C: 30 mm \| Cr: 16.8 kN \| Ca: 11.1 kN \| m: 115 g
NX25-Z		Fw: 25 mm \| D: 37 mm \| C: 30 mm \| Cr: 16.8 kN \| Ca: 11.1 kN \| m: 115 g
NX30		Fw: 30 mm \| D: 42 mm \| C: 30 mm \| Cr: 25.5 kN \| Ca: 11.7 kN \| m: 130 g
NX30-Z		Fw: 30 mm \| D: 42 mm \| C: 30 mm \| Cr: 25.5 kN \| Ca: 11.7 kN \| m: 130 g
NX35		Fw: 35 mm \| D: 47 mm \| C: 30 mm \| Cr: 27.5 kN \| Ca: 12.4 kN \| m: 160 g
NX35-Z		Fw: 35 mm \| D: 47 mm \| C: 30 mm \| Cr: 27.5 kN \| Ca: 12.4 kN \| m: 160 g

Needle Roller BearingsINA

18 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA NX / NX..-Z Needle Roller / Axial Deep Groove Ball Bearings

Brand INA·Needle Roller Bearings

Available part numbers (18)

NX7-TV, NX7-Z-TV, NX10, NX10-Z, NX12, NX12-Z, NX15, NX15-Z, NX17, NX17-Z + 8 more — see full table ↓

How to order

Send the INA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
