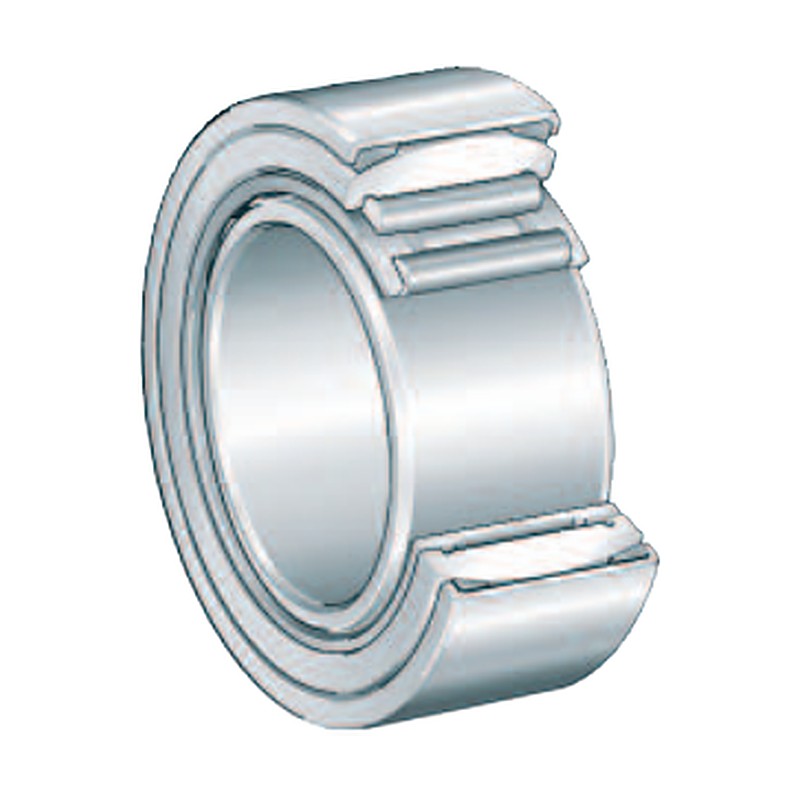

INA PNA Aligning Needle Roller Bearings with Inner Ring

INA PNA Aligning Needle Roller Bearings with Inner Ring

INA aligning needle roller bearings PNA with inner ring, compensating static misalignment between shaft and housing.

Key features

  • Sphered outer ring in plastic aligning ring
  • Compensates static misalignment up to +/-3 deg
  • With inner ring for unhardened shafts
  • X-life quality

Specifications

Brand INA
Product type Needle Roller Bearings
Design Aligning
Inner ring With
Bore d 12 - 40 mm
Outside diameter D 28 - 62 mm
Source INA Rolling Bearings HR 1 catalogue, p. 686-686
PNA12/28 d: 12 mm | D: 28 mm | B: 12 mm | Cr: 7.8 kN | C0r: 7.9 kN | m: 37 g
PNA15/32 d: 15 mm | D: 32 mm | B: 16 mm | Cr: 14.1 kN | C0r: 16.2 kN | m: 62 g
PNA17/35 d: 17 mm | D: 35 mm | B: 16 mm | Cr: 14.6 kN | C0r: 17.5 kN | m: 73 g
PNA20/42 d: 20 mm | D: 42 mm | B: 20 mm | Cr: 21.3 kN | C0r: 30.5 kN | m: 136 g
PNA22/44 d: 22 mm | D: 44 mm | B: 20 mm | Cr: 24.8 kN | C0r: 34 kN | m: 145 g
PNA25/47 d: 25 mm | D: 47 mm | B: 20 mm | Cr: 25.5 kN | C0r: 36 kN | m: 157 g
PNA30/52 d: 30 mm | D: 52 mm | B: 20 mm | Cr: 27.5 kN | C0r: 41.5 kN | m: 181 g
PNA35/55 d: 35 mm | D: 55 mm | B: 20 mm | Cr: 29.5 kN | C0r: 47 kN | m: 177 g
PNA40/62 d: 40 mm | D: 62 mm | B: 20 mm | Cr: 31 kN | C0r: 53 kN | m: 227 g
Needle Roller BearingsINA
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA PNA Aligning Needle Roller Bearings with Inner Ring

Brand INA·Needle Roller Bearings

Available part numbers (9)

PNA12/28, PNA15/32, PNA17/35, PNA20/42, PNA22/44, PNA25/47, PNA30/52, PNA35/55, PNA40/62

How to order

Send the INA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PNA12/28d: 12 mm | D: 28 mm | B: 12 mm | Cr: 7.8 kN | C0r: 7.9 kN | m: 37 g
PNA15/32d: 15 mm | D: 32 mm | B: 16 mm | Cr: 14.1 kN | C0r: 16.2 kN | m: 62 g
PNA17/35d: 17 mm | D: 35 mm | B: 16 mm | Cr: 14.6 kN | C0r: 17.5 kN | m: 73 g
PNA20/42d: 20 mm | D: 42 mm | B: 20 mm | Cr: 21.3 kN | C0r: 30.5 kN | m: 136 g
PNA22/44d: 22 mm | D: 44 mm | B: 20 mm | Cr: 24.8 kN | C0r: 34 kN | m: 145 g
PNA25/47d: 25 mm | D: 47 mm | B: 20 mm | Cr: 25.5 kN | C0r: 36 kN | m: 157 g
PNA30/52d: 30 mm | D: 52 mm | B: 20 mm | Cr: 27.5 kN | C0r: 41.5 kN | m: 181 g
PNA35/55d: 35 mm | D: 55 mm | B: 20 mm | Cr: 29.5 kN | C0r: 47 kN | m: 177 g
PNA40/62d: 40 mm | D: 62 mm | B: 20 mm | Cr: 31 kN | C0r: 53 kN | m: 227 g
