INA RNA22..-2RSR Yoke Type Track Rollers, without Inner Ring

INA RNA22..-2RSR Yoke Type Track Rollers, without Inner Ring

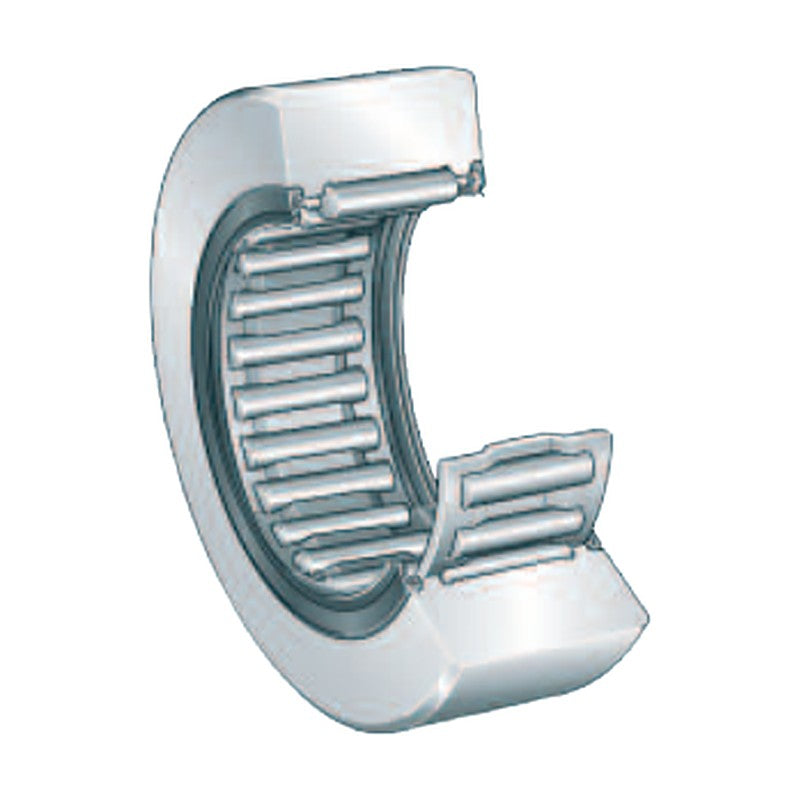

INA yoke type track rollers RNA22..-2RSR without inner ring, sealed on both sides, with needle roller and cage assembly.

Key features

  • Lip seals on both sides; greased
  • Without axial guidance
  • Runs directly on hardened shaft
  • Crowned outer ring

Specifications

Brand INA
Product type Track Rollers
Design Yoke type, sealed
Outside diameter D 19 - 80 mm
Designations listed 11
Source INA Rolling Bearings HR 1 catalogue, p. 843-843
RNA22/6-2RSR D: 19 mm | Fw: 10 mm | C: 11.8 mm | Crw: 3.9 kN | C0rw: 3.7 kN | m: 18 g
RNA22/8-2RSR D: 24 mm | Fw: 12 mm | C: 11.8 mm | Crw: 4.8 kN | C0rw: 4.3 kN | m: 29 g
RNA2200-2RSR D: 30 mm | Fw: 14 mm | C: 13.8 mm | Crw: 7 kN | C0rw: 6.9 kN | m: 52 g
RNA2201-2RSR D: 32 mm | Fw: 16 mm | C: 13.8 mm | Crw: 7.5 kN | C0rw: 8.3 kN | m: 57 g
RNA2202-2RSR D: 35 mm | Fw: 20 mm | C: 13.8 mm | Crw: 7.6 kN | C0rw: 9.8 kN | m: 60 g
RNA2203-2RSR D: 40 mm | Fw: 22 mm | C: 15.8 mm | Crw: 9.9 kN | C0rw: 14 kN | m: 94 g
RNA2204-2RSR D: 47 mm | Fw: 25 mm | C: 17.8 mm | Crw: 14 kN | C0rw: 19.1 kN | m: 152 g
RNA2205-2RSR D: 52 mm | Fw: 30 mm | C: 17.8 mm | Crw: 14.4 kN | C0rw: 20.8 kN | m: 179 g
RNA2206-2RSR D: 62 mm | Fw: 35 mm | C: 19.8 mm | Crw: 17.1 kN | C0rw: 26 kN | m: 284 g
RNA2207-2RSR D: 72 mm | Fw: 42 mm | C: 22.7 mm | Crw: 21.5 kN | C0rw: 36 kN | m: 432 g
RNA2208-2RSR D: 80 mm | Fw: 48 mm | C: 22.7 mm | Crw: 26 kN | C0rw: 41 kN | m: 530 g
Track RollersINA
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA RNA22..-2RSR Yoke Type Track Rollers, without Inner Ring

Brand INA·Track Rollers

Available part numbers (11)

RNA22/6-2RSR, RNA22/8-2RSR, RNA2200-2RSR, RNA2201-2RSR, RNA2202-2RSR, RNA2203-2RSR, RNA2204-2RSR, RNA2205-2RSR, RNA2206-2RSR, RNA2207-2RSR + 1 more — see full table ↓

How to order

Send the INA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RNA22/6-2RSRD: 19 mm | Fw: 10 mm | C: 11.8 mm | Crw: 3.9 kN | C0rw: 3.7 kN | m: 18 g
RNA22/8-2RSRD: 24 mm | Fw: 12 mm | C: 11.8 mm | Crw: 4.8 kN | C0rw: 4.3 kN | m: 29 g
RNA2200-2RSRD: 30 mm | Fw: 14 mm | C: 13.8 mm | Crw: 7 kN | C0rw: 6.9 kN | m: 52 g
RNA2201-2RSRD: 32 mm | Fw: 16 mm | C: 13.8 mm | Crw: 7.5 kN | C0rw: 8.3 kN | m: 57 g
RNA2202-2RSRD: 35 mm | Fw: 20 mm | C: 13.8 mm | Crw: 7.6 kN | C0rw: 9.8 kN | m: 60 g
RNA2203-2RSRD: 40 mm | Fw: 22 mm | C: 15.8 mm | Crw: 9.9 kN | C0rw: 14 kN | m: 94 g
RNA2204-2RSRD: 47 mm | Fw: 25 mm | C: 17.8 mm | Crw: 14 kN | C0rw: 19.1 kN | m: 152 g
RNA2205-2RSRD: 52 mm | Fw: 30 mm | C: 17.8 mm | Crw: 14.4 kN | C0rw: 20.8 kN | m: 179 g
RNA2206-2RSRD: 62 mm | Fw: 35 mm | C: 19.8 mm | Crw: 17.1 kN | C0rw: 26 kN | m: 284 g
RNA2207-2RSRD: 72 mm | Fw: 42 mm | C: 22.7 mm | Crw: 21.5 kN | C0rw: 36 kN | m: 432 g
RNA2208-2RSRD: 80 mm | Fw: 48 mm | C: 22.7 mm | Crw: 26 kN | C0rw: 41 kN | m: 530 g
