• INA RNAO Needle Roller Bearings without Ribs, No Inner Ring
1 1

INA RNAO Needle Roller Bearings without Ribs, No Inner Ring

INA RNAO Needle Roller Bearings without Ribs, No Inner Ring

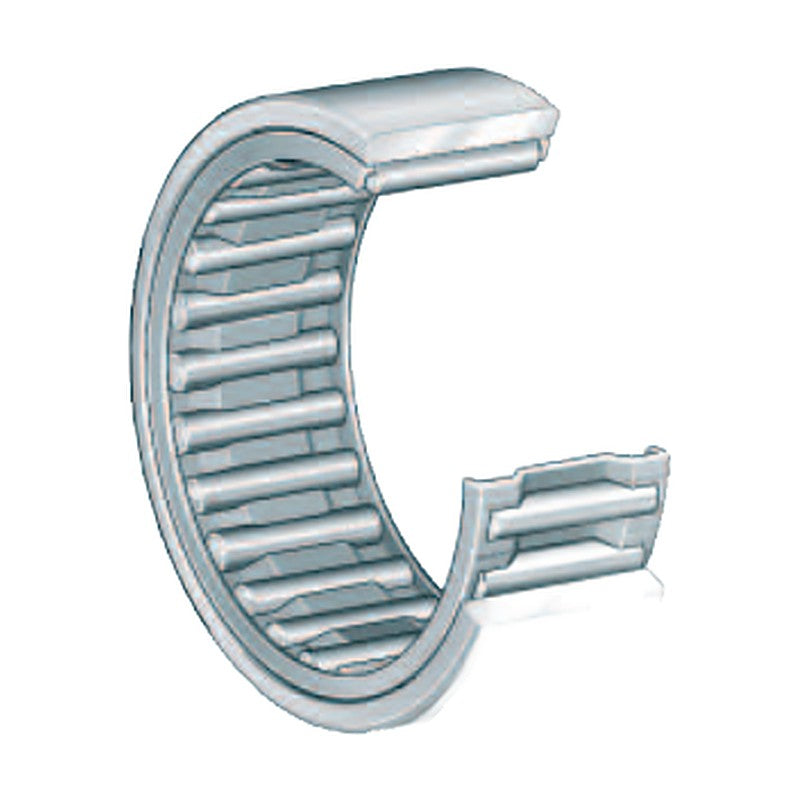

INA needle roller bearings without ribs RNAO, without inner ring; the needle roller and cage assembly is guided axially by housing or shaft shoulders.

Key features

  • Outer ring without ribs: high load capacity in compact space
  • Single row and double row (ZW) designs; ASR1 with lubrication groove
  • Cage guided axially by adjacent components
  • Run directly on hardened shaft
  • X-life quality

Specifications

Brand INA
Product type Needle Roller Bearings
Design Without ribs
Inner ring Without
Shaft (Fw) 5 - 100 mm
Outside diameter D 10 - 120 mm
Source INA Rolling Bearings HR 1 catalogue, p. 674-677
RNAO5X10X8-TV Fw: 5 mm | D: 10 mm | C: 8 mm | Cr: 2.65 kN | C0r: 1.92 kN | m: 3 g
RNAO6X13X8-TV Fw: 6 mm | D: 13 mm | C: 8 mm | Cr: 2.95 kN | C0r: 2.28 kN | m: 6 g
RNAO7X14X8-TV Fw: 7 mm | D: 14 mm | C: 8 mm | Cr: 3.25 kN | C0r: 2.65 kN | m: 6 g
RNAO8X15X10-TV Fw: 8 mm | D: 15 mm | C: 10 mm | Cr: 4.45 kN | C0r: 4.1 kN | m: 8 g
RNAO10X17X10-TV Fw: 10 mm | D: 17 mm | C: 10 mm | Cr: 5.3 kN | C0r: 5.5 kN | m: 10 g
RNAO12X22X12-TV Fw: 12 mm | D: 22 mm | C: 12 mm | Cr: 11.3 kN | C0r: 9.9 kN | m: 19 g
RNAO15X23X13 Fw: 15 mm | D: 23 mm | C: 13 mm | Cr: 9.7 kN | C0r: 10.9 kN | m: 20 g
RNAO16X24X13 Fw: 16 mm | D: 28 mm | C: 12 mm | Cr: 10.1 kN | C0r: 11.8 kN | m: 21 g
RNAO16X28X12 Fw: 16 mm | D: 28 mm | C: 12 mm | Cr: 13 kN | C0r: 12.5 kN | m: 32 g
RNAO17X25X13 Fw: 17 mm | D: 25 mm | C: 13 mm | Cr: 11.7 kN | C0r: 14.6 kN | m: 22 g
RNAO18X30X24-ZW-ASR1 Fw: 18 mm | D: 30 mm | C: 24 mm | Cr: 24.8 kN | C0r: 30 kN | m: 69 g
RNAO20X28X13 Fw: 20 mm | D: 28 mm | C: 13 mm | Cr: 11.1 kN | C0r: 14.3 kN | m: 25 g
RNAO20X28X26-ZW-ASR1 Fw: 20 mm | D: 28 mm | C: 26 mm | Cr: 19 kN | C0r: 28.5 kN | m: 50 g
RNAO20X32X12 Fw: 20 mm | D: 32 mm | C: 12 mm | Cr: 15.1 kN | C0r: 16.2 kN | m: 38 g
RNAO22X30X13 Fw: 22 mm | D: 30 mm | C: 13 mm | Cr: 11.8 kN | C0r: 15.9 kN | m: 27 g
RNAO22X35X16 Fw: 22 mm | D: 35 mm | C: 16 mm | Cr: 22.6 kN | C0r: 25.5 kN | m: 59 g
RNAO25X35X17 Fw: 25 mm | D: 35 mm | C: 17 mm | Cr: 16.8 kN | C0r: 26 kN | m: 53 g
RNAO25X35X26-ZW-ASR1 Fw: 25 mm | D: 35 mm | C: 26 mm | Cr: 21.9 kN | C0r: 37 kN | m: 76 g
RNAO25X37X16 Fw: 25 mm | D: 37 mm | C: 16 mm | Cr: 23.8 kN | C0r: 28 kN | m: 60 g
RNAO30X40X17 Fw: 30 mm | D: 40 mm | C: 17 mm | Cr: 22.1 kN | C0r: 34 kN | m: 60 g
RNAO30X42X16 Fw: 30 mm | D: 42 mm | C: 16 mm | Cr: 26 kN | C0r: 33.5 kN | m: 59 g
RNAO30X42X32-ZW-ASR1 Fw: 30 mm | D: 42 mm | C: 32 mm | Cr: 45 kN | C0r: 67 kN | m: 137 g
RNAO35X45X13 Fw: 35 mm | D: 45 mm | C: 13 mm | Cr: 18.3 kN | C0r: 28 kN | m: 53 g
RNAO35X45X17 Fw: 35 mm | D: 45 mm | C: 17 mm | Cr: 23.5 kN | C0r: 38.5 kN | m: 69 g
RNAO35X45X26-ZW-ASR1 Fw: 35 mm | D: 45 mm | C: 26 mm | Cr: 31.5 kN | C0r: 56 kN | m: 91 g
RNAO35X47X16 Fw: 35 mm | D: 47 mm | C: 16 mm | Cr: 27.5 kN | C0r: 37.5 kN | m: 78 g
RNAO35X47X18 Fw: 35 mm | D: 47 mm | C: 16 mm | Cr: 31 kN | C0r: 43 kN | m: 89 g
RNAO35X47X32-ZW-ASR1 Fw: 35 mm | D: 47 mm | C: 32 mm | Cr: 47.5 kN | C0r: 75 kN | m: 156 g
RNAO40X50X17 Fw: 40 mm | D: 50 mm | C: 17 mm | Cr: 24.2 kN | C0r: 41.5 kN | m: 74 g
RNAO40X50X34-ZW-ASR1 Fw: 40 mm | D: 50 mm | C: 34 mm | Cr: 41.5 kN | C0r: 83 kN | m: 152 g
RNAO40X55X20 Fw: 40 mm | D: 55 mm | C: 20 mm | Cr: 37 kN | C0r: 57 kN | m: 145 g
RNAO40X55X40-ZW-ASR1 Fw: 40 mm | D: 55 mm | C: 40 mm | Cr: 70 kN | C0r: 118 kN | m: 275 g
RNAO45X55X17 Fw: 45 mm | D: 55 mm | C: 17 mm | Cr: 25.5 kN | C0r: 46 kN | m: 83 g
RNAO45X62X40-ZW-ASR1 Fw: 45 mm | D: 62 mm | C: 40 mm | Cr: 76 kN | C0r: 135 kN | m: 377 g
RNAO50X62X20 Fw: 50 mm | D: 62 mm | C: 20 mm | Cr: 30 kN | C0r: 60 kN | m: 140 g
RNAO50X65X20 Fw: 50 mm | D: 65 mm | C: 20 mm | Cr: 40.5 kN | C0r: 62 kN | m: 168 g
RNAO50X65X40-ZW-ASR1 Fw: 50 mm | D: 65 mm | C: 40 mm | Cr: 69 kN | C0r: 124 kN | m: 355 g
RNAO55X68X20 Fw: 55 mm | D: 68 mm | C: 20 mm | Cr: 32 kN | C0r: 66 kN | m: 166 g
RNAO60X78X20 Fw: 60 mm | D: 78 mm | C: 20 mm | Cr: 49.5 kN | C0r: 85 kN | m: 255 g
RNAO60X78X40-ZW-ASR1 Fw: 60 mm | D: 78 mm | C: 40 mm | Cr: 85 kN | C0r: 171 kN | m: 435 g
RNAO65X85X30 Fw: 65 mm | D: 85 mm | C: 30 mm | Cr: 64 kN | C0r: 123 kN | m: 464 g
RNAO70X90X30 Fw: 70 mm | D: 90 mm | C: 30 mm | Cr: 68 kN | C0r: 135 kN | m: 499 g
RNAO80X100X30 Fw: 80 mm | D: 100 mm | C: 30 mm | Cr: 80 kN | C0r: 176 kN | m: 580 g
RNAO90X105X26 Fw: 90 mm | D: 105 mm | C: 26 mm | Cr: 69 kN | C0r: 150 kN | m: 373 g
RNAO90X110X30 Fw: 90 mm | D: 110 mm | C: 30 mm | Cr: 76 kN | C0r: 172 kN | m: 610 g
RNAO100X120X30 Fw: 100 mm | D: 120 mm | C: 30 mm | Cr: 80 kN | C0r: 188 kN | m: 694 g
Needle Roller BearingsINA
46 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA RNAO Needle Roller Bearings without Ribs, No Inner Ring

Brand INA·Needle Roller Bearings

Available part numbers (46)

RNAO5X10X8-TV, RNAO6X13X8-TV, RNAO7X14X8-TV, RNAO8X15X10-TV, RNAO10X17X10-TV, RNAO12X22X12-TV, RNAO15X23X13, RNAO16X24X13, RNAO16X28X12, RNAO17X25X13 + 36 more — see full table ↓

How to order

Send the INA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RNAO5X10X8-TVFw: 5 mm | D: 10 mm | C: 8 mm | Cr: 2.65 kN | C0r: 1.92 kN | m: 3 g
RNAO6X13X8-TVFw: 6 mm | D: 13 mm | C: 8 mm | Cr: 2.95 kN | C0r: 2.28 kN | m: 6 g
RNAO7X14X8-TVFw: 7 mm | D: 14 mm | C: 8 mm | Cr: 3.25 kN | C0r: 2.65 kN | m: 6 g
RNAO8X15X10-TVFw: 8 mm | D: 15 mm | C: 10 mm | Cr: 4.45 kN | C0r: 4.1 kN | m: 8 g
RNAO10X17X10-TVFw: 10 mm | D: 17 mm | C: 10 mm | Cr: 5.3 kN | C0r: 5.5 kN | m: 10 g
RNAO12X22X12-TVFw: 12 mm | D: 22 mm | C: 12 mm | Cr: 11.3 kN | C0r: 9.9 kN | m: 19 g
RNAO15X23X13Fw: 15 mm | D: 23 mm | C: 13 mm | Cr: 9.7 kN | C0r: 10.9 kN | m: 20 g
RNAO16X24X13Fw: 16 mm | D: 28 mm | C: 12 mm | Cr: 10.1 kN | C0r: 11.8 kN | m: 21 g
RNAO16X28X12Fw: 16 mm | D: 28 mm | C: 12 mm | Cr: 13 kN | C0r: 12.5 kN | m: 32 g
RNAO17X25X13Fw: 17 mm | D: 25 mm | C: 13 mm | Cr: 11.7 kN | C0r: 14.6 kN | m: 22 g
RNAO18X30X24-ZW-ASR1Fw: 18 mm | D: 30 mm | C: 24 mm | Cr: 24.8 kN | C0r: 30 kN | m: 69 g
RNAO20X28X13Fw: 20 mm | D: 28 mm | C: 13 mm | Cr: 11.1 kN | C0r: 14.3 kN | m: 25 g
RNAO20X28X26-ZW-ASR1Fw: 20 mm | D: 28 mm | C: 26 mm | Cr: 19 kN | C0r: 28.5 kN | m: 50 g
RNAO20X32X12Fw: 20 mm | D: 32 mm | C: 12 mm | Cr: 15.1 kN | C0r: 16.2 kN | m: 38 g
RNAO22X30X13Fw: 22 mm | D: 30 mm | C: 13 mm | Cr: 11.8 kN | C0r: 15.9 kN | m: 27 g
RNAO22X35X16Fw: 22 mm | D: 35 mm | C: 16 mm | Cr: 22.6 kN | C0r: 25.5 kN | m: 59 g
RNAO25X35X17Fw: 25 mm | D: 35 mm | C: 17 mm | Cr: 16.8 kN | C0r: 26 kN | m: 53 g
RNAO25X35X26-ZW-ASR1Fw: 25 mm | D: 35 mm | C: 26 mm | Cr: 21.9 kN | C0r: 37 kN | m: 76 g
RNAO25X37X16Fw: 25 mm | D: 37 mm | C: 16 mm | Cr: 23.8 kN | C0r: 28 kN | m: 60 g
RNAO30X40X17Fw: 30 mm | D: 40 mm | C: 17 mm | Cr: 22.1 kN | C0r: 34 kN | m: 60 g
RNAO30X42X16Fw: 30 mm | D: 42 mm | C: 16 mm | Cr: 26 kN | C0r: 33.5 kN | m: 59 g
RNAO30X42X32-ZW-ASR1Fw: 30 mm | D: 42 mm | C: 32 mm | Cr: 45 kN | C0r: 67 kN | m: 137 g
RNAO35X45X13Fw: 35 mm | D: 45 mm | C: 13 mm | Cr: 18.3 kN | C0r: 28 kN | m: 53 g
RNAO35X45X17Fw: 35 mm | D: 45 mm | C: 17 mm | Cr: 23.5 kN | C0r: 38.5 kN | m: 69 g
RNAO35X45X26-ZW-ASR1Fw: 35 mm | D: 45 mm | C: 26 mm | Cr: 31.5 kN | C0r: 56 kN | m: 91 g
RNAO35X47X16Fw: 35 mm | D: 47 mm | C: 16 mm | Cr: 27.5 kN | C0r: 37.5 kN | m: 78 g
RNAO35X47X18Fw: 35 mm | D: 47 mm | C: 16 mm | Cr: 31 kN | C0r: 43 kN | m: 89 g
RNAO35X47X32-ZW-ASR1Fw: 35 mm | D: 47 mm | C: 32 mm | Cr: 47.5 kN | C0r: 75 kN | m: 156 g
RNAO40X50X17Fw: 40 mm | D: 50 mm | C: 17 mm | Cr: 24.2 kN | C0r: 41.5 kN | m: 74 g
RNAO40X50X34-ZW-ASR1Fw: 40 mm | D: 50 mm | C: 34 mm | Cr: 41.5 kN | C0r: 83 kN | m: 152 g
RNAO40X55X20Fw: 40 mm | D: 55 mm | C: 20 mm | Cr: 37 kN | C0r: 57 kN | m: 145 g
RNAO40X55X40-ZW-ASR1Fw: 40 mm | D: 55 mm | C: 40 mm | Cr: 70 kN | C0r: 118 kN | m: 275 g
RNAO45X55X17Fw: 45 mm | D: 55 mm | C: 17 mm | Cr: 25.5 kN | C0r: 46 kN | m: 83 g
RNAO45X62X40-ZW-ASR1Fw: 45 mm | D: 62 mm | C: 40 mm | Cr: 76 kN | C0r: 135 kN | m: 377 g
RNAO50X62X20Fw: 50 mm | D: 62 mm | C: 20 mm | Cr: 30 kN | C0r: 60 kN | m: 140 g
RNAO50X65X20Fw: 50 mm | D: 65 mm | C: 20 mm | Cr: 40.5 kN | C0r: 62 kN | m: 168 g
RNAO50X65X40-ZW-ASR1Fw: 50 mm | D: 65 mm | C: 40 mm | Cr: 69 kN | C0r: 124 kN | m: 355 g
RNAO55X68X20Fw: 55 mm | D: 68 mm | C: 20 mm | Cr: 32 kN | C0r: 66 kN | m: 166 g
RNAO60X78X20Fw: 60 mm | D: 78 mm | C: 20 mm | Cr: 49.5 kN | C0r: 85 kN | m: 255 g
RNAO60X78X40-ZW-ASR1Fw: 60 mm | D: 78 mm | C: 40 mm | Cr: 85 kN | C0r: 171 kN | m: 435 g
RNAO65X85X30Fw: 65 mm | D: 85 mm | C: 30 mm | Cr: 64 kN | C0r: 123 kN | m: 464 g
RNAO70X90X30Fw: 70 mm | D: 90 mm | C: 30 mm | Cr: 68 kN | C0r: 135 kN | m: 499 g
RNAO80X100X30Fw: 80 mm | D: 100 mm | C: 30 mm | Cr: 80 kN | C0r: 176 kN | m: 580 g
RNAO90X105X26Fw: 90 mm | D: 105 mm | C: 26 mm | Cr: 69 kN | C0r: 150 kN | m: 373 g
RNAO90X110X30Fw: 90 mm | D: 110 mm | C: 30 mm | Cr: 76 kN | C0r: 172 kN | m: 610 g
RNAO100X120X30Fw: 100 mm | D: 120 mm | C: 30 mm | Cr: 80 kN | C0r: 188 kN | m: 694 g
