• INA RUE Linear Roller Bearing and Guideway Assemblies
1 1

INA RUE Linear Roller Bearing and Guideway Assemblies

INA RUE Linear Roller Bearing and Guideway Assemblies

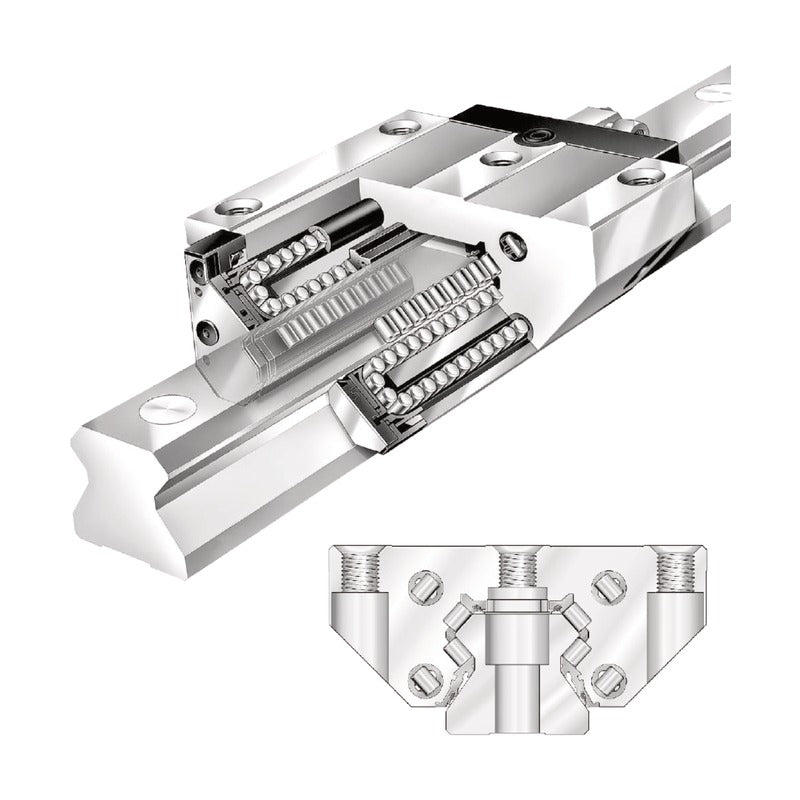

INA RUE full-complement linear recirculating roller bearing and guideway assemblies (carriage plus TSX guideway) for very high load capacity and rigidity.

Key features

  • Full-complement cylindrical roller recirculation
  • Standard, L (long), H and HL (high) carriages
  • Sizes 25 to 100
  • RUE25-D available for grease (FE) or oil (OE) lubrication
  • Covering strips and closing plugs available for the guideways

Specifications

Brand INA
Product type Linear Guides
Series RUE
Designations listed 25
Units mm, kN
Source INA Monorail Guidance Systems catalogue, p. 30-37
RUE25-D-FE Rail width: 23 mm | H: 36 mm | B: 70 mm | L: 91 mm | C: 28 kN | C0: 65 kN
RUE25-D-OE Rail width: 23 mm | H: 36 mm | B: 70 mm | L: 91 mm | C: 28 kN | C0: 65 kN
RUE25-D-L-FE Rail width: 23 mm | H: 36 mm | B: 70 mm | L: 107 mm | C: 33.5 kN | C0: 82 kN
RUE25-D-L-OE Rail width: 23 mm | H: 36 mm | B: 70 mm | L: 107 mm | C: 33.5 kN | C0: 82 kN
RUE35-E Rail width: 34 mm | H: 48 mm | B: 100 mm | L: 122.9 mm | C: 59 kN | C0: 140 kN
RUE35-E-L Rail width: 34 mm | H: 48 mm | B: 100 mm | L: 148.7 mm | C: 70 kN | C0: 175 kN
RUE45-E Rail width: 45 mm | H: 60 mm | B: 120 mm | L: 145.9 mm | C: 92 kN | C0: 215 kN
RUE45-E-L Rail width: 45 mm | H: 60 mm | B: 120 mm | L: 178.3 mm | C: 114 kN | C0: 285 kN
RUE55-E Rail width: 53 mm | H: 70 mm | B: 140 mm | L: 172.7 mm | C: 136 kN | C0: 320 kN
RUE55-E-L Rail width: 53 mm | H: 70 mm | B: 140 mm | L: 210.7 mm | C: 167 kN | C0: 415 kN
RUE65-E Rail width: 63 mm | H: 90 mm | B: 170 mm | L: 195.5 mm | C: 200 kN | C0: 435 kN
RUE65-E-L Rail width: 63 mm | H: 90 mm | B: 170 mm | L: 261.9 mm | C: 270 kN | C0: 640 kN
RUE100-E-L Rail width: 100 mm | H: 120 mm | B: 250 mm | L: 372.2 mm | C: 630 kN | C0: 1490 kN
RUE25-D-H-FE Rail width: 23 mm | H: 40 mm | B: 48 mm | L: 90.6 mm | C: 28 kN | C0: 65 kN
RUE25-D-H-OE Rail width: 23 mm | H: 40 mm | B: 48 mm | L: 90.6 mm | C: 28 kN | C0: 65 kN
RUE25-D-HL-FE Rail width: 23 mm | H: 40 mm | B: 48 mm | L: 107 mm | C: 33.5 kN | C0: 82 kN
RUE25-D-HL-OE Rail width: 23 mm | H: 40 mm | B: 48 mm | L: 107 mm | C: 33.5 kN | C0: 82 kN
RUE35-E-H Rail width: 34 mm | H: 55 mm | B: 70 mm | L: 122.9 mm | C: 59 kN | C0: 140 kN
RUE35-E-HL Rail width: 34 mm | H: 55 mm | B: 70 mm | L: 148.7 mm | C: 70 kN | C0: 175 kN
RUE45-E-H Rail width: 45 mm | H: 70 mm | B: 86 mm | L: 145.9 mm | C: 92 kN | C0: 215 kN
RUE45-E-HL Rail width: 45 mm | H: 70 mm | B: 86 mm | L: 178.3 mm | C: 114 kN | C0: 285 kN
RUE55-E-H Rail width: 53 mm | H: 80 mm | B: 100 mm | L: 172.7 mm | C: 136 kN | C0: 320 kN
RUE55-E-HL Rail width: 53 mm | H: 80 mm | B: 100 mm | L: 210.7 mm | C: 167 kN | C0: 415 kN
RUE65-E-H Rail width: 63 mm | H: 100 mm | B: 126 mm | L: 195.5 mm | C: 200 kN | C0: 435 kN
RUE65-E-HL Rail width: 63 mm | H: 100 mm | B: 126 mm | L: 261.9 mm | C: 270 kN | C0: 640 kN
Linear GuidesINA
25 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA RUE Linear Roller Bearing and Guideway Assemblies

Brand INA·Linear Guides

Available part numbers (25)

RUE25-D-FE, RUE25-D-OE, RUE25-D-L-FE, RUE25-D-L-OE, RUE35-E, RUE35-E-L, RUE45-E, RUE45-E-L, RUE55-E, RUE55-E-L + 15 more — see full table ↓

How to order

Send the INA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RUE25-D-FERail width: 23 mm | H: 36 mm | B: 70 mm | L: 91 mm | C: 28 kN | C0: 65 kN
RUE25-D-OERail width: 23 mm | H: 36 mm | B: 70 mm | L: 91 mm | C: 28 kN | C0: 65 kN
RUE25-D-L-FERail width: 23 mm | H: 36 mm | B: 70 mm | L: 107 mm | C: 33.5 kN | C0: 82 kN
RUE25-D-L-OERail width: 23 mm | H: 36 mm | B: 70 mm | L: 107 mm | C: 33.5 kN | C0: 82 kN
RUE35-ERail width: 34 mm | H: 48 mm | B: 100 mm | L: 122.9 mm | C: 59 kN | C0: 140 kN
RUE35-E-LRail width: 34 mm | H: 48 mm | B: 100 mm | L: 148.7 mm | C: 70 kN | C0: 175 kN
RUE45-ERail width: 45 mm | H: 60 mm | B: 120 mm | L: 145.9 mm | C: 92 kN | C0: 215 kN
RUE45-E-LRail width: 45 mm | H: 60 mm | B: 120 mm | L: 178.3 mm | C: 114 kN | C0: 285 kN
RUE55-ERail width: 53 mm | H: 70 mm | B: 140 mm | L: 172.7 mm | C: 136 kN | C0: 320 kN
RUE55-E-LRail width: 53 mm | H: 70 mm | B: 140 mm | L: 210.7 mm | C: 167 kN | C0: 415 kN
RUE65-ERail width: 63 mm | H: 90 mm | B: 170 mm | L: 195.5 mm | C: 200 kN | C0: 435 kN
RUE65-E-LRail width: 63 mm | H: 90 mm | B: 170 mm | L: 261.9 mm | C: 270 kN | C0: 640 kN
RUE100-E-LRail width: 100 mm | H: 120 mm | B: 250 mm | L: 372.2 mm | C: 630 kN | C0: 1490 kN
RUE25-D-H-FERail width: 23 mm | H: 40 mm | B: 48 mm | L: 90.6 mm | C: 28 kN | C0: 65 kN
RUE25-D-H-OERail width: 23 mm | H: 40 mm | B: 48 mm | L: 90.6 mm | C: 28 kN | C0: 65 kN
RUE25-D-HL-FERail width: 23 mm | H: 40 mm | B: 48 mm | L: 107 mm | C: 33.5 kN | C0: 82 kN
RUE25-D-HL-OERail width: 23 mm | H: 40 mm | B: 48 mm | L: 107 mm | C: 33.5 kN | C0: 82 kN
RUE35-E-HRail width: 34 mm | H: 55 mm | B: 70 mm | L: 122.9 mm | C: 59 kN | C0: 140 kN
RUE35-E-HLRail width: 34 mm | H: 55 mm | B: 70 mm | L: 148.7 mm | C: 70 kN | C0: 175 kN
RUE45-E-HRail width: 45 mm | H: 70 mm | B: 86 mm | L: 145.9 mm | C: 92 kN | C0: 215 kN
RUE45-E-HLRail width: 45 mm | H: 70 mm | B: 86 mm | L: 178.3 mm | C: 114 kN | C0: 285 kN
RUE55-E-HRail width: 53 mm | H: 80 mm | B: 100 mm | L: 172.7 mm | C: 136 kN | C0: 320 kN
RUE55-E-HLRail width: 53 mm | H: 80 mm | B: 100 mm | L: 210.7 mm | C: 167 kN | C0: 415 kN
RUE65-E-HRail width: 63 mm | H: 100 mm | B: 126 mm | L: 195.5 mm | C: 200 kN | C0: 435 kN
RUE65-E-HLRail width: 63 mm | H: 100 mm | B: 126 mm | L: 261.9 mm | C: 270 kN | C0: 640 kN

Need a different model, or a part not listed here? Send us your parts list →
