• INA RWU Linear Recirculating Roller Bearing Carriages
1 1

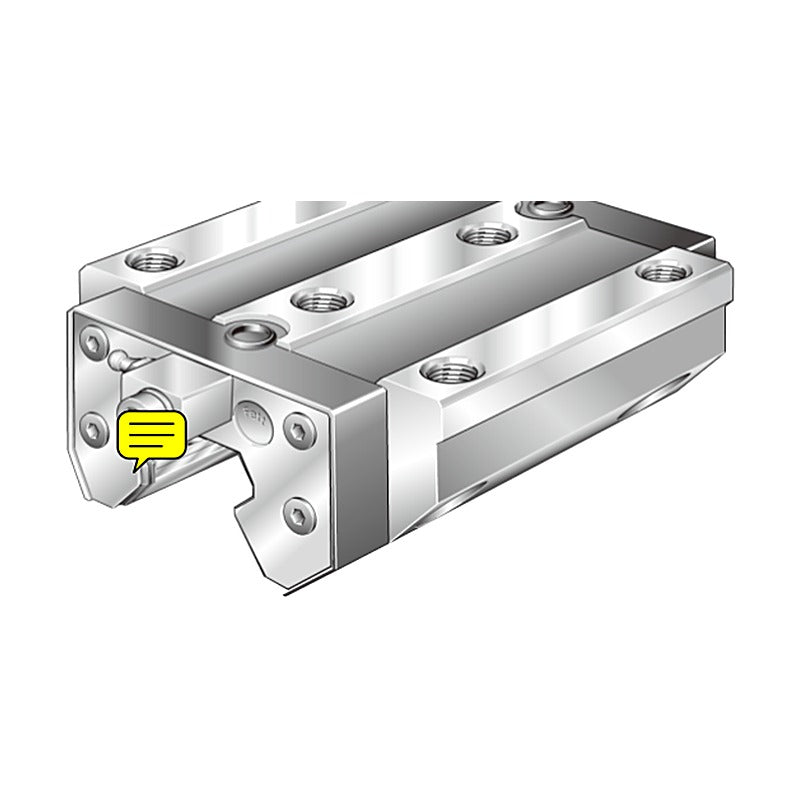

INA RWU Linear Recirculating Roller Bearing Carriages

INA RWU Linear Recirculating Roller Bearing Carriages

INA RWU carriages, the carriage part of RUE linear recirculating roller bearing and guideway assemblies, for mounting on TSX guideways.

Key features

  • Carriage-only designations of the RUE assemblies
  • Standard, L, H and HL designs
  • Sizes 25 to 100
  • Runs on INA TSX guideways

Specifications

Rolling elements Cylindrical rollers, full complement
Guideway INA TSX
Brand INA
Product type Linear Guides
Series RWU
Designations listed 23
Source INA Monorail Guidance Systems catalogue, p. 32, 36
RWU25-D-FE Unit: RUE25-D-FE | Mass: 0.7 kg
RWU25-D-OE Unit: RUE25-D-OE | Mass: 0.7 kg
RWU25-D-L-FE Unit: RUE25-D-L-FE | Mass: 0.9 kg
RWU25-D-L-OE Unit: RUE25-D-L-OE | Mass: 0.9 kg
RWU35-E Unit: RUE35-E | Mass: 1.75 kg
RWU35-E-L Unit: RUE35-E-L | Mass: 2.29 kg
RWU45-E Unit: RUE45-E | Mass: 3.07 kg
RWU45-E-L Unit: RUE45-E-L | Mass: 4.05 kg
RWU55-E Unit: RUE55-E | Mass: 5.24 kg
RWU55-E-L Unit: RUE55-E-L | Mass: 6.83 kg
RWU65-E Unit: RUE65-E | Mass: 9.32 kg
RWU65-E-L Unit: RUE65-E-L | Mass: 13.8 kg
RWU100-E-L Unit: RUE100-E-L | Mass: 36.4 kg
RWU25-D-H Unit: RUE25-D-H-FE | Mass: 0.6 kg
RWU25-D-HL Unit: RUE25-D-HL-FE | Mass: 0.8 kg
RWU35-E-H Unit: RUE35-E-H | Mass: 1.67 kg
RWU35-E-HL Unit: RUE35-E-HL | Mass: 2.14 kg
RWU45-E-H Unit: RUE45-E-H | Mass: 3.05 kg
RWU45-E-HL Unit: RUE45-E-HL | Mass: 3.95 kg
RWU55-E-H Unit: RUE55-E-H | Mass: 4.94 kg
RWU55-E-HL Unit: RUE55-E-HL | Mass: 6.34 kg
RWU65-E-H Unit: RUE65-E-H | Mass: 8.9 kg
RWU65-E-HL Unit: RUE65-E-HL | Mass: 12.89 kg
Linear GuidesINA
23 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA RWU Linear Recirculating Roller Bearing Carriages

Brand INA·Linear Guides

Available part numbers (23)

RWU25-D-FE, RWU25-D-OE, RWU25-D-L-FE, RWU25-D-L-OE, RWU35-E, RWU35-E-L, RWU45-E, RWU45-E-L, RWU55-E, RWU55-E-L + 13 more — see full table ↓

How to order

Send the INA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RWU25-D-FEUnit: RUE25-D-FE | Mass: 0.7 kg
RWU25-D-OEUnit: RUE25-D-OE | Mass: 0.7 kg
RWU25-D-L-FEUnit: RUE25-D-L-FE | Mass: 0.9 kg
RWU25-D-L-OEUnit: RUE25-D-L-OE | Mass: 0.9 kg
RWU35-EUnit: RUE35-E | Mass: 1.75 kg
RWU35-E-LUnit: RUE35-E-L | Mass: 2.29 kg
RWU45-EUnit: RUE45-E | Mass: 3.07 kg
RWU45-E-LUnit: RUE45-E-L | Mass: 4.05 kg
RWU55-EUnit: RUE55-E | Mass: 5.24 kg
RWU55-E-LUnit: RUE55-E-L | Mass: 6.83 kg
RWU65-EUnit: RUE65-E | Mass: 9.32 kg
RWU65-E-LUnit: RUE65-E-L | Mass: 13.8 kg
RWU100-E-LUnit: RUE100-E-L | Mass: 36.4 kg
RWU25-D-HUnit: RUE25-D-H-FE | Mass: 0.6 kg
RWU25-D-HLUnit: RUE25-D-HL-FE | Mass: 0.8 kg
RWU35-E-HUnit: RUE35-E-H | Mass: 1.67 kg
RWU35-E-HLUnit: RUE35-E-HL | Mass: 2.14 kg
RWU45-E-HUnit: RUE45-E-H | Mass: 3.05 kg
RWU45-E-HLUnit: RUE45-E-HL | Mass: 3.95 kg
RWU55-E-HUnit: RUE55-E-H | Mass: 4.94 kg
RWU55-E-HLUnit: RUE55-E-HL | Mass: 6.34 kg
RWU65-E-HUnit: RUE65-E-H | Mass: 8.9 kg
RWU65-E-HLUnit: RUE65-E-HL | Mass: 12.89 kg
