INA SL0248 / SL0249 Double Row Full Complement CRB (Non-locating)

INA SL0248 / SL0249 Double Row Full Complement CRB (Non-locating)

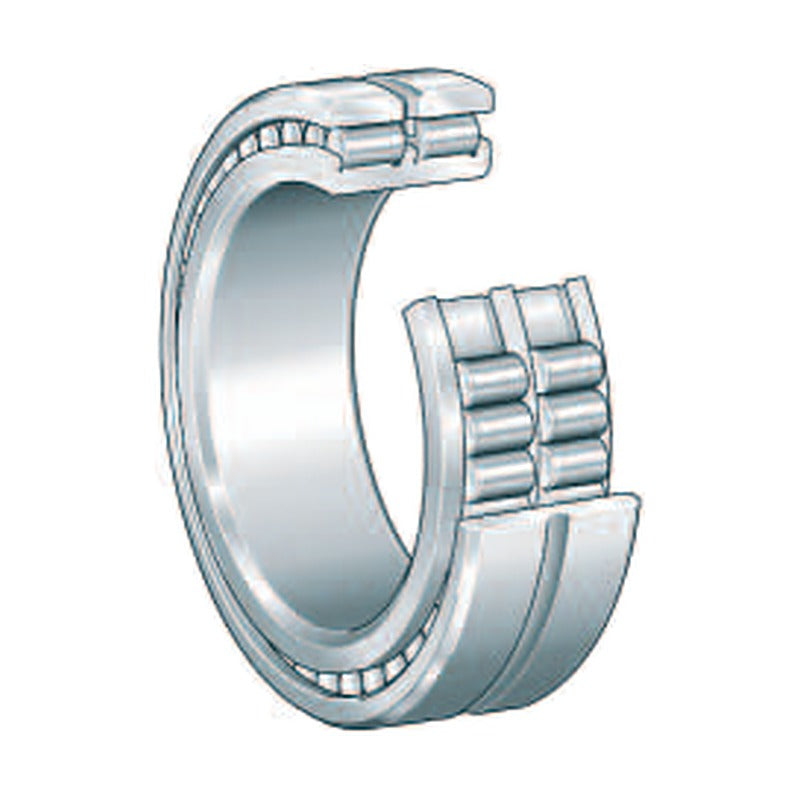

INA SL0248 and SL0249 double row full complement cylindrical roller bearings for non-locating bearing positions; DIN 5412 equivalents NNCL shown.

Key features

  • Double row full complement cylindrical roller bearings
  • Very high radial load capacity with low section height
  • Solid outer and inner rings with rib-guided rollers
  • Suitable for compact, heavily loaded bearing arrangements
  • Non-locating: axial displacement within the bearing

Specifications

Bearing type Cylindrical roller bearing, full complement
Series SL0248, SL0249
Rows Double
Function Non-locating
Load ratings C dynamic, C0 static radial
Brand INA (Schaeffler)
Source INA Rolling Bearings catalogue HR 1, p. 434-441
SL024912 d: 60 mm | D: 85 mm | B: 25 mm | C: 70 kN | C0: 121 kN | DIN 5412: NNCL 4912 V
SL024914 d: 70 mm | D: 100 mm | B: 30 mm | C: 106 kN | C0: 185 kN | DIN 5412: NNCL 4914 V
SL024916 d: 80 mm | D: 110 mm | B: 30 mm | C: 112 kN | C0: 206 kN | DIN 5412: NNCL 4916 V
SL024918 d: 90 mm | D: 125 mm | B: 35 mm | C: 153 kN | C0: 290 kN | DIN 5412: NNCL 4918 V
SL024920 d: 100 mm | D: 140 mm | B: 40 mm | C: 191 kN | C0: 370 kN | DIN 5412: NNCL 4920 V
SL024922 d: 110 mm | D: 150 mm | B: 40 mm | C: 198 kN | C0: 400 kN | DIN 5412: NNCL 4922 V
SL024924 d: 120 mm | D: 165 mm | B: 45 mm | C: 222 kN | C0: 440 kN | DIN 5412: NNCL 4924 V
SL024926 d: 130 mm | D: 180 mm | B: 50 mm | C: 260 kN | C0: 510 kN | DIN 5412: NNCL 4926 V
SL024928 d: 140 mm | D: 190 mm | B: 50 mm | C: 270 kN | C0: 550 kN | DIN 5412: NNCL 4928 V
SL024830 d: 150 mm | D: 190 mm | B: 40 mm | C: 231 kN | C0: 530 kN | DIN 5412: NNCL 4830 V
SL024930 d: 150 mm | D: 210 mm | B: 60 mm | C: 410 kN | C0: 820 kN | DIN 5412: NNCL 4930 V
SL024832 d: 160 mm | D: 200 mm | B: 40 mm | C: 237 kN | C0: 560 kN | DIN 5412: NNCL 4832 V
SL024932 d: 160 mm | D: 220 mm | B: 60 mm | C: 425 kN | C0: 880 kN | DIN 5412: NNCL 4932 V
SL024834 d: 170 mm | D: 215 mm | B: 45 mm | C: 260 kN | C0: 600 kN | DIN 5412: NNCL 4834 V
SL024934 d: 170 mm | D: 230 mm | B: 60 mm | C: 435 kN | C0: 930 kN | DIN 5412: NNCL 4934 V
SL024836 d: 180 mm | D: 225 mm | B: 45 mm | C: 270 kN | C0: 640 kN | DIN 5412: NNCL 4836 V
SL024936 d: 180 mm | D: 250 mm | B: 69 mm | C: 570 kN | C0: 1200 kN | DIN 5412: NNCL 4936 V
SL024838 d: 190 mm | D: 240 mm | B: 50 mm | C: 310 kN | C0: 730 kN | DIN 5412: NNCL 4838 V
SL024938 d: 190 mm | D: 260 mm | B: 69 mm | C: 580 kN | C0: 1270 kN | DIN 5412: NNCL 4938 V
SL024840 d: 200 mm | D: 250 mm | B: 50 mm | C: 320 kN | C0: 770 kN | DIN 5412: NNCL 4840 V
SL024940 d: 200 mm | D: 280 mm | B: 80 mm | C: 680 kN | C0: 1440 kN | DIN 5412: NNCL 4940 V
SL024844 d: 220 mm | D: 270 mm | B: 50 mm | C: 335 kN | C0: 840 kN | DIN 5412: NNCL 4844 V
SL024944 d: 220 mm | D: 300 mm | B: 80 mm | C: 700 kN | C0: 1550 kN | DIN 5412: NNCL 4944 V
SL024848 d: 240 mm | D: 300 mm | B: 60 mm | C: 510 kN | C0: 1260 kN | DIN 5412: NNCL 4848 V
SL024948 d: 240 mm | D: 320 mm | B: 80 mm | C: 740 kN | C0: 1700 kN | DIN 5412: NNCL 4948 V
SL024852 d: 260 mm | D: 320 mm | B: 60 mm | C: 540 kN | C0: 1370 kN | DIN 5412: NNCL 4852 V
SL024952 d: 260 mm | D: 360 mm | B: 100 mm | C: 1100 kN | C0: 2470 kN | DIN 5412: NNCL 4952 V
SL024856 d: 280 mm | D: 350 mm | B: 69 mm | C: 700 kN | C0: 1820 kN | DIN 5412: NNCL 4856 V
SL024956 d: 280 mm | D: 380 mm | B: 100 mm | C: 1150 kN | C0: 2650 kN | DIN 5412: NNCL 4956 V
SL024860 d: 300 mm | D: 380 mm | B: 80 mm | C: 820 kN | C0: 2070 kN | DIN 5412: NNCL 4860 V
SL024960 d: 300 mm | D: 420 mm | B: 118 mm | C: 1630 kN | C0: 3700 kN | DIN 5412: NNCL 4960 V
SL024864 d: 320 mm | D: 400 mm | B: 80 mm | C: 850 kN | C0: 2220 kN | DIN 5412: NNCL 4864 V
SL024964 d: 320 mm | D: 440 mm | B: 118 mm | C: 1700 kN | C0: 4050 kN | DIN 5412: NNCL 4964 V
SL024868 d: 340 mm | D: 420 mm | B: 80 mm | C: 870 kN | C0: 2330 kN | DIN 5412: NNCL 4868 V
SL024968 d: 340 mm | D: 460 mm | B: 118 mm | C: 1750 kN | C0: 4250 kN | DIN 5412: NNCL 4968 V
SL024872 d: 360 mm | D: 440 mm | B: 80 mm | C: 900 kN | C0: 2480 kN | DIN 5412: NNCL 4872 V
SL024972 d: 360 mm | D: 480 mm | B: 118 mm | C: 1790 kN | C0: 4450 kN | DIN 5412: NNCL 4972 V
SL024876 d: 380 mm | D: 480 mm | B: 100 mm | C: 1320 kN | C0: 3500 kN | DIN 5412: NNCL 4876 V
SL024976 d: 380 mm | D: 520 mm | B: 140 mm | C: 2250 kN | C0: 5500 kN | DIN 5412: NNCL 4976 V
SL024880 d: 400 mm | D: 500 mm | B: 100 mm | C: 1350 kN | C0: 3650 kN | DIN 5412: NNCL 4880 V
SL024980 d: 400 mm | D: 540 mm | B: 140 mm | C: 2310 kN | C0: 5800 kN | DIN 5412: NNCL 4980 V
