INA SL04..-PP Sheave Bearings (Sealed, Snap Ring Grooves)

INA SL04..-PP Sheave Bearings (Sealed, Snap Ring Grooves)

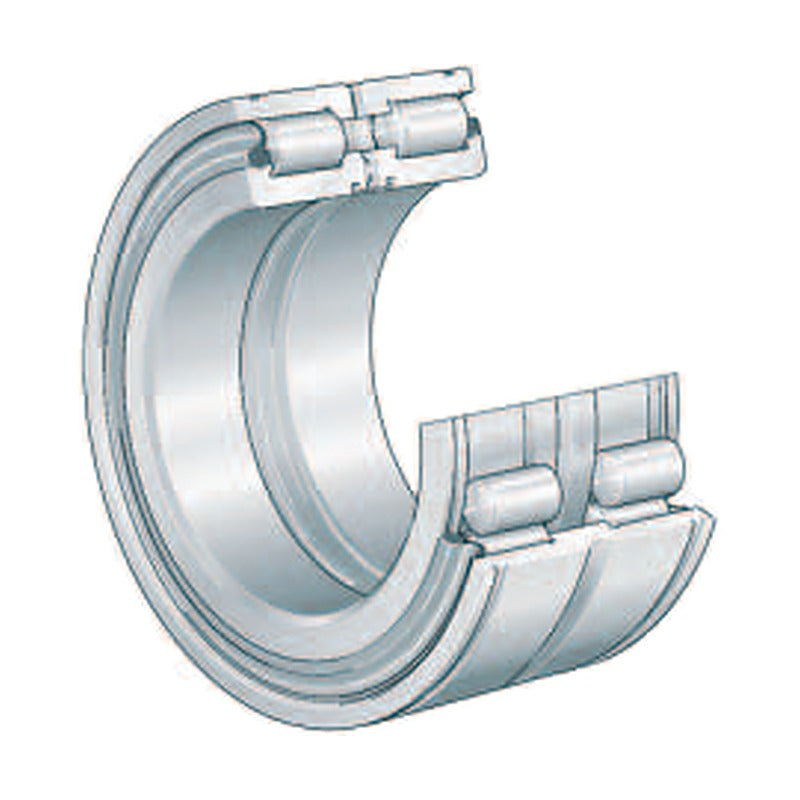

INA SL04..-PP double row full complement cylindrical roller bearings for cable sheaves, sealed on both sides with snap ring grooves in the outer ring.

Key features

  • Double row full complement cylindrical roller bearings for rope sheaves
  • Sealed on both sides (PP) and greased
  • Snap ring grooves in the outer ring for axial location
  • Locating bearing, axial loads in both directions
  • Very high radial load capacity

Specifications

Bearing type Cylindrical roller bearing, full complement
Series SL0450..-PP, SL04..-PP
Rows Double
Sealing PP, both sides
Application Cable sheaves
Load ratings C dynamic, C0 static radial
Brand INA (Schaeffler)
Source INA Rolling Bearings catalogue HR 1, p. 442-445
SL045004-PP d: 20 mm | D: 42 mm | B: 30 mm | C: 41.5 kN | C0: 51 kN | nG: 4000 rpm
SL045005-PP d: 25 mm | D: 47 mm | B: 30 mm | C: 46 kN | C0: 60 kN | nG: 3600 rpm
SL045006-PP d: 30 mm | D: 55 mm | B: 34 mm | C: 50 kN | C0: 67 kN | nG: 3000 rpm
SL045007-PP d: 35 mm | D: 62 mm | B: 36 mm | C: 63 kN | C0: 88 kN | nG: 2600 rpm
SL045008-PP d: 40 mm | D: 68 mm | B: 38 mm | C: 80 kN | C0: 111 kN | nG: 2400 rpm
SL045009-PP d: 45 mm | D: 75 mm | B: 40 mm | C: 97 kN | C0: 139 kN | nG: 2200 rpm
SL045010-PP d: 50 mm | D: 80 mm | B: 40 mm | C: 102 kN | C0: 151 kN | nG: 2000 rpm
SL045011-PP d: 55 mm | D: 90 mm | B: 46 mm | C: 120 kN | C0: 186 kN | nG: 1800 rpm
SL045012-PP d: 60 mm | D: 95 mm | B: 46 mm | C: 125 kN | C0: 201 kN | nG: 1700 rpm
SL045013-PP d: 65 mm | D: 100 mm | B: 46 mm | C: 130 kN | C0: 215 kN | nG: 1600 rpm
SL045014-PP d: 70 mm | D: 110 mm | B: 54 mm | C: 175 kN | C0: 275 kN | nG: 1400 rpm
SL045015-PP d: 75 mm | D: 115 mm | B: 54 mm | C: 201 kN | C0: 315 kN | nG: 1400 rpm
SL045016-PP d: 80 mm | D: 125 mm | B: 60 mm | C: 210 kN | C0: 340 kN | nG: 1300 rpm
SL045017-PP d: 85 mm | D: 130 mm | B: 60 mm | C: 219 kN | C0: 365 kN | nG: 1200 rpm
SL045018-PP d: 90 mm | D: 140 mm | B: 67 mm | C: 305 kN | C0: 510 kN | nG: 1100 rpm
SL045019-PP d: 95 mm | D: 145 mm | B: 67 mm | C: 315 kN | C0: 530 kN | nG: 1100 rpm
SL045020-PP d: 100 mm | D: 150 mm | B: 67 mm | C: 330 kN | C0: 550 kN | nG: 1000 rpm
SL045022-PP d: 110 mm | D: 170 mm | B: 80 mm | C: 395 kN | C0: 680 kN | nG: 900 rpm
SL045024-PP d: 120 mm | D: 180 mm | B: 80 mm | C: 410 kN | C0: 740 kN | nG: 900 rpm
SL045026-PP d: 130 mm | D: 200 mm | B: 95 mm | C: 540 kN | C0: 960 kN | nG: 800 rpm
SL04130-PP d: 130 mm | D: 190 mm | B: 80 mm | C: 430 kN | C0: 790 kN | nG: 800 rpm
SL045028-PP d: 140 mm | D: 210 mm | B: 95 mm | C: 610 kN | C0: 1100 kN | nG: 750 rpm
SL04140-PP d: 140 mm | D: 200 mm | B: 80 mm | C: 445 kN | C0: 840 kN | nG: 750 rpm
SL045030-PP d: 150 mm | D: 225 mm | B: 100 mm | C: 710 kN | C0: 1260 kN | nG: 700 rpm
SL04150-PP d: 150 mm | D: 210 mm | B: 80 mm | C: 465 kN | C0: 920 kN | nG: 700 rpm
SL045032-PP d: 160 mm | D: 240 mm | B: 109 mm | C: 740 kN | C0: 1360 kN | nG: 650 rpm
SL04160-PP d: 160 mm | D: 220 mm | B: 80 mm | C: 480 kN | C0: 970 kN | nG: 700 rpm
SL045034-PP d: 170 mm | D: 260 mm | B: 122 mm | C: 960 kN | C0: 1750 kN | nG: 600 rpm
SL04170-PP d: 170 mm | D: 230 mm | B: 80 mm | C: 490 kN | C0: 1030 kN | nG: 650 rpm
SL045036-PP d: 180 mm | D: 280 mm | B: 136 mm | C: 1140 kN | C0: 2130 kN | nG: 550 rpm
SL04180-PP d: 180 mm | D: 240 mm | B: 80 mm | C: 500 kN | C0: 1080 kN | nG: 600 rpm
SL045038-PP d: 190 mm | D: 290 mm | B: 136 mm | C: 1160 kN | C0: 2210 kN | nG: 550 rpm
SL04190-PP d: 190 mm | D: 260 mm | B: 80 mm | C: 520 kN | C0: 1160 kN | nG: 550 rpm
SL045040-PP d: 200 mm | D: 310 mm | B: 150 mm | C: 1350 kN | C0: 2600 kN | nG: 500 rpm
SL04200-PP d: 200 mm | D: 270 mm | B: 80 mm | C: 540 kN | C0: 1210 kN | nG: 550 rpm
SL045044-PP d: 220 mm | D: 340 mm | B: 160 mm | C: 1570 kN | C0: 3050 kN | nG: 480 rpm
SL04220-PP d: 220 mm | D: 300 mm | B: 95 mm | C: 700 kN | C0: 1550 kN | nG: 480 rpm
SL045048-PP d: 240 mm | D: 360 mm | B: 160 mm | C: 1630 kN | C0: 3300 kN | nG: 440 rpm
SL04240-PP d: 240 mm | D: 320 mm | B: 95 mm | C: 740 kN | C0: 1700 kN | nG: 480 rpm
SL045052-PP d: 260 mm | D: 400 mm | B: 190 mm | C: 2380 kN | C0: 4700 kN | nG: 400 rpm
SL04260-PP d: 260 mm | D: 340 mm | B: 95 mm | C: 840 kN | C0: 1990 kN | nG: 440 rpm
SL045056-PP d: 280 mm | D: 420 mm | B: 190 mm | C: 2600 kN | C0: 5200 kN | nG: 380 rpm
SL045060-PP d: 300 mm | D: 460 mm | B: 218 mm | C: 3000 kN | C0: 5800 kN | nG: 340 rpm
SL04300-PP d: 300 mm | D: 380 mm | B: 95 mm | C: 900 kN | C0: 2250 kN | nG: 380 rpm
