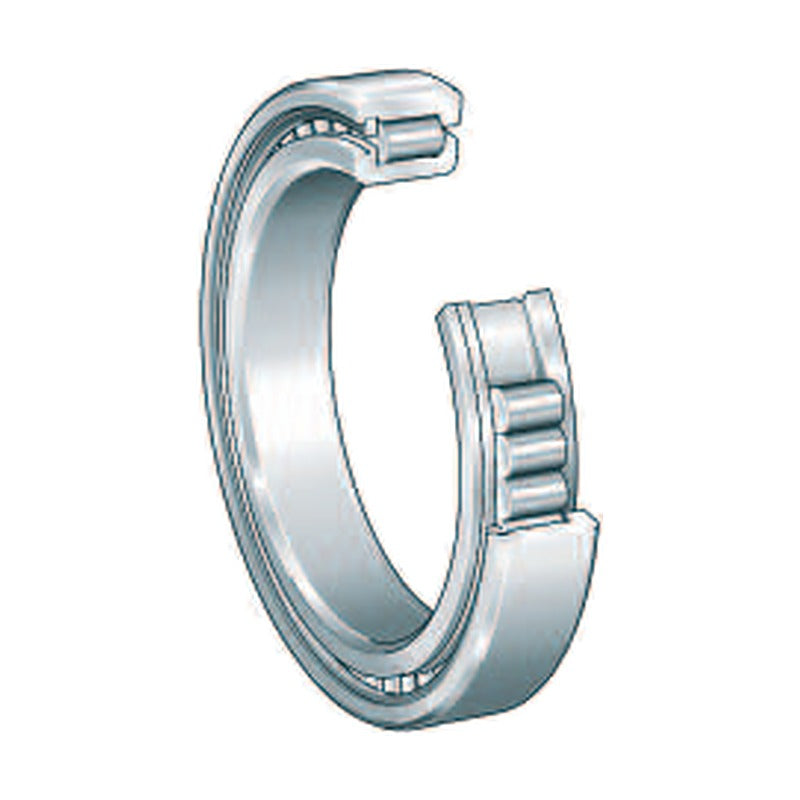

INA SL1818 Full Complement Cylindrical Roller Bearings (Single Row)

INA SL1818 Full Complement Cylindrical Roller Bearings (Single Row)

INA SL1818 single row full complement cylindrical roller bearings, semi-locating, as listed in the HR 1 catalogue.

Key features

  • Single row full complement cylindrical roller bearings
  • Maximum number of rollers for very high radial load capacity
  • Semi-locating bearings: axial loads in one direction
  • Suited to low to moderate speeds and compact designs
  • TB design with increased axial capacity where printed

Specifications

Bearing type Cylindrical roller bearing, full complement
Series SL1818
Rows Single
Function Semi-locating
Load ratings C dynamic, C0 static radial
Brand INA (Schaeffler)
Source INA Rolling Bearings catalogue HR 1, p. 420-423
SL181840 d: 200 mm | D: 250 mm | B: 24 mm | C: 178 kN | C0: 320 kN | nG: 1450 rpm
SL181844 d: 220 mm | D: 270 mm | B: 24 mm | C: 187 kN | C0: 350 kN | nG: 1320 rpm
SL181848-E d: 240 mm | D: 300 mm | B: 28 mm | C: 265 kN | C0: 490 kN | nG: 1200 rpm
SL181852-E d: 260 mm | D: 320 mm | B: 28 mm | C: 275 kN | C0: 530 kN | nG: 1110 rpm
SL181856-E d: 280 mm | D: 350 mm | B: 33 mm | C: 355 kN | C0: 670 kN | nG: 1030 rpm
SL181860-E d: 300 mm | D: 380 mm | B: 38 mm | C: 455 kN | C0: 840 kN | nG: 960 rpm
SL181864-E d: 320 mm | D: 400 mm | B: 38 mm | C: 470 kN | C0: 900 kN | nG: 910 rpm
SL181868-E d: 340 mm | D: 420 mm | B: 38 mm | C: 485 kN | C0: 960 kN | nG: 860 rpm
SL181872-E d: 360 mm | D: 440 mm | B: 38 mm | C: 500 kN | C0: 1010 kN | nG: 810 rpm
SL181876-E d: 380 mm | D: 480 mm | B: 46 mm | C: 650 kN | C0: 1290 kN | nG: 750 rpm
SL181880-E d: 400 mm | D: 500 mm | B: 46 mm | C: 660 kN | C0: 1340 kN | nG: 720 rpm
SL181884-E d: 420 mm | D: 520 mm | B: 46 mm | C: 680 kN | C0: 1420 kN | nG: 690 rpm
SL181888-E d: 440 mm | D: 540 mm | B: 46 mm | C: 700 kN | C0: 1470 kN | nG: 660 rpm
SL181892-E d: 460 mm | D: 580 mm | B: 56 mm | C: 940 kN | C0: 1890 kN | nG: 620 rpm
SL181896-E d: 480 mm | D: 600 mm | B: 56 mm | C: 960 kN | C0: 1970 kN | nG: 600 rpm
SL1818/500-E d: 500 mm | D: 620 mm | B: 56 mm | C: 980 kN | C0: 2050 kN | nG: 580 rpm
Cylindrical Roller BearingsINA
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA SL1818 Full Complement Cylindrical Roller Bearings (Single Row)

Brand INA·Cylindrical Roller Bearings

Available part numbers (16)

SL181840, SL181844, SL181848-E, SL181852-E, SL181856-E, SL181860-E, SL181864-E, SL181868-E, SL181872-E, SL181876-E + 6 more — see full table ↓

How to order

Send the INA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SL181840d: 200 mm | D: 250 mm | B: 24 mm | C: 178 kN | C0: 320 kN | nG: 1450 rpm
SL181844d: 220 mm | D: 270 mm | B: 24 mm | C: 187 kN | C0: 350 kN | nG: 1320 rpm
SL181848-Ed: 240 mm | D: 300 mm | B: 28 mm | C: 265 kN | C0: 490 kN | nG: 1200 rpm
SL181852-Ed: 260 mm | D: 320 mm | B: 28 mm | C: 275 kN | C0: 530 kN | nG: 1110 rpm
SL181856-Ed: 280 mm | D: 350 mm | B: 33 mm | C: 355 kN | C0: 670 kN | nG: 1030 rpm
SL181860-Ed: 300 mm | D: 380 mm | B: 38 mm | C: 455 kN | C0: 840 kN | nG: 960 rpm
SL181864-Ed: 320 mm | D: 400 mm | B: 38 mm | C: 470 kN | C0: 900 kN | nG: 910 rpm
SL181868-Ed: 340 mm | D: 420 mm | B: 38 mm | C: 485 kN | C0: 960 kN | nG: 860 rpm
SL181872-Ed: 360 mm | D: 440 mm | B: 38 mm | C: 500 kN | C0: 1010 kN | nG: 810 rpm
SL181876-Ed: 380 mm | D: 480 mm | B: 46 mm | C: 650 kN | C0: 1290 kN | nG: 750 rpm
SL181880-Ed: 400 mm | D: 500 mm | B: 46 mm | C: 660 kN | C0: 1340 kN | nG: 720 rpm
SL181884-Ed: 420 mm | D: 520 mm | B: 46 mm | C: 680 kN | C0: 1420 kN | nG: 690 rpm
SL181888-Ed: 440 mm | D: 540 mm | B: 46 mm | C: 700 kN | C0: 1470 kN | nG: 660 rpm
SL181892-Ed: 460 mm | D: 580 mm | B: 56 mm | C: 940 kN | C0: 1890 kN | nG: 620 rpm
SL181896-Ed: 480 mm | D: 600 mm | B: 56 mm | C: 960 kN | C0: 1970 kN | nG: 600 rpm
SL1818/500-Ed: 500 mm | D: 620 mm | B: 56 mm | C: 980 kN | C0: 2050 kN | nG: 580 rpm
