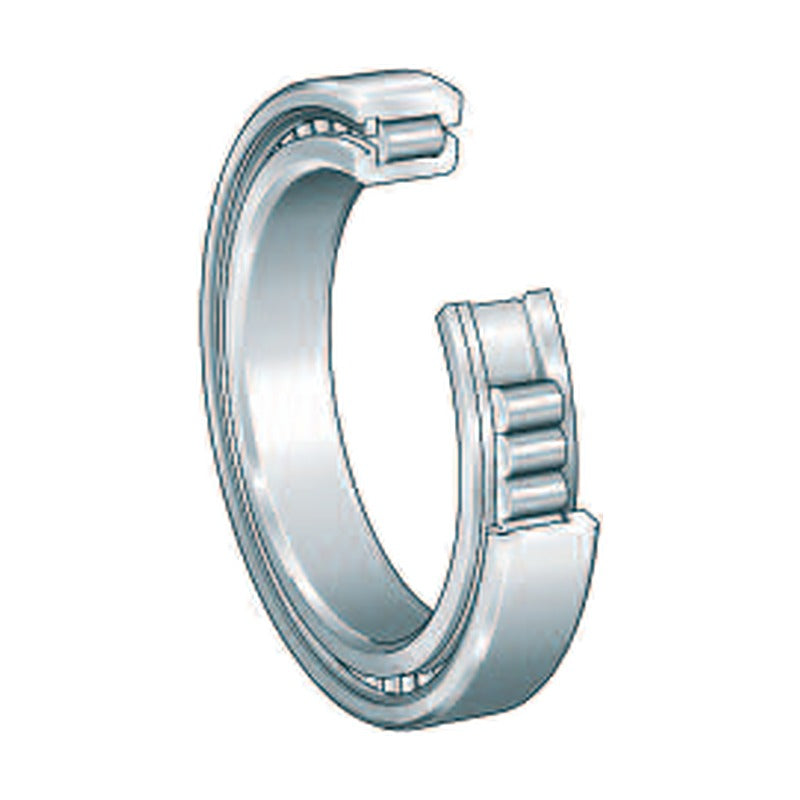

INA SL1822 Full Complement Cylindrical Roller Bearings (Single Row)

INA SL1822 Full Complement Cylindrical Roller Bearings (Single Row)

INA SL1822 single row full complement cylindrical roller bearings, semi-locating, as listed in the HR 1 catalogue.

Key features

  • Single row full complement cylindrical roller bearings
  • Maximum number of rollers for very high radial load capacity
  • Semi-locating bearings: axial loads in one direction
  • Suited to low to moderate speeds and compact designs
  • TB design with increased axial capacity where printed

Specifications

Bearing type Cylindrical roller bearing, full complement
Series SL1822
Rows Single
Function Semi-locating
Load ratings C dynamic, C0 static radial
Brand INA (Schaeffler)
Source INA Rolling Bearings catalogue HR 1, p. 416-421
SL182204 d: 20 mm | D: 47 mm | B: 18 mm | C: 45.5 kN | C0: 37 kN | nG: 9700 rpm
SL182205 d: 25 mm | D: 52 mm | B: 18 mm | C: 51 kN | C0: 44.5 kN | nG: 8400 rpm
SL182206 d: 30 mm | D: 62 mm | B: 20 mm | C: 70 kN | C0: 64 kN | nG: 7000 rpm
SL182207 d: 35 mm | D: 72 mm | B: 23 mm | C: 88 kN | C0: 78 kN | nG: 6100 rpm
SL182208 d: 40 mm | D: 80 mm | B: 23 mm | C: 97 kN | C0: 91 kN | nG: 5400 rpm
SL182209 d: 45 mm | D: 85 mm | B: 23 mm | C: 101 kN | C0: 98 kN | nG: 5100 rpm
SL182210 d: 50 mm | D: 90 mm | B: 23 mm | C: 109 kN | C0: 111 kN | nG: 4600 rpm
SL182211 d: 55 mm | D: 100 mm | B: 25 mm | C: 140 kN | C0: 148 kN | nG: 4200 rpm
SL182212 d: 60 mm | D: 110 mm | B: 28 mm | C: 169 kN | C0: 176 kN | nG: 3800 rpm
SL182213 d: 65 mm | D: 120 mm | B: 31 mm | C: 198 kN | C0: 210 kN | nG: 3550 rpm
SL182214 d: 70 mm | D: 125 mm | B: 31 mm | C: 181 kN | C0: 223 kN | nG: 3350 rpm
SL182215 d: 75 mm | D: 130 mm | B: 31 mm | C: 187 kN | C0: 236 kN | nG: 3200 rpm
SL182216 d: 80 mm | D: 140 mm | B: 33 mm | C: 223 kN | C0: 280 kN | nG: 3000 rpm
SL182217 d: 85 mm | D: 150 mm | B: 36 mm | C: 255 kN | C0: 320 kN | nG: 2800 rpm
SL182218 d: 90 mm | D: 160 mm | B: 40 mm | C: 285 kN | C0: 365 kN | nG: 2650 rpm
SL182219 d: 95 mm | D: 170 mm | B: 43 mm | C: 330 kN | C0: 425 kN | nG: 2410 rpm
SL182220 d: 100 mm | D: 180 mm | B: 46 mm | C: 390 kN | C0: 510 kN | nG: 2300 rpm
SL182222 d: 110 mm | D: 200 mm | B: 53 mm | C: 450 kN | C0: 580 kN | nG: 2130 rpm
SL182224 d: 120 mm | D: 215 mm | B: 58 mm | C: 530 kN | C0: 720 kN | nG: 1950 rpm
SL182226 d: 130 mm | D: 230 mm | B: 64 mm | C: 620 kN | C0: 850 kN | nG: 1810 rpm
SL182228 d: 140 mm | D: 250 mm | B: 68 mm | C: 720 kN | C0: 1000 kN | nG: 1690 rpm
SL182230 d: 150 mm | D: 270 mm | B: 73 mm | C: 820 kN | C0: 1160 kN | nG: 1580 rpm
SL182232 d: 160 mm | D: 290 mm | B: 80 mm | C: 1020 kN | C0: 1470 kN | nG: 1410 rpm
SL182234 d: 170 mm | D: 310 mm | B: 86 mm | C: 1140 kN | C0: 1660 kN | nG: 1330 rpm
SL182236 d: 180 mm | D: 320 mm | B: 86 mm | C: 1180 kN | C0: 1760 kN | nG: 1270 rpm
SL182238 d: 190 mm | D: 340 mm | B: 92 mm | C: 1300 kN | C0: 1900 kN | nG: 1210 rpm
SL182240 d: 200 mm | D: 360 mm | B: 98 mm | C: 1410 kN | C0: 2010 kN | nG: 1180 rpm
Cylindrical Roller BearingsINA
27 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA SL1822 Full Complement Cylindrical Roller Bearings (Single Row)

Brand INA·Cylindrical Roller Bearings

Available part numbers (27)

SL182204, SL182205, SL182206, SL182207, SL182208, SL182209, SL182210, SL182211, SL182212, SL182213 + 17 more — see full table ↓

How to order

Send the INA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SL182204d: 20 mm | D: 47 mm | B: 18 mm | C: 45.5 kN | C0: 37 kN | nG: 9700 rpm
SL182205d: 25 mm | D: 52 mm | B: 18 mm | C: 51 kN | C0: 44.5 kN | nG: 8400 rpm
SL182206d: 30 mm | D: 62 mm | B: 20 mm | C: 70 kN | C0: 64 kN | nG: 7000 rpm
SL182207d: 35 mm | D: 72 mm | B: 23 mm | C: 88 kN | C0: 78 kN | nG: 6100 rpm
SL182208d: 40 mm | D: 80 mm | B: 23 mm | C: 97 kN | C0: 91 kN | nG: 5400 rpm
SL182209d: 45 mm | D: 85 mm | B: 23 mm | C: 101 kN | C0: 98 kN | nG: 5100 rpm
SL182210d: 50 mm | D: 90 mm | B: 23 mm | C: 109 kN | C0: 111 kN | nG: 4600 rpm
SL182211d: 55 mm | D: 100 mm | B: 25 mm | C: 140 kN | C0: 148 kN | nG: 4200 rpm
SL182212d: 60 mm | D: 110 mm | B: 28 mm | C: 169 kN | C0: 176 kN | nG: 3800 rpm
SL182213d: 65 mm | D: 120 mm | B: 31 mm | C: 198 kN | C0: 210 kN | nG: 3550 rpm
SL182214d: 70 mm | D: 125 mm | B: 31 mm | C: 181 kN | C0: 223 kN | nG: 3350 rpm
SL182215d: 75 mm | D: 130 mm | B: 31 mm | C: 187 kN | C0: 236 kN | nG: 3200 rpm
SL182216d: 80 mm | D: 140 mm | B: 33 mm | C: 223 kN | C0: 280 kN | nG: 3000 rpm
SL182217d: 85 mm | D: 150 mm | B: 36 mm | C: 255 kN | C0: 320 kN | nG: 2800 rpm
SL182218d: 90 mm | D: 160 mm | B: 40 mm | C: 285 kN | C0: 365 kN | nG: 2650 rpm
SL182219d: 95 mm | D: 170 mm | B: 43 mm | C: 330 kN | C0: 425 kN | nG: 2410 rpm
SL182220d: 100 mm | D: 180 mm | B: 46 mm | C: 390 kN | C0: 510 kN | nG: 2300 rpm
SL182222d: 110 mm | D: 200 mm | B: 53 mm | C: 450 kN | C0: 580 kN | nG: 2130 rpm
SL182224d: 120 mm | D: 215 mm | B: 58 mm | C: 530 kN | C0: 720 kN | nG: 1950 rpm
SL182226d: 130 mm | D: 230 mm | B: 64 mm | C: 620 kN | C0: 850 kN | nG: 1810 rpm
SL182228d: 140 mm | D: 250 mm | B: 68 mm | C: 720 kN | C0: 1000 kN | nG: 1690 rpm
SL182230d: 150 mm | D: 270 mm | B: 73 mm | C: 820 kN | C0: 1160 kN | nG: 1580 rpm
SL182232d: 160 mm | D: 290 mm | B: 80 mm | C: 1020 kN | C0: 1470 kN | nG: 1410 rpm
SL182234d: 170 mm | D: 310 mm | B: 86 mm | C: 1140 kN | C0: 1660 kN | nG: 1330 rpm
SL182236d: 180 mm | D: 320 mm | B: 86 mm | C: 1180 kN | C0: 1760 kN | nG: 1270 rpm
SL182238d: 190 mm | D: 340 mm | B: 92 mm | C: 1300 kN | C0: 1900 kN | nG: 1210 rpm
SL182240d: 200 mm | D: 360 mm | B: 98 mm | C: 1410 kN | C0: 2010 kN | nG: 1180 rpm
