• INA SL1829 Full Complement Cylindrical Roller Bearings (Single Row)
1 1

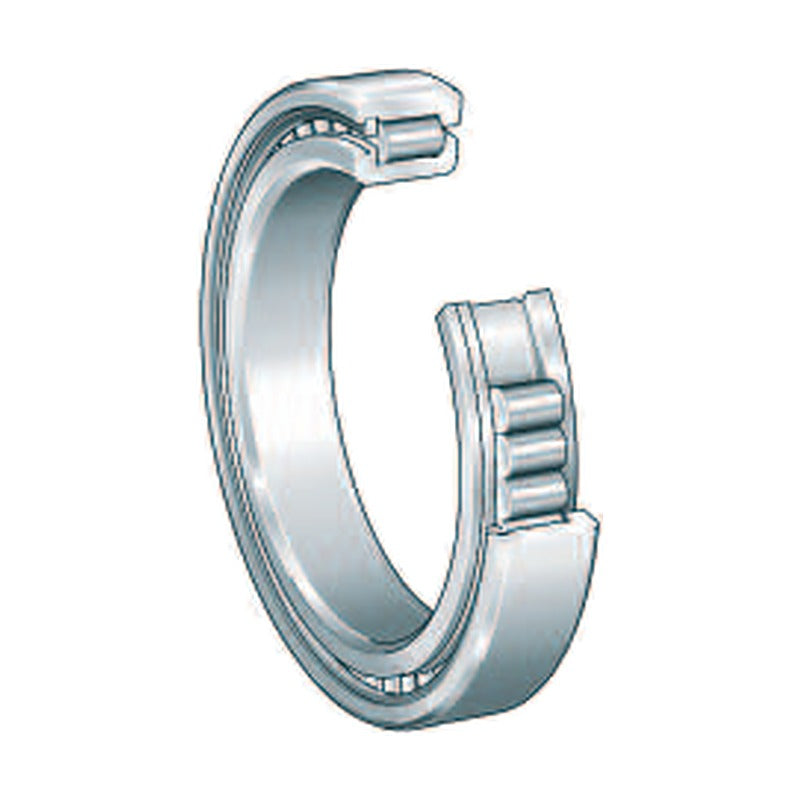

INA SL1829 Full Complement Cylindrical Roller Bearings (Single Row)

INA SL1829 Full Complement Cylindrical Roller Bearings (Single Row)

INA SL1829 single row full complement cylindrical roller bearings, semi-locating, as listed in the HR 1 catalogue.

Key features

  • Single row full complement cylindrical roller bearings
  • Maximum number of rollers for very high radial load capacity
  • Semi-locating bearings: axial loads in one direction
  • Suited to low to moderate speeds and compact designs
  • TB design with increased axial capacity where printed

Specifications

Bearing type Cylindrical roller bearing, full complement
Series SL1829
Rows Single
Function Semi-locating
Load ratings C dynamic, C0 static radial
Brand INA (Schaeffler)
Source INA Rolling Bearings catalogue HR 1, p. 416-423
SL182912 d: 60 mm | D: 85 mm | B: 16 mm | C: 63 kN | C0: 76 kN | nG: 4550 rpm
SL182913 d: 65 mm | D: 90 mm | B: 16 mm | C: 67 kN | C0: 84 kN | nG: 4150 rpm
SL182914 d: 70 mm | D: 100 mm | B: 19 mm | C: 88 kN | C0: 111 kN | nG: 3850 rpm
SL182915 d: 75 mm | D: 105 mm | B: 19 mm | C: 91 kN | C0: 119 kN | nG: 3600 rpm
SL182916 d: 80 mm | D: 110 mm | B: 19 mm | C: 94 kN | C0: 126 kN | nG: 3450 rpm
SL182917 d: 85 mm | D: 120 mm | B: 22 mm | C: 118 kN | C0: 159 kN | nG: 3200 rpm
SL182918 d: 90 mm | D: 125 mm | B: 22 mm | C: 122 kN | C0: 169 kN | nG: 3050 rpm
SL182919 d: 95 mm | D: 130 mm | B: 22 mm | C: 132 kN | C0: 177 kN | nG: 2900 rpm
SL182920 d: 100 mm | D: 140 mm | B: 24 mm | C: 152 kN | C0: 203 kN | nG: 2700 rpm
SL182922 d: 110 mm | D: 150 mm | B: 24 mm | C: 155 kN | C0: 213 kN | nG: 2490 rpm
SL182924 d: 120 mm | D: 165 mm | B: 27 mm | C: 199 kN | C0: 285 kN | nG: 2290 rpm
SL182926 d: 130 mm | D: 180 mm | B: 30 mm | C: 238 kN | C0: 350 kN | nG: 2110 rpm
SL182928 d: 140 mm | D: 190 mm | B: 30 mm | C: 260 kN | C0: 375 kN | nG: 1960 rpm
SL182930 d: 150 mm | D: 210 mm | B: 36 mm | C: 340 kN | C0: 480 kN | nG: 1810 rpm
SL182932 d: 160 mm | D: 220 mm | B: 36 mm | C: 350 kN | C0: 510 kN | nG: 1710 rpm
SL182934 d: 170 mm | D: 230 mm | B: 36 mm | C: 365 kN | C0: 540 kN | nG: 1610 rpm
SL182936 d: 180 mm | D: 250 mm | B: 42 mm | C: 455 kN | C0: 680 kN | nG: 1530 rpm
SL182938 d: 190 mm | D: 260 mm | B: 42 mm | C: 510 kN | C0: 770 kN | nG: 1450 rpm
SL182940 d: 200 mm | D: 280 mm | B: 48 mm | C: 610 kN | C0: 940 kN | nG: 1360 rpm
SL182944 d: 220 mm | D: 300 mm | B: 48 mm | C: 650 kN | C0: 1030 kN | nG: 1250 rpm
SL182948 d: 240 mm | D: 320 mm | B: 48 mm | C: 600 kN | C0: 1120 kN | nG: 1150 rpm
SL182952 d: 260 mm | D: 360 mm | B: 60 mm | C: 780 kN | C0: 1450 kN | nG: 1060 rpm
SL182956 d: 280 mm | D: 380 mm | B: 60 mm | C: 910 kN | C0: 1710 kN | nG: 980 rpm
SL182960 d: 300 mm | D: 420 mm | B: 72 mm | C: 1170 kN | C0: 2200 kN | nG: 910 rpm
SL182964 d: 320 mm | D: 440 mm | B: 72 mm | C: 1210 kN | C0: 2340 kN | nG: 860 rpm
SL182968 d: 340 mm | D: 460 mm | B: 72 mm | C: 1250 kN | C0: 2470 kN | nG: 810 rpm
SL182972 d: 360 mm | D: 480 mm | B: 72 mm | C: 1280 kN | C0: 2600 kN | nG: 770 rpm
SL182976 d: 380 mm | D: 520 mm | B: 82 mm | C: 1660 kN | C0: 3300 kN | nG: 720 rpm
SL182980 d: 400 mm | D: 540 mm | B: 82 mm | C: 1710 kN | C0: 3500 kN | nG: 690 rpm
SL182984 d: 420 mm | D: 560 mm | B: 82 mm | C: 1730 kN | C0: 3600 kN | nG: 670 rpm
SL182988 d: 440 mm | D: 600 mm | B: 95 mm | C: 2090 kN | C0: 4100 kN | nG: 630 rpm
SL182992 d: 460 mm | D: 620 mm | B: 95 mm | C: 2130 kN | C0: 4250 kN | nG: 610 rpm
SL182996 d: 480 mm | D: 650 mm | B: 100 mm | C: 2390 kN | C0: 4800 kN | nG: 570 rpm
SL1829/500 d: 500 mm | D: 670 mm | B: 100 mm | C: 2430 kN | C0: 4950 kN | nG: 560 rpm
Cylindrical Roller BearingsINA
34 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA SL1829 Full Complement Cylindrical Roller Bearings (Single Row)

Brand INA·Cylindrical Roller Bearings

Available part numbers (34)

SL182912, SL182913, SL182914, SL182915, SL182916, SL182917, SL182918, SL182919, SL182920, SL182922 + 24 more — see full table ↓

How to order

Send the INA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SL182912d: 60 mm | D: 85 mm | B: 16 mm | C: 63 kN | C0: 76 kN | nG: 4550 rpm
SL182913d: 65 mm | D: 90 mm | B: 16 mm | C: 67 kN | C0: 84 kN | nG: 4150 rpm
SL182914d: 70 mm | D: 100 mm | B: 19 mm | C: 88 kN | C0: 111 kN | nG: 3850 rpm
SL182915d: 75 mm | D: 105 mm | B: 19 mm | C: 91 kN | C0: 119 kN | nG: 3600 rpm
SL182916d: 80 mm | D: 110 mm | B: 19 mm | C: 94 kN | C0: 126 kN | nG: 3450 rpm
SL182917d: 85 mm | D: 120 mm | B: 22 mm | C: 118 kN | C0: 159 kN | nG: 3200 rpm
SL182918d: 90 mm | D: 125 mm | B: 22 mm | C: 122 kN | C0: 169 kN | nG: 3050 rpm
SL182919d: 95 mm | D: 130 mm | B: 22 mm | C: 132 kN | C0: 177 kN | nG: 2900 rpm
SL182920d: 100 mm | D: 140 mm | B: 24 mm | C: 152 kN | C0: 203 kN | nG: 2700 rpm
SL182922d: 110 mm | D: 150 mm | B: 24 mm | C: 155 kN | C0: 213 kN | nG: 2490 rpm
SL182924d: 120 mm | D: 165 mm | B: 27 mm | C: 199 kN | C0: 285 kN | nG: 2290 rpm
SL182926d: 130 mm | D: 180 mm | B: 30 mm | C: 238 kN | C0: 350 kN | nG: 2110 rpm
SL182928d: 140 mm | D: 190 mm | B: 30 mm | C: 260 kN | C0: 375 kN | nG: 1960 rpm
SL182930d: 150 mm | D: 210 mm | B: 36 mm | C: 340 kN | C0: 480 kN | nG: 1810 rpm
SL182932d: 160 mm | D: 220 mm | B: 36 mm | C: 350 kN | C0: 510 kN | nG: 1710 rpm
SL182934d: 170 mm | D: 230 mm | B: 36 mm | C: 365 kN | C0: 540 kN | nG: 1610 rpm
SL182936d: 180 mm | D: 250 mm | B: 42 mm | C: 455 kN | C0: 680 kN | nG: 1530 rpm
SL182938d: 190 mm | D: 260 mm | B: 42 mm | C: 510 kN | C0: 770 kN | nG: 1450 rpm
SL182940d: 200 mm | D: 280 mm | B: 48 mm | C: 610 kN | C0: 940 kN | nG: 1360 rpm
SL182944d: 220 mm | D: 300 mm | B: 48 mm | C: 650 kN | C0: 1030 kN | nG: 1250 rpm
SL182948d: 240 mm | D: 320 mm | B: 48 mm | C: 600 kN | C0: 1120 kN | nG: 1150 rpm
SL182952d: 260 mm | D: 360 mm | B: 60 mm | C: 780 kN | C0: 1450 kN | nG: 1060 rpm
SL182956d: 280 mm | D: 380 mm | B: 60 mm | C: 910 kN | C0: 1710 kN | nG: 980 rpm
SL182960d: 300 mm | D: 420 mm | B: 72 mm | C: 1170 kN | C0: 2200 kN | nG: 910 rpm
SL182964d: 320 mm | D: 440 mm | B: 72 mm | C: 1210 kN | C0: 2340 kN | nG: 860 rpm
SL182968d: 340 mm | D: 460 mm | B: 72 mm | C: 1250 kN | C0: 2470 kN | nG: 810 rpm
SL182972d: 360 mm | D: 480 mm | B: 72 mm | C: 1280 kN | C0: 2600 kN | nG: 770 rpm
SL182976d: 380 mm | D: 520 mm | B: 82 mm | C: 1660 kN | C0: 3300 kN | nG: 720 rpm
SL182980d: 400 mm | D: 540 mm | B: 82 mm | C: 1710 kN | C0: 3500 kN | nG: 690 rpm
SL182984d: 420 mm | D: 560 mm | B: 82 mm | C: 1730 kN | C0: 3600 kN | nG: 670 rpm
SL182988d: 440 mm | D: 600 mm | B: 95 mm | C: 2090 kN | C0: 4100 kN | nG: 630 rpm
SL182992d: 460 mm | D: 620 mm | B: 95 mm | C: 2130 kN | C0: 4250 kN | nG: 610 rpm
SL182996d: 480 mm | D: 650 mm | B: 100 mm | C: 2390 kN | C0: 4800 kN | nG: 570 rpm
SL1829/500d: 500 mm | D: 670 mm | B: 100 mm | C: 2430 kN | C0: 4950 kN | nG: 560 rpm
