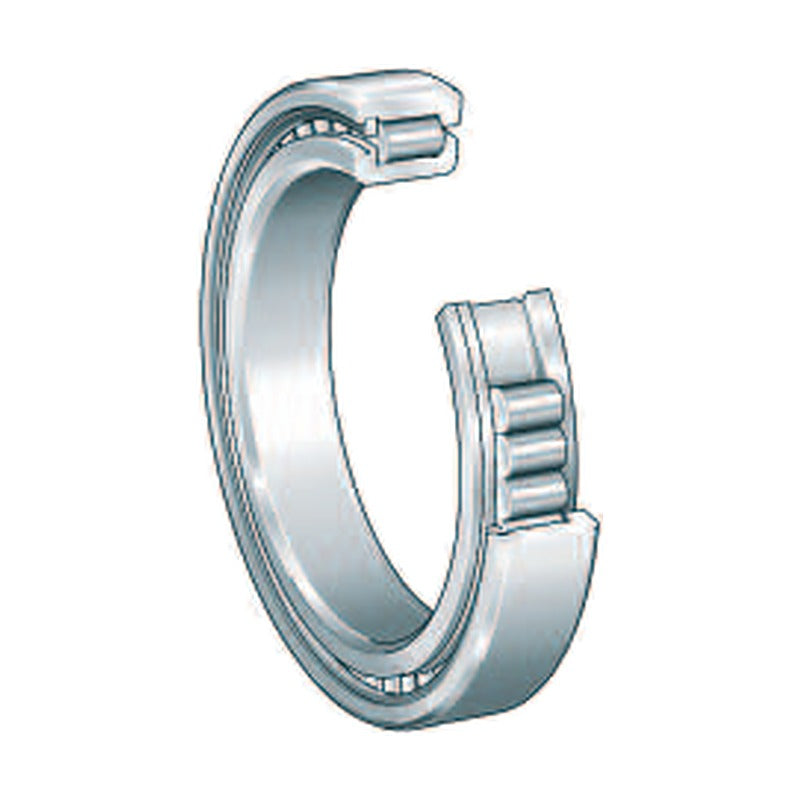

• INA SL1830 Full Complement Cylindrical Roller Bearings (Single Row)
1 1

INA SL1830 Full Complement Cylindrical Roller Bearings (Single Row)

INA SL1830 Full Complement Cylindrical Roller Bearings (Single Row)

INA SL1830 single row full complement cylindrical roller bearings, semi-locating, as listed in the HR 1 catalogue.

Key features

  • Single row full complement cylindrical roller bearings
  • Maximum number of rollers for very high radial load capacity
  • Semi-locating bearings: axial loads in one direction
  • Suited to low to moderate speeds and compact designs
  • TB design with increased axial capacity where printed

Specifications

Bearing type Cylindrical roller bearing, full complement
Series SL1830
Rows Single
Function Semi-locating
Load ratings C dynamic, C0 static radial
Brand INA (Schaeffler)
Source INA Rolling Bearings catalogue HR 1, p. 416-423
SL183004 d: 20 mm | D: 42 mm | B: 16 mm | C: 30.5 kN | C0: 26 kN | nG: 10500 rpm
SL183005 d: 25 mm | D: 47 mm | B: 16 mm | C: 35 kN | C0: 32 kN | nG: 8900 rpm
SL183006 d: 30 mm | D: 55 mm | B: 19 mm | C: 45 kN | C0: 42 kN | nG: 7600 rpm
SL183007 d: 35 mm | D: 62 mm | B: 20 mm | C: 55 kN | C0: 53 kN | nG: 6700 rpm
SL183008 d: 40 mm | D: 68 mm | B: 21 mm | C: 66 kN | C0: 67 kN | nG: 6000 rpm
SL183009 d: 45 mm | D: 75 mm | B: 23 mm | C: 70 kN | C0: 74 kN | nG: 5500 rpm
SL183010 d: 50 mm | D: 80 mm | B: 23 mm | C: 88 kN | C0: 94 kN | nG: 5100 rpm
SL183011 d: 55 mm | D: 90 mm | B: 26 mm | C: 120 kN | C0: 136 kN | nG: 4400 rpm
SL183012 d: 60 mm | D: 95 mm | B: 26 mm | C: 123 kN | C0: 143 kN | nG: 4200 rpm
SL183013 d: 65 mm | D: 100 mm | B: 26 mm | C: 130 kN | C0: 157 kN | nG: 3900 rpm
SL183014 d: 70 mm | D: 110 mm | B: 30 mm | C: 153 kN | C0: 174 kN | nG: 3650 rpm
SL183015 d: 75 mm | D: 115 mm | B: 30 mm | C: 162 kN | C0: 192 kN | nG: 3400 rpm
SL183016 d: 80 mm | D: 125 mm | B: 34 mm | C: 170 kN | C0: 220 kN | nG: 3150 rpm
SL183017 d: 85 mm | D: 130 mm | B: 34 mm | C: 175 kN | C0: 231 kN | nG: 3000 rpm
SL183018 d: 90 mm | D: 140 mm | B: 37 mm | C: 205 kN | C0: 275 kN | nG: 2800 rpm
SL183020 d: 100 mm | D: 150 mm | B: 37 mm | C: 216 kN | C0: 300 kN | nG: 2600 rpm
SL183022 d: 110 mm | D: 170 mm | B: 45 mm | C: 280 kN | C0: 385 kN | nG: 2350 rpm
SL183024 d: 120 mm | D: 180 mm | B: 46 mm | C: 295 kN | C0: 425 kN | nG: 2170 rpm
SL183026 d: 130 mm | D: 200 mm | B: 52 mm | C: 425 kN | C0: 600 kN | nG: 2000 rpm
SL183028 d: 140 mm | D: 210 mm | B: 53 mm | C: 450 kN | C0: 660 kN | nG: 1840 rpm
SL183030 d: 150 mm | D: 225 mm | B: 56 mm | C: 475 kN | C0: 700 kN | nG: 1760 rpm
SL183032 d: 160 mm | D: 240 mm | B: 60 mm | C: 540 kN | C0: 800 kN | nG: 1620 rpm
SL183034 d: 170 mm | D: 260 mm | B: 67 mm | C: 700 kN | C0: 1050 kN | nG: 1510 rpm
SL183036 d: 180 mm | D: 280 mm | B: 74 mm | C: 810 kN | C0: 1240 kN | nG: 1410 rpm
SL183038 d: 190 mm | D: 290 mm | B: 75 mm | C: 830 kN | C0: 1300 kN | nG: 1350 rpm
SL183040 d: 200 mm | D: 310 mm | B: 82 mm | C: 950 kN | C0: 1510 kN | nG: 1270 rpm
SL183044 d: 220 mm | D: 340 mm | B: 90 mm | C: 1150 kN | C0: 1820 kN | nG: 1170 rpm
SL183048 d: 240 mm | D: 360 mm | B: 92 mm | C: 1210 kN | C0: 1990 kN | nG: 1080 rpm
SL183052 d: 260 mm | D: 400 mm | B: 104 mm | C: 1600 kN | C0: 2500 kN | nG: 980 rpm
SL183056 d: 280 mm | D: 420 mm | B: 106 mm | C: 1650 kN | C0: 2650 kN | nG: 940 rpm
SL183060-TB d: 300 mm | D: 460 mm | B: 118 mm | C: 2020 kN | C0: 3300 kN | nG: 840 rpm
SL183064-TB d: 320 mm | D: 480 mm | B: 121 mm | C: 2080 kN | C0: 3450 kN | nG: 810 rpm
SL183068-TB d: 340 mm | D: 520 mm | B: 133 mm | C: 2490 kN | C0: 4150 kN | nG: 750 rpm
SL183072-TB d: 360 mm | D: 540 mm | B: 134 mm | C: 2550 kN | C0: 4350 kN | nG: 720 rpm
SL183076-TB d: 380 mm | D: 560 mm | B: 135 mm | C: 2600 kN | C0: 4450 kN | nG: 700 rpm
SL183080-TB d: 400 mm | D: 600 mm | B: 148 mm | C: 3050 kN | C0: 5400 kN | nG: 650 rpm
Cylindrical Roller BearingsINA
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA SL1830 Full Complement Cylindrical Roller Bearings (Single Row)

Brand INA·Cylindrical Roller Bearings

Available part numbers (36)

SL183004, SL183005, SL183006, SL183007, SL183008, SL183009, SL183010, SL183011, SL183012, SL183013 + 26 more — see full table ↓

How to order

Send the INA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SL183004d: 20 mm | D: 42 mm | B: 16 mm | C: 30.5 kN | C0: 26 kN | nG: 10500 rpm
SL183005d: 25 mm | D: 47 mm | B: 16 mm | C: 35 kN | C0: 32 kN | nG: 8900 rpm
SL183006d: 30 mm | D: 55 mm | B: 19 mm | C: 45 kN | C0: 42 kN | nG: 7600 rpm
SL183007d: 35 mm | D: 62 mm | B: 20 mm | C: 55 kN | C0: 53 kN | nG: 6700 rpm
SL183008d: 40 mm | D: 68 mm | B: 21 mm | C: 66 kN | C0: 67 kN | nG: 6000 rpm
SL183009d: 45 mm | D: 75 mm | B: 23 mm | C: 70 kN | C0: 74 kN | nG: 5500 rpm
SL183010d: 50 mm | D: 80 mm | B: 23 mm | C: 88 kN | C0: 94 kN | nG: 5100 rpm
SL183011d: 55 mm | D: 90 mm | B: 26 mm | C: 120 kN | C0: 136 kN | nG: 4400 rpm
SL183012d: 60 mm | D: 95 mm | B: 26 mm | C: 123 kN | C0: 143 kN | nG: 4200 rpm
SL183013d: 65 mm | D: 100 mm | B: 26 mm | C: 130 kN | C0: 157 kN | nG: 3900 rpm
SL183014d: 70 mm | D: 110 mm | B: 30 mm | C: 153 kN | C0: 174 kN | nG: 3650 rpm
SL183015d: 75 mm | D: 115 mm | B: 30 mm | C: 162 kN | C0: 192 kN | nG: 3400 rpm
SL183016d: 80 mm | D: 125 mm | B: 34 mm | C: 170 kN | C0: 220 kN | nG: 3150 rpm
SL183017d: 85 mm | D: 130 mm | B: 34 mm | C: 175 kN | C0: 231 kN | nG: 3000 rpm
SL183018d: 90 mm | D: 140 mm | B: 37 mm | C: 205 kN | C0: 275 kN | nG: 2800 rpm
SL183020d: 100 mm | D: 150 mm | B: 37 mm | C: 216 kN | C0: 300 kN | nG: 2600 rpm
SL183022d: 110 mm | D: 170 mm | B: 45 mm | C: 280 kN | C0: 385 kN | nG: 2350 rpm
SL183024d: 120 mm | D: 180 mm | B: 46 mm | C: 295 kN | C0: 425 kN | nG: 2170 rpm
SL183026d: 130 mm | D: 200 mm | B: 52 mm | C: 425 kN | C0: 600 kN | nG: 2000 rpm
SL183028d: 140 mm | D: 210 mm | B: 53 mm | C: 450 kN | C0: 660 kN | nG: 1840 rpm
SL183030d: 150 mm | D: 225 mm | B: 56 mm | C: 475 kN | C0: 700 kN | nG: 1760 rpm
SL183032d: 160 mm | D: 240 mm | B: 60 mm | C: 540 kN | C0: 800 kN | nG: 1620 rpm
SL183034d: 170 mm | D: 260 mm | B: 67 mm | C: 700 kN | C0: 1050 kN | nG: 1510 rpm
SL183036d: 180 mm | D: 280 mm | B: 74 mm | C: 810 kN | C0: 1240 kN | nG: 1410 rpm
SL183038d: 190 mm | D: 290 mm | B: 75 mm | C: 830 kN | C0: 1300 kN | nG: 1350 rpm
SL183040d: 200 mm | D: 310 mm | B: 82 mm | C: 950 kN | C0: 1510 kN | nG: 1270 rpm
SL183044d: 220 mm | D: 340 mm | B: 90 mm | C: 1150 kN | C0: 1820 kN | nG: 1170 rpm
SL183048d: 240 mm | D: 360 mm | B: 92 mm | C: 1210 kN | C0: 1990 kN | nG: 1080 rpm
SL183052d: 260 mm | D: 400 mm | B: 104 mm | C: 1600 kN | C0: 2500 kN | nG: 980 rpm
SL183056d: 280 mm | D: 420 mm | B: 106 mm | C: 1650 kN | C0: 2650 kN | nG: 940 rpm
SL183060-TBd: 300 mm | D: 460 mm | B: 118 mm | C: 2020 kN | C0: 3300 kN | nG: 840 rpm
SL183064-TBd: 320 mm | D: 480 mm | B: 121 mm | C: 2080 kN | C0: 3450 kN | nG: 810 rpm
SL183068-TBd: 340 mm | D: 520 mm | B: 133 mm | C: 2490 kN | C0: 4150 kN | nG: 750 rpm
SL183072-TBd: 360 mm | D: 540 mm | B: 134 mm | C: 2550 kN | C0: 4350 kN | nG: 720 rpm
SL183076-TBd: 380 mm | D: 560 mm | B: 135 mm | C: 2600 kN | C0: 4450 kN | nG: 700 rpm
SL183080-TBd: 400 mm | D: 600 mm | B: 148 mm | C: 3050 kN | C0: 5400 kN | nG: 650 rpm
