• INA SL1850 Double Row Full Complement Cylindrical Roller Bearings
1 1

INA SL1850 Double Row Full Complement Cylindrical Roller Bearings

INA SL1850 Double Row Full Complement Cylindrical Roller Bearings

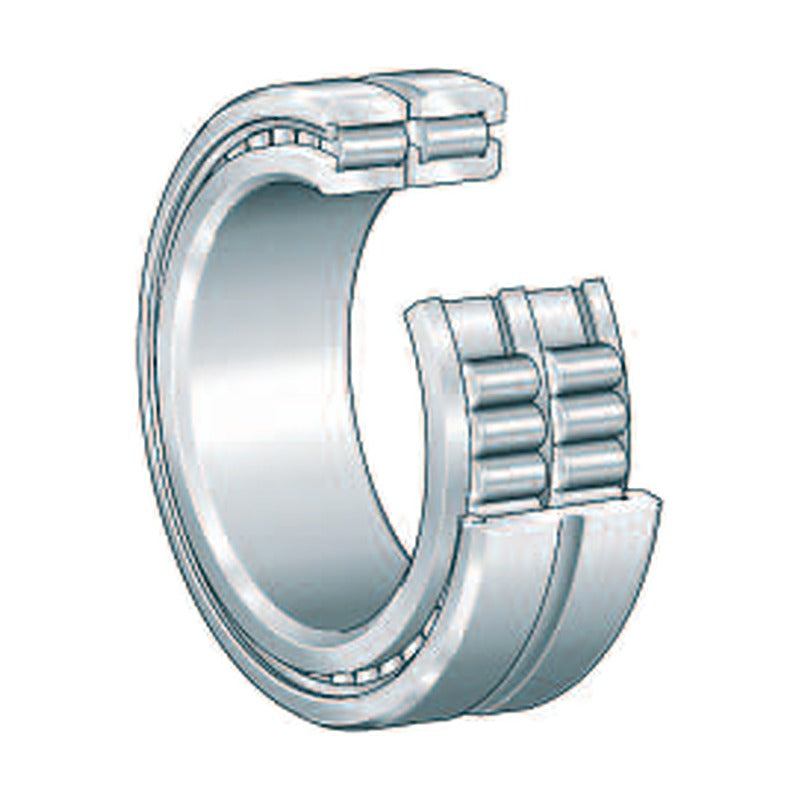

INA SL1850 double row full complement cylindrical roller bearings, semi-locating, for very high radial loads.

Key features

  • Double row full complement cylindrical roller bearings
  • Very high radial load capacity with low section height
  • Solid outer and inner rings with rib-guided rollers
  • Suitable for compact, heavily loaded bearing arrangements
  • Semi-locating: axial loads in one direction

Specifications

Bearing type Cylindrical roller bearing, full complement
Series SL1850
Rows Double
Function Semi-locating
Load ratings C dynamic, C0 static radial
Brand INA (Schaeffler)
Source INA Rolling Bearings catalogue HR 1, p. 434-441
SL185004 d: 20 mm | D: 42 mm | B: 30 mm | C: 53 kN | C0: 52 kN | nG: 10500 rpm
SL185005 d: 25 mm | D: 47 mm | B: 30 mm | C: 60 kN | C0: 64 kN | nG: 8900 rpm
SL185006 d: 30 mm | D: 55 mm | B: 34 mm | C: 78 kN | C0: 84 kN | nG: 7600 rpm
SL185007 d: 35 mm | D: 62 mm | B: 36 mm | C: 94 kN | C0: 107 kN | nG: 6700 rpm
SL185008 d: 40 mm | D: 68 mm | B: 38 mm | C: 113 kN | C0: 133 kN | nG: 6000 rpm
SL185009 d: 45 mm | D: 75 mm | B: 40 mm | C: 120 kN | C0: 148 kN | nG: 5500 rpm
SL185010 d: 50 mm | D: 80 mm | B: 40 mm | C: 151 kN | C0: 188 kN | nG: 5100 rpm
SL185011 d: 55 mm | D: 90 mm | B: 46 mm | C: 206 kN | C0: 275 kN | nG: 4400 rpm
SL185012 d: 60 mm | D: 95 mm | B: 46 mm | C: 212 kN | C0: 285 kN | nG: 4200 rpm
SL185013 d: 65 mm | D: 100 mm | B: 46 mm | C: 223 kN | C0: 315 kN | nG: 3900 rpm
SL185014 d: 70 mm | D: 110 mm | B: 54 mm | C: 265 kN | C0: 350 kN | nG: 3650 rpm
SL185015 d: 75 mm | D: 115 mm | B: 54 mm | C: 275 kN | C0: 385 kN | nG: 3400 rpm
SL185016 d: 80 mm | D: 125 mm | B: 60 mm | C: 290 kN | C0: 440 kN | nG: 3150 rpm
SL185017 d: 85 mm | D: 130 mm | B: 60 mm | C: 300 kN | C0: 465 kN | nG: 3000 rpm
SL185018 d: 90 mm | D: 140 mm | B: 67 mm | C: 350 kN | C0: 550 kN | nG: 2800 rpm
SL185020 d: 100 mm | D: 150 mm | B: 67 mm | C: 370 kN | C0: 600 kN | nG: 2600 rpm
SL185022 d: 110 mm | D: 170 mm | B: 80 mm | C: 485 kN | C0: 770 kN | nG: 2350 rpm
SL185024 d: 120 mm | D: 180 mm | B: 80 mm | C: 510 kN | C0: 850 kN | nG: 2170 rpm
SL185026 d: 130 mm | D: 200 mm | B: 95 mm | C: 730 kN | C0: 1210 kN | nG: 2000 rpm
SL185028 d: 140 mm | D: 210 mm | B: 95 mm | C: 770 kN | C0: 1330 kN | nG: 1840 rpm
SL185030 d: 150 mm | D: 225 mm | B: 100 mm | C: 810 kN | C0: 1390 kN | nG: 1760 rpm
SL185032 d: 160 mm | D: 240 mm | B: 109 mm | C: 930 kN | C0: 1610 kN | nG: 1620 rpm
SL185034 d: 170 mm | D: 260 mm | B: 122 mm | C: 1200 kN | C0: 2110 kN | nG: 1510 rpm
SL185036 d: 180 mm | D: 280 mm | B: 136 mm | C: 1390 kN | C0: 2480 kN | nG: 1410 rpm
SL185038 d: 190 mm | D: 290 mm | B: 136 mm | C: 1430 kN | C0: 2600 kN | nG: 1350 rpm
SL185040 d: 200 mm | D: 310 mm | B: 150 mm | C: 1630 kN | C0: 3000 kN | nG: 1270 rpm
SL185044 d: 220 mm | D: 340 mm | B: 160 mm | C: 1980 kN | C0: 3650 kN | nG: 1170 rpm
SL185048 d: 240 mm | D: 360 mm | B: 160 mm | C: 2080 kN | C0: 4000 kN | nG: 1080 rpm
SL185052 d: 260 mm | D: 400 mm | B: 190 mm | C: 2750 kN | C0: 5000 kN | nG: 980 rpm
SL185056 d: 280 mm | D: 420 mm | B: 190 mm | C: 2850 kN | C0: 5300 kN | nG: 940 rpm
SL185060-TB d: 300 mm | D: 460 mm | B: 218 mm | C: 3450 kN | C0: 6600 kN | nG: 840 rpm
SL185064-TB d: 320 mm | D: 480 mm | B: 218 mm | C: 3550 kN | C0: 6900 kN | nG: 810 rpm
SL185068-TB d: 340 mm | D: 520 mm | B: 243 mm | C: 4250 kN | C0: 8300 kN | nG: 750 rpm
SL185072-TB d: 360 mm | D: 540 mm | B: 243 mm | C: 4400 kN | C0: 8700 kN | nG: 720 rpm
SL185076-TB d: 380 mm | D: 560 mm | B: 243 mm | C: 4450 kN | C0: 8900 kN | nG: 700 rpm
Cylindrical Roller BearingsINA
35 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA SL1850 Double Row Full Complement Cylindrical Roller Bearings

Brand INA·Cylindrical Roller Bearings

Available part numbers (35)

SL185004, SL185005, SL185006, SL185007, SL185008, SL185009, SL185010, SL185011, SL185012, SL185013 + 25 more — see full table ↓

How to order

Send the INA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SL185004d: 20 mm | D: 42 mm | B: 30 mm | C: 53 kN | C0: 52 kN | nG: 10500 rpm
SL185005d: 25 mm | D: 47 mm | B: 30 mm | C: 60 kN | C0: 64 kN | nG: 8900 rpm
SL185006d: 30 mm | D: 55 mm | B: 34 mm | C: 78 kN | C0: 84 kN | nG: 7600 rpm
SL185007d: 35 mm | D: 62 mm | B: 36 mm | C: 94 kN | C0: 107 kN | nG: 6700 rpm
SL185008d: 40 mm | D: 68 mm | B: 38 mm | C: 113 kN | C0: 133 kN | nG: 6000 rpm
SL185009d: 45 mm | D: 75 mm | B: 40 mm | C: 120 kN | C0: 148 kN | nG: 5500 rpm
SL185010d: 50 mm | D: 80 mm | B: 40 mm | C: 151 kN | C0: 188 kN | nG: 5100 rpm
SL185011d: 55 mm | D: 90 mm | B: 46 mm | C: 206 kN | C0: 275 kN | nG: 4400 rpm
SL185012d: 60 mm | D: 95 mm | B: 46 mm | C: 212 kN | C0: 285 kN | nG: 4200 rpm
SL185013d: 65 mm | D: 100 mm | B: 46 mm | C: 223 kN | C0: 315 kN | nG: 3900 rpm
SL185014d: 70 mm | D: 110 mm | B: 54 mm | C: 265 kN | C0: 350 kN | nG: 3650 rpm
SL185015d: 75 mm | D: 115 mm | B: 54 mm | C: 275 kN | C0: 385 kN | nG: 3400 rpm
SL185016d: 80 mm | D: 125 mm | B: 60 mm | C: 290 kN | C0: 440 kN | nG: 3150 rpm
SL185017d: 85 mm | D: 130 mm | B: 60 mm | C: 300 kN | C0: 465 kN | nG: 3000 rpm
SL185018d: 90 mm | D: 140 mm | B: 67 mm | C: 350 kN | C0: 550 kN | nG: 2800 rpm
SL185020d: 100 mm | D: 150 mm | B: 67 mm | C: 370 kN | C0: 600 kN | nG: 2600 rpm
SL185022d: 110 mm | D: 170 mm | B: 80 mm | C: 485 kN | C0: 770 kN | nG: 2350 rpm
SL185024d: 120 mm | D: 180 mm | B: 80 mm | C: 510 kN | C0: 850 kN | nG: 2170 rpm
SL185026d: 130 mm | D: 200 mm | B: 95 mm | C: 730 kN | C0: 1210 kN | nG: 2000 rpm
SL185028d: 140 mm | D: 210 mm | B: 95 mm | C: 770 kN | C0: 1330 kN | nG: 1840 rpm
SL185030d: 150 mm | D: 225 mm | B: 100 mm | C: 810 kN | C0: 1390 kN | nG: 1760 rpm
SL185032d: 160 mm | D: 240 mm | B: 109 mm | C: 930 kN | C0: 1610 kN | nG: 1620 rpm
SL185034d: 170 mm | D: 260 mm | B: 122 mm | C: 1200 kN | C0: 2110 kN | nG: 1510 rpm
SL185036d: 180 mm | D: 280 mm | B: 136 mm | C: 1390 kN | C0: 2480 kN | nG: 1410 rpm
SL185038d: 190 mm | D: 290 mm | B: 136 mm | C: 1430 kN | C0: 2600 kN | nG: 1350 rpm
SL185040d: 200 mm | D: 310 mm | B: 150 mm | C: 1630 kN | C0: 3000 kN | nG: 1270 rpm
SL185044d: 220 mm | D: 340 mm | B: 160 mm | C: 1980 kN | C0: 3650 kN | nG: 1170 rpm
SL185048d: 240 mm | D: 360 mm | B: 160 mm | C: 2080 kN | C0: 4000 kN | nG: 1080 rpm
SL185052d: 260 mm | D: 400 mm | B: 190 mm | C: 2750 kN | C0: 5000 kN | nG: 980 rpm
SL185056d: 280 mm | D: 420 mm | B: 190 mm | C: 2850 kN | C0: 5300 kN | nG: 940 rpm
SL185060-TBd: 300 mm | D: 460 mm | B: 218 mm | C: 3450 kN | C0: 6600 kN | nG: 840 rpm
SL185064-TBd: 320 mm | D: 480 mm | B: 218 mm | C: 3550 kN | C0: 6900 kN | nG: 810 rpm
SL185068-TBd: 340 mm | D: 520 mm | B: 243 mm | C: 4250 kN | C0: 8300 kN | nG: 750 rpm
SL185072-TBd: 360 mm | D: 540 mm | B: 243 mm | C: 4400 kN | C0: 8700 kN | nG: 720 rpm
SL185076-TBd: 380 mm | D: 560 mm | B: 243 mm | C: 4450 kN | C0: 8900 kN | nG: 700 rpm
