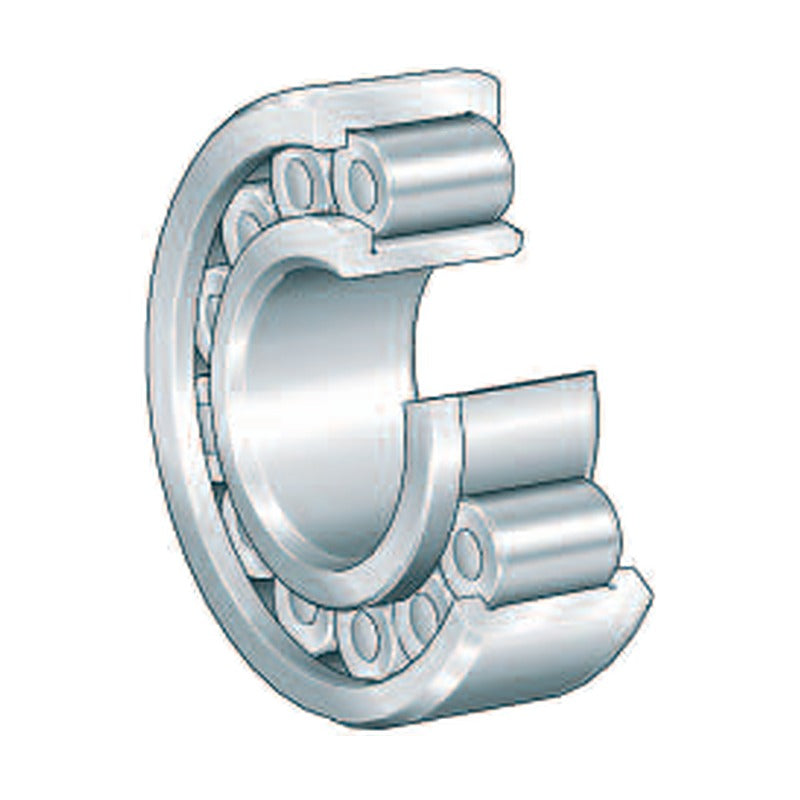

INA SL1923 Full Complement Cylindrical Roller Bearings (Single Row)

INA SL1923 Full Complement Cylindrical Roller Bearings (Single Row)

INA SL1923 single row full complement cylindrical roller bearings, semi-locating, as listed in the HR 1 catalogue.

Key features

  • Single row full complement cylindrical roller bearings
  • Maximum number of rollers for very high radial load capacity
  • Semi-locating bearings: axial loads in one direction
  • Suited to low to moderate speeds and compact designs
  • TB design with increased axial capacity where printed

Specifications

Bearing type Cylindrical roller bearing, full complement
Series SL1923
Rows Single
Function Semi-locating
Load ratings C dynamic, C0 static radial
Brand INA (Schaeffler)
Source INA Rolling Bearings catalogue HR 1, p. 416-423
SL192305 d: 25 mm | D: 62 mm | B: 24 mm | C: 73 kN | C0: 60 kN | nG: 7600 rpm
SL192306 d: 30 mm | D: 72 mm | B: 27 mm | C: 100 kN | C0: 88 kN | nG: 6400 rpm
SL192307 d: 35 mm | D: 80 mm | B: 31 mm | C: 126 kN | C0: 112 kN | nG: 5500 rpm
SL192308 d: 40 mm | D: 90 mm | B: 33 mm | C: 170 kN | C0: 156 kN | nG: 4850 rpm
SL192309 d: 45 mm | D: 100 mm | B: 36 mm | C: 181 kN | C0: 165 kN | nG: 4450 rpm
SL192310 d: 50 mm | D: 110 mm | B: 40 mm | C: 232 kN | C0: 219 kN | nG: 4050 rpm
SL192311 d: 55 mm | D: 120 mm | B: 43 mm | C: 270 kN | C0: 255 kN | nG: 3700 rpm
SL192312 d: 60 mm | D: 130 mm | B: 46 mm | C: 285 kN | C0: 280 kN | nG: 3400 rpm
SL192313 d: 65 mm | D: 140 mm | B: 48 mm | C: 350 kN | C0: 355 kN | nG: 3100 rpm
SL192314 d: 70 mm | D: 150 mm | B: 51 mm | C: 385 kN | C0: 390 kN | nG: 3000 rpm
SL192315 d: 75 mm | D: 160 mm | B: 55 mm | C: 460 kN | C0: 475 kN | nG: 2750 rpm
SL192316 d: 80 mm | D: 170 mm | B: 58 mm | C: 540 kN | C0: 560 kN | nG: 2550 rpm
SL192317 d: 85 mm | D: 180 mm | B: 60 mm | C: 570 kN | C0: 620 kN | nG: 2400 rpm
SL192318-TB d: 90 mm | D: 190 mm | B: 64 mm | C: 620 kN | C0: 650 kN | nG: 2400 rpm
SL192319-TB d: 95 mm | D: 200 mm | B: 67 mm | C: 650 kN | C0: 710 kN | nG: 2240 rpm
SL192320-TB d: 100 mm | D: 215 mm | B: 73 mm | C: 790 kN | C0: 850 kN | nG: 2110 rpm
SL192322-TB d: 110 mm | D: 240 mm | B: 80 mm | C: 950 kN | C0: 970 kN | nG: 1840 rpm
SL192324-TB d: 120 mm | D: 260 mm | B: 86 mm | C: 1130 kN | C0: 1230 kN | nG: 1710 rpm
SL192326-TB d: 130 mm | D: 280 mm | B: 93 mm | C: 1260 kN | C0: 1380 kN | nG: 1600 rpm
SL192328-TB d: 140 mm | D: 300 mm | B: 102 mm | C: 1410 kN | C0: 1570 kN | nG: 1500 rpm
SL192330-TB d: 150 mm | D: 320 mm | B: 108 mm | C: 1680 kN | C0: 1900 kN | nG: 1380 rpm
SL192332-TB d: 160 mm | D: 340 mm | B: 114 mm | C: 1900 kN | C0: 2170 kN | nG: 1280 rpm
SL192334-TB d: 170 mm | D: 360 mm | B: 120 mm | C: 2070 kN | C0: 2380 kN | nG: 1240 rpm
SL192336-TB d: 180 mm | D: 380 mm | B: 126 mm | C: 2190 kN | C0: 2600 kN | nG: 1160 rpm
SL192338-TB d: 190 mm | D: 400 mm | B: 132 mm | C: 2500 kN | C0: 2950 kN | nG: 1120 rpm
SL192340-TB d: 200 mm | D: 420 mm | B: 138 mm | C: 2800 kN | C0: 3300 kN | nG: 1060 rpm
SL192344-TB d: 220 mm | D: 460 mm | B: 145 mm | C: 3000 kN | C0: 3450 kN | nG: 950 rpm
SL192348-TB d: 240 mm | D: 500 mm | B: 155 mm | C: 3300 kN | C0: 3800 kN | nG: 900 rpm
SL192352-TB d: 260 mm | D: 540 mm | B: 165 mm | C: 4000 kN | C0: 4700 kN | nG: 800 rpm
Cylindrical Roller BearingsINA
29 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA SL1923 Full Complement Cylindrical Roller Bearings (Single Row)

Brand INA·Cylindrical Roller Bearings

Available part numbers (29)

SL192305, SL192306, SL192307, SL192308, SL192309, SL192310, SL192311, SL192312, SL192313, SL192314 + 19 more — see full table ↓
