INA SX 01 18 Crossed Roller Bearings (d 70-500 mm)

INA SX 01 18 Crossed Roller Bearings (d 70-500 mm)

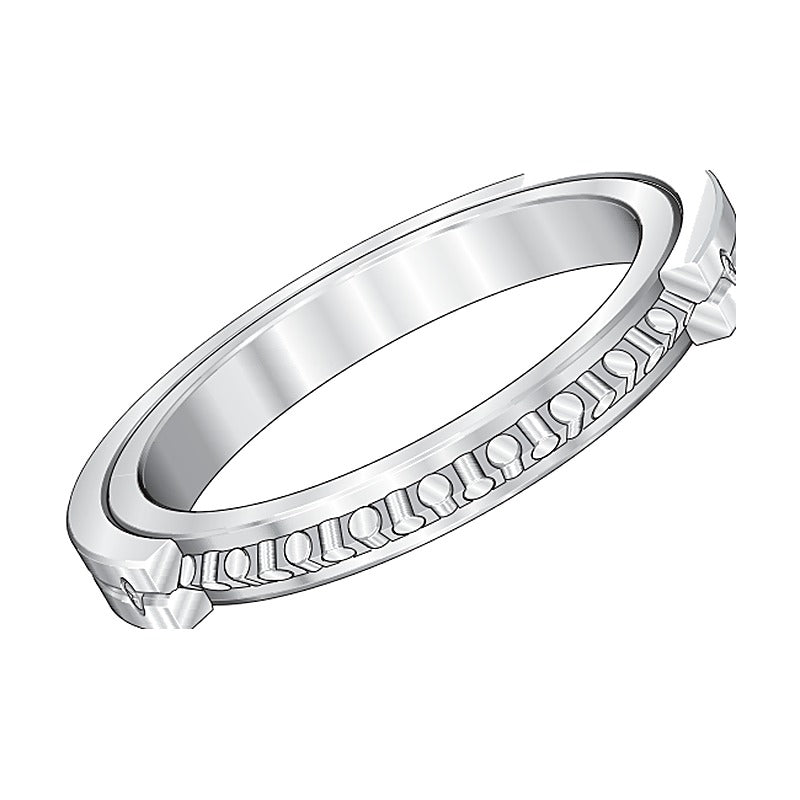

INA crossed roller bearings SX to dimension series 18 (DIN 616), unsealed, for high-precision bearing positions with combined axial, radial and tilting moment loads. Standard clearance, low clearance RL0 or preloaded VSP.

Key features

  • X-arranged cylindrical rollers (DIN 5402) with plastic spacers support axial, radial and moment loads in one bearing position
  • Outer ring split circumferentially, held together by three retaining rings
  • Located by clamping rings; high rigidity and running accuracy
  • Greased with lithium complex soap grease; oil lubrication possible
  • Operating temperature -30 to +80 C
  • Corrosion-resistant Corrotect (RR) version by agreement

Specifications

Series SX 01 18 (ISO dimension series 18)
Seals None
Clearance options Standard, RL0, VSP
Bore range 70-500 mm
Bore / OD tolerance K6 / h6
Operating temp. -30 to +80 C
Source INA Crossed Roller Bearings for High Precision Applications (KSX), p. 44, 48-51
SX 01 1814 d: 70 mm | D: 90 mm | H: 10 mm | Ca: 18 kN | C0a: 60 kN | Clearance: standard
SX 01 1814 RL0 d: 70 mm | D: 90 mm | H: 10 mm | Ca: 18 kN | C0a: 60 kN | Clearance: low (RL0)
SX 01 1814 VSP d: 70 mm | D: 90 mm | H: 10 mm | Ca: 18 kN | C0a: 60 kN | Clearance: preload (VSP)
SX 01 1818 d: 90 mm | D: 115 mm | H: 13 mm | Ca: 26 kN | C0a: 96 kN | Clearance: standard
SX 01 1818 RL0 d: 90 mm | D: 115 mm | H: 13 mm | Ca: 26 kN | C0a: 96 kN | Clearance: low (RL0)
SX 01 1818 VSP d: 90 mm | D: 115 mm | H: 13 mm | Ca: 26 kN | C0a: 96 kN | Clearance: preload (VSP)
SX 01 1820 d: 100 mm | D: 125 mm | H: 13 mm | Ca: 28 kN | C0a: 106 kN | Clearance: standard
SX 01 1820 RL0 d: 100 mm | D: 125 mm | H: 13 mm | Ca: 28 kN | C0a: 106 kN | Clearance: low (RL0)
SX 01 1820 VSP d: 100 mm | D: 125 mm | H: 13 mm | Ca: 28 kN | C0a: 106 kN | Clearance: preload (VSP)
SX 01 1824 d: 120 mm | D: 150 mm | H: 16 mm | Ca: 41 kN | C0a: 153 kN | Clearance: standard
SX 01 1824 RL0 d: 120 mm | D: 150 mm | H: 16 mm | Ca: 41 kN | C0a: 153 kN | Clearance: low (RL0)
SX 01 1824 VSP d: 120 mm | D: 150 mm | H: 16 mm | Ca: 41 kN | C0a: 153 kN | Clearance: preload (VSP)
SX 01 1828 d: 140 mm | D: 175 mm | H: 18 mm | Ca: 64 kN | C0a: 237 kN | Clearance: standard
SX 01 1828 RL0 d: 140 mm | D: 175 mm | H: 18 mm | Ca: 64 kN | C0a: 237 kN | Clearance: low (RL0)
SX 01 1828 VSP d: 140 mm | D: 175 mm | H: 18 mm | Ca: 64 kN | C0a: 237 kN | Clearance: preload (VSP)
SX 01 1832 d: 160 mm | D: 200 mm | H: 20 mm | Ca: 69 kN | C0a: 272 kN | Clearance: standard
SX 01 1832 RL0 d: 160 mm | D: 200 mm | H: 20 mm | Ca: 69 kN | C0a: 272 kN | Clearance: low (RL0)
SX 01 1832 VSP d: 160 mm | D: 200 mm | H: 20 mm | Ca: 69 kN | C0a: 272 kN | Clearance: preload (VSP)
SX 01 1836 d: 180 mm | D: 225 mm | H: 22 mm | Ca: 98 kN | C0a: 381 kN | Clearance: standard
SX 01 1836 RL0 d: 180 mm | D: 225 mm | H: 22 mm | Ca: 98 kN | C0a: 381 kN | Clearance: low (RL0)
SX 01 1836 VSP d: 180 mm | D: 225 mm | H: 22 mm | Ca: 98 kN | C0a: 381 kN | Clearance: preload (VSP)
SX 01 1840 d: 200 mm | D: 250 mm | H: 24 mm | Ca: 106 kN | C0a: 425 kN | Clearance: standard
SX 01 1840 RL0 d: 200 mm | D: 250 mm | H: 24 mm | Ca: 106 kN | C0a: 425 kN | Clearance: low (RL0)
SX 01 1840 VSP d: 200 mm | D: 250 mm | H: 24 mm | Ca: 106 kN | C0a: 425 kN | Clearance: preload (VSP)
SX 01 1848 d: 240 mm | D: 300 mm | H: 28 mm | Ca: 149 kN | C0a: 612 kN | Clearance: standard
SX 01 1848 RL0 d: 240 mm | D: 300 mm | H: 28 mm | Ca: 149 kN | C0a: 612 kN | Clearance: low (RL0)
SX 01 1848 VSP d: 240 mm | D: 300 mm | H: 28 mm | Ca: 149 kN | C0a: 612 kN | Clearance: preload (VSP)
SX 01 1860 d: 300 mm | D: 380 mm | H: 38 mm | Ca: 245 kN | C0a: 1027 kN | Clearance: standard
SX 01 1860 RL0 d: 300 mm | D: 380 mm | H: 38 mm | Ca: 245 kN | C0a: 1027 kN | Clearance: low (RL0)
SX 01 1860 VSP d: 300 mm | D: 380 mm | H: 38 mm | Ca: 245 kN | C0a: 1027 kN | Clearance: preload (VSP)
SX 01 1868 d: 340 mm | D: 420 mm | H: 38 mm | Ca: 265 kN | C0a: 1148 kN | Clearance: standard
SX 01 1868 RL0 d: 340 mm | D: 420 mm | H: 38 mm | Ca: 265 kN | C0a: 1148 kN | Clearance: low (RL0)
SX 01 1868 VSP d: 340 mm | D: 420 mm | H: 38 mm | Ca: 265 kN | C0a: 1148 kN | Clearance: preload (VSP)
SX 01 1880 d: 400 mm | D: 500 mm | H: 46 mm | Ca: 385 kN | C0a: 1699 kN | Clearance: standard
SX 01 1880 RL0 d: 400 mm | D: 500 mm | H: 46 mm | Ca: 385 kN | C0a: 1699 kN | Clearance: low (RL0)
SX 01 1880 VSP d: 400 mm | D: 500 mm | H: 46 mm | Ca: 385 kN | C0a: 1699 kN | Clearance: preload (VSP)
SX 01 18/500 d: 500 mm | D: 620 mm | H: 56 mm | Ca: 560 kN | C0a: 2538 kN | Clearance: standard
SX 01 18/500 RL0 d: 500 mm | D: 620 mm | H: 56 mm | Ca: 560 kN | C0a: 2538 kN | Clearance: low (RL0)
SX 01 18/500 VSP d: 500 mm | D: 620 mm | H: 56 mm | Ca: 560 kN | C0a: 2538 kN | Clearance: preload (VSP)
