INA TKSD and TKD Guideways for KUSE and KUE Assemblies

INA TKSD and TKD Guideways for KUSE and KUE Assemblies

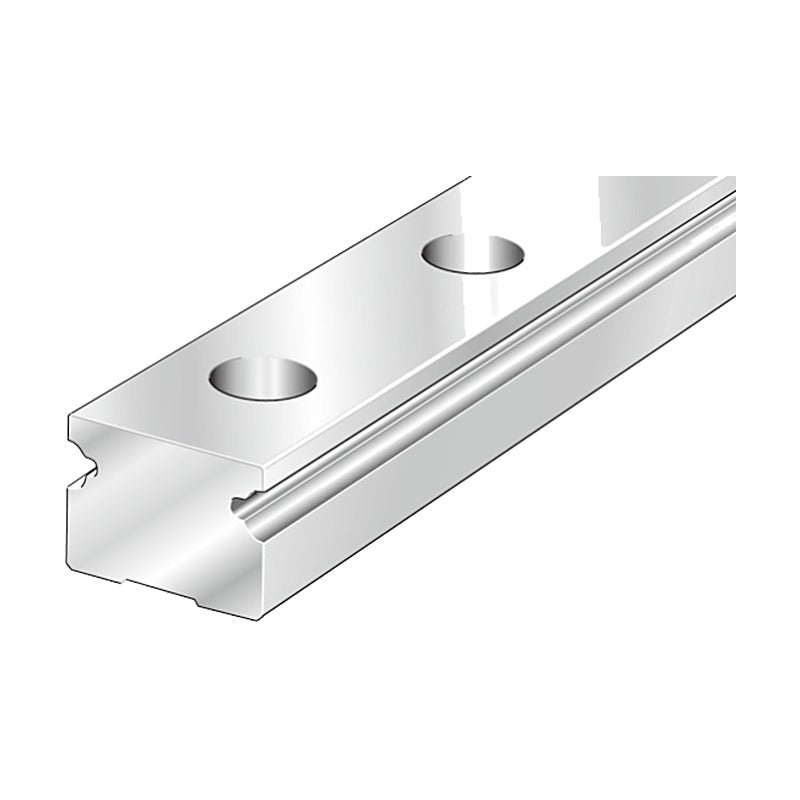

INA TKSD guideways for KUSE six-row and TKD guideways for KUE two-row monorail carriages; TKSD..U for location from below.

Key features

  • TKSD for KWSE carriages, TKD for KWE carriages
  • TKSD U version for mounting from below
  • Single-piece lengths up to the stated maximum
  • Longer guideways supplied in multiple pieces

Specifications

Brand INA
Product type Linear Guides
Series TKSD
Designations listed 17
Units mm
Source INA Monorail Guidance Systems catalogue, p. 54-61, 110-113
TKSD 20 Rail width: 20 mm | Max length: 1980 mm | Mass: 2.3 kg/m
TKSD 20 U Rail width: 20 mm | Max length: 1980 mm | Mass: 2.3 kg/m
TKSD 25 Rail width: 23 mm | Max length: 1980 mm | Mass: 3.1 kg/m
TKSD 25 U Rail width: 23 mm | Max length: 1980 mm | Mass: 3.1 kg/m
TKSD 30 Rail width: 28 mm | Max length: 2000 mm | Mass: 4.4 kg/m
TKSD 30 U Rail width: 28 mm | Max length: 2000 mm | Mass: 4.4 kg/m
TKSD 35 Rail width: 34 mm | Max length: 2960 mm | Mass: 6.5 kg/m
TKSD 35 U Rail width: 34 mm | Max length: 2960 mm | Mass: 6.5 kg/m
TKSD 45 Rail width: 45 mm | Max length: 2940 mm | Mass: 11.3 kg/m
TKSD 45 U Rail width: 45 mm | Max length: 2940 mm | Mass: 11.3 kg/m
TKSD 55 Rail width: 53 mm | Max length: 2520 mm | Mass: 15.7 kg/m
TKSD 55 U Rail width: 53 mm | Max length: 2520 mm | Mass: 15.7 kg/m
TKD 15 Rail width: 15 mm | Max length: 1200 mm | Mass: 1.5 kg/m
TKD 20 Rail width: 20 mm | Max length: 1980 mm | Mass: 2.2 kg/m
TKD 25 Rail width: 23 mm | Max length: 1980 mm | Mass: 2.8 kg/m
TKD 30 Rail width: 28 mm | Max length: 2000 mm | Mass: 4.2 kg/m
TKD 35 Rail width: 34 mm | Max length: 2960 mm | Mass: 5.6 kg/m
