INA TKVD Guideways for KUVE Monorail Assemblies

INA TKVD Guideways for KUVE Monorail Assemblies

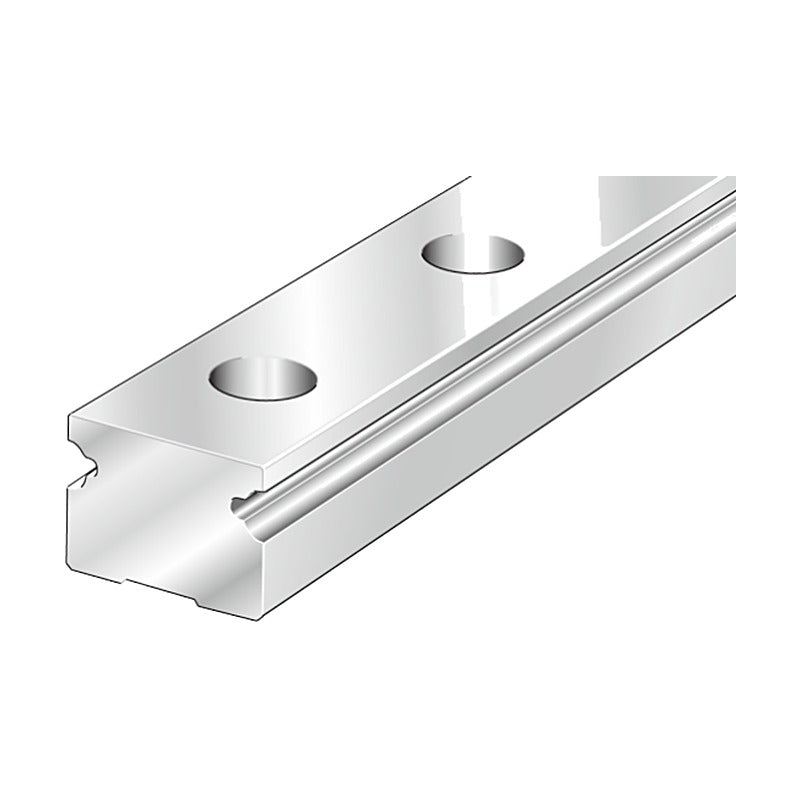

INA TKVD guideways for KUVE four-row ball monorail carriages, standard and wide (-W) versions; -U for location from below.

Key features

  • Guideways for KUVE/KWVE carriages
  • Version -U for screw mounting from below
  • Wide -W/-WL guideways for KUVE..-W carriages
  • Longer guideways supplied in multiple pieces

Specifications

Brand INA
Product type Linear Guides
Series TKVD
Designations listed 19
Units mm
Source INA Monorail Guidance Systems catalogue, p. 76-98
TKVD15-B Rail width: 15 mm | Max length: 1200 mm | Mass: 1.44 kg/m
TKVD15-B-U Rail width: 15 mm | Max length: 1200 mm | Mass: 1.44 kg/m
TKVD20 Rail width: 20 mm | Max length: 2960 mm | Mass: 2.2 kg/m
TKVD20-U Rail width: 20 mm | Max length: 2960 mm | Mass: 2.2 kg/m
TKVD25 Rail width: 23 mm | Max length: 2960 mm | Mass: 2.7 kg/m
TKVD25-U Rail width: 23 mm | Max length: 2960 mm | Mass: 2.7 kg/m
TKVD30 Rail width: 28 mm | Max length: 2960 mm | Mass: 4.3 kg/m
TKVD30-U Rail width: 28 mm | Max length: 2960 mm | Mass: 4.3 kg/m
TKVD35 Rail width: 34 mm | Max length: 2960 mm | Mass: 5.7 kg/m
TKVD35-U Rail width: 34 mm | Max length: 2960 mm | Mass: 5.7 kg/m
TKVD45 Rail width: 45 mm | Max length: 2940 mm | Mass: 9.2 kg/m
TKVD45-U Rail width: 45 mm | Max length: 2940 mm | Mass: 9.2 kg/m
TKVD55-B Rail width: 53 mm | Max length: 2520 mm | Mass: 14 kg/m
TKVD55-B-U Rail width: 53 mm | Max length: 2520 mm | Mass: 14 kg/m
TKVD15-W Rail width: 37 mm | Max length: 1200 mm | Mass: 3.6 kg/m
TKVD20-W Rail width: 42 mm | Max length: 1980 mm | Mass: 5 kg/m
TKVD25-WL Rail width: 69 mm | Max length: 1980 mm | Mass: 9.4 kg/m
TKVD30-W Rail width: 80 mm | Max length: 2000 mm | Mass: 13.6 kg/m
TKVD35-W Rail width: 90 mm | Max length: 2960 mm | Mass: 17.4 kg/m
