INA TSX Guideways for RUE Roller Monorail Assemblies

INA TSX Guideways for RUE Roller Monorail Assemblies

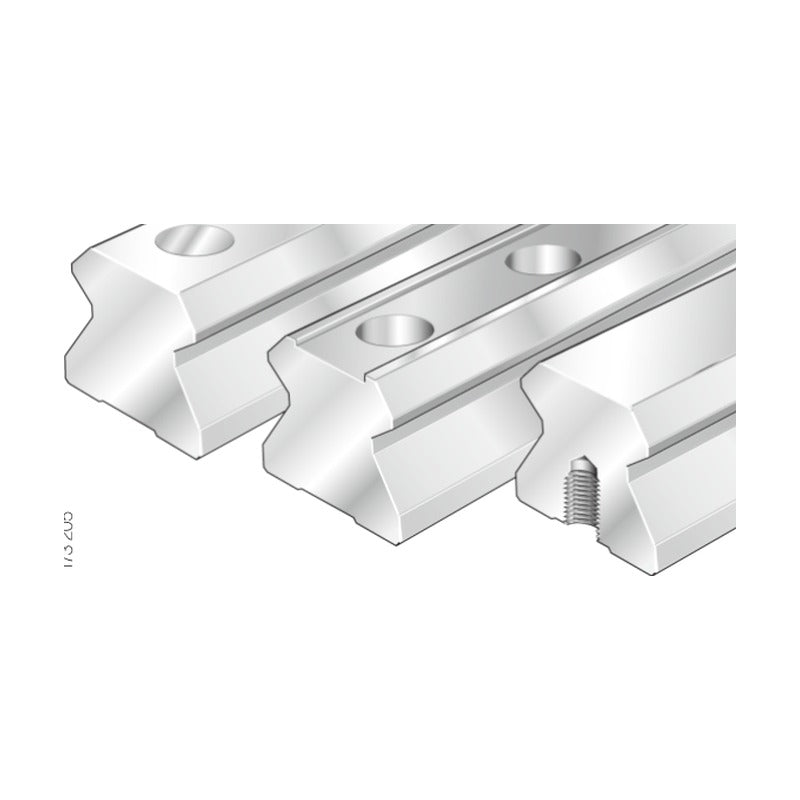

INA TSX guideways for RUE linear recirculating roller bearing assemblies, for location from above or (U) from below.

Key features

  • Guideways for RUE/RWU carriages
  • Version -U for screw mounting from below
  • Single-piece lengths up to the stated maximum
  • Longer guideways supplied in multiple pieces

Specifications

Brand INA
Product type Linear Guides
Series TSX
Designations listed 11
Units mm
Source INA Monorail Guidance Systems catalogue, p. 30, 32, 34, 36
TSX25-D Rail width: 23 mm | Max length: 1980 mm | Mass: 3.3 kg/m
TSX25-D-U Rail width: 23 mm | Max length: 1980 mm | Mass: 3.3 kg/m
TSX35-E Rail width: 34 mm | Max length: 2960 mm | Mass: 5.9 kg/m
TSX35-E-U Rail width: 34 mm | Max length: 2960 mm | Mass: 5.9 kg/m
TSX45-E Rail width: 45 mm | Max length: 2940 mm | Mass: 9.4 kg/m
TSX45-E-U Rail width: 45 mm | Max length: 2940 mm | Mass: 9.4 kg/m
TSX55-E Rail width: 53 mm | Max length: 2520 mm | Mass: 13.1 kg/m
TSX55-E-U Rail width: 53 mm | Max length: 2520 mm | Mass: 13.1 kg/m
TSX65-E Rail width: 63 mm | Max length: 2520 mm | Mass: 21.5 kg/m
TSX65-E-U Rail width: 63 mm | Max length: 2520 mm | Mass: 21.5 kg/m
TSX100-E Rail width: 100 mm | Max length: 2730 mm | Mass: 45.3 kg/m
Linear GuidesINA
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA TSX Guideways for RUE Roller Monorail Assemblies

Brand INA·Linear Guides

Available part numbers (11)

TSX25-D, TSX25-D-U, TSX35-E, TSX35-E-U, TSX45-E, TSX45-E-U, TSX55-E, TSX55-E-U, TSX65-E, TSX65-E-U + 1 more — see full table ↓

How to order

Send the INA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TSX25-DRail width: 23 mm | Max length: 1980 mm | Mass: 3.3 kg/m
TSX25-D-URail width: 23 mm | Max length: 1980 mm | Mass: 3.3 kg/m
TSX35-ERail width: 34 mm | Max length: 2960 mm | Mass: 5.9 kg/m
TSX35-E-URail width: 34 mm | Max length: 2960 mm | Mass: 5.9 kg/m
TSX45-ERail width: 45 mm | Max length: 2940 mm | Mass: 9.4 kg/m
TSX45-E-URail width: 45 mm | Max length: 2940 mm | Mass: 9.4 kg/m
TSX55-ERail width: 53 mm | Max length: 2520 mm | Mass: 13.1 kg/m
TSX55-E-URail width: 53 mm | Max length: 2520 mm | Mass: 13.1 kg/m
TSX65-ERail width: 63 mm | Max length: 2520 mm | Mass: 21.5 kg/m
TSX65-E-URail width: 63 mm | Max length: 2520 mm | Mass: 21.5 kg/m
TSX100-ERail width: 100 mm | Max length: 2730 mm | Mass: 45.3 kg/m
