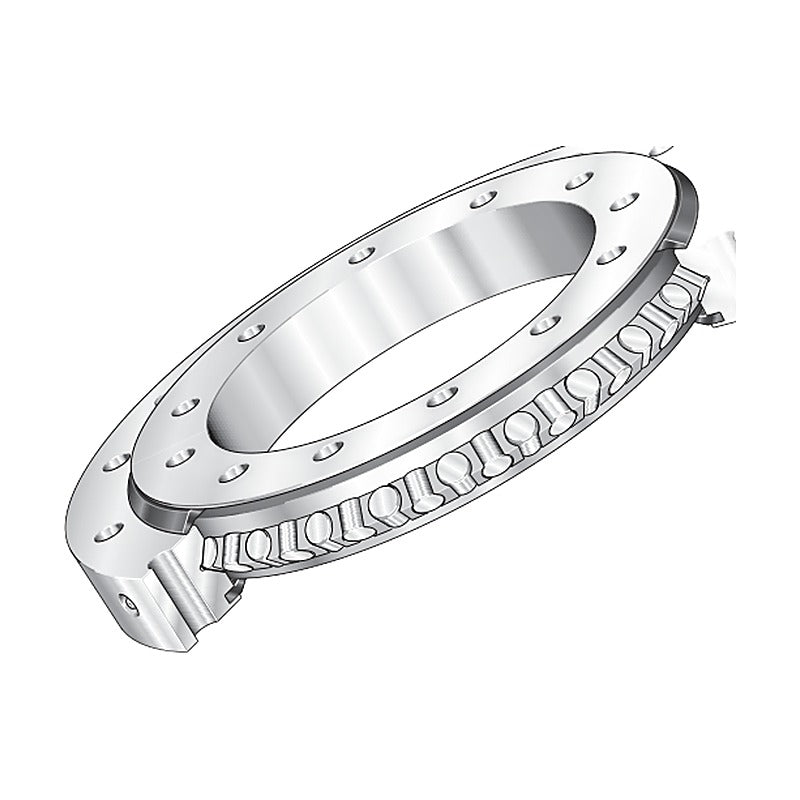

INA XSU 14 Crossed Roller Bearings, Sealed (d 344-1024 mm)

INA sealed, preloaded crossed roller bearings series XSU 14; both rings are screw mounted directly to the adjacent construction and centred on the inside and outside diameter. Bore 344-1024 mm.

Key features

Preloaded, sealed on both sides and greased
Inner and outer rings with fixing holes for direct screw mounting
Centring on inside and outside diameter
Supports axial, radial and tilting moment loads in a single bearing position
Four recessed taper type lubrication nipples; also available with gear teeth by request
Operating temperature -30 to +80 C

Specifications

Series	XSU 14
Seals	Both sides
Clearance	Preloaded
Bore range	344-1024 mm
Section height	56 mm
Operating temp.	-30 to +80 C
Source	INA Crossed Roller Bearings for High Precision Applications (KSX), p. 45, 56-57

XSU 140414		d: 344 mm \| D: 484 mm \| H: 56 mm \| Ca: 229 kN \| C0a: 520 kN \| Mass: 28 kg
XSU 140544		d: 474 mm \| D: 614 mm \| H: 56 mm \| Ca: 270 kN \| C0a: 680 kN \| Mass: 38 kg
XSU 140644		d: 574 mm \| D: 714 mm \| H: 56 mm \| Ca: 270 kN \| C0a: 680 kN \| Mass: 44 kg
XSU 140744		d: 674 mm \| D: 814 mm \| H: 56 mm \| Ca: 315 kN \| C0a: 930 kN \| Mass: 52 kg
XSU 140844		d: 774 mm \| D: 914 mm \| H: 56 mm \| Ca: 340 kN \| C0a: 1050 kN \| Mass: 60 kg
XSU 140944		d: 874 mm \| D: 1014 mm \| H: 56 mm \| Ca: 360 kN \| C0a: 1170 kN \| Mass: 67 kg
XSU 141094		d: 1024 mm \| D: 1164 mm \| H: 56 mm \| Ca: 390 kN \| C0a: 1360 kN \| Mass: 77 kg

Crossed Roller BearingsINA

7 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA XSU 14 Crossed Roller Bearings, Sealed (d 344-1024 mm)

Brand INA·Crossed Roller Bearings

Available part numbers (7)

XSU 140414, XSU 140544, XSU 140644, XSU 140744, XSU 140844, XSU 140944, XSU 141094

How to order

Send the INA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	XSU 140414	d: 344 mm \| D: 484 mm \| H: 56 mm \| Ca: 229 kN \| C0a: 520 kN \| Mass: 28 kg
	XSU 140544	d: 474 mm \| D: 614 mm \| H: 56 mm \| Ca: 270 kN \| C0a: 680 kN \| Mass: 38 kg
	XSU 140644	d: 574 mm \| D: 714 mm \| H: 56 mm \| Ca: 270 kN \| C0a: 680 kN \| Mass: 44 kg
	XSU 140744	d: 674 mm \| D: 814 mm \| H: 56 mm \| Ca: 315 kN \| C0a: 930 kN \| Mass: 52 kg
	XSU 140844	d: 774 mm \| D: 914 mm \| H: 56 mm \| Ca: 340 kN \| C0a: 1050 kN \| Mass: 60 kg
	XSU 140944	d: 874 mm \| D: 1014 mm \| H: 56 mm \| Ca: 360 kN \| C0a: 1170 kN \| Mass: 67 kg
	XSU 141094	d: 1024 mm \| D: 1164 mm \| H: 56 mm \| Ca: 390 kN \| C0a: 1360 kN \| Mass: 77 kg
