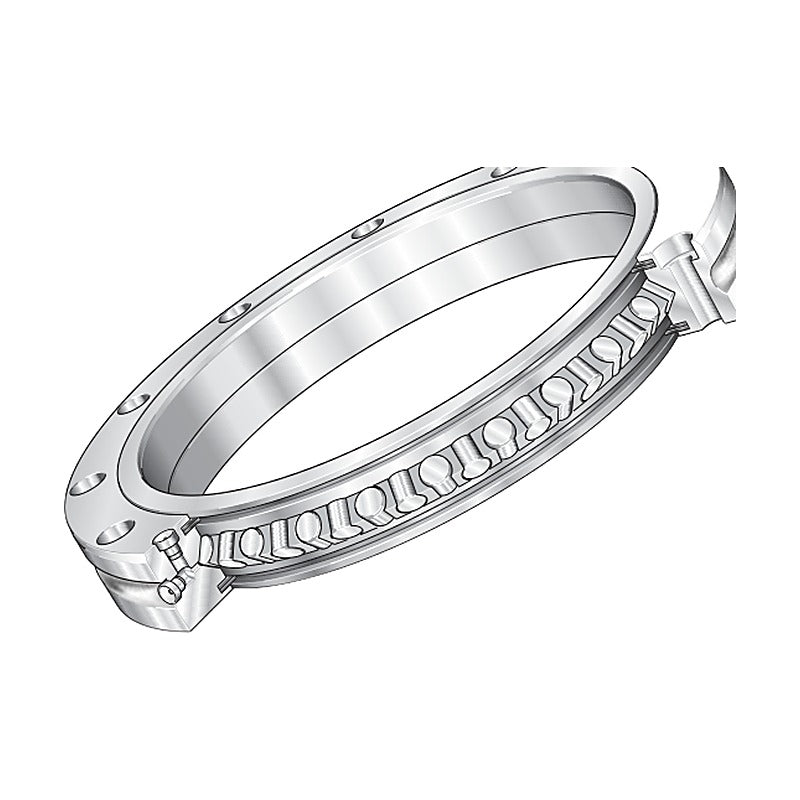

INA XV Crossed Roller Bearings, Sealed (d 30-110 mm)

INA XV Crossed Roller Bearings, Sealed (d 30-110 mm)

INA sealed crossed roller bearings XV with split inner ring; the outer ring is screw mounted to the adjacent construction and the inner ring is located and adjusted by a precision locknut.

Key features

  • Sealed on both sides and greased
  • Inner ring split circumferentially; clearance or preload set precisely via locknut (AM/ZM)
  • Outer ring with fixing holes for direct screw mounting
  • Supports axial, radial and tilting moment loads in a single bearing position
  • Two radial and two axial lubrication nipples
  • Operating temperature -30 to +80 C

Specifications

Series XV
Seals Both sides
Inner ring Split, locknut located
Bore range 30-110 mm
Bore / OD tolerance J6 / h6
Operating temp. -30 to +80 C
Source INA Crossed Roller Bearings for High Precision Applications (KSX), p. 44, 52-53
XV 30 d: 30 mm | D: 75 mm | Ha: 14 mm | Ca: 11.6 kN | C0a: 26 kN | Mass: 0.37 kg
XV 40 d: 40 mm | D: 85 mm | Ha: 14 mm | Ca: 13.6 kN | C0a: 34.5 kN | Mass: 0.44 kg
XV 50 d: 50 mm | D: 100 mm | Ha: 16 mm | Ca: 20.6 kN | C0a: 54 kN | Mass: 0.67 kg
XV 60 d: 60 mm | D: 110 mm | Ha: 16 mm | Ca: 22.6 kN | C0a: 64 kN | Mass: 0.75 kg
XV 70 d: 70 mm | D: 120 mm | Ha: 16 mm | Ca: 23.6 kN | C0a: 70 kN | Mass: 0.84 kg
XV 80 d: 80 mm | D: 135 mm | Ha: 18 mm | Ca: 33.5 kN | C0a: 101 kN | Mass: 1.18 kg
XV 90 d: 90 mm | D: 145 mm | Ha: 18 mm | Ca: 35 kN | C0a: 111 kN | Mass: 1.29 kg
XV 100 d: 100 mm | D: 170 mm | Ha: 22 mm | Ca: 54 kN | C0a: 163 kN | Mass: 2.31 kg
XV 110 d: 110 mm | D: 180 mm | Ha: 22 mm | Ca: 57 kN | C0a: 180 kN | Mass: 2.48 kg
Crossed Roller BearingsINA
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA XV Crossed Roller Bearings, Sealed (d 30-110 mm)

Brand INA·Crossed Roller Bearings

Available part numbers (9)

XV 30, XV 40, XV 50, XV 60, XV 70, XV 80, XV 90, XV 100, XV 110

How to order

Send the INA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
