INA ZLE52..-2Z Ball Bearing Track Rollers with Eccentric Collar

INA ZLE52..-2Z Ball Bearing Track Rollers with Eccentric Collar

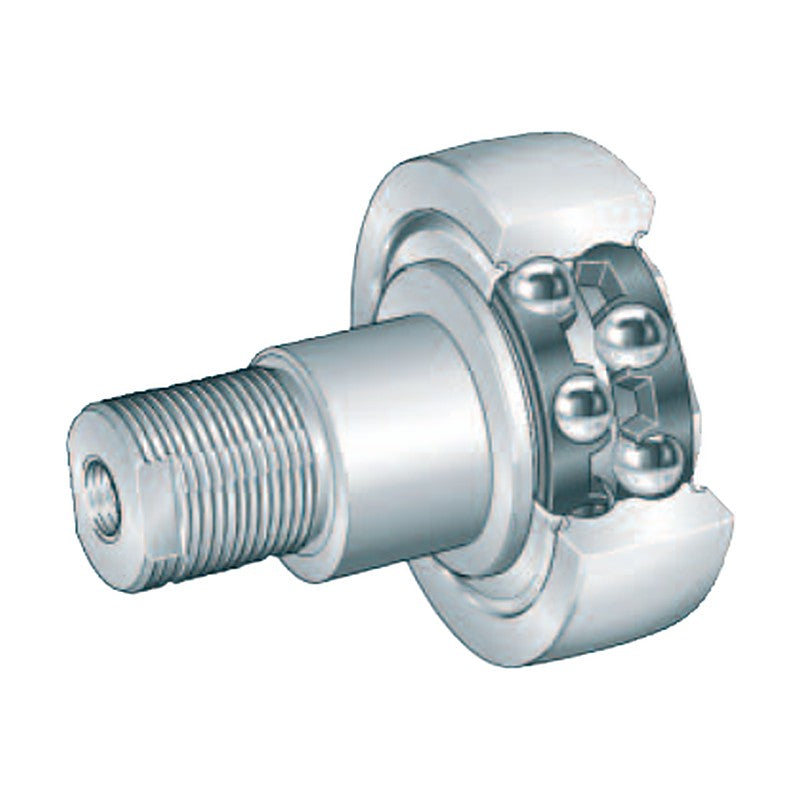

INA stud type ball bearing track rollers ZLE52..-2Z with eccentric collar for adjusting the roller against the track.

Key features

  • Double row ball bearing with gap seals (2Z)
  • Eccentric collar for play-free adjustment
  • Threaded stud with nut
  • Greased for life

Specifications

Brand INA
Product type Track Rollers
Design Stud type, eccentric
Outside diameter D 35 - 80 mm
Designations listed 5
Source INA Rolling Bearings HR 1 catalogue, p. 870-871
ZLE5201-2Z D: 35 mm | de: 18 mm | B: 65.5 mm | Crw: 8.7 kN | C0rw: 5.2 kN | m: 250 g
ZLE5202-2Z D: 40 mm | de: 22 mm | B: 66.5 mm | Crw: 10 kN | C0rw: 6.3 kN | m: 350 g
ZLE5204-2Z D: 52 mm | de: 24 mm | B: 76 mm | Crw: 16.1 kN | C0rw: 10.7 kN | m: 460 g
ZLE5205-2Z D: 62 mm | de: 24 mm | B: 88 mm | Crw: 18.8 kN | C0rw: 13.2 kN | m: 640 g
ZLE5207-2Z D: 80 mm | de: 35 mm | B: 99 mm | Crw: 31 kN | C0rw: 22.8 kN | m: 1300 g
Track RollersINA
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA ZLE52..-2Z Ball Bearing Track Rollers with Eccentric Collar

Brand INA·Track Rollers

Available part numbers (5)

ZLE5201-2Z, ZLE5202-2Z, ZLE5204-2Z, ZLE5205-2Z, ZLE5207-2Z

How to order

Send the INA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZLE5201-2ZD: 35 mm | de: 18 mm | B: 65.5 mm | Crw: 8.7 kN | C0rw: 5.2 kN | m: 250 g
ZLE5202-2ZD: 40 mm | de: 22 mm | B: 66.5 mm | Crw: 10 kN | C0rw: 6.3 kN | m: 350 g
ZLE5204-2ZD: 52 mm | de: 24 mm | B: 76 mm | Crw: 16.1 kN | C0rw: 10.7 kN | m: 460 g
ZLE5205-2ZD: 62 mm | de: 24 mm | B: 88 mm | Crw: 18.8 kN | C0rw: 13.2 kN | m: 640 g
ZLE5207-2ZD: 80 mm | de: 35 mm | B: 99 mm | Crw: 31 kN | C0rw: 22.8 kN | m: 1300 g
