INA ZSL1923 Cylindrical Roller Bearings (Spacers)

INA ZSL1923 Cylindrical Roller Bearings (Spacers)

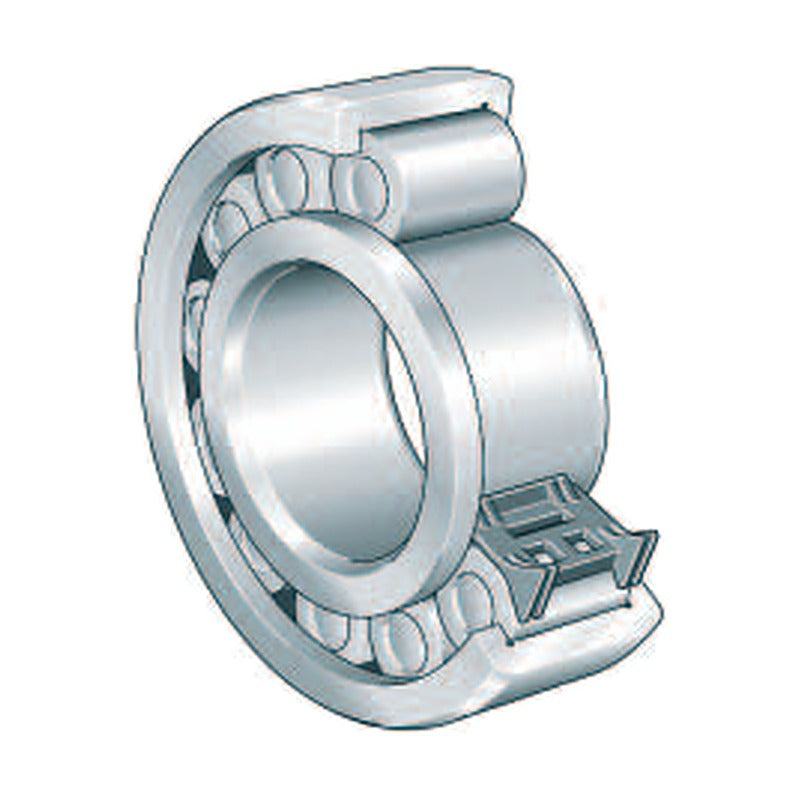

INA ZSL1923 single row cylindrical roller bearings with plastic spacers between the rollers, semi-locating.

Key features

  • Single row cylindrical roller bearings with roller spacers
  • Semi-locating bearing, axial loads in one direction
  • Lower friction than full complement bearings
  • TB design with increased axial capacity where printed

Specifications

Bearing type Cylindrical roller bearing, spacers
Series ZSL1923
Function Semi-locating
Operating temp. -30 to +120 C
Load ratings C dynamic, C0 static radial
Brand INA (Schaeffler)
Source INA Rolling Bearings catalogue HR 1, p. 404-405
ZSL192305 d: 25 mm | D: 62 mm | B: 24 mm | C: 68 kN | C0: 54 kN | nG: 16400 rpm
ZSL192306 d: 30 mm | D: 72 mm | B: 27 mm | C: 94 kN | C0: 80 kN | nG: 13900 rpm
ZSL192307 d: 35 mm | D: 80 mm | B: 31 mm | C: 118 kN | C0: 101 kN | nG: 11900 rpm
ZSL192308 d: 40 mm | D: 90 mm | B: 33 mm | C: 160 kN | C0: 142 kN | nG: 10400 rpm
ZSL192309 d: 45 mm | D: 100 mm | B: 36 mm | C: 171 kN | C0: 157 kN | nG: 9700 rpm
ZSL192310 d: 50 mm | D: 110 mm | B: 40 mm | C: 219 kN | C0: 199 kN | nG: 8800 rpm
ZSL192311 d: 55 mm | D: 120 mm | B: 43 mm | C: 255 kN | C0: 231 kN | nG: 7900 rpm
ZSL192312 d: 60 mm | D: 130 mm | B: 46 mm | C: 270 kN | C0: 255 kN | nG: 7400 rpm
ZSL192313 d: 65 mm | D: 140 mm | B: 48 mm | C: 335 kN | C0: 320 kN | nG: 6800 rpm
ZSL192314 d: 70 mm | D: 150 mm | B: 51 mm | C: 365 kN | C0: 355 kN | nG: 6500 rpm
ZSL192315 d: 75 mm | D: 160 mm | B: 55 mm | C: 435 kN | C0: 435 kN | nG: 6000 rpm
ZSL192316 d: 80 mm | D: 170 mm | B: 58 mm | C: 510 kN | C0: 520 kN | nG: 5500 rpm
ZSL192317 d: 85 mm | D: 180 mm | B: 60 mm | C: 540 kN | C0: 570 kN | nG: 5200 rpm
ZSL192318-TB d: 90 mm | D: 190 mm | B: 64 mm | C: 590 kN | C0: 610 kN | nG: 5200 rpm
ZSL192319-TB d: 95 mm | D: 200 mm | B: 67 mm | C: 620 kN | C0: 660 kN | nG: 4850 rpm
ZSL192320-TB d: 100 mm | D: 215 mm | B: 73 mm | C: 750 kN | C0: 790 kN | nG: 4550 rpm
ZSL192322-TB d: 110 mm | D: 240 mm | B: 80 mm | C: 890 kN | C0: 900 kN | nG: 3950 rpm
ZSL192324-TB d: 120 mm | D: 260 mm | B: 86 mm | C: 1060 kN | C0: 1140 kN | nG: 3700 rpm
Cylindrical Roller BearingsINA
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA ZSL1923 Cylindrical Roller Bearings (Spacers)

Brand INA·Cylindrical Roller Bearings

Available part numbers (18)

ZSL192305, ZSL192306, ZSL192307, ZSL192308, ZSL192309, ZSL192310, ZSL192311, ZSL192312, ZSL192313, ZSL192314 + 8 more — see full table ↓

How to order

Send the INA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZSL192305d: 25 mm | D: 62 mm | B: 24 mm | C: 68 kN | C0: 54 kN | nG: 16400 rpm
ZSL192306d: 30 mm | D: 72 mm | B: 27 mm | C: 94 kN | C0: 80 kN | nG: 13900 rpm
ZSL192307d: 35 mm | D: 80 mm | B: 31 mm | C: 118 kN | C0: 101 kN | nG: 11900 rpm
ZSL192308d: 40 mm | D: 90 mm | B: 33 mm | C: 160 kN | C0: 142 kN | nG: 10400 rpm
ZSL192309d: 45 mm | D: 100 mm | B: 36 mm | C: 171 kN | C0: 157 kN | nG: 9700 rpm
ZSL192310d: 50 mm | D: 110 mm | B: 40 mm | C: 219 kN | C0: 199 kN | nG: 8800 rpm
ZSL192311d: 55 mm | D: 120 mm | B: 43 mm | C: 255 kN | C0: 231 kN | nG: 7900 rpm
ZSL192312d: 60 mm | D: 130 mm | B: 46 mm | C: 270 kN | C0: 255 kN | nG: 7400 rpm
ZSL192313d: 65 mm | D: 140 mm | B: 48 mm | C: 335 kN | C0: 320 kN | nG: 6800 rpm
ZSL192314d: 70 mm | D: 150 mm | B: 51 mm | C: 365 kN | C0: 355 kN | nG: 6500 rpm
ZSL192315d: 75 mm | D: 160 mm | B: 55 mm | C: 435 kN | C0: 435 kN | nG: 6000 rpm
ZSL192316d: 80 mm | D: 170 mm | B: 58 mm | C: 510 kN | C0: 520 kN | nG: 5500 rpm
ZSL192317d: 85 mm | D: 180 mm | B: 60 mm | C: 540 kN | C0: 570 kN | nG: 5200 rpm
ZSL192318-TBd: 90 mm | D: 190 mm | B: 64 mm | C: 590 kN | C0: 610 kN | nG: 5200 rpm
ZSL192319-TBd: 95 mm | D: 200 mm | B: 67 mm | C: 620 kN | C0: 660 kN | nG: 4850 rpm
ZSL192320-TBd: 100 mm | D: 215 mm | B: 73 mm | C: 750 kN | C0: 790 kN | nG: 4550 rpm
ZSL192322-TBd: 110 mm | D: 240 mm | B: 80 mm | C: 890 kN | C0: 900 kN | nG: 3950 rpm
ZSL192324-TBd: 120 mm | D: 260 mm | B: 86 mm | C: 1060 kN | C0: 1140 kN | nG: 3700 rpm
