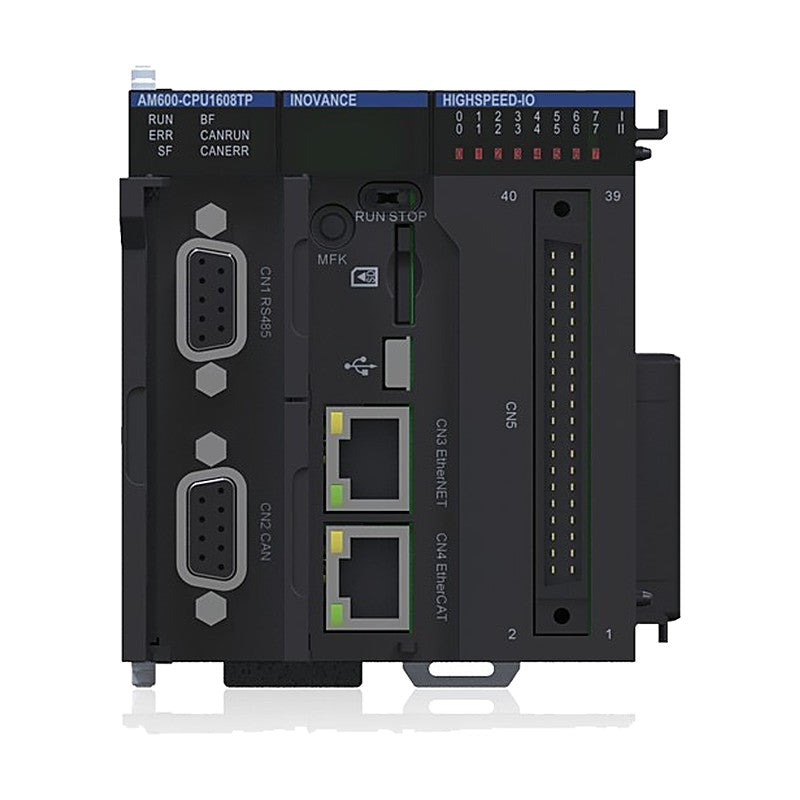

Inovance AM400/AM600 Series Mid-Range Motion PLC

Inovance AM400/AM600 Series Mid-Range Motion PLC

AM400 and AM600 are mid-range PLCs for EtherCAT-based motion control, programmed in InoProShop according to IEC 61131-3.

Key features

  • They provide 10 MB program and 20 MB data memory and control from 4 (AM401) up to 20 recommended (AM600) EtherCAT axes with 1 ms synchronization
  • PLCopen motion functions include CAM, gear, interpolation and G-code based CNC/robot control
  • Each CPU has 16 high-speed inputs and 8 transistor outputs for 4 pulse axes, plus Ethernet (Modbus TCP, FreeTCP), RS485 and CAN/CANopen/CANlink
  • Up to 16 GL10 local modules and GR10 EtherCAT or CANopen remote I/O can be added

Specifications

Max. EtherCAT slaves 125
Communication Ethernet x1, EtherCAT, RS485 x1, CAN (max. 63 nodes)
Program / data 10 MB / 20 MB
Dimensions 80 x 95 x 90 mm
Certification CE/UL/KC
Inovance AM400/AM600 Series Mid-Range Motion PLC reference 2
AM600-CPU1608TP-INT I/O: 16 high-speed DI (NPN/PNP) + 8 DO (PNP transistor) | EtherCAT axes: max. 32 (20 recommended) | Max. EtherCAT slaves: 125 | Pulse axis modules: max. 6 GR10-4PME/2PHE | Communication: Ethernet x1, EtherCAT, RS485 x1, CAN (max. 63 nodes) | Local expansion modules: max. 16 | Program / data: 10 MB / 20 MB | Terminal: Connector, adapter cable/board required | Dimensions: 80 x 95 x 90 mm | Certification: CE/UL/KC
AM600-CPU1608TN-INT I/O: 16 high-speed DI (NPN/PNP) + 8 DO (NPN transistor) | EtherCAT axes: max. 32 (20 recommended) | Max. EtherCAT slaves: 125 | Pulse axis modules: max. 6 GR10-4PME/2PHE | Communication: Ethernet x1, EtherCAT, RS485 x1, CAN (max. 63 nodes) | Local expansion modules: max. 16 | Program / data: 10 MB / 20 MB | Terminal: Push-in terminal | Dimensions: 80 x 95 x 90 mm | Certification: CE/UL/KC
AM401-CPU1608TP-INT I/O: 16 high-speed DI (NPN/PNP) + 8 DO (PNP transistor) | EtherCAT axes: max. 4 | Max. EtherCAT slaves: 125 | Pulse axis modules: max. 4 GR10-4PME/2PHE | Communication: Ethernet x1, EtherCAT, RS485 x1, CAN (max. 63 nodes) | Local expansion modules: max. 8 | Program / data: 10 MB / 20 MB | Terminal: Connector, adapter cable/board required | Dimensions: 80 x 95 x 90 mm | Certification: CE/UL/KC
AM401-CPU1608TN-INT I/O: 16 high-speed DI (NPN/PNP) + 8 DO (NPN transistor) | EtherCAT axes: max. 4 | Max. EtherCAT slaves: 125 | Pulse axis modules: max. 4 GR10-4PME/2PHE | Communication: Ethernet x1, EtherCAT, RS485 x1, CAN (max. 63 nodes) | Local expansion modules: max. 8 | Program / data: 10 MB / 20 MB | Terminal: Push-in terminal | Dimensions: 80 x 95 x 90 mm | Certification: CE/UL/KC
AM402-CPU1608TP-INT I/O: 16 high-speed DI (NPN/PNP) + 8 DO (PNP transistor) | EtherCAT axes: max. 8 | Max. EtherCAT slaves: 125 | Pulse axis modules: max. 4 GR10-4PME/2PHE | Communication: Ethernet x1, EtherCAT, RS485 x1, CAN (max. 63 nodes) | Local expansion modules: max. 8 | Program / data: 10 MB / 20 MB | Terminal: Connector, adapter cable/board required | Dimensions: 80 x 95 x 90 mm | Certification: CE/UL/KC
AM402-CPU1608TN-INT I/O: 16 high-speed DI (NPN/PNP) + 8 DO (NPN transistor) | EtherCAT axes: max. 8 | Max. EtherCAT slaves: 125 | Pulse axis modules: max. 4 GR10-4PME/2PHE | Communication: Ethernet x1, EtherCAT, RS485 x1, CAN (max. 63 nodes) | Local expansion modules: max. 8 | Program / data: 10 MB / 20 MB | Terminal: Push-in terminal | Dimensions: 80 x 95 x 90 mm | Certification: CE/UL/KC
AM403-CPU1608TN-INT I/O: 16 high-speed DI (NPN/PNP) + 8 DO (NPN transistor) | EtherCAT axes: max. 16 | Max. EtherCAT slaves: 125 | Pulse axis modules: max. 4 GR10-4PME/2PHE | Communication: Ethernet x1, EtherCAT, RS485 x1, CAN (max. 63 nodes) | Local expansion modules: max. 16 | Program / data: 10 MB / 20 MB | Terminal: Push-in terminal | Dimensions: 80 x 95 x 90 mm | Certification: CE/UL/KC
PLCsInovance
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Inovance AM400/AM600 Series Mid-Range Motion PLC

Brand Inovance·PLCs

Available part numbers (7)

AM600-CPU1608TP-INT, AM600-CPU1608TN-INT, AM401-CPU1608TP-INT, AM401-CPU1608TN-INT, AM402-CPU1608TP-INT, AM402-CPU1608TN-INT, AM403-CPU1608TN-INT

How to order

Send the Inovance part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Inovance AM400/AM600 Series Mid-Range Motion PLC reference 2
0 selected
RFQ List (0)
Product codeSpec
AM600-CPU1608TP-INTI/O: 16 high-speed DI (NPN/PNP) + 8 DO (PNP transistor) | EtherCAT axes: max. 32 (20 recommended) | Max. EtherCAT slaves: 125 | Pulse axis modules: max. 6 GR10-4PME/2PHE | Communication: Ethernet x1, EtherCAT, RS485 x1, CAN (max. 63 nodes) | Local expansion modules: max. 16 | Program / data: 10 MB / 20 MB | Terminal: Connector, adapter cable/board required | Dimensions: 80 x 95 x 90 mm | Certification: CE/UL/KC
AM600-CPU1608TN-INTI/O: 16 high-speed DI (NPN/PNP) + 8 DO (NPN transistor) | EtherCAT axes: max. 32 (20 recommended) | Max. EtherCAT slaves: 125 | Pulse axis modules: max. 6 GR10-4PME/2PHE | Communication: Ethernet x1, EtherCAT, RS485 x1, CAN (max. 63 nodes) | Local expansion modules: max. 16 | Program / data: 10 MB / 20 MB | Terminal: Push-in terminal | Dimensions: 80 x 95 x 90 mm | Certification: CE/UL/KC
AM401-CPU1608TP-INTI/O: 16 high-speed DI (NPN/PNP) + 8 DO (PNP transistor) | EtherCAT axes: max. 4 | Max. EtherCAT slaves: 125 | Pulse axis modules: max. 4 GR10-4PME/2PHE | Communication: Ethernet x1, EtherCAT, RS485 x1, CAN (max. 63 nodes) | Local expansion modules: max. 8 | Program / data: 10 MB / 20 MB | Terminal: Connector, adapter cable/board required | Dimensions: 80 x 95 x 90 mm | Certification: CE/UL/KC
AM401-CPU1608TN-INTI/O: 16 high-speed DI (NPN/PNP) + 8 DO (NPN transistor) | EtherCAT axes: max. 4 | Max. EtherCAT slaves: 125 | Pulse axis modules: max. 4 GR10-4PME/2PHE | Communication: Ethernet x1, EtherCAT, RS485 x1, CAN (max. 63 nodes) | Local expansion modules: max. 8 | Program / data: 10 MB / 20 MB | Terminal: Push-in terminal | Dimensions: 80 x 95 x 90 mm | Certification: CE/UL/KC
AM402-CPU1608TP-INTI/O: 16 high-speed DI (NPN/PNP) + 8 DO (PNP transistor) | EtherCAT axes: max. 8 | Max. EtherCAT slaves: 125 | Pulse axis modules: max. 4 GR10-4PME/2PHE | Communication: Ethernet x1, EtherCAT, RS485 x1, CAN (max. 63 nodes) | Local expansion modules: max. 8 | Program / data: 10 MB / 20 MB | Terminal: Connector, adapter cable/board required | Dimensions: 80 x 95 x 90 mm | Certification: CE/UL/KC
AM402-CPU1608TN-INTI/O: 16 high-speed DI (NPN/PNP) + 8 DO (NPN transistor) | EtherCAT axes: max. 8 | Max. EtherCAT slaves: 125 | Pulse axis modules: max. 4 GR10-4PME/2PHE | Communication: Ethernet x1, EtherCAT, RS485 x1, CAN (max. 63 nodes) | Local expansion modules: max. 8 | Program / data: 10 MB / 20 MB | Terminal: Push-in terminal | Dimensions: 80 x 95 x 90 mm | Certification: CE/UL/KC
AM403-CPU1608TN-INTI/O: 16 high-speed DI (NPN/PNP) + 8 DO (NPN transistor) | EtherCAT axes: max. 16 | Max. EtherCAT slaves: 125 | Pulse axis modules: max. 4 GR10-4PME/2PHE | Communication: Ethernet x1, EtherCAT, RS485 x1, CAN (max. 63 nodes) | Local expansion modules: max. 16 | Program / data: 10 MB / 20 MB | Terminal: Push-in terminal | Dimensions: 80 x 95 x 90 mm | Certification: CE/UL/KC
