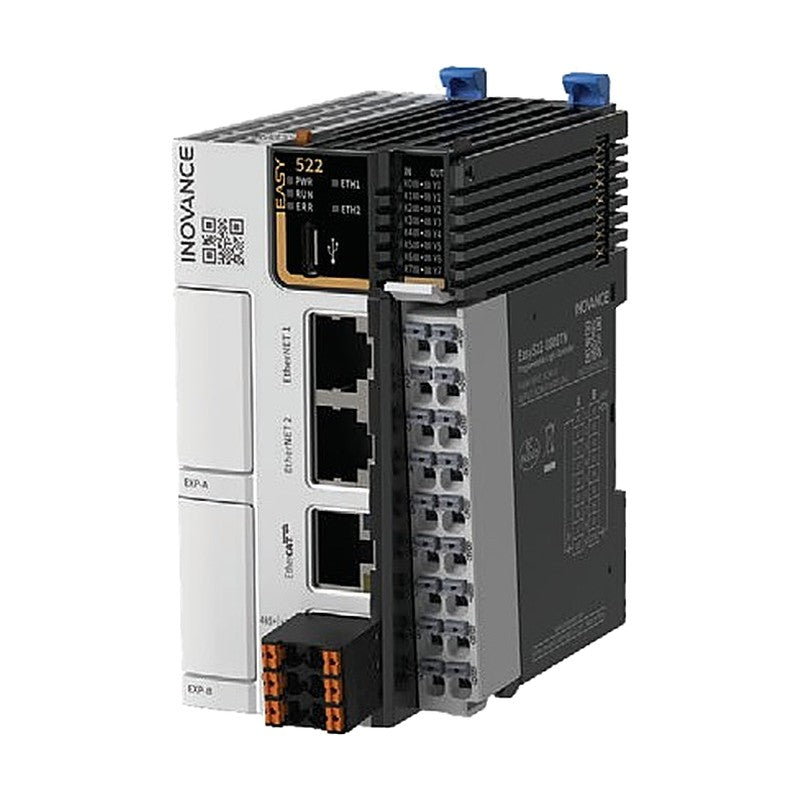

Inovance Easy Series Multi-Purpose Compact PLC
Inovance Easy Series Multi-Purpose Compact PLC
The Easy series is a family of eight compact PLCs for small and mid-size automation machines, from a 24 mm ultra-slim controller to EtherCAT network motion controllers.
Key features
- A quad-core processor gives instruction times down to 0.113 µs and supports up to 32 synchronized EtherCAT axes with cam, gear and interpolation
- Each controller has 8 high-speed inputs and 8 NPN transistor outputs at 200 kHz plus integrated RS485/RS232
- Network models offer dual Ethernet ports for cascading with EtherNet/IP, Modbus TCP and Socket communication
- Up to two GE20 expansion cards and up to 16 GL20 slim I/O modules can be added locally
Specifications
| Built-in I/O | 8 DI (source/sink) / 8 DO (NPN transistor) |
|---|---|
| Power supply | 24 V DC ±10% |
| EASY301-0808TN | Controller type: Ultra-slim controller, 24 mm width | Built-in I/O: 8 DI (source/sink) / 8 DO (NPN transistor) | Power supply: 24 V DC ±10% | Ethernet: - | Serial: 1x RS485 + 1x RS232 | EtherCAT: Not supported | High-speed output: 4 axes 200 kHz | Local expansion modules: max. 8 | Expansion card slots: 0 | Program capacity: 128K steps | Cam/gear/interpolation: Not supported | |
| EASY302-0808TN | Controller type: General-purpose controller | Built-in I/O: 8 DI (source/sink) / 8 DO (NPN transistor) | Power supply: 24 V DC ±10% | Ethernet: - | Serial: Up to 4 ch (1x RS485 + 1x RS232 on board) | EtherCAT: Not supported | High-speed output: 5 axes 200 kHz | Local expansion modules: max. 16 | Expansion card slots: 2 | Program capacity: 128K steps | Cam/gear/interpolation: Supported | |
| EASY320-0808TN | Controller type: Network controller | Built-in I/O: 8 DI (source/sink) / 8 DO (NPN transistor) | Power supply: 24 V DC ±10% | Ethernet: 2 ports (dual-port cascade), EtherNet/IP, Modbus TCP, Socket | Serial: Up to 3 ch (1 on board) | EtherCAT: Not supported | High-speed output: 5 axes 200 kHz | Local expansion modules: max. 16 | Expansion card slots: 2 | Program capacity: 128K steps | Cam/gear/interpolation: Supported | |
| EASY501-0808TN | Controller type: Motion controller | Built-in I/O: 8 DI (source/sink) / 8 DO (NPN transistor) | Power supply: 24 V DC ±10% | Ethernet: - | Serial: Up to 3 ch (1 on board) | EtherCAT: 1 ch, max. 72 slaves | Axes (pulse + bus): 8 | High-speed output: 5 axes 200 kHz | Local expansion modules: max. 16 | Expansion card slots: 2 | Program capacity: 200K steps | Cam/gear/interpolation: Supported | |
| EASY502-0808TN | Controller type: Motion controller | Built-in I/O: 8 DI (source/sink) / 8 DO (NPN transistor) | Power supply: 24 V DC ±10% | Ethernet: - | Serial: Up to 3 ch (1 on board) | EtherCAT: 1 ch, max. 72 slaves | Axes (pulse + bus): 16 | High-speed output: 5 axes 200 kHz | Local expansion modules: max. 16 | Expansion card slots: 2 | Program capacity: 200K steps | Cam/gear/interpolation: Supported | |
| EASY521-0808TN | Controller type: Network motion controller | Built-in I/O: 8 DI (source/sink) / 8 DO (NPN transistor) | Power supply: 24 V DC ±10% | Ethernet: 2 ports (dual-port cascade), EtherNet/IP, Modbus TCP, Socket | Serial: Up to 3 ch (1 on board) | EtherCAT: 1 ch, max. 72 slaves | Axes (pulse + bus): 8 | High-speed output: 5 axes 200 kHz | Local expansion modules: max. 16 | Expansion card slots: 2 | Program capacity: 200K steps | Cam/gear/interpolation: Supported | |
| EASY522-0808TN | Controller type: Network motion controller | Built-in I/O: 8 DI (source/sink) / 8 DO (NPN transistor) | Power supply: 24 V DC ±10% | Ethernet: 2 ports (dual-port cascade), EtherNet/IP, Modbus TCP, Socket | Serial: Up to 3 ch (1 on board) | EtherCAT: 1 ch, max. 72 slaves | Axes (pulse + bus): 16 | High-speed output: 5 axes 200 kHz | Local expansion modules: max. 16 | Expansion card slots: 2 | Program capacity: 200K steps | Cam/gear/interpolation: Supported | |
| EASY523-0808TN | Controller type: Network motion controller | Built-in I/O: 8 DI (source/sink) / 8 DO (NPN transistor) | Power supply: 24 V DC ±10% | Ethernet: 2 ports (dual-port cascade), EtherNet/IP, Modbus TCP, Socket | Serial: Up to 3 ch (1 on board) | EtherCAT: 1 ch, max. 72 slaves | Axes (pulse + bus): 32 | High-speed output: 5 axes 200 kHz | Local expansion modules: max. 16 | Expansion card slots: 2 | Program capacity: 200K steps | Cam/gear/interpolation: Supported |
PLCsInovance
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Inovance Easy Series Multi-Purpose Compact PLC
Available part numbers (8)
EASY301-0808TN, EASY302-0808TN, EASY320-0808TN, EASY501-0808TN, EASY502-0808TN, EASY521-0808TN, EASY522-0808TN, EASY523-0808TN
How to order
Send the Inovance part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Inovance
PLCs
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| EASY301-0808TN | Controller type: Ultra-slim controller, 24 mm width | Built-in I/O: 8 DI (source/sink) / 8 DO (NPN transistor) | Power supply: 24 V DC ±10% | Ethernet: - | Serial: 1x RS485 + 1x RS232 | EtherCAT: Not supported | High-speed output: 4 axes 200 kHz | Local expansion modules: max. 8 | Expansion card slots: 0 | Program capacity: 128K steps | Cam/gear/interpolation: Not supported | ||
| EASY302-0808TN | Controller type: General-purpose controller | Built-in I/O: 8 DI (source/sink) / 8 DO (NPN transistor) | Power supply: 24 V DC ±10% | Ethernet: - | Serial: Up to 4 ch (1x RS485 + 1x RS232 on board) | EtherCAT: Not supported | High-speed output: 5 axes 200 kHz | Local expansion modules: max. 16 | Expansion card slots: 2 | Program capacity: 128K steps | Cam/gear/interpolation: Supported | ||
| EASY320-0808TN | Controller type: Network controller | Built-in I/O: 8 DI (source/sink) / 8 DO (NPN transistor) | Power supply: 24 V DC ±10% | Ethernet: 2 ports (dual-port cascade), EtherNet/IP, Modbus TCP, Socket | Serial: Up to 3 ch (1 on board) | EtherCAT: Not supported | High-speed output: 5 axes 200 kHz | Local expansion modules: max. 16 | Expansion card slots: 2 | Program capacity: 128K steps | Cam/gear/interpolation: Supported | ||
| EASY501-0808TN | Controller type: Motion controller | Built-in I/O: 8 DI (source/sink) / 8 DO (NPN transistor) | Power supply: 24 V DC ±10% | Ethernet: - | Serial: Up to 3 ch (1 on board) | EtherCAT: 1 ch, max. 72 slaves | Axes (pulse + bus): 8 | High-speed output: 5 axes 200 kHz | Local expansion modules: max. 16 | Expansion card slots: 2 | Program capacity: 200K steps | Cam/gear/interpolation: Supported | ||
| EASY502-0808TN | Controller type: Motion controller | Built-in I/O: 8 DI (source/sink) / 8 DO (NPN transistor) | Power supply: 24 V DC ±10% | Ethernet: - | Serial: Up to 3 ch (1 on board) | EtherCAT: 1 ch, max. 72 slaves | Axes (pulse + bus): 16 | High-speed output: 5 axes 200 kHz | Local expansion modules: max. 16 | Expansion card slots: 2 | Program capacity: 200K steps | Cam/gear/interpolation: Supported | ||
| EASY521-0808TN | Controller type: Network motion controller | Built-in I/O: 8 DI (source/sink) / 8 DO (NPN transistor) | Power supply: 24 V DC ±10% | Ethernet: 2 ports (dual-port cascade), EtherNet/IP, Modbus TCP, Socket | Serial: Up to 3 ch (1 on board) | EtherCAT: 1 ch, max. 72 slaves | Axes (pulse + bus): 8 | High-speed output: 5 axes 200 kHz | Local expansion modules: max. 16 | Expansion card slots: 2 | Program capacity: 200K steps | Cam/gear/interpolation: Supported | ||
| EASY522-0808TN | Controller type: Network motion controller | Built-in I/O: 8 DI (source/sink) / 8 DO (NPN transistor) | Power supply: 24 V DC ±10% | Ethernet: 2 ports (dual-port cascade), EtherNet/IP, Modbus TCP, Socket | Serial: Up to 3 ch (1 on board) | EtherCAT: 1 ch, max. 72 slaves | Axes (pulse + bus): 16 | High-speed output: 5 axes 200 kHz | Local expansion modules: max. 16 | Expansion card slots: 2 | Program capacity: 200K steps | Cam/gear/interpolation: Supported | ||
| EASY523-0808TN | Controller type: Network motion controller | Built-in I/O: 8 DI (source/sink) / 8 DO (NPN transistor) | Power supply: 24 V DC ±10% | Ethernet: 2 ports (dual-port cascade), EtherNet/IP, Modbus TCP, Socket | Serial: Up to 3 ch (1 on board) | EtherCAT: 1 ch, max. 72 slaves | Axes (pulse + bus): 32 | High-speed output: 5 axes 200 kHz | Local expansion modules: max. 16 | Expansion card slots: 2 | Program capacity: 200K steps | Cam/gear/interpolation: Supported |
Need a different model, or a part not listed here? Send us your parts list →
