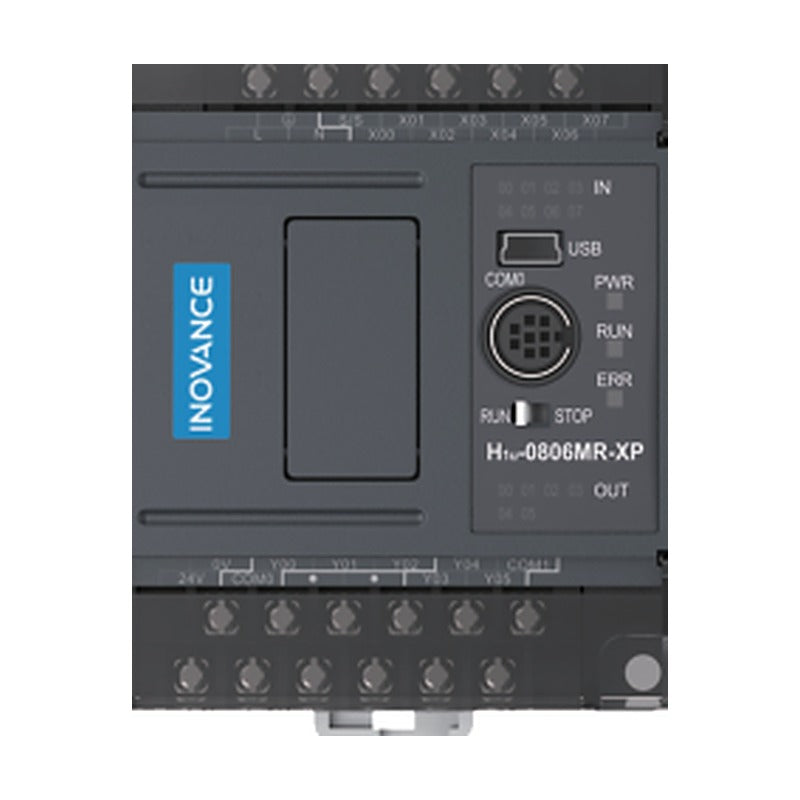

Inovance H1U Series Simplified Compact PLC and Option Cards

H1U series simplified compact PLCs with 14 to 60 I/O points, three pulse axes and function expansion cards, for small machines without local module expansion.

Key features

Main units from 8/6 to 36/24 I/O, relay or transistor output
Three 100 kHz pulse outputs; 60 kHz and 10 kHz high-speed inputs
RS485, RS422 and USB; CAN via H1U-CAN-BD for remote expansion
BD option cards for RS232, CAN, analog and temperature I/O
Local module expansion not supported

Specifications

Program capacity	16K steps
Data capacity	10K words
Retentive data	8K words
Basic instruction	100 ns
Pulse axes	3
Dimensions	70 + X x 75 x 90 mm
Source	Inovance Expansion Module and HMI catalogue 19120152 A01, p. 25-26

H1U-0806MT-XP		Model: H1U-0806MT-XP \| Category: Main unit \| Description: 8 DI / 6 DO transistor
H1U-0806MR-XP		Model: H1U-0806MR-XP \| Category: Main unit \| Description: 8 DI / 6 DO relay
H1U-1208MT-XP		Model: H1U-1208MT-XP \| Category: Main unit \| Description: 12 DI / 8 DO transistor
H1U-1208MR-XP		Model: H1U-1208MR-XP \| Category: Main unit \| Description: 12 DI / 8 DO relay
H1U-1410MT-XP		Model: H1U-1410MT-XP \| Category: Main unit \| Description: 14 DI / 10 DO transistor
H1U-1410MR-XP		Model: H1U-1410MR-XP \| Category: Main unit \| Description: 14 DI / 10 DO relay
H1U-1614MT-XP		Model: H1U-1614MT-XP \| Category: Main unit \| Description: 16 DI / 14 DO transistor
H1U-1614MR-XP		Model: H1U-1614MR-XP \| Category: Main unit \| Description: 16 DI / 14 DO relay
H1U-2416MT-XP		Model: H1U-2416MT-XP \| Category: Main unit \| Description: 24 DI / 16 DO transistor
H1U-2416MR-XP		Model: H1U-2416MR-XP \| Category: Main unit \| Description: 24 DI / 16 DO relay
H1U-2820MT-XP		Model: H1U-2820MT-XP \| Category: Main unit \| Description: 28 DI / 20 DO transistor
H1U-2820MR-XP		Model: H1U-2820MR-XP \| Category: Main unit \| Description: 28 DI / 20 DO relay
H1U-3624MT-XP		Model: H1U-3624MT-XP \| Category: Main unit \| Description: 36 DI / 24 DO transistor
H1U-3624MR-XP		Model: H1U-3624MR-XP \| Category: Main unit \| Description: 36 DI / 24 DO relay
H1U-CAN-BD		Model: H1U-CAN-BD \| Category: Controller option \| Description: Isolated CAN communication card
H1U-232-BD		Model: H1U-232-BD \| Category: Controller option \| Description: RS232 communication card
H1U-4A-BD		Model: H1U-4A-BD \| Category: Controller option \| Description: 2 AI + 2 AO card
H1U-COVER1		Model: H1U-COVER1 \| Category: Controller option \| Description: H1U PLC cover
H1U-2TP2DA-BD		Model: H1U-2TP2DA-BD \| Category: Controller option \| Description: 2 TC/TP inputs + 2 DA card

PLCsInovance

19 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Inovance H1U Series Simplified Compact PLC and Option Cards

Brand Inovance·PLCs

Available part numbers (19)

H1U-0806MT-XP, H1U-0806MR-XP, H1U-1208MT-XP, H1U-1208MR-XP, H1U-1410MT-XP, H1U-1410MR-XP, H1U-1614MT-XP, H1U-1614MR-XP, H1U-2416MT-XP, H1U-2416MR-XP + 9 more — see full table ↓
