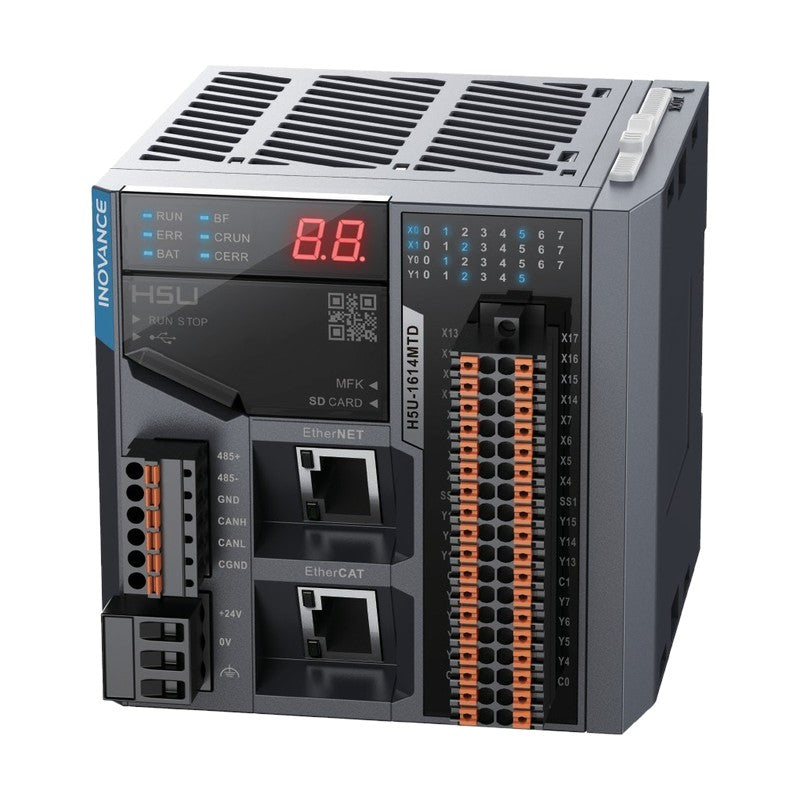

Inovance H5U Series High-Performance EtherCAT Compact PLC

Inovance H5U Series High-Performance EtherCAT Compact PLC

The H5U is a compact PLC with built-in EtherCAT for motion control of up to 32 servo axes and 72 EtherCAT slaves.

Key features

  • Pulse and EtherCAT drives use the same PLCopen-style motion instructions, with CAM and linear/circular interpolation support
  • It offers 200K steps of program memory, 20 ns basic instruction time and Ethernet, CAN (CANlink/CANopen) and RS485 ports
  • Programs are written in AutoShop with FB/FC encapsulation, and variables can be exchanged directly with IT7000 HMIs
  • Up to 16 local GL10 modules can be added

Specifications

I/O 16 DI (NPN/PNP) / 14 DO (NPN transistor)
EtherCAT 1 port, max. 72 slaves
Communication Ethernet x1 (Modbus TCP), CAN x1 (CANlink/CANopen), RS485 x1
Program capacity 200K steps
Data capacity 2 MB
High-speed I/O 200 kHz inputs x4, 200 kHz pulse outputs
Local expansion modules max. 16
Power supply 24 V DC
Dimensions 83 x 95 x 90 mm
Certification CE
H5U-1614MTD I/O: 16 DI (NPN/PNP) / 14 DO (NPN transistor) | Max. axes: 32 | EtherCAT: 1 port, max. 72 slaves | Communication: Ethernet x1 (Modbus TCP), CAN x1 (CANlink/CANopen), RS485 x1 | Program capacity: 200K steps | Data capacity: 2 MB | High-speed I/O: 200 kHz inputs x4, 200 kHz pulse outputs | Local expansion modules: max. 16 | Power supply: 24 V DC | Dimensions: 83 x 95 x 90 mm | Certification: CE
H5U-1614MTD-A8 I/O: 16 DI (NPN/PNP) / 14 DO (NPN transistor) | Max. axes: 8 | EtherCAT: 1 port, max. 72 slaves | Communication: Ethernet x1 (Modbus TCP), CAN x1 (CANlink/CANopen), RS485 x1 | Program capacity: 200K steps | Data capacity: 2 MB | High-speed I/O: 200 kHz inputs x4, 200 kHz pulse outputs | Local expansion modules: max. 16 | Power supply: 24 V DC | Dimensions: 83 x 95 x 90 mm | Certification: CE
H5U-1614MTD-A16 I/O: 16 DI (NPN/PNP) / 14 DO (NPN transistor) | Max. axes: 16 | EtherCAT: 1 port, max. 72 slaves | Communication: Ethernet x1 (Modbus TCP), CAN x1 (CANlink/CANopen), RS485 x1 | Program capacity: 200K steps | Data capacity: 2 MB | High-speed I/O: 200 kHz inputs x4, 200 kHz pulse outputs | Local expansion modules: max. 16 | Power supply: 24 V DC | Dimensions: 83 x 95 x 90 mm | Certification: CE
PLCsInovance
3 product codes available in this family
