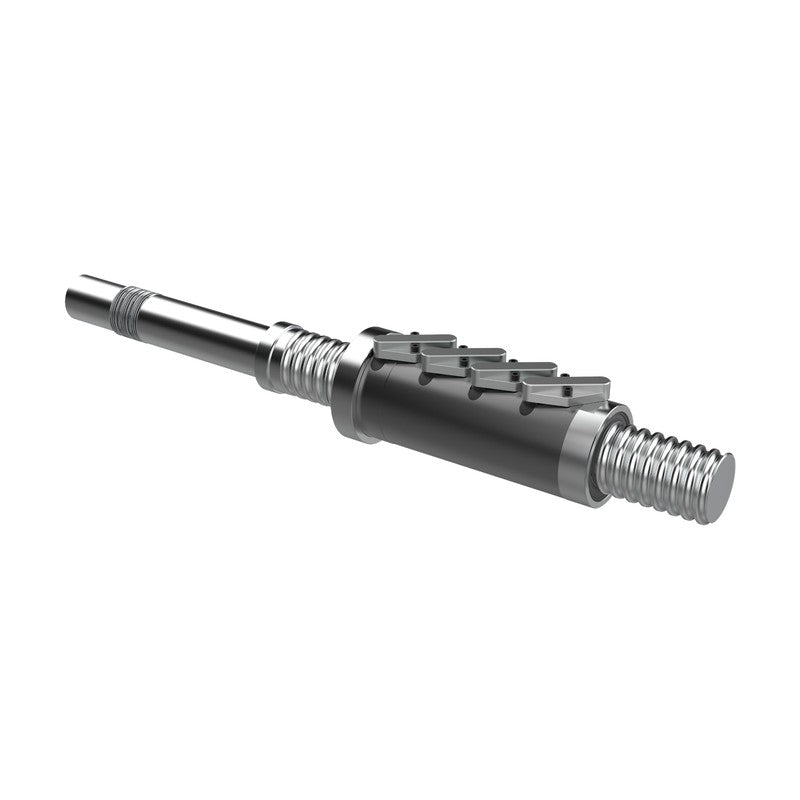

Inovance HSP / HPL Series High-Speed Heavy-Load Ball Screw

Inovance HSP / HPL Series High-Speed Heavy-Load Ball Screw

Inovance HSP / HPL high-speed heavy-load ball screws with end-guided circulation for fast feed under high load, shaft diameters 50 to 140 mm.

Key features

  • End-guided circulation doubles running speed vs. tube insertion and halves noise
  • Feed speeds up to 1,042 mm/s; d x n up to 150,000 (leads <= 16 mm)
  • HPL high-lead versions with 50 / 70 mm lead (2-start)
  • Nut forms I / II / III; dynamic load ratings up to 1,830 kN
  • Accuracy Ct5 / Ct7 (JIS B 1192); sealing rings both ends

Specifications

Brand Inovance (LAIEN)
Nut type Single flange single nut (F)
Accuracy class Ct5, Ct7 (JIS B 1192:2018)
Axial clearance < 0.05 mm
Operating temp. Below 60 C
Seal 2 sealing rings
Source Inovance Precision Ball Screws catalogue 19120498A00, p. 15-16
HSP5010FD Shaft dia: 50 mm | Lead: 10 mm | Nut form: II | Circuits: 2.5 x 3 x 1 | Ca / C0a: 173 / 510 kN | Perm. axial load: 69.8 kN
HSP5014FD Shaft dia: 50 mm | Lead: 14 mm | Nut form: II | Circuits: 2.5 x 3 x 1 | Ca / C0a: 256 / 685 kN | Perm. axial load: 96.0 kN
HSP5016FC Shaft dia: 50 mm | Lead: 16 mm | Nut form: I | Circuits: 2.5 x 2 x 1 | Ca / C0a: 261 / 605 kN | Perm. axial load: 80.4 kN
HSP5016FD Shaft dia: 50 mm | Lead: 16 mm | Nut form: II | Circuits: 2.5 x 3 x 1 | Ca / C0a: 370 / 910 kN | Perm. axial load: 120.1 kN
HSP5020FD Shaft dia: 50 mm | Lead: 20 mm | Nut form: II | Circuits: 2.5 x 3 x 1 | Ca / C0a: 370 / 910 kN | Perm. axial load: 119.6 kN
HSP6312FK Shaft dia: 63 mm | Lead: 12 mm | Nut form: III | Circuits: 2.5 x 4 x 1 | Ca / C0a: 325 / 1060 kN | Perm. axial load: 139.4 kN
HSP6316FD Shaft dia: 63 mm | Lead: 16 mm | Nut form: II | Circuits: 2.5 x 3 x 1 | Ca / C0a: 420 / 1150 kN | Perm. axial load: 158.4 kN
HSP6316FN Shaft dia: 63 mm | Lead: 16 mm | Nut form: II | Circuits: 3.5 x 3 x 1 | Ca / C0a: 545 / 1570 kN | Perm. axial load: 216.6 kN
HSP6316FY Shaft dia: 63 mm | Lead: 16 mm | Nut form: III | Circuits: 3.5 x 4 x 1 | Ca / C0a: 700 / 2090 kN | Perm. axial load: 235.2 kN
HSP6320FD Shaft dia: 63 mm | Lead: 20 mm | Nut form: II | Circuits: 2.5 x 3 x 1 | Ca / C0a: 555 / 1420 kN | Perm. axial load: 191.1 kN
HSP6320FK Shaft dia: 63 mm | Lead: 20 mm | Nut form: III | Circuits: 2.5 x 4 x 1 | Ca / C0a: 710 / 1900 kN | Perm. axial load: 226.4 kN
HSP6325FJ Shaft dia: 63 mm | Lead: 25 mm | Nut form: I | Circuits: 3.5 x 2 x 1 | Ca / C0a: 510 / 1300 kN | Perm. axial load: 174.0 kN
HSP6325FN Shaft dia: 63 mm | Lead: 25 mm | Nut form: II | Circuits: 3.5 x 3 x 1 | Ca / C0a: 725 / 1950 kN | Perm. axial load: 261.2 kN
HSP8016FD Shaft dia: 80 mm | Lead: 16 mm | Nut form: II | Circuits: 2.5 x 3 x 1 | Ca / C0a: 320 / 1120 kN | Perm. axial load: 144.1 kN
HSP8016FJ Shaft dia: 80 mm | Lead: 16 mm | Nut form: I | Circuits: 3.5 x 2 x 1 | Ca / C0a: 430 / 1330 kN | Perm. axial load: 180.3 kN
HSP8016FN Shaft dia: 80 mm | Lead: 16 mm | Nut form: II | Circuits: 3.5 x 3 x 1 | Ca / C0a: 610 / 1990 kN | Perm. axial load: 269.5 kN
HSP8016FY Shaft dia: 80 mm | Lead: 16 mm | Nut form: III | Circuits: 3.5 x 4 x 1 | Ca / C0a: 785 / 2650 kN | Perm. axial load: 360.6 kN
HSP8020FJ Shaft dia: 80 mm | Lead: 20 mm | Nut form: I | Circuits: 3.5 x 2 x 1 | Ca / C0a: 575 / 1630 kN | Perm. axial load: 227.4 kN
HSP8020FN Shaft dia: 80 mm | Lead: 20 mm | Nut form: II | Circuits: 3.5 x 3 x 1 | Ca / C0a: 815 / 2450 kN | Perm. axial load: 341 kN
HSP8020FY Shaft dia: 80 mm | Lead: 20 mm | Nut form: III | Circuits: 3.5 x 4 x 1 | Ca / C0a: 1040 / 3250 kN | Perm. axial load: 454.7 kN
HSP8025FD Shaft dia: 80 mm | Lead: 25 mm | Nut form: II | Circuits: 2.5 x 3 x 1 | Ca / C0a: 805 / 2220 kN | Perm. axial load: 284.2 kN
HSP8025FK Shaft dia: 80 mm | Lead: 25 mm | Nut form: III | Circuits: 2.5 x 4 x 1 | Ca / C0a: 1030 / 2960 kN | Perm. axial load: 379 kN
HPL8050F2B Shaft dia: 80 mm | Lead: 50 mm | Nut form: II | Circuits: 3.5 x 1 x 2 | Ca / C0a: 730 / 2000 kN | Perm. axial load: 266.6 kN
HSP10016FD Shaft dia: 100 mm | Lead: 16 mm | Nut form: II | Circuits: 2.5 x 3 x 1 | Ca / C0a: 520 / 1840 kN | Perm. axial load: 241.1 kN
HSP10016FK Shaft dia: 100 mm | Lead: 16 mm | Nut form: III | Circuits: 2.5 x 4 x 1 | Ca / C0a: 665 / 2450 kN | Perm. axial load: 321.4 kN
HSP10016FN Shaft dia: 100 mm | Lead: 16 mm | Nut form: II | Circuits: 3.5 x 3 x 1 | Ca / C0a: 680 / 2520 kN | Perm. axial load: 328.1 kN
HSP10016FY Shaft dia: 100 mm | Lead: 16 mm | Nut form: III | Circuits: 3.5 x 4 x 1 | Ca / C0a: 870 / 3350 kN | Perm. axial load: 437.4 kN
HSP10020FN Shaft dia: 100 mm | Lead: 20 mm | Nut form: II | Circuits: 3.5 x 3 x 1 | Ca / C0a: 915 / 3100 kN | Perm. axial load: 420.4 kN
HSP10020FY Shaft dia: 100 mm | Lead: 20 mm | Nut form: III | Circuits: 3.5 x 4 x 1 | Ca / C0a: 1170 / 4150 kN | Perm. axial load: 560.6 kN
HSP10025FJ Shaft dia: 100 mm | Lead: 25 mm | Nut form: I | Circuits: 3.5 x 2 x 1 | Ca / C0a: 825 / 2510 kN | Perm. axial load: 343 kN
HSP10025FN Shaft dia: 100 mm | Lead: 25 mm | Nut form: II | Circuits: 3.5 x 3 x 1 | Ca / C0a: 1170 / 3750 kN | Perm. axial load: 514.5 kN
HSP10025FY Shaft dia: 100 mm | Lead: 25 mm | Nut form: III | Circuits: 3.5 x 4 x 1 | Ca / C0a: 1500 / 5000 kN | Perm. axial load: 686 kN
HPL10050F2C Shaft dia: 100 mm | Lead: 50 mm | Nut form: II | Circuits: 2.5 x 2 x 2 | Ca / C0a: 1130 / 3650 kN | Perm. axial load: 485 kN
HSP12020FD Shaft dia: 120 mm | Lead: 20 mm | Nut form: II | Circuits: 2.5 x 3 x 1 | Ca / C0a: 760 / 2750 kN | Perm. axial load: 359.7 kN
HSP12020FK Shaft dia: 120 mm | Lead: 20 mm | Nut form: III | Circuits: 2.5 x 4 x 1 | Ca / C0a: 975 / 3650 kN | Perm. axial load: 480.2 kN
HSP12025FN Shaft dia: 120 mm | Lead: 25 mm | Nut form: II | Circuits: 3.5 x 3 x 1 | Ca / C0a: 1270 / 4500 kN | Perm. axial load: 602.7 kN
HSP12025FY Shaft dia: 120 mm | Lead: 25 mm | Nut form: III | Circuits: 3.5 x 4 x 1 | Ca / C0a: 1630 / 5950 kN | Perm. axial load: 803.6 kN
HPL14070F2C Shaft dia: 140 mm | Lead: 70 mm | Nut form: II | Circuits: 2.5 x 2 x 2 | Ca / C0a: 1830 / 6350 kN | Perm. axial load: 900 kN
