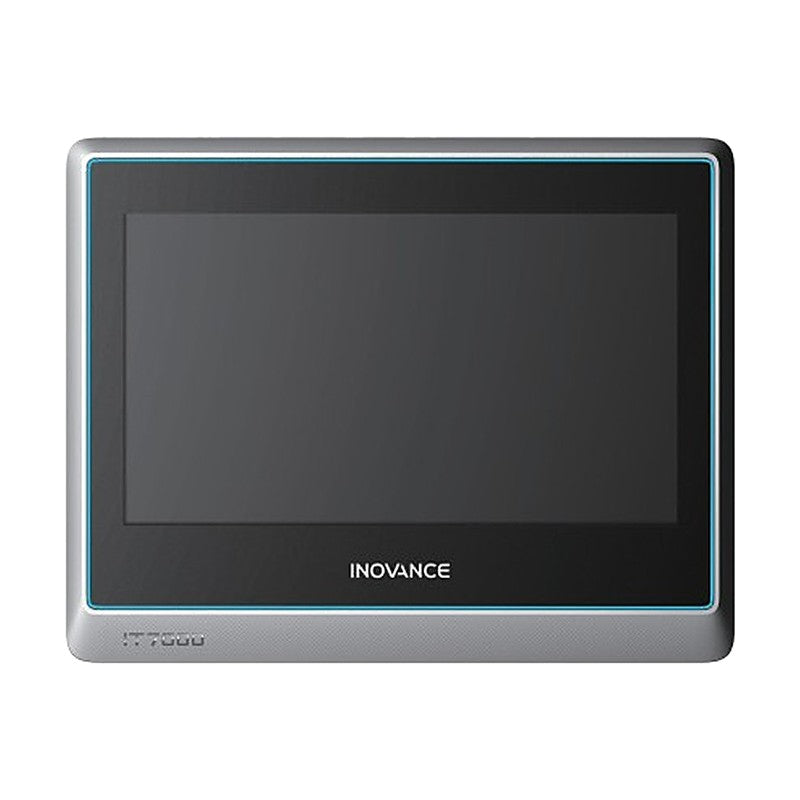

Inovance IT7000 Series High-Performance HMI Touch Panel

IT7000 is a series of touch-screen HMIs from 7 to 15 inches for operating and monitoring machines and production processes.

Key features

Displays offer 24-bit true color with up to 1024 x 768 resolution in slim, light housings, and the 15-inch model uses an aluminum alloy case
Serial, Ethernet and Wi-Fi based stand-alone or multi-unit networks are supported, with protocols for major PLCs, drives and servos plus Modbus RTU/TCP
Remote control from mobile devices or PCs is possible via VNC
Projects are created in InoTouchPad with recipes, alarms, security, JavaScript and variable exchange with Inovance PLCs

Specifications

Touch display	24-bit true color, LED backlight
USB	USB 2.0 x1 + Mini USB download port
Protection	Front IP65 / rear IP20

Inovance IT7000 Series High-Performance HMI Touch Panel reference 2

IT7070E		Class: High-performance \| Display size: 7" \| Resolution: 800 x 480 \| Ethernet: Yes \| Serial ports: COM1 RS422/485, COM2 RS232, COM3 RS485 \| Touch display: 24-bit true color, LED backlight \| USB: USB 2.0 x1 + Mini USB download port \| Protection: Front IP65 / rear IP20 \| Dimensions: 200 x 146 x 35 mm \| Panel cutout: 191 x 137 mm \| Certification: CE/KC
IT7070T		Class: Standard \| Display size: 7" \| Resolution: 800 x 480 \| Ethernet: No \| Serial ports: COM1 RS422/485, COM2 RS232 \| Touch display: 24-bit true color, LED backlight \| USB: USB 2.0 x1 + Mini USB download port \| Protection: Front IP65 / rear IP20 \| Dimensions: 200 x 146 x 35 mm \| Panel cutout: 191 x 137 mm \| Certification: CE
IT7070S		Class: Economy \| Display size: 7" \| Resolution: 800 x 480 \| Ethernet: No \| Serial ports: COM1 RS422/485 \| Touch display: 24-bit true color, LED backlight \| USB: USB 2.0 x1 + Mini USB download port \| Protection: Front IP65 / rear IP20 \| Dimensions: 200 x 146 x 35 mm \| Panel cutout: 191 x 137 mm \| Certification: CE
IT7100E		Class: High-performance \| Display size: 10.1" \| Resolution: 1024 x 600 \| Ethernet: Yes \| Serial ports: COM1 RS422/485, COM2 RS232, COM3 RS485 \| Touch display: 24-bit true color, LED backlight \| USB: USB 2.0 x1 + Mini USB download port \| Protection: Front IP65 / rear IP20 \| Dimensions: 271 x 213 x 36 mm \| Panel cutout: 258 x 200 mm \| Certification: CE/KC
IT7100S		Class: Economy \| Display size: 10.1" \| Resolution: 1024 x 600 \| Ethernet: Yes \| Serial ports: COM1 RS422/485 \| Touch display: 24-bit true color, LED backlight \| USB: USB 2.0 x1 + Mini USB download port \| Protection: Front IP65 / rear IP20 \| Dimensions: 271 x 213 x 36 mm \| Panel cutout: 258 x 200 mm \| Certification: CE
IT7150E		Class: High-performance, aluminum housing \| Display size: 15" \| Resolution: 1024 x 768 \| Ethernet: Yes \| Serial ports: COM1 RS422/485, COM2 RS232, COM3 RS485 \| Touch display: 24-bit true color, LED backlight \| USB: USB 2.0 x1 + Mini USB download port \| Protection: Front IP65 / rear IP20 \| Dimensions: 367.8 x 294.8 x 53 mm \| Panel cutout: 350 x 277 mm \| Certification: CE/KC

HMIsInovance

6 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Inovance IT7000 Series High-Performance HMI Touch Panel

Brand Inovance·HMIs

Available part numbers (6)

IT7070E, IT7070T, IT7070S, IT7100E, IT7100S, IT7150E

How to order

Send the Inovance part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	IT7070E	Class: High-performance \| Display size: 7" \| Resolution: 800 x 480 \| Ethernet: Yes \| Serial ports: COM1 RS422/485, COM2 RS232, COM3 RS485 \| Touch display: 24-bit true color, LED backlight \| USB: USB 2.0 x1 + Mini USB download port \| Protection: Front IP65 / rear IP20 \| Dimensions: 200 x 146 x 35 mm \| Panel cutout: 191 x 137 mm \| Certification: CE/KC
	IT7070T	Class: Standard \| Display size: 7" \| Resolution: 800 x 480 \| Ethernet: No \| Serial ports: COM1 RS422/485, COM2 RS232 \| Touch display: 24-bit true color, LED backlight \| USB: USB 2.0 x1 + Mini USB download port \| Protection: Front IP65 / rear IP20 \| Dimensions: 200 x 146 x 35 mm \| Panel cutout: 191 x 137 mm \| Certification: CE
	IT7070S	Class: Economy \| Display size: 7" \| Resolution: 800 x 480 \| Ethernet: No \| Serial ports: COM1 RS422/485 \| Touch display: 24-bit true color, LED backlight \| USB: USB 2.0 x1 + Mini USB download port \| Protection: Front IP65 / rear IP20 \| Dimensions: 200 x 146 x 35 mm \| Panel cutout: 191 x 137 mm \| Certification: CE
	IT7100E	Class: High-performance \| Display size: 10.1" \| Resolution: 1024 x 600 \| Ethernet: Yes \| Serial ports: COM1 RS422/485, COM2 RS232, COM3 RS485 \| Touch display: 24-bit true color, LED backlight \| USB: USB 2.0 x1 + Mini USB download port \| Protection: Front IP65 / rear IP20 \| Dimensions: 271 x 213 x 36 mm \| Panel cutout: 258 x 200 mm \| Certification: CE/KC
	IT7100S	Class: Economy \| Display size: 10.1" \| Resolution: 1024 x 600 \| Ethernet: Yes \| Serial ports: COM1 RS422/485 \| Touch display: 24-bit true color, LED backlight \| USB: USB 2.0 x1 + Mini USB download port \| Protection: Front IP65 / rear IP20 \| Dimensions: 271 x 213 x 36 mm \| Panel cutout: 258 x 200 mm \| Certification: CE
	IT7150E	Class: High-performance, aluminum housing \| Display size: 15" \| Resolution: 1024 x 768 \| Ethernet: Yes \| Serial ports: COM1 RS422/485, COM2 RS232, COM3 RS485 \| Touch display: 24-bit true color, LED backlight \| USB: USB 2.0 x1 + Mini USB download port \| Protection: Front IP65 / rear IP20 \| Dimensions: 367.8 x 294.8 x 53 mm \| Panel cutout: 350 x 277 mm \| Certification: CE/KC

Need a different model, or a part not listed here? Send us your parts list →
