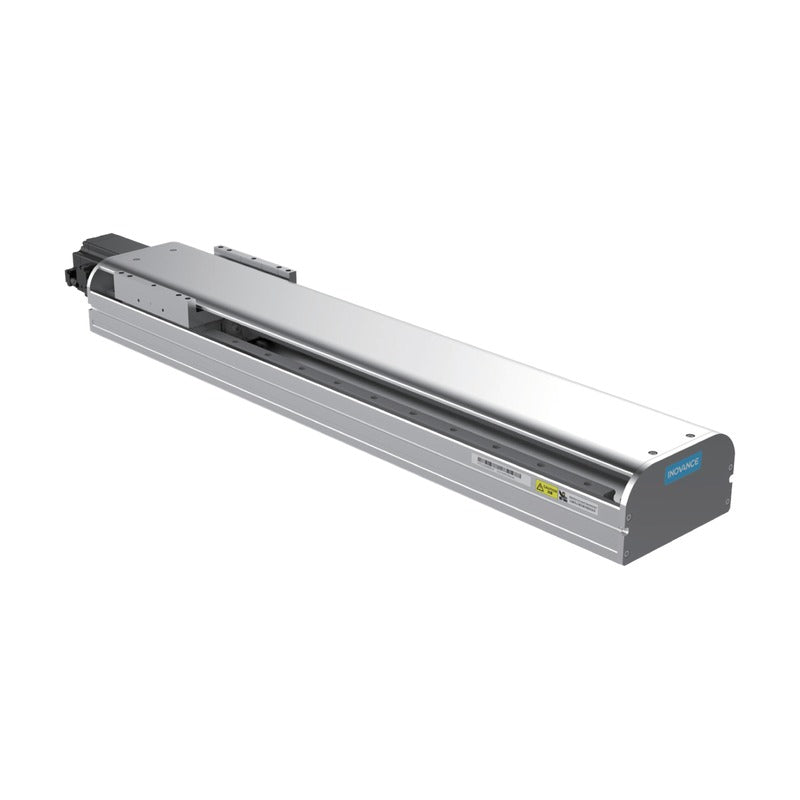

Inovance LS17 Ball Screw Electric Cylinder (170 mm, 400/750 W)

Inovance LS standard ball screw sliding table electric cylinders, size LS17 (170 mm body, 400/750 W, travel to 1,250 mm), supplied as complete linear drive units with Inovance servo motor and SV660 drive matching.

Key features

C7 ground ball screw with high-stiffness linear slide rail
Repeatability ±0.01 mm, semi-closed lead screw design
Motor mounting direct, folded down, left or right
Standard absolute encoder motors, mechanical homing without external sensors
Designed with SV660P (pulse) or SV660N (EtherCAT) servo drives

Specifications

Series	LS (lead screw semi-closed)
Transmission	Ball screw
Repeatability	±0.01 mm
Code example field values	N3 = NPN sensor x 3, B = brake
Drive type in code	VP = standard SV660P drive (VN = SV660N)
Travel interval	50 mm
Origin sensor	External SGT-NH (NPN) / SGT-PH (PNP)
Motor positions	S direct, D down, L left, R right
Servo motor	Inovance MS1 series, 3,000 rpm rated
Source	Inovance Electric Cylinder Product Catalog 19120535A00, p. 19-22, 35-42

LS17-5S50-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5D50-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5L50-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5R50-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5S100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5D100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5L100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5R100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5S150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5D150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5L150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5R150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5S200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5D200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5L200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5R200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5S250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5D250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5L250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5R250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5S300-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5D300-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5L300-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5R300-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5S350-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5D350-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5L350-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5R350-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5S400-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5D400-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5L400-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5R400-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5S450-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5D450-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5L450-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5R450-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5S500-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5D500-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5L500-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5R500-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5S550-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5D550-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5L550-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5R550-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5S600-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5D600-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5L600-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5R600-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5S650-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5D650-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5L650-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5R650-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5S700-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5D700-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5L700-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5R700-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5S750-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5D750-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5L750-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5R750-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5S800-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5D800-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5L800-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5R800-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5S850-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5D850-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5L850-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5R850-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5S900-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5D900-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5L900-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5R900-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5S950-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5D950-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5L950-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5R950-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5S1000-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5D1000-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5L1000-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5R1000-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5S1050-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5D1050-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5L1050-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5R1050-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5S1100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5D1100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5L1100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5R1100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5S1150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5D1150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5L1150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5R1150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5S1200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5D1200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5L1200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5R1200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5S1250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5D1250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5L1250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-5R1250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LS17-10S50-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10D50-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10L50-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10R50-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10S100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10D100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10L100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10R100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10S150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10D150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10L150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10R150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10S200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10D200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10L200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10R200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10S250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10D250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10L250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10R250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10S300-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10D300-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10L300-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10R300-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10S350-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10D350-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10L350-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10R350-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10S400-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10D400-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10L400-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10R400-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10S450-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10D450-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10L450-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10R450-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10S500-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10D500-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10L500-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10R500-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10S550-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10D550-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10L550-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10R550-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10S600-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10D600-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10L600-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10R600-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10S650-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10D650-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10L650-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10R650-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10S700-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10D700-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10L700-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10R700-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10S750-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10D750-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10L750-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10R750-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10S800-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10D800-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10L800-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10R800-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10S850-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10D850-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10L850-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10R850-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10S900-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10D900-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10L900-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10R900-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10S950-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10D950-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10L950-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10R950-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10S1000-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10D1000-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10L1000-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10R1000-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10S1050-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10D1050-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10L1050-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10R1050-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10S1100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10D1100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10L1100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10R1100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10S1150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10D1150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10L1150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10R1150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10S1200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10D1200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10L1200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10R1200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10S1250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10D1250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10L1250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-10R1250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LS17-20S50-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20D50-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20L50-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20R50-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20S100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20D100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20L100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20R100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20S150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20D150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20L150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20R150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20S200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20D200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20L200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20R200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20S250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20D250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20L250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20R250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20S300-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20D300-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20L300-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20R300-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20S350-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20D350-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20L350-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20R350-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20S400-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20D400-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20L400-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20R400-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20S450-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20D450-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20L450-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20R450-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20S500-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20D500-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20L500-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20R500-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20S550-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20D550-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20L550-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20R550-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20S600-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20D600-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20L600-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20R600-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20S650-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20D650-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20L650-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20R650-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20S700-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20D700-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20L700-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20R700-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20S750-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20D750-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20L750-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20R750-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20S800-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20D800-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20L800-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20R800-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20S850-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20D850-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20L850-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20R850-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20S900-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20D900-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20L900-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20R900-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20S950-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20D950-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20L950-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20R950-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20S1000-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20D1000-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20L1000-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20R1000-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20S1050-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20D1050-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20L1050-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20R1050-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20S1100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20D1100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20L1100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20R1100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20S1150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20D1150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20L1150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20R1150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20S1200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20D1200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20L1200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20R1200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20S1250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20D1250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20L1250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-20R1250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LS17-40S50-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40D50-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40L50-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40R50-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40S100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40D100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40L100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40R100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40S150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40D150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40L150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40R150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40S200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40D200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40L200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40R200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40S250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40D250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40L250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40R250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40S300-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40D300-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40L300-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40R300-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40S350-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40D350-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40L350-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40R350-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40S400-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40D400-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40L400-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40R400-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40S450-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40D450-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40L450-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40R450-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40S500-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40D500-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40L500-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40R500-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40S550-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40D550-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40L550-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40R550-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40S600-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40D600-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40L600-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40R600-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40S650-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40D650-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40L650-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40R650-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40S700-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40D700-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40L700-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40R700-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40S750-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40D750-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40L750-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40R750-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40S800-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40D800-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40L800-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40R800-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40S850-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40D850-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40L850-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40R850-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40S900-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40D900-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40L900-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40R900-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40S950-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40D950-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40L950-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40R950-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40S1000-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40D1000-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40L1000-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40R1000-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40S1050-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40D1050-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40L1050-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40R1050-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40S1100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40D1100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40L1100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40R1100-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40S1150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40D1150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40L1150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40R1150-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40S1200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40D1200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40L1200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40R1200-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40S1250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40D1250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40L1250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-40R1250-N3-40B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LS17-5S50-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5D50-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5L50-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5R50-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5S100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5D100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5L100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5R100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5S150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5D150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5L150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5R150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5S200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5D200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5L200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5R200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5S250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5D250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5L250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5R250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5S300-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5D300-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5L300-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5R300-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5S350-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5D350-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5L350-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5R350-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5S400-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5D400-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5L400-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5R400-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5S450-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5D450-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5L450-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5R450-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5S500-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5D500-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5L500-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5R500-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5S550-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5D550-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5L550-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5R550-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5S600-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5D600-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5L600-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5R600-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5S650-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5D650-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5L650-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5R650-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5S700-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5D700-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5L700-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5R700-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5S750-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5D750-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5L750-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5R750-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5S800-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5D800-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5L800-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5R800-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5S850-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5D850-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5L850-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5R850-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5S900-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5D900-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5L900-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5R900-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5S950-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5D950-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5L950-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5R950-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5S1000-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5D1000-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5L1000-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5R1000-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5S1050-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5D1050-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5L1050-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5R1050-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5S1100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5D1100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5L1100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5R1100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5S1150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5D1150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5L1150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5R1150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5S1200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5D1200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5L1200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5R1200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5S1250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5D1250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5L1250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-5R1250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LS17-10S50-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10D50-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10L50-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10R50-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10S100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10D100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10L100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10R100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10S150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10D150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10L150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10R150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10S200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10D200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10L200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10R200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10S250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10D250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10L250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10R250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10S300-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10D300-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10L300-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10R300-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10S350-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10D350-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10L350-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10R350-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10S400-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10D400-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10L400-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10R400-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10S450-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10D450-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10L450-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10R450-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10S500-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10D500-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10L500-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10R500-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10S550-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10D550-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10L550-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10R550-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10S600-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10D600-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10L600-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10R600-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10S650-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10D650-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10L650-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10R650-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10S700-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10D700-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10L700-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10R700-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10S750-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10D750-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10L750-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10R750-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10S800-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10D800-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10L800-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10R800-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10S850-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10D850-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10L850-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10R850-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10S900-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10D900-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10L900-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10R900-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10S950-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10D950-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10L950-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10R950-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10S1000-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10D1000-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10L1000-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10R1000-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10S1050-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10D1050-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10L1050-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10R1050-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10S1100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10D1100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10L1100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10R1100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10S1150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10D1150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10L1150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10R1150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10S1200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10D1200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10L1200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10R1200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10S1250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10D1250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10L1250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-10R1250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
LS17-20S50-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20D50-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20L50-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20R50-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20S100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20D100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20L100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20R100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20S150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20D150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20L150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20R150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20S200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20D200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20L200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20R200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20S250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20D250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20L250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20R250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20S300-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20D300-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20L300-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20R300-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20S350-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20D350-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20L350-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20R350-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20S400-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20D400-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20L400-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20R400-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20S450-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20D450-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20L450-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20R450-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20S500-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20D500-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20L500-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20R500-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20S550-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20D550-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20L550-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20R550-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20S600-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20D600-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20L600-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20R600-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20S650-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20D650-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20L650-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20R650-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20S700-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20D700-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20L700-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20R700-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20S750-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20D750-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20L750-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20R750-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20S800-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20D800-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20L800-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20R800-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20S850-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20D850-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20L850-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20R850-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20S900-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20D900-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20L900-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20R900-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20S950-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20D950-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20L950-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20R950-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20S1000-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20D1000-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20L1000-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20R1000-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20S1050-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20D1050-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20L1050-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20R1050-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20S1100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20D1100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20L1100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20R1100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20S1150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20D1150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20L1150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20R1150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20S1200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20D1200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20L1200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20R1200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20S1250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20D1250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20L1250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-20R1250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LS17-40S50-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40D50-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40L50-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40R50-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40S100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40D100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40L100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40R100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40S150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40D150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40L150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40R150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40S200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40D200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40L200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40R200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40S250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40D250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40L250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40R250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40S300-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40D300-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40L300-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40R300-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40S350-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40D350-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40L350-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40R350-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40S400-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40D400-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40L400-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40R400-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40S450-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40D450-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40L450-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40R450-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40S500-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40D500-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40L500-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40R500-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40S550-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40D550-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40L550-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40R550-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40S600-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40D600-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40L600-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40R600-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40S650-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40D650-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40L650-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40R650-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40S700-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40D700-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40L700-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40R700-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40S750-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40D750-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40L750-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40R750-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40S800-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40D800-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40L800-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40R800-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40S850-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40D850-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40L850-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40R850-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40S900-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40D900-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40L900-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40R900-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40S950-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40D950-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40L950-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40R950-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40S1000-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40D1000-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40L1000-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40R1000-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40S1050-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40D1050-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40L1050-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40R1050-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40S1100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40D1100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40L1100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40R1100-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40S1150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40D1150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40L1150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40R1150-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40S1200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40D1200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40L1200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40R1200-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40S1250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40D1250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40L1250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17-40R1250-N3-75B-VP		Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LS17		Legacy code (base size, order by full code) \| Model: LS17 \| Type: LS standard ball screw sliding table

Linear ModulesInovance

801 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Inovance LS17 Ball Screw Electric Cylinder (170 mm, 400/750 W)

Brand Inovance·Linear Modules

Available part numbers (801)

LS17-5S50-N3-40B-VP, LS17-5D50-N3-40B-VP, LS17-5L50-N3-40B-VP, LS17-5R50-N3-40B-VP, LS17-5S100-N3-40B-VP, LS17-5D100-N3-40B-VP, LS17-5L100-N3-40B-VP, LS17-5R100-N3-40B-VP, LS17-5S150-N3-40B-VP, LS17-5D150-N3-40B-VP + 791 more — see full table ↓

How to order

Send the Inovance part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	LS17-5S50-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5D50-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5L50-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5R50-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5S100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5D100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5L100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5R100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5S150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5D150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5L150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5R150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5S200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5D200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5L200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5R200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5S250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5D250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5L250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5R250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5S300-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5D300-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5L300-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5R300-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5S350-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5D350-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5L350-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5R350-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5S400-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5D400-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5L400-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5R400-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5S450-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5D450-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5L450-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5R450-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5S500-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5D500-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5L500-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5R500-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5S550-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5D550-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5L550-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5R550-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5S600-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5D600-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5L600-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5R600-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5S650-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5D650-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5L650-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5R650-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5S700-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5D700-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5L700-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5R700-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5S750-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5D750-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5L750-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5R750-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5S800-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5D800-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5L800-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5R800-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5S850-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5D850-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5L850-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5R850-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5S900-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5D900-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5L900-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5R900-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5S950-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5D950-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5L950-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5R950-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5S1000-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5D1000-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5L1000-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5R1000-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5S1050-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5D1050-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5L1050-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5R1050-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5S1100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5D1100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5L1100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5R1100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5S1150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5D1150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5L1150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5R1150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5S1200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5D1200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5L1200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5R1200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5S1250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5D1250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5L1250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-5R1250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LS17-10S50-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10D50-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10L50-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10R50-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10S100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10D100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10L100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10R100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10S150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10D150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10L150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10R150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10S200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10D200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10L200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10R200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10S250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10D250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10L250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10R250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10S300-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10D300-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10L300-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10R300-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10S350-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10D350-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10L350-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10R350-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10S400-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10D400-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10L400-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10R400-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10S450-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10D450-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10L450-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10R450-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10S500-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10D500-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10L500-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10R500-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10S550-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10D550-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10L550-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10R550-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10S600-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10D600-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10L600-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10R600-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10S650-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10D650-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10L650-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10R650-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10S700-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10D700-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10L700-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10R700-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10S750-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10D750-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10L750-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10R750-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10S800-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10D800-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10L800-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10R800-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10S850-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10D850-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10L850-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10R850-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10S900-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10D900-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10L900-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10R900-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10S950-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10D950-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10L950-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10R950-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10S1000-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10D1000-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10L1000-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10R1000-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10S1050-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10D1050-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10L1050-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10R1050-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10S1100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10D1100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10L1100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10R1100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10S1150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10D1150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10L1150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10R1150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10S1200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10D1200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10L1200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10R1200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10S1250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10D1250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10L1250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-10R1250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LS17-20S50-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20D50-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20L50-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20R50-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20S100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20D100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20L100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20R100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20S150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20D150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20L150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20R150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20S200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20D200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20L200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20R200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20S250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20D250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20L250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20R250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20S300-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20D300-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20L300-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20R300-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20S350-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20D350-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20L350-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20R350-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20S400-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20D400-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20L400-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20R400-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20S450-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20D450-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20L450-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20R450-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20S500-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20D500-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20L500-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20R500-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20S550-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20D550-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20L550-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20R550-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20S600-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20D600-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20L600-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20R600-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20S650-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20D650-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20L650-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20R650-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20S700-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20D700-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20L700-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20R700-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20S750-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20D750-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20L750-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20R750-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20S800-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20D800-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20L800-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20R800-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20S850-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20D850-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20L850-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20R850-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20S900-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20D900-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20L900-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20R900-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20S950-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20D950-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20L950-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20R950-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20S1000-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20D1000-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20L1000-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20R1000-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20S1050-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20D1050-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20L1050-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20R1050-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20S1100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20D1100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20L1100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20R1100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20S1150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20D1150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20L1150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20R1150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20S1200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20D1200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20L1200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20R1200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20S1250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20D1250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20L1250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-20R1250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LS17-40S50-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40D50-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40L50-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40R50-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40S100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40D100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40L100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40R100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40S150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40D150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40L150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40R150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40S200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40D200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40L200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40R200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40S250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40D250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40L250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40R250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40S300-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40D300-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40L300-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40R300-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40S350-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40D350-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40L350-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40R350-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40S400-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40D400-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40L400-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40R400-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40S450-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40D450-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40L450-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40R450-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40S500-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40D500-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40L500-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40R500-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40S550-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40D550-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40L550-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40R550-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40S600-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40D600-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40L600-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40R600-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40S650-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40D650-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40L650-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40R650-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40S700-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40D700-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40L700-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40R700-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40S750-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40D750-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40L750-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40R750-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40S800-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40D800-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40L800-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40R800-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40S850-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40D850-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40L850-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40R850-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40S900-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40D900-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40L900-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40R900-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40S950-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40D950-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40L950-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40R950-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40S1000-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40D1000-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40L1000-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40R1000-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40S1050-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40D1050-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40L1050-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40R1050-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40S1100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40D1100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40L1100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40R1100-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40S1150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40D1150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40L1150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40R1150-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40S1200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40D1200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40L1200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40R1200-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40S1250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40D1250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40L1250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-40R1250-N3-40B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LS17-5S50-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5D50-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5L50-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5R50-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5S100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5D100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5L100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5R100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5S150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5D150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5L150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5R150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5S200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5D200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5L200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5R200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5S250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5D250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5L250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5R250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5S300-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5D300-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5L300-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5R300-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5S350-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5D350-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5L350-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5R350-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5S400-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5D400-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5L400-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5R400-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5S450-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5D450-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5L450-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5R450-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5S500-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5D500-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5L500-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5R500-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5S550-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5D550-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5L550-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5R550-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5S600-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5D600-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5L600-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5R600-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5S650-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5D650-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5L650-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5R650-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5S700-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5D700-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5L700-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5R700-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5S750-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5D750-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5L750-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5R750-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5S800-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5D800-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5L800-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5R800-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5S850-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5D850-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5L850-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5R850-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5S900-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5D900-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5L900-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5R900-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5S950-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5D950-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5L950-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5R950-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5S1000-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5D1000-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5L1000-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5R1000-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5S1050-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5D1050-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5L1050-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5R1050-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5S1100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5D1100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5L1100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5R1100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5S1150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5D1150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5L1150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5R1150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5S1200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5D1200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5L1200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5R1200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5S1250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5D1250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5L1250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-5R1250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LS17-10S50-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10D50-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10L50-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10R50-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10S100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10D100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10L100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10R100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10S150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10D150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10L150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10R150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10S200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10D200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10L200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10R200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10S250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10D250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10L250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10R250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10S300-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10D300-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10L300-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10R300-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10S350-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10D350-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10L350-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10R350-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10S400-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10D400-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10L400-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10R400-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10S450-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10D450-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10L450-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10R450-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10S500-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10D500-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10L500-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10R500-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10S550-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10D550-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10L550-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10R550-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10S600-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10D600-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10L600-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10R600-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10S650-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10D650-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10L650-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10R650-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10S700-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10D700-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10L700-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10R700-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10S750-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10D750-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10L750-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10R750-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10S800-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10D800-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10L800-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10R800-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10S850-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10D850-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10L850-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10R850-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10S900-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10D900-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10L900-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10R900-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10S950-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10D950-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10L950-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10R950-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10S1000-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10D1000-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10L1000-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10R1000-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10S1050-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10D1050-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10L1050-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10R1050-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10S1100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10D1100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10L1100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10R1100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10S1150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10D1150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10L1150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10R1150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10S1200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10D1200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10L1200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10R1200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10S1250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10D1250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10L1250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-10R1250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 110/40 kg
	LS17-20S50-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20D50-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20L50-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20R50-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20S100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20D100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20L100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20R100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20S150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20D150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20L150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20R150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20S200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20D200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20L200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20R200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20S250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20D250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20L250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20R250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20S300-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20D300-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20L300-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20R300-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20S350-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20D350-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20L350-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20R350-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20S400-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20D400-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20L400-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20R400-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20S450-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20D450-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20L450-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20R450-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20S500-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20D500-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20L500-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20R500-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20S550-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20D550-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20L550-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20R550-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20S600-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20D600-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20L600-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20R600-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20S650-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20D650-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20L650-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20R650-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20S700-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20D700-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20L700-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20R700-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20S750-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20D750-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20L750-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20R750-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20S800-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20D800-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20L800-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20R800-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20S850-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20D850-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20L850-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20R850-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20S900-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20D900-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20L900-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20R900-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20S950-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20D950-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20L950-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20R950-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20S1000-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20D1000-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20L1000-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20R1000-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20S1050-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20D1050-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20L1050-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20R1050-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20S1100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20D1100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20L1100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20R1100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20S1150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20D1150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20L1150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20R1150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20S1200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20D1200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20L1200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20R1200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20S1250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20D1250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20L1250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-20R1250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LS17-40S50-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40D50-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40L50-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40R50-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40S100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40D100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40L100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40R100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40S150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40D150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40L150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40R150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40S200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40D200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40L200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40R200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40S250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40D250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40L250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40R250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40S300-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40D300-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40L300-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40R300-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40S350-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40D350-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40L350-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40R350-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40S400-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40D400-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40L400-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40R400-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40S450-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40D450-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40L450-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40R450-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40S500-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40D500-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40L500-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40R500-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40S550-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40D550-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40L550-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40R550-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40S600-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40D600-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40L600-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40R600-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40S650-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40D650-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40L650-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40R650-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40S700-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40D700-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40L700-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40R700-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40S750-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40D750-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40L750-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40R750-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40S800-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40D800-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40L800-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40R800-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40S850-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40D850-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40L850-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40R850-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40S900-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40D900-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40L900-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40R900-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40S950-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40D950-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40L950-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40R950-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40S1000-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40D1000-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40L1000-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40R1000-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40S1050-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40D1050-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40L1050-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40R1050-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40S1100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40D1100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40L1100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40R1100-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40S1150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40D1150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40L1150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40R1150-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40S1200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40D1200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40L1200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40R1200-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40S1250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40D1250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40L1250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17-40R1250-N3-75B-VP	Size: LS17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LS17	Legacy code (base size, order by full code) \| Model: LS17 \| Type: LS standard ball screw sliding table

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

Inovance LS17 Ball Screw Electric Cylinder (170 mm, 400/750 W)
