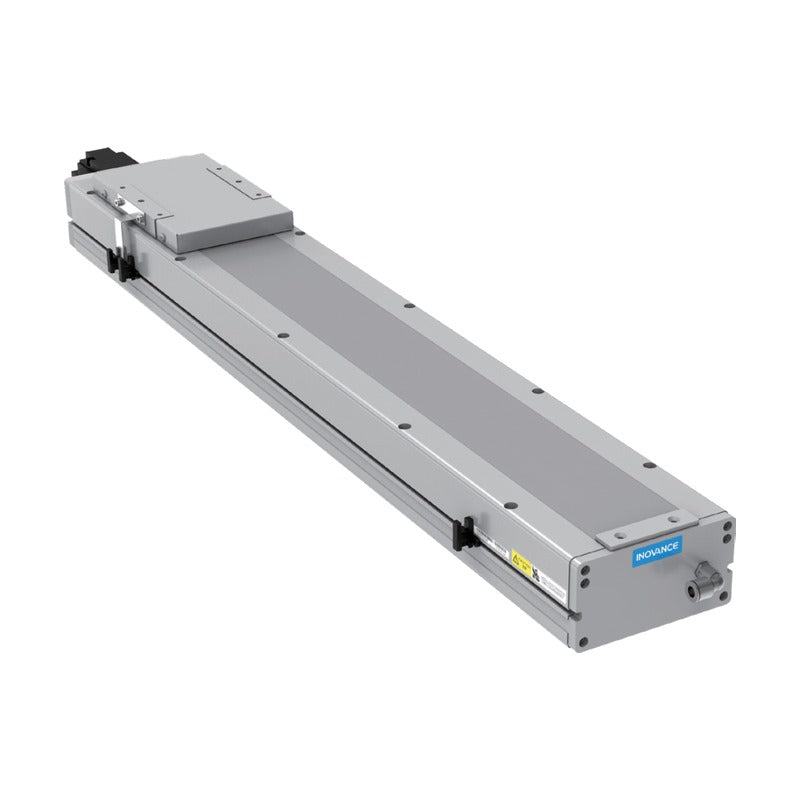

Inovance LSC17 Dust-Free Ball Screw Electric Cylinder (400/750 W)

Inovance LSC dust-free (fully closed) ball screw sliding table electric cylinders, size LSC17 (170 mm body, 400/750 W, travel to 1,250 mm), for clean or dusty environments.

Key features

Fully closed screw design keeps dust in and out
C7 ground ball screw with high-stiffness linear slide rail
Repeatability ±0.01 mm
Motor mounting direct, folded down, left or right
Designed with SV660P (pulse) or SV660N (EtherCAT) servo drives

Specifications

Series	LSC (screw fully closed)
Transmission	Ball screw
Repeatability	±0.01 mm
Code example field values	N3 = NPN sensor x 3, B = brake
Drive type in code	VP = standard SV660P drive (VN = SV660N)
Travel interval	50 mm
Origin sensor	External SGT-NH (NPN) / SGT-PH (PNP)
Motor positions	S direct, D down, L left, R right
Servo motor	Inovance MS1 series, 3,000 rpm rated
Source	Inovance Electric Cylinder Product Catalog 19120535A00, p. 64, 78-85

LSC17-5S50-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5D50-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5L50-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5R50-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5S100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5D100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5L100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5R100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5S150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5D150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5L150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5R150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5S200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5D200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5L200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5R200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5S250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5D250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5L250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5R250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5S300-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5D300-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5L300-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5R300-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5S350-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5D350-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5L350-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5R350-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5S400-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5D400-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5L400-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5R400-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5S450-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5D450-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5L450-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5R450-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5S500-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5D500-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5L500-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5R500-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5S550-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5D550-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5L550-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5R550-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5S600-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5D600-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5L600-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5R600-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5S650-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5D650-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5L650-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5R650-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5S700-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5D700-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5L700-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5R700-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5S750-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5D750-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5L750-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5R750-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5S800-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5D800-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5L800-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5R800-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5S850-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5D850-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5L850-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5R850-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5S900-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5D900-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5L900-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5R900-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5S950-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5D950-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5L950-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5R950-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5S1000-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5D1000-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5L1000-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5R1000-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5S1050-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5D1050-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5L1050-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5R1050-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5S1100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5D1100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5L1100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5R1100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5S1150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5D1150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5L1150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5R1150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5S1200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5D1200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5L1200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5R1200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5S1250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5D1250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5L1250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-5R1250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
LSC17-10S50-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10D50-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10L50-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10R50-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10S100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10D100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10L100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10R100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10S150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10D150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10L150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10R150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10S200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10D200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10L200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10R200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10S250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10D250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10L250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10R250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10S300-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10D300-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10L300-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10R300-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10S350-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10D350-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10L350-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10R350-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10S400-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10D400-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10L400-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10R400-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10S450-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10D450-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10L450-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10R450-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10S500-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10D500-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10L500-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10R500-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10S550-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10D550-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10L550-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10R550-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10S600-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10D600-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10L600-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10R600-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10S650-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10D650-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10L650-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10R650-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10S700-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10D700-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10L700-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10R700-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10S750-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10D750-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10L750-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10R750-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10S800-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10D800-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10L800-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10R800-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10S850-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10D850-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10L850-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10R850-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10S900-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10D900-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10L900-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10R900-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10S950-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10D950-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10L950-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10R950-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10S1000-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10D1000-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10L1000-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10R1000-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10S1050-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10D1050-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10L1050-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10R1050-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10S1100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10D1100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10L1100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10R1100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10S1150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10D1150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10L1150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10R1150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10S1200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10D1200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10L1200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10R1200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10S1250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10D1250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10L1250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-10R1250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
LSC17-20S50-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20D50-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20L50-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20R50-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20S100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20D100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20L100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20R100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20S150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20D150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20L150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20R150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20S200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20D200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20L200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20R200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20S250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20D250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20L250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20R250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20S300-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20D300-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20L300-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20R300-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20S350-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20D350-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20L350-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20R350-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20S400-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20D400-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20L400-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20R400-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20S450-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20D450-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20L450-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20R450-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20S500-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20D500-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20L500-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20R500-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20S550-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20D550-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20L550-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20R550-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20S600-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20D600-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20L600-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20R600-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20S650-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20D650-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20L650-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20R650-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20S700-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20D700-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20L700-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20R700-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20S750-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20D750-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20L750-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20R750-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20S800-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20D800-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20L800-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20R800-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20S850-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20D850-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20L850-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20R850-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20S900-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20D900-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20L900-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20R900-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20S950-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20D950-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20L950-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20R950-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20S1000-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20D1000-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20L1000-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20R1000-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20S1050-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20D1050-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20L1050-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20R1050-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20S1100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20D1100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20L1100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20R1100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20S1150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20D1150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20L1150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20R1150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20S1200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20D1200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20L1200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20R1200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20S1250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20D1250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20L1250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-20R1250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
LSC17-40S50-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40D50-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40L50-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40R50-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40S100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40D100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40L100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40R100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40S150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40D150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40L150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40R150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40S200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40D200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40L200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40R200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40S250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40D250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40L250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40R250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40S300-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40D300-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40L300-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40R300-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40S350-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40D350-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40L350-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40R350-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40S400-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40D400-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40L400-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40R400-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40S450-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40D450-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40L450-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40R450-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40S500-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40D500-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40L500-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40R500-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40S550-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40D550-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40L550-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40R550-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40S600-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40D600-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40L600-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40R600-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40S650-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40D650-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40L650-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40R650-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40S700-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40D700-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40L700-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40R700-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40S750-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40D750-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40L750-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40R750-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40S800-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40D800-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40L800-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40R800-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40S850-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40D850-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40L850-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40R850-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40S900-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40D900-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40L900-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40R900-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40S950-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40D950-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40L950-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40R950-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40S1000-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40D1000-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40L1000-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40R1000-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40S1050-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40D1050-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40L1050-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40R1050-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40S1100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40D1100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40L1100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40R1100-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40S1150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40D1150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40L1150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40R1150-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40S1200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40D1200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40L1200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40R1200-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40S1250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40D1250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40L1250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-40R1250-N3-40B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
LSC17-5S50-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5D50-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5L50-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5R50-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5S100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5D100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5L100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5R100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5S150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5D150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5L150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5R150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5S200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5D200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5L200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5R200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5S250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5D250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5L250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5R250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5S300-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5D300-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5L300-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5R300-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5S350-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5D350-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5L350-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5R350-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5S400-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5D400-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5L400-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5R400-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5S450-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5D450-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5L450-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5R450-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5S500-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5D500-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5L500-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5R500-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5S550-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5D550-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5L550-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5R550-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5S600-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5D600-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5L600-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5R600-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5S650-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5D650-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5L650-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5R650-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5S700-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5D700-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5L700-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5R700-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5S750-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5D750-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5L750-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5R750-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5S800-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5D800-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5L800-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5R800-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5S850-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5D850-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5L850-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5R850-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5S900-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5D900-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5L900-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5R900-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5S950-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5D950-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5L950-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5R950-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5S1000-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5D1000-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5L1000-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5R1000-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5S1050-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5D1050-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5L1050-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5R1050-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5S1100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5D1100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5L1100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5R1100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5S1150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5D1150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5L1150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5R1150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5S1200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5D1200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5L1200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5R1200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5S1250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5D1250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5L1250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-5R1250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
LSC17-10S50-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10D50-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10L50-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10R50-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10S100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10D100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10L100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10R100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10S150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10D150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10L150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10R150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10S200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10D200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10L200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10R200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10S250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10D250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10L250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10R250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10S300-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10D300-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10L300-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10R300-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10S350-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10D350-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10L350-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10R350-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10S400-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10D400-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10L400-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10R400-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10S450-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10D450-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10L450-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10R450-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10S500-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10D500-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10L500-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10R500-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10S550-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10D550-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10L550-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10R550-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10S600-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10D600-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10L600-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10R600-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10S650-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10D650-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10L650-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10R650-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10S700-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10D700-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10L700-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10R700-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10S750-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10D750-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10L750-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10R750-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10S800-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10D800-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10L800-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10R800-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10S850-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10D850-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10L850-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10R850-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10S900-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10D900-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10L900-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10R900-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10S950-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10D950-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10L950-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10R950-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10S1000-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10D1000-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10L1000-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10R1000-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10S1050-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10D1050-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10L1050-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10R1050-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10S1100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10D1100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10L1100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10R1100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10S1150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10D1150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10L1150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10R1150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10S1200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10D1200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10L1200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10R1200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10S1250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10D1250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10L1250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-10R1250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
LSC17-20S50-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20D50-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20L50-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20R50-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20S100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20D100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20L100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20R100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20S150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20D150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20L150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20R150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20S200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20D200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20L200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20R200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20S250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20D250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20L250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20R250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20S300-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20D300-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20L300-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20R300-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20S350-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20D350-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20L350-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20R350-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20S400-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20D400-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20L400-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20R400-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20S450-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20D450-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20L450-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20R450-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20S500-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20D500-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20L500-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20R500-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20S550-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20D550-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20L550-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20R550-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20S600-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20D600-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20L600-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20R600-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20S650-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20D650-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20L650-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20R650-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20S700-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20D700-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20L700-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20R700-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20S750-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20D750-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20L750-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20R750-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20S800-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20D800-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20L800-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20R800-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20S850-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20D850-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20L850-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20R850-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20S900-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20D900-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20L900-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20R900-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20S950-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20D950-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20L950-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20R950-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20S1000-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20D1000-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20L1000-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20R1000-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20S1050-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20D1050-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20L1050-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20R1050-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20S1100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20D1100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20L1100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20R1100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20S1150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20D1150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20L1150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20R1150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20S1200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20D1200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20L1200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20R1200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20S1250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20D1250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20L1250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-20R1250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
LSC17-40S50-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40D50-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40L50-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40R50-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40S100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40D100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40L100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40R100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40S150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40D150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40L150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40R150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40S200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40D200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40L200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40R200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40S250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40D250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40L250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40R250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40S300-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40D300-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40L300-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40R300-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40S350-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40D350-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40L350-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40R350-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40S400-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40D400-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40L400-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40R400-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40S450-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40D450-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40L450-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40R450-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40S500-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40D500-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40L500-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40R500-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40S550-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40D550-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40L550-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40R550-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40S600-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40D600-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40L600-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40R600-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40S650-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40D650-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40L650-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40R650-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40S700-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40D700-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40L700-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40R700-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40S750-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40D750-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40L750-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40R750-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40S800-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40D800-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40L800-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40R800-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40S850-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40D850-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40L850-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40R850-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40S900-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40D900-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40L900-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40R900-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40S950-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40D950-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40L950-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40R950-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40S1000-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40D1000-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40L1000-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40R1000-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40S1050-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40D1050-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40L1050-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40R1050-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40S1100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40D1100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40L1100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40R1100-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40S1150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40D1150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40L1150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40R1150-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40S1200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40D1200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40L1200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40R1200-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40S1250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40D1250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40L1250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17-40R1250-N3-75B-VP		Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
LSC17		Legacy code (base size, order by full code) \| Model: LSC17 \| Type: LSC dust-free ball screw sliding table

Linear ModulesInovance

801 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Inovance LSC17 Dust-Free Ball Screw Electric Cylinder (400/750 W)

Brand Inovance·Linear Modules

Available part numbers (801)

LSC17-5S50-N3-40B-VP, LSC17-5D50-N3-40B-VP, LSC17-5L50-N3-40B-VP, LSC17-5R50-N3-40B-VP, LSC17-5S100-N3-40B-VP, LSC17-5D100-N3-40B-VP, LSC17-5L100-N3-40B-VP, LSC17-5R100-N3-40B-VP, LSC17-5S150-N3-40B-VP, LSC17-5D150-N3-40B-VP + 791 more — see full table ↓

How to order

Send the Inovance part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	LSC17-5S50-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5D50-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5L50-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5R50-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5S100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5D100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5L100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5R100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5S150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5D150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5L150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5R150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5S200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5D200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5L200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5R200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5S250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5D250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5L250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5R250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5S300-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5D300-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5L300-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5R300-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5S350-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5D350-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5L350-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5R350-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5S400-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5D400-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5L400-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5R400-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5S450-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5D450-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5L450-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5R450-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5S500-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5D500-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5L500-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5R500-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5S550-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5D550-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5L550-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5R550-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5S600-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5D600-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5L600-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5R600-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5S650-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5D650-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5L650-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5R650-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5S700-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5D700-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5L700-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5R700-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5S750-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5D750-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5L750-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5R750-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5S800-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5D800-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5L800-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5R800-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5S850-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5D850-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5L850-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5R850-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5S900-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5D900-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5L900-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5R900-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5S950-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5D950-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5L950-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5R950-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5S1000-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5D1000-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5L1000-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5R1000-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5S1050-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5D1050-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5L1050-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5R1050-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5S1100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5D1100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5L1100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5R1100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5S1150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5D1150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5L1150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5R1150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5S1200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5D1200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5L1200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5R1200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5S1250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5D1250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5L1250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-5R1250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 120/40 kg
	LSC17-10S50-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10D50-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10L50-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10R50-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10S100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10D100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10L100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10R100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10S150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10D150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10L150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10R150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10S200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10D200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10L200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10R200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10S250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10D250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10L250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10R250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10S300-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10D300-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10L300-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10R300-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10S350-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10D350-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10L350-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10R350-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10S400-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10D400-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10L400-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10R400-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10S450-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10D450-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10L450-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10R450-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10S500-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10D500-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10L500-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10R500-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10S550-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10D550-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10L550-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10R550-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10S600-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10D600-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10L600-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10R600-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10S650-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10D650-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10L650-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10R650-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10S700-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10D700-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10L700-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10R700-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10S750-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10D750-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10L750-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10R750-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10S800-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10D800-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10L800-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10R800-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10S850-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10D850-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10L850-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10R850-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10S900-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10D900-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10L900-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10R900-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10S950-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10D950-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10L950-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10R950-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10S1000-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10D1000-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10L1000-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10R1000-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10S1050-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10D1050-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10L1050-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10R1050-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10S1100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10D1100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10L1100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10R1100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10S1150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10D1150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10L1150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10R1150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10S1200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10D1200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10L1200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10R1200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10S1250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10D1250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10L1250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-10R1250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 110/30 kg
	LSC17-20S50-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20D50-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20L50-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20R50-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20S100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20D100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20L100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20R100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20S150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20D150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20L150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20R150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20S200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20D200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20L200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20R200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20S250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20D250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20L250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20R250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20S300-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20D300-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20L300-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20R300-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20S350-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20D350-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20L350-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20R350-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20S400-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20D400-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20L400-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20R400-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20S450-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20D450-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20L450-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20R450-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20S500-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20D500-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20L500-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20R500-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20S550-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20D550-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20L550-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20R550-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20S600-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20D600-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20L600-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20R600-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20S650-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20D650-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20L650-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20R650-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20S700-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20D700-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20L700-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20R700-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20S750-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20D750-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20L750-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20R750-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20S800-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20D800-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20L800-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20R800-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20S850-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20D850-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20L850-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20R850-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20S900-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20D900-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20L900-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20R900-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20S950-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20D950-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20L950-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20R950-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20S1000-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20D1000-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20L1000-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20R1000-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20S1050-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20D1050-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20L1050-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20R1050-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20S1100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20D1100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20L1100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20R1100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20S1150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20D1150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20L1150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20R1150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20S1200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20D1200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20L1200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20R1200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20S1250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20D1250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20L1250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-20R1250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 75/14 kg
	LSC17-40S50-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40D50-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40L50-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40R50-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40S100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40D100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40L100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40R100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40S150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40D150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40L150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40R150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40S200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40D200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40L200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40R200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40S250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40D250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40L250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40R250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40S300-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40D300-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40L300-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40R300-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40S350-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40D350-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40L350-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40R350-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40S400-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40D400-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40L400-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40R400-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40S450-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40D450-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40L450-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40R450-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40S500-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40D500-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40L500-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40R500-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40S550-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40D550-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40L550-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40R550-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40S600-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40D600-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40L600-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40R600-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40S650-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40D650-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40L650-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40R650-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40S700-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40D700-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40L700-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40R700-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40S750-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40D750-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40L750-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40R750-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40S800-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40D800-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40L800-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40R800-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40S850-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40D850-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40L850-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40R850-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40S900-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40D900-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40L900-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40R900-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40S950-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40D950-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40L950-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40R950-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40S1000-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40D1000-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40L1000-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40R1000-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40S1050-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40D1050-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40L1050-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40R1050-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40S1100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40D1100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40L1100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40R1100-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40S1150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40D1150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40L1150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40R1150-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40S1200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40D1200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40L1200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40R1200-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40S1250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40D1250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40L1250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-40R1250-N3-40B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 400 W \| Max. load H/V: 22/7 kg
	LSC17-5S50-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5D50-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5L50-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5R50-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5S100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5D100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5L100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5R100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5S150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5D150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5L150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5R150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5S200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5D200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5L200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5R200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5S250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5D250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5L250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5R250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5S300-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5D300-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5L300-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5R300-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5S350-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5D350-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5L350-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5R350-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5S400-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5D400-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5L400-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5R400-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5S450-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5D450-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5L450-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5R450-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5S500-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5D500-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5L500-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5R500-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5S550-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5D550-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5L550-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5R550-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5S600-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5D600-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5L600-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5R600-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5S650-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5D650-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5L650-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5R650-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5S700-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5D700-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5L700-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5R700-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5S750-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5D750-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5L750-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5R750-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5S800-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5D800-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5L800-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5R800-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5S850-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5D850-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5L850-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5R850-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5S900-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5D900-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5L900-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5R900-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5S950-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5D950-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5L950-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5R950-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5S1000-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5D1000-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5L1000-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5R1000-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5S1050-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5D1050-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5L1050-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5R1050-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5S1100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5D1100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5L1100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5R1100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5S1150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5D1150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5L1150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5R1150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5S1200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5D1200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5L1200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5R1200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5S1250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5D1250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5L1250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-5R1250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 5 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/50 kg
	LSC17-10S50-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10D50-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10L50-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10R50-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10S100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10D100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10L100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10R100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10S150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10D150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10L150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10R150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10S200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10D200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10L200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10R200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10S250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10D250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10L250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10R250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10S300-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10D300-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10L300-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10R300-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10S350-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10D350-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10L350-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10R350-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10S400-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10D400-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10L400-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10R400-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10S450-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10D450-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10L450-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10R450-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10S500-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10D500-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10L500-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10R500-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10S550-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10D550-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10L550-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10R550-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10S600-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10D600-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10L600-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10R600-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10S650-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10D650-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10L650-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10R650-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10S700-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10D700-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10L700-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10R700-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10S750-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10D750-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10L750-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10R750-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10S800-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10D800-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10L800-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10R800-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10S850-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10D850-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10L850-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10R850-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10S900-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10D900-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10L900-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10R900-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10S950-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10D950-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10L950-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10R950-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10S1000-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10D1000-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10L1000-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10R1000-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10S1050-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10D1050-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10L1050-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10R1050-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10S1100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10D1100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10L1100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10R1100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10S1150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10D1150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10L1150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10R1150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10S1200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10D1200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10L1200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10R1200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10S1250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10D1250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10L1250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-10R1250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 10 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 120/40 kg
	LSC17-20S50-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20D50-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20L50-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20R50-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20S100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20D100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20L100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20R100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20S150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20D150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20L150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20R150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20S200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20D200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20L200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20R200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20S250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20D250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20L250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20R250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20S300-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20D300-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20L300-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20R300-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20S350-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20D350-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20L350-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20R350-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20S400-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20D400-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20L400-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20R400-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20S450-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20D450-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20L450-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20R450-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20S500-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20D500-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20L500-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20R500-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20S550-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20D550-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20L550-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20R550-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20S600-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20D600-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20L600-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20R600-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20S650-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20D650-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20L650-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20R650-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20S700-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20D700-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20L700-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20R700-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20S750-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20D750-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20L750-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20R750-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20S800-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20D800-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20L800-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20R800-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20S850-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20D850-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20L850-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20R850-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20S900-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20D900-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20L900-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20R900-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20S950-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20D950-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20L950-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20R950-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20S1000-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20D1000-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20L1000-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20R1000-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20S1050-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20D1050-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20L1050-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20R1050-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20S1100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20D1100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20L1100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20R1100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20S1150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20D1150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20L1150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20R1150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20S1200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20D1200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20L1200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20R1200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20S1250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20D1250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20L1250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-20R1250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 20 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 83/25 kg
	LSC17-40S50-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40D50-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40L50-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40R50-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 50 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40S100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40D100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40L100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40R100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40S150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40D150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40L150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40R150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40S200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40D200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40L200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40R200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40S250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40D250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40L250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40R250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40S300-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40D300-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40L300-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40R300-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 300 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40S350-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40D350-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40L350-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40R350-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 350 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40S400-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40D400-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40L400-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40R400-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 400 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40S450-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40D450-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40L450-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40R450-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 450 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40S500-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40D500-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40L500-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40R500-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 500 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40S550-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40D550-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40L550-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40R550-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 550 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40S600-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40D600-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40L600-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40R600-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 600 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40S650-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40D650-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40L650-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40R650-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 650 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40S700-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40D700-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40L700-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40R700-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 700 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40S750-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40D750-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40L750-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40R750-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 750 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40S800-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40D800-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40L800-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40R800-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 800 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40S850-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40D850-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40L850-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40R850-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 850 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40S900-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40D900-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40L900-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40R900-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 900 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40S950-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40D950-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40L950-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40R950-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 950 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40S1000-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40D1000-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40L1000-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40R1000-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1000 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40S1050-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40D1050-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40L1050-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40R1050-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1050 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40S1100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40D1100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40L1100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40R1100-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1100 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40S1150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40D1150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40L1150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40R1150-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1150 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40S1200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40D1200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40L1200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40R1200-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1200 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40S1250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Direct \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40D1250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Down \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40L1250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Left \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17-40R1250-N3-75B-VP	Size: LSC17 (170 mm) \| Lead: 40 mm \| Stroke: 1250 mm \| Motor position: Right \| Motor power: 750 W \| Max. load H/V: 43/12 kg
	LSC17	Legacy code (base size, order by full code) \| Model: LSC17 \| Type: LSC dust-free ball screw sliding table

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

Inovance LSC17 Dust-Free Ball Screw Electric Cylinder (400/750 W)
