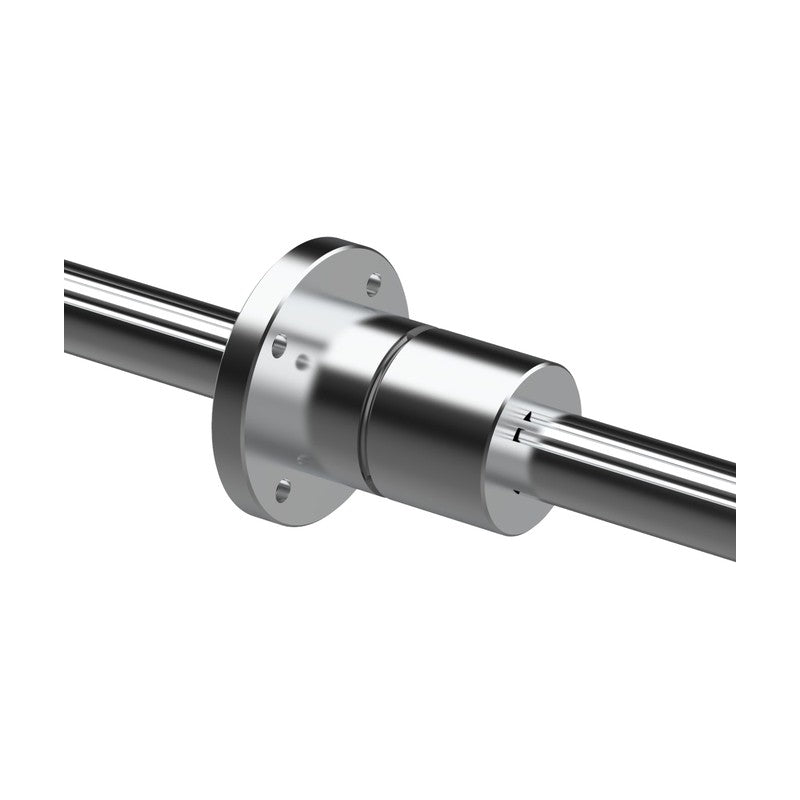

Inovance LSM Series Medium Torque Ball Spline (6-50 mm)

Inovance LSM medium-torque ball splines with angular-contact spline grooves and preload for zero rotational clearance, shaft diameters 6 to 50 mm.

Key features

Angular-contact spline grooves with preload: zero rotational clearance
High torque and moment stiffness
Ball retainer keeps balls in the nut when it is pulled off the shaft
Nut types square, cylindrical, end flange or middle flange per naming rule
Precision grades N / H / P; clearance C0 / C1 / C2

Specifications

Brand	Inovance (LAIEN)
Shaft tolerance	h7
Nut OD tolerance	h6
Applications	Rotary moving, winding mechanisms
Source	Inovance Precision Ball Screws catalogue 19120498A00, p. 22

LSM6		Shaft dia: 6 mm \| CT / COT: 0.9 / 1.9 N.m \| C / C0: 1.1 / 2.1 kN \| MA1 / MA2: 4.9 / 36.2 N.m \| Nut D x L: 14 x 25 mm
LSM8		Shaft dia: 8 mm \| CT / COT: 1.9 / 2.9 N.m \| C / C0: 1.4 / 2.5 kN \| MA1 / MA2: 5.9 / 44.2 N.m \| Nut D x L: 16 x 25 mm
LSM10		Shaft dia: 10 mm \| CT / COT: 3.9 / 7.8 N.m \| C / C0: 2.8 / 4.9 kN \| MA1 / MA2: 15.8 / 98 N.m \| Nut D x L: 21 x 33 mm
LSM13		Shaft dia: 13 mm \| CT / COT: 5.9 / 10.8 N.m \| C / C0: 3.5 / 5.7 kN \| MA1 / MA2: 19.6 / 138 N.m \| Nut D x L: 24 x 36 mm
LSM16		Shaft dia: 16 mm \| CT / COT: 31.4 / 34.3 N.m \| C / C0: 7.1 / 12.6 kN \| MA1 / MA2: 67.6 / 395 N.m \| Nut D x L: 31 x 50 mm
LSM20		Shaft dia: 20 mm \| CT / COT: 56.9 / 55.9 N.m \| C / C0: 10.2 / 17.8 kN \| MA1 / MA2: 118 / 700 N.m \| Nut D x L: 35 x 63 mm
LSM25		Shaft dia: 25 mm \| CT / COT: 105 / 103 N.m \| C / C0: 15.2 / 25.8 kN \| MA1 / MA2: 210 / 1140 N.m \| Nut D x L: 42 x 71 mm
LSM30		Shaft dia: 30 mm \| CT / COT: 171 / 148 N.m \| C / C0: 20.5 / 34 kN \| MA1 / MA2: 290 / 1705 N.m \| Nut D x L: 47 x 80 mm
LSM40		Shaft dia: 40 mm \| CT / COT: 419 / 377 N.m \| C / C0: 37.8 / 60.5 kN \| MA1 / MA2: 687 / 3760 N.m \| Nut D x L: 64 x 100 mm
LSM50		Shaft dia: 50 mm \| CT / COT: 840 / 766 N.m \| C / C0: 60.8 / 94.5 kN \| MA1 / MA2: 1340 / 7350 N.m \| Nut D x L: 80 x 125 mm
