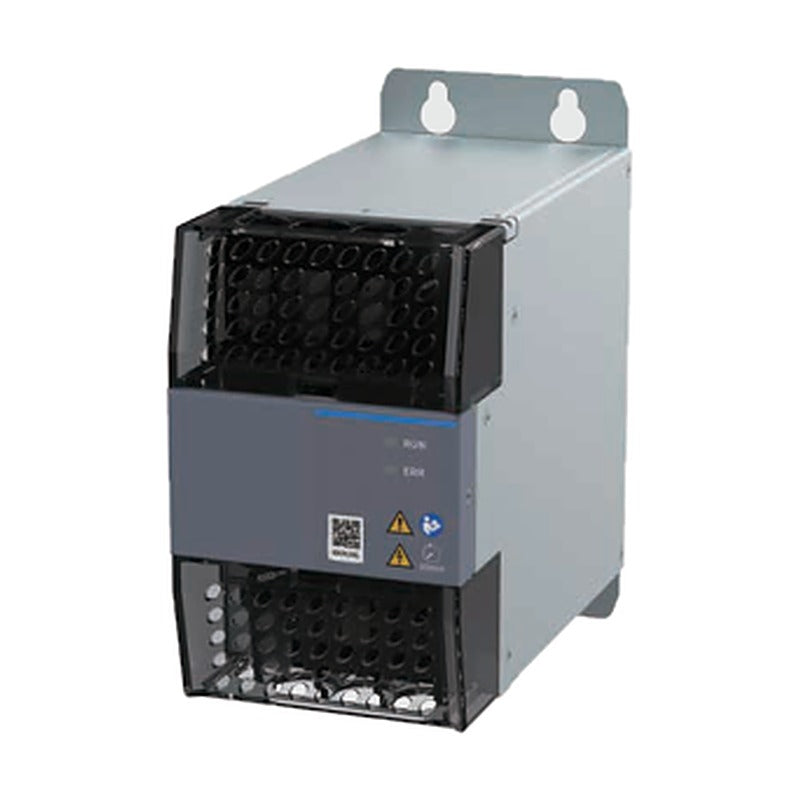

Inovance MD810 Multi-Drive Accessories (Brackets, Cables, Soft-Charge)

Inovance MD810 Multi-Drive Accessories (Brackets, Cables, Soft-Charge)

Accessories for the Inovance MD810 multi-drive system: mounting and cable brackets, air guide plates, DC bus terminals, unit link cables, DC soft-charging units and keypads.

Key features

  • Through-hole and cable support brackets for sizes 1-4
  • Air guide plates and additional DC bus terminals
  • RJ45 Modbus/CANopen link cables between units
  • INOV-SU DC soft-charge units for independent drive power-up
  • SOP-20-810 remote LCD keypad and door mounting base

Specifications

Brand Inovance
For series MD810 multi-drive
Product type Multi-drive accessories
Source Inovance MD810-INT brochure 19120486 A02, p. 8
MD810-AZJ50M-W1 Model: MD810-AZJ50M-W1 | Category: Through-hole bracket | Description: Through-hole bracket, PSU and drives | Applicable: Size 1 (W 50 mm)
MD810-AZJ50M-W2 Model: MD810-AZJ50M-W2 | Category: Through-hole bracket | Description: Through-hole bracket, PSU and drives | Applicable: Size 2 (W 100 mm)
MD810-AZJ50M-W3 Model: MD810-AZJ50M-W3 | Category: Through-hole bracket | Description: Through-hole bracket, PSU and drives | Applicable: Size 3 (W 200 mm)
MD810-AZJ50M-W4 Model: MD810-AZJ50M-W4 | Category: Through-hole bracket | Description: Through-hole bracket, PSU and drives | Applicable: Size 4 (W 300 mm)
MD810-PBJ50M-W1 Model: MD810-PBJ50M-W1 | Category: Cable bracket | Description: Cable support bracket, PSU and drives | Applicable: Size 1 (W 50 mm)
MD810-PBJ50M-W2 Model: MD810-PBJ50M-W2 | Category: Cable bracket | Description: Cable support bracket, PSU and drives | Applicable: Size 2 (W 100 mm)
MD810-PBJ50M-W3 Model: MD810-PBJ50M-W3 | Category: Cable bracket | Description: Cable support bracket, PSU and drives | Applicable: Size 3 (W 200 mm)
MD810-PBJ50M-W4 Model: MD810-PBJ50M-W4 | Category: Cable bracket | Description: Cable support bracket, PSU and drives | Applicable: Size 4 (W 300 mm)
MD810-DLB-W1 Model: MD810-DLB-W1 | Category: Air guide plate | Description: Air guide plate, PSU and drives | Applicable: Size 1 (W 50 mm)
MD810-DLB-W2 Model: MD810-DLB-W2 | Category: Air guide plate | Description: Air guide plate, PSU and drives | Applicable: Size 2 (W 100 mm)
MD810-DLB-W3 Model: MD810-DLB-W3 | Category: Air guide plate | Description: Air guide plate, PSU and drives | Applicable: Size 3 (W 200 mm)
MD810-DLB-W4 Model: MD810-DLB-W4 | Category: Air guide plate | Description: Air guide plate, PSU and drives | Applicable: Size 4 (W 300 mm)
MD810-CON1 Model: MD810-CON1 | Category: DC bus terminal | Description: Additional DC bus terminals | Applicable: PSU size 1-2, drive size 1
MD810-CON2 Model: MD810-CON2 | Category: DC bus terminal | Description: Additional DC bus terminals | Applicable: PSU size 3-4, drive size 2-4
C45590-GNCN-C2500024 Model: C45590-GNCN-C2500024 | Category: Comm cable | Description: RJ45 unit link cable (Modbus/CANopen) | Applicable: Size 1 (W 50 mm)
C45590-GNCN-C2500025 Model: C45590-GNCN-C2500025 | Category: Comm cable | Description: RJ45 unit link cable (Modbus/CANopen) | Applicable: Size 2 (W 100 mm)
C45590-GNCN-C2500035 Model: C45590-GNCN-C2500035 | Category: Comm cable | Description: RJ45 unit link cable (Modbus/CANopen) | Applicable: Size 3 (W 200 mm)
C45590-GNCN-C2500055 Model: C45590-GNCN-C2500055 | Category: Comm cable | Description: RJ45 unit link cable (Modbus/CANopen) | Applicable: Size 4 (W 300 mm)
C45590-GNCN-C2500080 Model: C45590-GNCN-C2500080 | Category: Comm cable | Description: RJ45 unit link cable (Modbus/CANopen) | Applicable: Size 5 (355 kW PSU)
INOV-SU-30 Model: INOV-SU-30 | Category: Soft-charge unit | Description: DC soft-charging unit for drive units | Applicable: Single 1.5-7.5 / dual 1.5-5.5 kW
INOV-SU-60 Model: INOV-SU-60 | Category: Soft-charge unit | Description: DC soft-charging unit for drive units | Applicable: Single 11-22 / dual 7.5-11 kW
INOV-SU-100 Model: INOV-SU-100 | Category: Soft-charge unit | Description: DC soft-charging unit for drive units | Applicable: Single 30-37 / dual 15-18.5 kW
INOV-SU-170 Model: INOV-SU-170 | Category: Soft-charge unit | Description: DC soft-charging unit for drive units | Applicable: Single 45-75 kW
SOP-20-810 Model: SOP-20-810 | Category: Keypad | Description: Remote LCD keypad (incl. 3 m cable) | Applicable: All MD810
C45590-GNCN-C25003 Model: C45590-GNCN-C25003 | Category: Keypad cable | Description: Remote keypad spare cable, 3 m | Applicable: All MD810
SOP-20-MP-IP20 Model: SOP-20-MP-IP20 | Category: Keypad accessory | Description: Keypad cabinet-door mounting base | Applicable: All MD810
AC Drive AccessoriesInovance
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Inovance MD810 Multi-Drive Accessories (Brackets, Cables, Soft-Charge)

Brand Inovance·AC Drive Accessories

Available part numbers (26)

MD810-AZJ50M-W1, MD810-AZJ50M-W2, MD810-AZJ50M-W3, MD810-AZJ50M-W4, MD810-PBJ50M-W1, MD810-PBJ50M-W2, MD810-PBJ50M-W3, MD810-PBJ50M-W4, MD810-DLB-W1, MD810-DLB-W2 + 16 more — see full table ↓

How to order

Send the Inovance part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MD810-AZJ50M-W1Model: MD810-AZJ50M-W1 | Category: Through-hole bracket | Description: Through-hole bracket, PSU and drives | Applicable: Size 1 (W 50 mm)
MD810-AZJ50M-W2Model: MD810-AZJ50M-W2 | Category: Through-hole bracket | Description: Through-hole bracket, PSU and drives | Applicable: Size 2 (W 100 mm)
MD810-AZJ50M-W3Model: MD810-AZJ50M-W3 | Category: Through-hole bracket | Description: Through-hole bracket, PSU and drives | Applicable: Size 3 (W 200 mm)
MD810-AZJ50M-W4Model: MD810-AZJ50M-W4 | Category: Through-hole bracket | Description: Through-hole bracket, PSU and drives | Applicable: Size 4 (W 300 mm)
MD810-PBJ50M-W1Model: MD810-PBJ50M-W1 | Category: Cable bracket | Description: Cable support bracket, PSU and drives | Applicable: Size 1 (W 50 mm)
MD810-PBJ50M-W2Model: MD810-PBJ50M-W2 | Category: Cable bracket | Description: Cable support bracket, PSU and drives | Applicable: Size 2 (W 100 mm)
MD810-PBJ50M-W3Model: MD810-PBJ50M-W3 | Category: Cable bracket | Description: Cable support bracket, PSU and drives | Applicable: Size 3 (W 200 mm)
MD810-PBJ50M-W4Model: MD810-PBJ50M-W4 | Category: Cable bracket | Description: Cable support bracket, PSU and drives | Applicable: Size 4 (W 300 mm)
MD810-DLB-W1Model: MD810-DLB-W1 | Category: Air guide plate | Description: Air guide plate, PSU and drives | Applicable: Size 1 (W 50 mm)
MD810-DLB-W2Model: MD810-DLB-W2 | Category: Air guide plate | Description: Air guide plate, PSU and drives | Applicable: Size 2 (W 100 mm)
MD810-DLB-W3Model: MD810-DLB-W3 | Category: Air guide plate | Description: Air guide plate, PSU and drives | Applicable: Size 3 (W 200 mm)
MD810-DLB-W4Model: MD810-DLB-W4 | Category: Air guide plate | Description: Air guide plate, PSU and drives | Applicable: Size 4 (W 300 mm)
MD810-CON1Model: MD810-CON1 | Category: DC bus terminal | Description: Additional DC bus terminals | Applicable: PSU size 1-2, drive size 1
MD810-CON2Model: MD810-CON2 | Category: DC bus terminal | Description: Additional DC bus terminals | Applicable: PSU size 3-4, drive size 2-4
C45590-GNCN-C2500024Model: C45590-GNCN-C2500024 | Category: Comm cable | Description: RJ45 unit link cable (Modbus/CANopen) | Applicable: Size 1 (W 50 mm)
C45590-GNCN-C2500025Model: C45590-GNCN-C2500025 | Category: Comm cable | Description: RJ45 unit link cable (Modbus/CANopen) | Applicable: Size 2 (W 100 mm)
C45590-GNCN-C2500035Model: C45590-GNCN-C2500035 | Category: Comm cable | Description: RJ45 unit link cable (Modbus/CANopen) | Applicable: Size 3 (W 200 mm)
C45590-GNCN-C2500055Model: C45590-GNCN-C2500055 | Category: Comm cable | Description: RJ45 unit link cable (Modbus/CANopen) | Applicable: Size 4 (W 300 mm)
C45590-GNCN-C2500080Model: C45590-GNCN-C2500080 | Category: Comm cable | Description: RJ45 unit link cable (Modbus/CANopen) | Applicable: Size 5 (355 kW PSU)
INOV-SU-30Model: INOV-SU-30 | Category: Soft-charge unit | Description: DC soft-charging unit for drive units | Applicable: Single 1.5-7.5 / dual 1.5-5.5 kW
INOV-SU-60Model: INOV-SU-60 | Category: Soft-charge unit | Description: DC soft-charging unit for drive units | Applicable: Single 11-22 / dual 7.5-11 kW
INOV-SU-100Model: INOV-SU-100 | Category: Soft-charge unit | Description: DC soft-charging unit for drive units | Applicable: Single 30-37 / dual 15-18.5 kW
INOV-SU-170Model: INOV-SU-170 | Category: Soft-charge unit | Description: DC soft-charging unit for drive units | Applicable: Single 45-75 kW
SOP-20-810Model: SOP-20-810 | Category: Keypad | Description: Remote LCD keypad (incl. 3 m cable) | Applicable: All MD810
C45590-GNCN-C25003Model: C45590-GNCN-C25003 | Category: Keypad cable | Description: Remote keypad spare cable, 3 m | Applicable: All MD810
SOP-20-MP-IP20Model: SOP-20-MP-IP20 | Category: Keypad accessory | Description: Keypad cabinet-door mounting base | Applicable: All MD810
