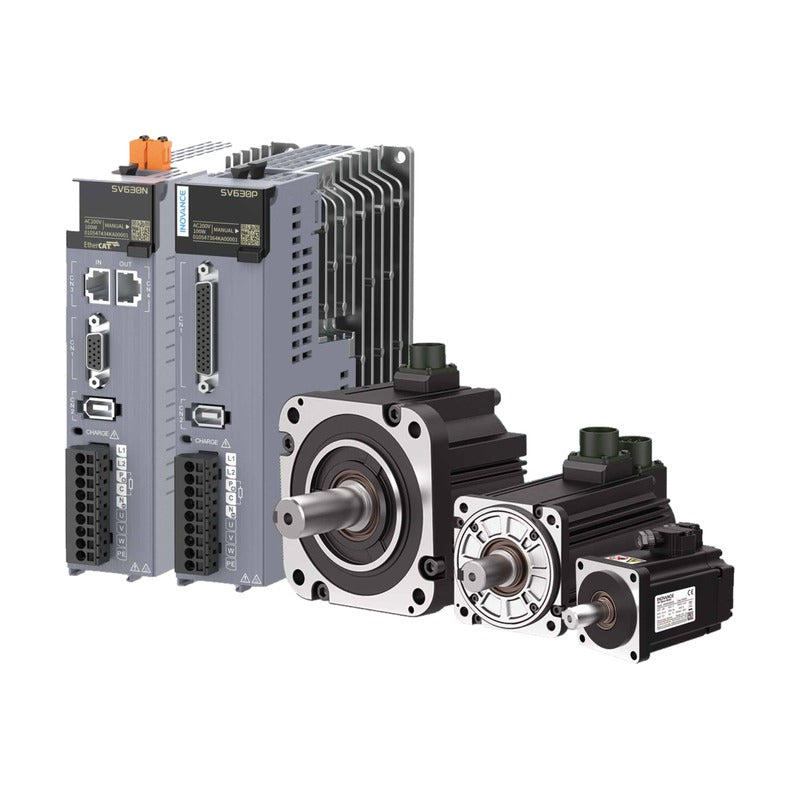

Inovance SV630P Economy Servo Drive (Pulse, 0.2-7.5 kW, INT)

Inovance SV630P Economy Servo Drive (Pulse, 0.2-7.5 kW, INT)

SV630P-INT economy servo drive (Pulse train, RS485) for MS1-R servo motors with 18-bit multi-turn absolute encoder.

Key features

  • 18-bit multi-turn absolute encoder support (MS1-R T3 motors)
  • 2 kHz speed loop bandwidth, one-click tuning
  • High resistance to pollution and vibration, compact design
  • 7 DI / 5 DO, pulse input and frequency-division output
  • Frame sizes A to E, 0.2 kW to 7.5 kW

Specifications

Series SV630 economy servo drive
Command interface Pulse train, RS485
Encoder support 18-bit multi-turn absolute
Speed loop bandwidth 2 kHz
Voltage classes S: 200-240 V, T: 380-440 V
Power range 0.2-7.5 kW
Source Inovance Servo System Overview 19120627 A00, p. 15-16, 28
SV630PS1R6I-INT Rated power: 0.2 kW | Rated current: 1.6 A | Max current: 5.8 A | Input: 1-ph 200-240 V | Frame: Size A | Variant: Standard
SV630PS2R8I-INT Rated power: 0.4 kW | Rated current: 2.8 A | Max current: 10.1 A | Input: 1-ph 200-240 V | Frame: Size A | Variant: Standard
SV630PS5R5I-INT Rated power: 0.75 kW | Rated current: 5.5 A | Max current: 16.9 A | Input: 1-ph 200-240 V | Frame: Size B | Variant: Standard
SV630PS7R6I-INT Rated power: 1.0 kW | Rated current: 7.6 A | Max current: 23.0 A | Input: 1/3-ph 200-240 V | Frame: Size C | Variant: Standard
SV630PS012I-INT Rated power: 1.5 kW | Rated current: 11.6 A | Max current: 32.0 A | Input: 1/3-ph 200-240 V | Frame: Size D | Variant: Standard
SV630PT3R5I-INT Rated power: 1.0 kW | Rated current: 3.5 A | Max current: 11.0 A | Input: 3-ph 380-440 V | Frame: Size C | Variant: Standard
SV630PT5R4I-INT Rated power: 1.5 kW | Rated current: 5.4 A | Max current: 14.0 A | Input: 3-ph 380-440 V | Frame: Size C | Variant: Standard
SV630PT8R4I-INT Rated power: 2.0 kW | Rated current: 8.4 A | Max current: 20.0 A | Input: 3-ph 380-440 V | Frame: Size D | Variant: Standard
SV630PT012I-INT Rated power: 3.0 kW | Rated current: 11.9 A | Max current: 29.75 A | Input: 3-ph 380-440 V | Frame: Size D | Variant: Standard
SV630PT017I-INT Rated power: 5.0 kW | Rated current: 16.5 A | Max current: 41.25 A | Input: 3-ph 380-440 V | Frame: Size E | Variant: Standard
SV630PT021I-INT Rated power: 6.0 kW | Rated current: 20.8 A | Max current: 52.12 A | Input: 3-ph 380-440 V | Frame: Size E | Variant: Standard
SV630PT026I-INT Rated power: 7.5 kW | Rated current: 25.7 A | Max current: 64.25 A | Input: 3-ph 380-440 V | Frame: Size E | Variant: Standard
