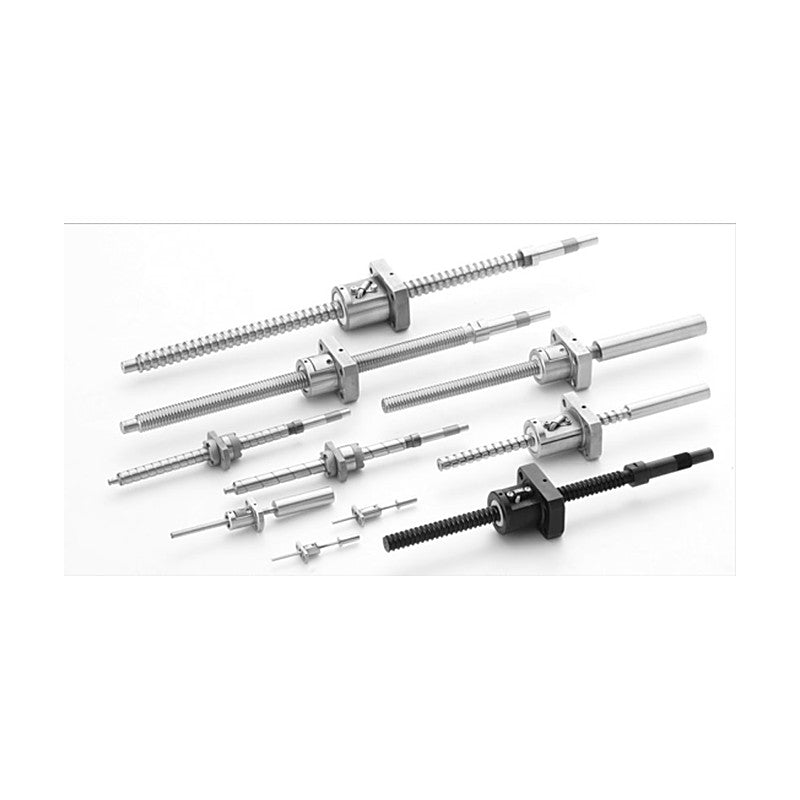

ISSOKU BSF Ball Screws (Return Tube, Single Nut)

ISSOKU BSF Ball Screws (Return Tube, Single Nut)

ISSOKU BSF single-nut precision ball screws with return-tube recirculation, standard made-to-order sizes for shaft Ø8-Ø40.

Key features

  • Return-tube ball recirculation flange nut, single nut
  • Circuit codes A, B, E, F, G for different circuit counts
  • Flange nut with wiper seals (synthetic resin) both ends
  • Ca / C0a listed for standard (no preload) condition; oversize-ball preload ratings also catalogued
  • Shaft diameters 8-40 mm

Specifications

Product Precision ball screw
Recirculation Return-tube
Shaft diameter range 8-40 mm
Rating basis Single nut: no preload; double nut: as listed
Supply Standard made-to-order
Source ISSOKU Precision Ground Ball Screw Standard Products catalogue, p. 6-30
BSF0803E Shaft x lead: 8 x 3 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 2290 N | C0a: 3575 N
BSF0804E Shaft x lead: 8 x 4 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 2420 N | C0a: 3620 N
BSF0806E Shaft x lead: 8 x 6 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 2290 N | C0a: 3575 N
BSF1003E Shaft x lead: 10 x 3 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 2730 N | C0a: 4410 N
BSF1006E Shaft x lead: 10 x 6 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 2730 N | C0a: 4410 N
BSF1008A Shaft x lead: 10 x 8 mm | Nut: Single nut | Circuits: 1.5x1 | Ca: 1720 N | C0a: 2745 N
BSF1203E Shaft x lead: 12 x 3 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 3040 N | C0a: 5730 N
BSF1206E Shaft x lead: 12 x 6 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 3820 N | C0a: 6480 N
BSF1208E Shaft x lead: 12 x 8 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 3820 N | C0a: 6480 N
BSF1216A Shaft x lead: 12 x 16 mm | Nut: Single nut | Circuits: 1.5x1 | Ca: 2410 N | C0a: 3920 N
BSF1403E Shaft x lead: 14 x 3 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 3260 N | C0a: 6170 N
BSF1406E Shaft x lead: 14 x 6 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 6270 N | C0a: 11660 N
BSF1408E Shaft x lead: 14 x 8 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 6270 N | C0a: 11660 N
BSF1416A Shaft x lead: 14 x 16 mm | Nut: Single nut | Circuits: 1.5x1 | Ca: 3770 N | C0a: 7100 N
BSF1603E Shaft x lead: 16 x 3 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 3460 N | C0a: 7670 N
BSF1603F Shaft x lead: 16 x 3 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 6270 N | C0a: 15355 N
BSF1604B Shaft x lead: 16 x 4 mm | Nut: Single nut | Circuits: 1.5x2 | Ca: 5100 N | C0a: 10855 N
BSF1604E Shaft x lead: 16 x 4 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 4640 N | C0a: 8530 N
BSF1604F Shaft x lead: 16 x 4 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 7920 N | C0a: 18090 N
BSF1605B Shaft x lead: 16 x 5 mm | Nut: Single nut | Circuits: 1.5x2 | Ca: 7450 N | C0a: 14400 N
BSF1605E Shaft x lead: 16 x 5 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 6370 N | C0a: 12000 N
BSF1605F Shaft x lead: 16 x 5 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 11560 N | C0a: 24020 N
BSF1606E Shaft x lead: 16 x 6 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 6350 N | C0a: 11985 N
BSF1606F Shaft x lead: 16 x 6 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 11530 N | C0a: 23970 N
BSF1608E Shaft x lead: 16 x 8 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 6350 N | C0a: 11985 N
BSF1610E Shaft x lead: 16 x 10 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 6350 N | C0a: 11985 N
BSF1620A Shaft x lead: 16 x 20 mm | Nut: Single nut | Circuits: 1.5x1 | Ca: 4000 N | C0a: 7060 N
BSF1804E Shaft x lead: 18 x 4 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 4650 N | C0a: 10400 N
BSF1804F Shaft x lead: 18 x 4 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 8460 N | C0a: 20830 N
BSF1806E Shaft x lead: 18 x 6 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 6770 N | C0a: 13610 N
BSF1806F Shaft x lead: 18 x 6 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 12300 N | C0a: 27230 N
BSF2003E Shaft x lead: 20 x 3 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 3790 N | C0a: 9610 N
BSF2003F Shaft x lead: 20 x 3 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 6880 N | C0a: 19230 N
BSF2004E Shaft x lead: 20 x 4 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 4800 N | C0a: 11340 N
BSF2004F Shaft x lead: 20 x 4 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 8730 N | C0a: 22680 N
BSF2005B Shaft x lead: 20 x 5 mm | Nut: Single nut | Circuits: 1.5x2 | Ca: 8380 N | C0a: 18320 N
BSF2005E Shaft x lead: 20 x 5 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 8150 N | C0a: 17150 N
BSF2005F Shaft x lead: 20 x 5 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 13000 N | C0a: 30540 N
BSF2006E Shaft x lead: 20 x 6 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 9540 N | C0a: 18770 N
BSF2006F Shaft x lead: 20 x 6 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 17300 N | C0a: 35730 N
BSF2008B Shaft x lead: 20 x 8 mm | Nut: Single nut | Circuits: 1.5x2 | Ca: 11100 N | C0a: 22440 N
BSF2008E Shaft x lead: 20 x 8 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 9500 N | C0a: 18700 N
BSF2008F Shaft x lead: 20 x 8 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 17240 N | C0a: 37400 N
BSF2012E Shaft x lead: 20 x 12 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 9420 N | C0a: 18090 N
BSF2016A Shaft x lead: 20 x 16 mm | Nut: Single nut | Circuits: 1.5x1 | Ca: 6710 N | C0a: 12640 N
BSF2503E Shaft x lead: 25 x 3 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 4170 N | C0a: 12190 N
BSF2503F Shaft x lead: 25 x 3 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 7580 N | C0a: 24380 N
BSF2504E Shaft x lead: 25 x 4 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 5350 N | C0a: 14530 N
BSF2504F Shaft x lead: 25 x 4 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 9710 N | C0a: 29070 N
BSF2505B Shaft x lead: 25 x 5 mm | Nut: Single nut | Circuits: 1.5x2 | Ca: 9320 N | C0a: 23200 N
BSF2505E Shaft x lead: 25 x 5 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 7970 N | C0a: 19340 N
BSF2505F Shaft x lead: 25 x 5 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 14660 N | C0a: 38670 N
BSF2506B Shaft x lead: 25 x 6 mm | Nut: Single nut | Circuits: 1.5x1 | Ca: 12540 N | C0a: 28630 N
BSF2506E Shaft x lead: 25 x 6 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 10720 N | C0a: 23850 N
BSF2506F Shaft x lead: 25 x 6 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 19470 N | C0a: 47700 N
BSF2508E Shaft x lead: 25 x 8 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 13170 N | C0a: 27075 N
BSF2508F Shaft x lead: 25 x 8 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 23900 N | C0a: 54150 N
BSF2510B Shaft x lead: 25 x 10 mm | Nut: Single nut | Circuits: 1.5x2 | Ca: 15350 N | C0a: 32400 N
BSF2510F Shaft x lead: 25 x 10 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 13120 N | C0a: 27000 N
BSF2512E Shaft x lead: 25 x 12 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 13120 N | C0a: 27300 N
BSF2516E Shaft x lead: 25 x 16 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 13120 N | C0a: 27300 N
BSF2520A Shaft x lead: 25 x 20 mm | Nut: Single nut | Circuits: 1.5x1 | Ca: 8540 N | C0a: 16900 N
BSF2525A Shaft x lead: 25 x 25 mm | Nut: Single nut | Circuits: 1.5x1 | Ca: 8540 N | C0a: 16900 N
BSF2805B Shaft x lead: 28 x 5 mm | Nut: Single nut | Circuits: 1.5x2 | Ca: 9810 N | C0a: 26130 N
BSF2805E Shaft x lead: 28 x 5 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 8380 N | C0a: 21770 N
BSF2805F Shaft x lead: 28 x 5 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 15220 N | C0a: 43540 N
BSF2805G Shaft x lead: 28 x 5 mm | Nut: Single nut | Circuits: 2.5x3 | Ca: 21570 N | C0a: 65320 N
BSF2806B Shaft x lead: 28 x 6 mm | Nut: Single nut | Circuits: 1.5x2 | Ca: 9800 N | C0a: 26110 N
BSF2806E Shaft x lead: 28 x 6 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 8380 N | C0a: 21760 N
BSF2806F Shaft x lead: 28 x 6 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 15210 N | C0a: 43510 N
BSF2808B Shaft x lead: 28 x 8 mm | Nut: Single nut | Circuits: 1.5x2 | Ca: 16410 N | C0a: 36890 N
BSF2808E Shaft x lead: 28 x 8 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 14020 N | C0a: 30730 N
BSF2808F Shaft x lead: 28 x 8 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 25460 N | C0a: 61475 N
BSF3204E Shaft x lead: 32 x 4 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 5880 N | C0a: 18650 N
BSF3204F Shaft x lead: 32 x 4 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 10680 N | C0a: 37300 N
BSF3205E Shaft x lead: 32 x 5 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 8880 N | C0a: 25020 N
BSF3205F Shaft x lead: 32 x 5 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 16120 N | C0a: 50050 N
BSF3205G Shaft x lead: 32 x 5 mm | Nut: Single nut | Circuits: 2.5x3 | Ca: 22850 N | C0a: 75070 N
BSF3206B Shaft x lead: 32 x 6 mm | Nut: Single nut | Circuits: 1.5x2 | Ca: 13880 N | C0a: 36300 N
BSF3206E Shaft x lead: 32 x 6 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 11870 N | C0a: 30240 N
BSF3206F Shaft x lead: 32 x 6 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 21540 N | C0a: 60500 N
BSF3208E Shaft x lead: 32 x 8 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 14420 N | C0a: 34020 N
BSF3208F Shaft x lead: 32 x 8 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 27600 N | C0a: 72370 N
BSF3210E Shaft x lead: 32 x 10 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 22200 N | C0a: 48050 N
BSF3210F Shaft x lead: 32 x 10 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 40290 N | C0a: 96100 N
BSF3605E Shaft x lead: 36 x 5 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 9330 N | C0a: 28270 N
BSF3605F Shaft x lead: 36 x 5 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 16930 N | C0a: 56550 N
BSF3605G Shaft x lead: 36 x 5 mm | Nut: Single nut | Circuits: 2.5x3 | Ca: 24010 N | C0a: 84820 N
BSF3606B Shaft x lead: 36 x 6 mm | Nut: Single nut | Circuits: 1.5x2 | Ca: 14580 N | C0a: 40875 N
BSF3606E Shaft x lead: 36 x 6 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 12470 N | C0a: 34060 N
BSF3606F Shaft x lead: 36 x 6 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 22630 N | C0a: 68130 N
BSF3608B Shaft x lead: 36 x 8 mm | Nut: Single nut | Circuits: 1.5x2 | Ca: 19010 N | C0a: 49970 N
BSF3608E Shaft x lead: 36 x 8 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 16250 N | C0a: 41640 N
BSF3608F Shaft x lead: 36 x 8 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 29500 N | C0a: 83290 N
BSF3610E Shaft x lead: 36 x 10 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 23660 N | C0a: 54560 N
BSF3610F Shaft x lead: 36 x 10 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 42940 N | C0a: 109120 N
BSF4004E Shaft x lead: 40 x 4 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 6480 N | C0a: 23670 N
BSF4004F Shaft x lead: 40 x 4 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 11760 N | C0a: 47330 N
BSF4005E Shaft x lead: 40 x 5 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 9740 N | C0a: 31520 N
BSF4005F Shaft x lead: 40 x 5 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 17680 N | C0a: 63040 N
BSF4005G Shaft x lead: 40 x 5 mm | Nut: Single nut | Circuits: 2.5x3 | Ca: 25060 N | C0a: 94560 N
BSF4006E Shaft x lead: 40 x 6 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 13290 N | C0a: 39100 N
BSF4006F Shaft x lead: 40 x 6 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 24120 N | C0a: 78200 N
BSF4006G Shaft x lead: 40 x 6 mm | Nut: Single nut | Circuits: 2.5x3 | Ca: 34180 N | C0a: 117300 N
BSF4008E Shaft x lead: 40 x 8 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 16760 N | C0a: 45360 N
BSF4008F Shaft x lead: 40 x 8 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 30420 N | C0a: 90730 N
BSF4010E Shaft x lead: 40 x 10 mm | Nut: Single nut | Circuits: 2.5x1 | Ca: 24960 N | C0a: 61070 N
BSF4010F Shaft x lead: 40 x 10 mm | Nut: Single nut | Circuits: 2.5x2 | Ca: 45320 N | C0a: 122150 N
