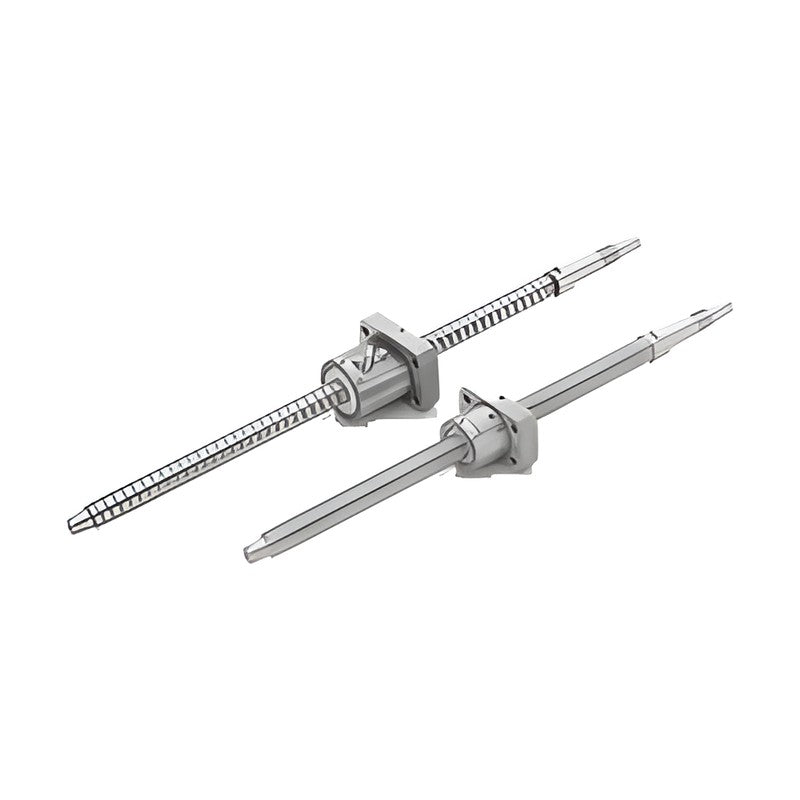

ISSOKU BSP/BSF Ground Ball Screws C3, Machined Ends

ISSOKU BSP/BSF Ground Ball Screws C3, Machined Ends

Precision ground ball screws in grade C3 with machined shaft ends, stock items.

Key features

  • Nut types: BSF (return-tube, machined ends), BSP (return-plate, machined ends)
  • Shaft diameters 6-20 mm
  • Codes include shaft length; stock standard lengths as listed
  • Axial clearance symbols as printed per size (T/Z, S/N or M2)
  • Lapped ball tracks for smooth, quiet running

Specifications

Accuracy standard JIS B 1192
Brand ISSOKU
Product type Ball Screws
Series BSP/BSF
Designations listed 158
Units mm, kN
Source ISSOKU Ball Screw catalogue (HANSAN edition), p. 222-243
BSP0601RC3T-120 Size: 6 x 1 mm | Shaft length: 120 mm | Stroke: 40 mm | Clearance: T | Ca: 0.63 kN | C0a: 1.13 kN
BSP0601RC3Z-120 Size: 6 x 1 mm | Shaft length: 120 mm | Stroke: 40 mm | Clearance: Z | Ca: 0.4 kN | C0a: 0.565 kN
BSP0601RC3T-150 Size: 6 x 1 mm | Shaft length: 150 mm | Stroke: 70 mm | Clearance: T | Ca: 0.63 kN | C0a: 1.13 kN
BSP0601RC3Z-150 Size: 6 x 1 mm | Shaft length: 150 mm | Stroke: 70 mm | Clearance: Z | Ca: 0.4 kN | C0a: 0.565 kN
BSP0601RC3T-180 Size: 6 x 1 mm | Shaft length: 180 mm | Stroke: 100 mm | Clearance: T | Ca: 0.63 kN | C0a: 1.13 kN
BSP0601RC3Z-180 Size: 6 x 1 mm | Shaft length: 180 mm | Stroke: 100 mm | Clearance: Z | Ca: 0.4 kN | C0a: 0.565 kN
BSP0602RC3T-124 Size: 6 x 2 mm | Shaft length: 124 mm | Stroke: 40 mm | Clearance: T | Ca: 1.35 kN | C0a: 2.35 kN
BSP0602RC3Z-124 Size: 6 x 2 mm | Shaft length: 124 mm | Stroke: 40 mm | Clearance: Z | Ca: 0.85 kN | C0a: 1.175 kN
BSP0602RC3T-154 Size: 6 x 2 mm | Shaft length: 154 mm | Stroke: 70 mm | Clearance: T | Ca: 1.35 kN | C0a: 2.35 kN
BSP0602RC3Z-154 Size: 6 x 2 mm | Shaft length: 154 mm | Stroke: 70 mm | Clearance: Z | Ca: 0.85 kN | C0a: 1.175 kN
BSP0602RC3T-184 Size: 6 x 2 mm | Shaft length: 184 mm | Stroke: 100 mm | Clearance: T | Ca: 1.35 kN | C0a: 2.35 kN
BSP0602RC3Z-184 Size: 6 x 2 mm | Shaft length: 184 mm | Stroke: 100 mm | Clearance: Z | Ca: 0.85 kN | C0a: 1.175 kN
BSP0801RC3T-122 Size: 8 x 1 mm | Shaft length: 122 mm | Stroke: 40 mm | Clearance: T | Ca: 0.75 kN | C0a: 1.52 kN
BSP0801RC3Z-122 Size: 8 x 1 mm | Shaft length: 122 mm | Stroke: 40 mm | Clearance: Z | Ca: 0.47 kN | C0a: 0.76 kN
BSP0801RC3T-152 Size: 8 x 1 mm | Shaft length: 152 mm | Stroke: 70 mm | Clearance: T | Ca: 0.75 kN | C0a: 1.52 kN
BSP0801RC3Z-152 Size: 8 x 1 mm | Shaft length: 152 mm | Stroke: 70 mm | Clearance: Z | Ca: 0.47 kN | C0a: 0.76 kN
BSP0801RC3T-182 Size: 8 x 1 mm | Shaft length: 182 mm | Stroke: 100 mm | Clearance: T | Ca: 0.75 kN | C0a: 1.52 kN
BSP0801RC3Z-182 Size: 8 x 1 mm | Shaft length: 182 mm | Stroke: 100 mm | Clearance: Z | Ca: 0.47 kN | C0a: 0.76 kN
BSP0802RC3T-137 Size: 8 x 2 mm | Shaft length: 137 mm | Stroke: 50 mm | Clearance: T | Ca: 1.69 kN | C0a: 3.085 kN
BSP0802RC3Z-137 Size: 8 x 2 mm | Shaft length: 137 mm | Stroke: 50 mm | Clearance: Z | Ca: 1.06 kN | C0a: 1.545 kN
BSP0802RC3T-177 Size: 8 x 2 mm | Shaft length: 177 mm | Stroke: 90 mm | Clearance: T | Ca: 1.69 kN | C0a: 3.085 kN
BSP0802RC3Z-177 Size: 8 x 2 mm | Shaft length: 177 mm | Stroke: 90 mm | Clearance: Z | Ca: 1.06 kN | C0a: 1.545 kN
BSP0802RC3T-207 Size: 8 x 2 mm | Shaft length: 207 mm | Stroke: 120 mm | Clearance: T | Ca: 1.69 kN | C0a: 3.085 kN
BSP0802RC3Z-207 Size: 8 x 2 mm | Shaft length: 207 mm | Stroke: 120 mm | Clearance: Z | Ca: 1.06 kN | C0a: 1.545 kN
BSP1002RC3T-169 Size: 10 x 2 mm | Shaft length: 169 mm | Stroke: 60 mm | Clearance: T | Ca: 1.98 kN | C0a: 3.82 kN
BSP1002RC3Z-169 Size: 10 x 2 mm | Shaft length: 169 mm | Stroke: 60 mm | Clearance: Z | Ca: 1.25 kN | C0a: 1.91 kN
BSP1002RC3T-209 Size: 10 x 2 mm | Shaft length: 209 mm | Stroke: 100 mm | Clearance: T | Ca: 1.98 kN | C0a: 3.82 kN
BSP1002RC3Z-209 Size: 10 x 2 mm | Shaft length: 209 mm | Stroke: 100 mm | Clearance: Z | Ca: 1.25 kN | C0a: 1.91 kN
BSP1002RC3T-259 Size: 10 x 2 mm | Shaft length: 259 mm | Stroke: 150 mm | Clearance: T | Ca: 1.98 kN | C0a: 3.82 kN
BSP1002RC3Z-259 Size: 10 x 2 mm | Shaft length: 259 mm | Stroke: 150 mm | Clearance: Z | Ca: 1.25 kN | C0a: 1.91 kN
BSP1202RC3T-179 Size: 12 x 2 mm | Shaft length: 179 mm | Stroke: 70 mm | Clearance: T | Ca: 2.24 kN | C0a: 4.555 kN
BSP1202RC3Z-179 Size: 12 x 2 mm | Shaft length: 179 mm | Stroke: 70 mm | Clearance: Z | Ca: 1.41 kN | C0a: 2.28 kN
BSP1202RC3T-239 Size: 12 x 2 mm | Shaft length: 239 mm | Stroke: 130 mm | Clearance: T | Ca: 2.24 kN | C0a: 4.555 kN
BSP1202RC3Z-239 Size: 12 x 2 mm | Shaft length: 239 mm | Stroke: 130 mm | Clearance: Z | Ca: 1.41 kN | C0a: 2.28 kN
BSP1202RC3T-289 Size: 12 x 2 mm | Shaft length: 289 mm | Stroke: 180 mm | Clearance: T | Ca: 2.24 kN | C0a: 4.555 kN
BSP1202RC3Z-289 Size: 12 x 2 mm | Shaft length: 289 mm | Stroke: 180 mm | Clearance: Z | Ca: 1.41 kN | C0a: 2.28 kN
BSP1402RC3T-222 Size: 14 x 2 mm | Shaft length: 222 mm | Stroke: 100 mm | Clearance: T | Ca: 2.47 kN | C0a: 5.29 kN
BSP1402RC3Z-222 Size: 14 x 2 mm | Shaft length: 222 mm | Stroke: 100 mm | Clearance: Z | Ca: 1.56 kN | C0a: 2.645 kN
BSP1402RC3T-272 Size: 14 x 2 mm | Shaft length: 272 mm | Stroke: 150 mm | Clearance: T | Ca: 2.47 kN | C0a: 5.29 kN
BSP1402RC3Z-272 Size: 14 x 2 mm | Shaft length: 272 mm | Stroke: 150 mm | Clearance: Z | Ca: 1.56 kN | C0a: 2.645 kN
BSP1402RC3T-322 Size: 14 x 2 mm | Shaft length: 322 mm | Stroke: 200 mm | Clearance: T | Ca: 2.47 kN | C0a: 5.29 kN
BSP1402RC3Z-322 Size: 14 x 2 mm | Shaft length: 322 mm | Stroke: 200 mm | Clearance: Z | Ca: 1.56 kN | C0a: 2.645 kN
BSF1004EC3T-190 Size: 10 x 4 mm | Shaft length: 190 mm | Stroke: 60 mm | Clearance: T | Ca: 2.73 kN | C0a: 4.41 kN
BSF1004EC3Z-190 Size: 10 x 4 mm | Shaft length: 190 mm | Stroke: 60 mm | Clearance: Z | Ca: 1.72 kN | C0a: 2.205 kN
BSF1004EC3T-230 Size: 10 x 4 mm | Shaft length: 230 mm | Stroke: 100 mm | Clearance: T | Ca: 2.73 kN | C0a: 4.41 kN
BSF1004EC3Z-230 Size: 10 x 4 mm | Shaft length: 230 mm | Stroke: 100 mm | Clearance: Z | Ca: 1.72 kN | C0a: 2.205 kN
BSF1004EC3T-280 Size: 10 x 4 mm | Shaft length: 280 mm | Stroke: 150 mm | Clearance: T | Ca: 2.73 kN | C0a: 4.41 kN
BSF1004EC3Z-280 Size: 10 x 4 mm | Shaft length: 280 mm | Stroke: 150 mm | Clearance: Z | Ca: 1.72 kN | C0a: 2.205 kN
BSF1005EC3T-190 Size: 10 x 5 mm | Shaft length: 190 mm | Stroke: 60 mm | Clearance: T | Ca: 2.73 kN | C0a: 4.41 kN
BSF1005EC3Z-190 Size: 10 x 5 mm | Shaft length: 190 mm | Stroke: 60 mm | Clearance: Z | Ca: 1.72 kN | C0a: 2.205 kN
BSF1005EC3T-230 Size: 10 x 5 mm | Shaft length: 230 mm | Stroke: 100 mm | Clearance: T | Ca: 2.73 kN | C0a: 4.41 kN
BSF1005EC3Z-230 Size: 10 x 5 mm | Shaft length: 230 mm | Stroke: 100 mm | Clearance: Z | Ca: 1.72 kN | C0a: 2.205 kN
BSF1005EC3T-280 Size: 10 x 5 mm | Shaft length: 280 mm | Stroke: 150 mm | Clearance: T | Ca: 2.73 kN | C0a: 4.41 kN
BSF1005EC3Z-280 Size: 10 x 5 mm | Shaft length: 280 mm | Stroke: 150 mm | Clearance: Z | Ca: 1.72 kN | C0a: 2.205 kN
BSF1010AC3T-242 Size: 10 x 10 mm | Shaft length: 242 mm | Stroke: 100 mm | Clearance: T | Ca: 1.72 kN | C0a: 2.745 kN
BSF1010AC3Z-242 Size: 10 x 10 mm | Shaft length: 242 mm | Stroke: 100 mm | Clearance: Z | Ca: 1.08 kN | C0a: 1.375 kN
BSF1010AC3T-292 Size: 10 x 10 mm | Shaft length: 292 mm | Stroke: 150 mm | Clearance: T | Ca: 1.72 kN | C0a: 2.745 kN
BSF1010AC3Z-292 Size: 10 x 10 mm | Shaft length: 292 mm | Stroke: 150 mm | Clearance: Z | Ca: 1.08 kN | C0a: 1.375 kN
BSF1010AC3T-342 Size: 10 x 10 mm | Shaft length: 342 mm | Stroke: 200 mm | Clearance: T | Ca: 1.72 kN | C0a: 2.745 kN
BSF1010AC3Z-342 Size: 10 x 10 mm | Shaft length: 342 mm | Stroke: 200 mm | Clearance: Z | Ca: 1.08 kN | C0a: 1.375 kN
BSF1010AC3T-392 Size: 10 x 10 mm | Shaft length: 392 mm | Stroke: 250 mm | Clearance: T | Ca: 1.72 kN | C0a: 2.745 kN
BSF1010AC3Z-392 Size: 10 x 10 mm | Shaft length: 392 mm | Stroke: 250 mm | Clearance: Z | Ca: 1.08 kN | C0a: 1.375 kN
BSF1204EC3T-226 Size: 12 x 4 mm | Shaft length: 226 mm | Stroke: 100 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
BSF1204EC3Z-226 Size: 12 x 4 mm | Shaft length: 226 mm | Stroke: 100 mm | Clearance: Z | Ca: 2.38 kN | C0a: 3.16 kN
BSF1204EC3T-276 Size: 12 x 4 mm | Shaft length: 276 mm | Stroke: 150 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
BSF1204EC3Z-276 Size: 12 x 4 mm | Shaft length: 276 mm | Stroke: 150 mm | Clearance: Z | Ca: 2.38 kN | C0a: 3.16 kN
BSF1204EC3T-326 Size: 12 x 4 mm | Shaft length: 326 mm | Stroke: 200 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
BSF1204EC3Z-326 Size: 12 x 4 mm | Shaft length: 326 mm | Stroke: 200 mm | Clearance: Z | Ca: 2.38 kN | C0a: 3.16 kN
BSF1205EC3T-230 Size: 12 x 5 mm | Shaft length: 230 mm | Stroke: 100 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
BSF1205EC3Z-230 Size: 12 x 5 mm | Shaft length: 230 mm | Stroke: 100 mm | Clearance: Z | Ca: 2.38 kN | C0a: 3.16 kN
BSF1205EC3T-280 Size: 12 x 5 mm | Shaft length: 280 mm | Stroke: 150 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
BSF1205EC3Z-280 Size: 12 x 5 mm | Shaft length: 280 mm | Stroke: 150 mm | Clearance: Z | Ca: 2.38 kN | C0a: 3.16 kN
BSF1205EC3T-330 Size: 12 x 5 mm | Shaft length: 330 mm | Stroke: 200 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
BSF1205EC3Z-330 Size: 12 x 5 mm | Shaft length: 330 mm | Stroke: 200 mm | Clearance: Z | Ca: 2.38 kN | C0a: 3.16 kN
BSF1205EC3T-380 Size: 12 x 5 mm | Shaft length: 380 mm | Stroke: 250 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
BSF1205EC3Z-380 Size: 12 x 5 mm | Shaft length: 380 mm | Stroke: 250 mm | Clearance: Z | Ca: 2.38 kN | C0a: 3.16 kN
BSF1210EC3T-302 Size: 12 x 10 mm | Shaft length: 302 mm | Stroke: 150 mm | Clearance: T | Ca: 3.82 kN | C0a: 6.48 kN
BSF1210EC3Z-302 Size: 12 x 10 mm | Shaft length: 302 mm | Stroke: 150 mm | Clearance: Z | Ca: 2.41 kN | C0a: 3.24 kN
BSF1210EC3T-352 Size: 12 x 10 mm | Shaft length: 352 mm | Stroke: 200 mm | Clearance: T | Ca: 3.82 kN | C0a: 6.48 kN
BSF1210EC3Z-352 Size: 12 x 10 mm | Shaft length: 352 mm | Stroke: 200 mm | Clearance: Z | Ca: 2.41 kN | C0a: 3.24 kN
BSF1210EC3T-402 Size: 12 x 10 mm | Shaft length: 402 mm | Stroke: 250 mm | Clearance: T | Ca: 3.82 kN | C0a: 6.48 kN
BSF1210EC3Z-402 Size: 12 x 10 mm | Shaft length: 402 mm | Stroke: 250 mm | Clearance: Z | Ca: 2.41 kN | C0a: 3.24 kN
BSF1210EC3T-452 Size: 12 x 10 mm | Shaft length: 452 mm | Stroke: 300 mm | Clearance: T | Ca: 3.82 kN | C0a: 6.48 kN
BSF1210EC3Z-452 Size: 12 x 10 mm | Shaft length: 452 mm | Stroke: 300 mm | Clearance: Z | Ca: 2.41 kN | C0a: 3.24 kN
BSF1220AC3T-377 Size: 12 x 20 mm | Shaft length: 377 mm | Stroke: 200 mm | Clearance: T | Ca: 2.41 kN | C0a: 3.92 kN
BSF1220AC3Z-377 Size: 12 x 20 mm | Shaft length: 377 mm | Stroke: 200 mm | Clearance: Z | Ca: 1.52 kN | C0a: 1.96 kN
BSF1220AC3T-427 Size: 12 x 20 mm | Shaft length: 427 mm | Stroke: 250 mm | Clearance: T | Ca: 2.41 kN | C0a: 3.92 kN
BSF1220AC3Z-427 Size: 12 x 20 mm | Shaft length: 427 mm | Stroke: 250 mm | Clearance: Z | Ca: 1.52 kN | C0a: 1.96 kN
BSF1220AC3T-477 Size: 12 x 20 mm | Shaft length: 477 mm | Stroke: 300 mm | Clearance: T | Ca: 2.41 kN | C0a: 3.92 kN
BSF1220AC3Z-477 Size: 12 x 20 mm | Shaft length: 477 mm | Stroke: 300 mm | Clearance: Z | Ca: 1.52 kN | C0a: 1.96 kN
BSF1220AC3T-527 Size: 12 x 20 mm | Shaft length: 527 mm | Stroke: 350 mm | Clearance: T | Ca: 2.41 kN | C0a: 3.92 kN
BSF1220AC3Z-527 Size: 12 x 20 mm | Shaft length: 527 mm | Stroke: 350 mm | Clearance: Z | Ca: 1.52 kN | C0a: 1.96 kN
BSF1404EC3T-287 Size: 14 x 4 mm | Shaft length: 287 mm | Stroke: 150 mm | Clearance: T | Ca: 4.22 kN | C0a: 7.15 kN
BSF1404EC3Z-287 Size: 14 x 4 mm | Shaft length: 287 mm | Stroke: 150 mm | Clearance: Z | Ca: 2.53 kN | C0a: 3.84 kN
BSF1404EC3T-337 Size: 14 x 4 mm | Shaft length: 337 mm | Stroke: 200 mm | Clearance: T | Ca: 4.22 kN | C0a: 7.15 kN
BSF1404EC3Z-337 Size: 14 x 4 mm | Shaft length: 337 mm | Stroke: 200 mm | Clearance: Z | Ca: 2.53 kN | C0a: 3.84 kN
BSF1404EC3T-387 Size: 14 x 4 mm | Shaft length: 387 mm | Stroke: 250 mm | Clearance: T | Ca: 4.22 kN | C0a: 7.15 kN
BSF1404EC3Z-387 Size: 14 x 4 mm | Shaft length: 387 mm | Stroke: 250 mm | Clearance: Z | Ca: 2.53 kN | C0a: 3.84 kN
BSF1405EC3T-293 Size: 14 x 5 mm | Shaft length: 293 mm | Stroke: 150 mm | Clearance: T | Ca: 6.27 kN | C0a: 11.66 kN
BSF1405EC3Z-293 Size: 14 x 5 mm | Shaft length: 293 mm | Stroke: 150 mm | Clearance: Z | Ca: 3.95 kN | C0a: 5.83 kN
BSF1405EC3T-343 Size: 14 x 5 mm | Shaft length: 343 mm | Stroke: 200 mm | Clearance: T | Ca: 6.27 kN | C0a: 11.66 kN
BSF1405EC3Z-343 Size: 14 x 5 mm | Shaft length: 343 mm | Stroke: 200 mm | Clearance: Z | Ca: 3.95 kN | C0a: 5.83 kN
BSF1405EC3T-393 Size: 14 x 5 mm | Shaft length: 393 mm | Stroke: 250 mm | Clearance: T | Ca: 6.27 kN | C0a: 11.66 kN
BSF1405EC3Z-393 Size: 14 x 5 mm | Shaft length: 393 mm | Stroke: 250 mm | Clearance: Z | Ca: 3.95 kN | C0a: 5.83 kN
BSF1405EC3T-443 Size: 14 x 5 mm | Shaft length: 443 mm | Stroke: 300 mm | Clearance: T | Ca: 6.27 kN | C0a: 11.66 kN
BSF1405EC3Z-443 Size: 14 x 5 mm | Shaft length: 443 mm | Stroke: 300 mm | Clearance: Z | Ca: 3.95 kN | C0a: 5.83 kN
BSF1510EC3T-371 Size: 15 x 10 mm | Shaft length: 371 mm | Stroke: 200 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.54 kN
BSF1510EC3Z-371 Size: 15 x 10 mm | Shaft length: 371 mm | Stroke: 200 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
BSF1510EC3T-471 Size: 15 x 10 mm | Shaft length: 471 mm | Stroke: 300 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.54 kN
BSF1510EC3Z-471 Size: 15 x 10 mm | Shaft length: 471 mm | Stroke: 300 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
BSF1510EC3T-571 Size: 15 x 10 mm | Shaft length: 571 mm | Stroke: 400 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.54 kN
BSF1510EC3Z-571 Size: 15 x 10 mm | Shaft length: 571 mm | Stroke: 400 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
BSF1510EC3T-671 Size: 15 x 10 mm | Shaft length: 671 mm | Stroke: 500 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.54 kN
BSF1510EC3Z-671 Size: 15 x 10 mm | Shaft length: 671 mm | Stroke: 500 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
BSF1520AC3T-484 Size: 15 x 20 mm | Shaft length: 484 mm | Stroke: 300 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
BSF1520AC3Z-484 Size: 15 x 20 mm | Shaft length: 484 mm | Stroke: 300 mm | Clearance: Z | Ca: 2.66 kN | C0a: 3.92 kN
BSF1520AC3T-584 Size: 15 x 20 mm | Shaft length: 584 mm | Stroke: 400 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
BSF1520AC3Z-584 Size: 15 x 20 mm | Shaft length: 584 mm | Stroke: 400 mm | Clearance: Z | Ca: 2.66 kN | C0a: 3.92 kN
BSF1520AC3T-684 Size: 15 x 20 mm | Shaft length: 684 mm | Stroke: 500 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
BSF1520AC3Z-684 Size: 15 x 20 mm | Shaft length: 684 mm | Stroke: 500 mm | Clearance: Z | Ca: 2.66 kN | C0a: 3.92 kN
BSF1520AC3T-784 Size: 15 x 20 mm | Shaft length: 784 mm | Stroke: 600 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
BSF1520AC3Z-784 Size: 15 x 20 mm | Shaft length: 784 mm | Stroke: 600 mm | Clearance: Z | Ca: 2.66 kN | C0a: 3.92 kN
BSF1604EC3T-339 Size: 16 x 4 mm | Shaft length: 339 mm | Stroke: 200 mm | Clearance: T | Ca: 4.64 kN | C0a: 8.53 kN
BSF1604EC3Z-339 Size: 16 x 4 mm | Shaft length: 339 mm | Stroke: 200 mm | Clearance: Z | Ca: 2.92 kN | C0a: 4.265 kN
BSF1604EC3T-439 Size: 16 x 4 mm | Shaft length: 439 mm | Stroke: 300 mm | Clearance: T | Ca: 4.64 kN | C0a: 8.53 kN
BSF1604EC3Z-439 Size: 16 x 4 mm | Shaft length: 439 mm | Stroke: 300 mm | Clearance: Z | Ca: 2.92 kN | C0a: 4.265 kN
BSF1604EC3T-539 Size: 16 x 4 mm | Shaft length: 539 mm | Stroke: 400 mm | Clearance: T | Ca: 4.64 kN | C0a: 8.53 kN
BSF1604EC3Z-539 Size: 16 x 4 mm | Shaft length: 539 mm | Stroke: 400 mm | Clearance: Z | Ca: 2.92 kN | C0a: 4.265 kN
BSF1616AC3T-371 Size: 16 x 16 mm | Shaft length: 371 mm | Stroke: 200 mm | Clearance: T | Ca: 4.38 kN | C0a: 8.23 kN
BSF1616AC3Z-371 Size: 16 x 16 mm | Shaft length: 371 mm | Stroke: 200 mm | Clearance: Z | Ca: 2.52 kN | C0a: 3.53 kN
BSF1616AC3T-471 Size: 16 x 16 mm | Shaft length: 471 mm | Stroke: 300 mm | Clearance: T | Ca: 4.38 kN | C0a: 8.23 kN
BSF1616AC3Z-471 Size: 16 x 16 mm | Shaft length: 471 mm | Stroke: 300 mm | Clearance: Z | Ca: 2.52 kN | C0a: 3.53 kN
BSF1616AC3T-571 Size: 16 x 16 mm | Shaft length: 571 mm | Stroke: 400 mm | Clearance: T | Ca: 4.38 kN | C0a: 8.23 kN
BSF1616AC3Z-571 Size: 16 x 16 mm | Shaft length: 571 mm | Stroke: 400 mm | Clearance: Z | Ca: 2.52 kN | C0a: 3.53 kN
BSF1616AC3T-671 Size: 16 x 16 mm | Shaft length: 671 mm | Stroke: 500 mm | Clearance: T | Ca: 4.38 kN | C0a: 8.23 kN
BSF1616AC3Z-671 Size: 16 x 16 mm | Shaft length: 671 mm | Stroke: 500 mm | Clearance: Z | Ca: 2.52 kN | C0a: 3.53 kN
BSF1616AC3T-771 Size: 16 x 16 mm | Shaft length: 771 mm | Stroke: 600 mm | Clearance: T | Ca: 4.38 kN | C0a: 8.23 kN
BSF1616AC3Z-771 Size: 16 x 16 mm | Shaft length: 771 mm | Stroke: 600 mm | Clearance: Z | Ca: 2.52 kN | C0a: 3.53 kN
BSF2010EC3T-399 Size: 20 x 10 mm | Shaft length: 399 mm | Stroke: 200 mm | Clearance: T | Ca: 8.15 kN | C0a: 17.15 kN
BSF2010EC3Z-399 Size: 20 x 10 mm | Shaft length: 399 mm | Stroke: 200 mm | Clearance: Z | Ca: 6.99 kN | C0a: 11.05 kN
BSF2010EC3T-499 Size: 20 x 10 mm | Shaft length: 499 mm | Stroke: 300 mm | Clearance: T | Ca: 8.15 kN | C0a: 17.15 kN
BSF2010EC3Z-499 Size: 20 x 10 mm | Shaft length: 499 mm | Stroke: 300 mm | Clearance: Z | Ca: 6.99 kN | C0a: 11.05 kN
BSF2010EC3T-599 Size: 20 x 10 mm | Shaft length: 599 mm | Stroke: 400 mm | Clearance: T | Ca: 8.15 kN | C0a: 17.15 kN
BSF2010EC3Z-599 Size: 20 x 10 mm | Shaft length: 599 mm | Stroke: 400 mm | Clearance: Z | Ca: 6.99 kN | C0a: 11.05 kN
BSF2010EC3T-699 Size: 20 x 10 mm | Shaft length: 699 mm | Stroke: 500 mm | Clearance: T | Ca: 8.15 kN | C0a: 17.15 kN
BSF2010EC3Z-699 Size: 20 x 10 mm | Shaft length: 699 mm | Stroke: 500 mm | Clearance: Z | Ca: 6.99 kN | C0a: 11.05 kN
BSF2010EC3T-799 Size: 20 x 10 mm | Shaft length: 799 mm | Stroke: 600 mm | Clearance: T | Ca: 8.15 kN | C0a: 17.15 kN
BSF2010EC3Z-799 Size: 20 x 10 mm | Shaft length: 799 mm | Stroke: 600 mm | Clearance: Z | Ca: 6.99 kN | C0a: 11.05 kN
BSF2020AC3T-520 Size: 20 x 20 mm | Shaft length: 520 mm | Stroke: 300 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
BSF2020AC3Z-520 Size: 20 x 20 mm | Shaft length: 520 mm | Stroke: 300 mm | Clearance: Z | Ca: 4.23 kN | C0a: 6.32 kN
BSF2020AC3T-620 Size: 20 x 20 mm | Shaft length: 620 mm | Stroke: 400 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
BSF2020AC3Z-620 Size: 20 x 20 mm | Shaft length: 620 mm | Stroke: 400 mm | Clearance: Z | Ca: 4.23 kN | C0a: 6.32 kN
BSF2020AC3T-720 Size: 20 x 20 mm | Shaft length: 720 mm | Stroke: 500 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
BSF2020AC3Z-720 Size: 20 x 20 mm | Shaft length: 720 mm | Stroke: 500 mm | Clearance: Z | Ca: 4.23 kN | C0a: 6.32 kN
BSF2020AC3T-820 Size: 20 x 20 mm | Shaft length: 820 mm | Stroke: 600 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
BSF2020AC3Z-820 Size: 20 x 20 mm | Shaft length: 820 mm | Stroke: 600 mm | Clearance: Z | Ca: 4.23 kN | C0a: 6.32 kN
BSF2020AC3T-920 Size: 20 x 20 mm | Shaft length: 920 mm | Stroke: 700 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
BSF2020AC3Z-920 Size: 20 x 20 mm | Shaft length: 920 mm | Stroke: 700 mm | Clearance: Z | Ca: 4.23 kN | C0a: 6.32 kN
Ball ScrewsISSOKU
158 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ISSOKU BSP/BSF Ground Ball Screws C3, Machined Ends

Brand ISSOKU·Ball Screws

Available part numbers (158)

BSP0601RC3T-120, BSP0601RC3Z-120, BSP0601RC3T-150, BSP0601RC3Z-150, BSP0601RC3T-180, BSP0601RC3Z-180, BSP0602RC3T-124, BSP0602RC3Z-124, BSP0602RC3T-154, BSP0602RC3Z-154 + 148 more — see full table ↓

How to order

Send the ISSOKU part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BSP0601RC3T-120Size: 6 x 1 mm | Shaft length: 120 mm | Stroke: 40 mm | Clearance: T | Ca: 0.63 kN | C0a: 1.13 kN
BSP0601RC3Z-120Size: 6 x 1 mm | Shaft length: 120 mm | Stroke: 40 mm | Clearance: Z | Ca: 0.4 kN | C0a: 0.565 kN
BSP0601RC3T-150Size: 6 x 1 mm | Shaft length: 150 mm | Stroke: 70 mm | Clearance: T | Ca: 0.63 kN | C0a: 1.13 kN
BSP0601RC3Z-150Size: 6 x 1 mm | Shaft length: 150 mm | Stroke: 70 mm | Clearance: Z | Ca: 0.4 kN | C0a: 0.565 kN
BSP0601RC3T-180Size: 6 x 1 mm | Shaft length: 180 mm | Stroke: 100 mm | Clearance: T | Ca: 0.63 kN | C0a: 1.13 kN
BSP0601RC3Z-180Size: 6 x 1 mm | Shaft length: 180 mm | Stroke: 100 mm | Clearance: Z | Ca: 0.4 kN | C0a: 0.565 kN
BSP0602RC3T-124Size: 6 x 2 mm | Shaft length: 124 mm | Stroke: 40 mm | Clearance: T | Ca: 1.35 kN | C0a: 2.35 kN
BSP0602RC3Z-124Size: 6 x 2 mm | Shaft length: 124 mm | Stroke: 40 mm | Clearance: Z | Ca: 0.85 kN | C0a: 1.175 kN
BSP0602RC3T-154Size: 6 x 2 mm | Shaft length: 154 mm | Stroke: 70 mm | Clearance: T | Ca: 1.35 kN | C0a: 2.35 kN
BSP0602RC3Z-154Size: 6 x 2 mm | Shaft length: 154 mm | Stroke: 70 mm | Clearance: Z | Ca: 0.85 kN | C0a: 1.175 kN
BSP0602RC3T-184Size: 6 x 2 mm | Shaft length: 184 mm | Stroke: 100 mm | Clearance: T | Ca: 1.35 kN | C0a: 2.35 kN
BSP0602RC3Z-184Size: 6 x 2 mm | Shaft length: 184 mm | Stroke: 100 mm | Clearance: Z | Ca: 0.85 kN | C0a: 1.175 kN
BSP0801RC3T-122Size: 8 x 1 mm | Shaft length: 122 mm | Stroke: 40 mm | Clearance: T | Ca: 0.75 kN | C0a: 1.52 kN
BSP0801RC3Z-122Size: 8 x 1 mm | Shaft length: 122 mm | Stroke: 40 mm | Clearance: Z | Ca: 0.47 kN | C0a: 0.76 kN
BSP0801RC3T-152Size: 8 x 1 mm | Shaft length: 152 mm | Stroke: 70 mm | Clearance: T | Ca: 0.75 kN | C0a: 1.52 kN
BSP0801RC3Z-152Size: 8 x 1 mm | Shaft length: 152 mm | Stroke: 70 mm | Clearance: Z | Ca: 0.47 kN | C0a: 0.76 kN
BSP0801RC3T-182Size: 8 x 1 mm | Shaft length: 182 mm | Stroke: 100 mm | Clearance: T | Ca: 0.75 kN | C0a: 1.52 kN
BSP0801RC3Z-182Size: 8 x 1 mm | Shaft length: 182 mm | Stroke: 100 mm | Clearance: Z | Ca: 0.47 kN | C0a: 0.76 kN
BSP0802RC3T-137Size: 8 x 2 mm | Shaft length: 137 mm | Stroke: 50 mm | Clearance: T | Ca: 1.69 kN | C0a: 3.085 kN
BSP0802RC3Z-137Size: 8 x 2 mm | Shaft length: 137 mm | Stroke: 50 mm | Clearance: Z | Ca: 1.06 kN | C0a: 1.545 kN
BSP0802RC3T-177Size: 8 x 2 mm | Shaft length: 177 mm | Stroke: 90 mm | Clearance: T | Ca: 1.69 kN | C0a: 3.085 kN
BSP0802RC3Z-177Size: 8 x 2 mm | Shaft length: 177 mm | Stroke: 90 mm | Clearance: Z | Ca: 1.06 kN | C0a: 1.545 kN
BSP0802RC3T-207Size: 8 x 2 mm | Shaft length: 207 mm | Stroke: 120 mm | Clearance: T | Ca: 1.69 kN | C0a: 3.085 kN
BSP0802RC3Z-207Size: 8 x 2 mm | Shaft length: 207 mm | Stroke: 120 mm | Clearance: Z | Ca: 1.06 kN | C0a: 1.545 kN
BSP1002RC3T-169Size: 10 x 2 mm | Shaft length: 169 mm | Stroke: 60 mm | Clearance: T | Ca: 1.98 kN | C0a: 3.82 kN
BSP1002RC3Z-169Size: 10 x 2 mm | Shaft length: 169 mm | Stroke: 60 mm | Clearance: Z | Ca: 1.25 kN | C0a: 1.91 kN
BSP1002RC3T-209Size: 10 x 2 mm | Shaft length: 209 mm | Stroke: 100 mm | Clearance: T | Ca: 1.98 kN | C0a: 3.82 kN
BSP1002RC3Z-209Size: 10 x 2 mm | Shaft length: 209 mm | Stroke: 100 mm | Clearance: Z | Ca: 1.25 kN | C0a: 1.91 kN
BSP1002RC3T-259Size: 10 x 2 mm | Shaft length: 259 mm | Stroke: 150 mm | Clearance: T | Ca: 1.98 kN | C0a: 3.82 kN
BSP1002RC3Z-259Size: 10 x 2 mm | Shaft length: 259 mm | Stroke: 150 mm | Clearance: Z | Ca: 1.25 kN | C0a: 1.91 kN
BSP1202RC3T-179Size: 12 x 2 mm | Shaft length: 179 mm | Stroke: 70 mm | Clearance: T | Ca: 2.24 kN | C0a: 4.555 kN
BSP1202RC3Z-179Size: 12 x 2 mm | Shaft length: 179 mm | Stroke: 70 mm | Clearance: Z | Ca: 1.41 kN | C0a: 2.28 kN
BSP1202RC3T-239Size: 12 x 2 mm | Shaft length: 239 mm | Stroke: 130 mm | Clearance: T | Ca: 2.24 kN | C0a: 4.555 kN
BSP1202RC3Z-239Size: 12 x 2 mm | Shaft length: 239 mm | Stroke: 130 mm | Clearance: Z | Ca: 1.41 kN | C0a: 2.28 kN
BSP1202RC3T-289Size: 12 x 2 mm | Shaft length: 289 mm | Stroke: 180 mm | Clearance: T | Ca: 2.24 kN | C0a: 4.555 kN
BSP1202RC3Z-289Size: 12 x 2 mm | Shaft length: 289 mm | Stroke: 180 mm | Clearance: Z | Ca: 1.41 kN | C0a: 2.28 kN
BSP1402RC3T-222Size: 14 x 2 mm | Shaft length: 222 mm | Stroke: 100 mm | Clearance: T | Ca: 2.47 kN | C0a: 5.29 kN
BSP1402RC3Z-222Size: 14 x 2 mm | Shaft length: 222 mm | Stroke: 100 mm | Clearance: Z | Ca: 1.56 kN | C0a: 2.645 kN
BSP1402RC3T-272Size: 14 x 2 mm | Shaft length: 272 mm | Stroke: 150 mm | Clearance: T | Ca: 2.47 kN | C0a: 5.29 kN
BSP1402RC3Z-272Size: 14 x 2 mm | Shaft length: 272 mm | Stroke: 150 mm | Clearance: Z | Ca: 1.56 kN | C0a: 2.645 kN
BSP1402RC3T-322Size: 14 x 2 mm | Shaft length: 322 mm | Stroke: 200 mm | Clearance: T | Ca: 2.47 kN | C0a: 5.29 kN
BSP1402RC3Z-322Size: 14 x 2 mm | Shaft length: 322 mm | Stroke: 200 mm | Clearance: Z | Ca: 1.56 kN | C0a: 2.645 kN
BSF1004EC3T-190Size: 10 x 4 mm | Shaft length: 190 mm | Stroke: 60 mm | Clearance: T | Ca: 2.73 kN | C0a: 4.41 kN
BSF1004EC3Z-190Size: 10 x 4 mm | Shaft length: 190 mm | Stroke: 60 mm | Clearance: Z | Ca: 1.72 kN | C0a: 2.205 kN
BSF1004EC3T-230Size: 10 x 4 mm | Shaft length: 230 mm | Stroke: 100 mm | Clearance: T | Ca: 2.73 kN | C0a: 4.41 kN
BSF1004EC3Z-230Size: 10 x 4 mm | Shaft length: 230 mm | Stroke: 100 mm | Clearance: Z | Ca: 1.72 kN | C0a: 2.205 kN
BSF1004EC3T-280Size: 10 x 4 mm | Shaft length: 280 mm | Stroke: 150 mm | Clearance: T | Ca: 2.73 kN | C0a: 4.41 kN
BSF1004EC3Z-280Size: 10 x 4 mm | Shaft length: 280 mm | Stroke: 150 mm | Clearance: Z | Ca: 1.72 kN | C0a: 2.205 kN
BSF1005EC3T-190Size: 10 x 5 mm | Shaft length: 190 mm | Stroke: 60 mm | Clearance: T | Ca: 2.73 kN | C0a: 4.41 kN
BSF1005EC3Z-190Size: 10 x 5 mm | Shaft length: 190 mm | Stroke: 60 mm | Clearance: Z | Ca: 1.72 kN | C0a: 2.205 kN
BSF1005EC3T-230Size: 10 x 5 mm | Shaft length: 230 mm | Stroke: 100 mm | Clearance: T | Ca: 2.73 kN | C0a: 4.41 kN
BSF1005EC3Z-230Size: 10 x 5 mm | Shaft length: 230 mm | Stroke: 100 mm | Clearance: Z | Ca: 1.72 kN | C0a: 2.205 kN
BSF1005EC3T-280Size: 10 x 5 mm | Shaft length: 280 mm | Stroke: 150 mm | Clearance: T | Ca: 2.73 kN | C0a: 4.41 kN
BSF1005EC3Z-280Size: 10 x 5 mm | Shaft length: 280 mm | Stroke: 150 mm | Clearance: Z | Ca: 1.72 kN | C0a: 2.205 kN
BSF1010AC3T-242Size: 10 x 10 mm | Shaft length: 242 mm | Stroke: 100 mm | Clearance: T | Ca: 1.72 kN | C0a: 2.745 kN
BSF1010AC3Z-242Size: 10 x 10 mm | Shaft length: 242 mm | Stroke: 100 mm | Clearance: Z | Ca: 1.08 kN | C0a: 1.375 kN
BSF1010AC3T-292Size: 10 x 10 mm | Shaft length: 292 mm | Stroke: 150 mm | Clearance: T | Ca: 1.72 kN | C0a: 2.745 kN
BSF1010AC3Z-292Size: 10 x 10 mm | Shaft length: 292 mm | Stroke: 150 mm | Clearance: Z | Ca: 1.08 kN | C0a: 1.375 kN
BSF1010AC3T-342Size: 10 x 10 mm | Shaft length: 342 mm | Stroke: 200 mm | Clearance: T | Ca: 1.72 kN | C0a: 2.745 kN
BSF1010AC3Z-342Size: 10 x 10 mm | Shaft length: 342 mm | Stroke: 200 mm | Clearance: Z | Ca: 1.08 kN | C0a: 1.375 kN
BSF1010AC3T-392Size: 10 x 10 mm | Shaft length: 392 mm | Stroke: 250 mm | Clearance: T | Ca: 1.72 kN | C0a: 2.745 kN
BSF1010AC3Z-392Size: 10 x 10 mm | Shaft length: 392 mm | Stroke: 250 mm | Clearance: Z | Ca: 1.08 kN | C0a: 1.375 kN
BSF1204EC3T-226Size: 12 x 4 mm | Shaft length: 226 mm | Stroke: 100 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
BSF1204EC3Z-226Size: 12 x 4 mm | Shaft length: 226 mm | Stroke: 100 mm | Clearance: Z | Ca: 2.38 kN | C0a: 3.16 kN
BSF1204EC3T-276Size: 12 x 4 mm | Shaft length: 276 mm | Stroke: 150 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
BSF1204EC3Z-276Size: 12 x 4 mm | Shaft length: 276 mm | Stroke: 150 mm | Clearance: Z | Ca: 2.38 kN | C0a: 3.16 kN
BSF1204EC3T-326Size: 12 x 4 mm | Shaft length: 326 mm | Stroke: 200 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
BSF1204EC3Z-326Size: 12 x 4 mm | Shaft length: 326 mm | Stroke: 200 mm | Clearance: Z | Ca: 2.38 kN | C0a: 3.16 kN
BSF1205EC3T-230Size: 12 x 5 mm | Shaft length: 230 mm | Stroke: 100 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
BSF1205EC3Z-230Size: 12 x 5 mm | Shaft length: 230 mm | Stroke: 100 mm | Clearance: Z | Ca: 2.38 kN | C0a: 3.16 kN
BSF1205EC3T-280Size: 12 x 5 mm | Shaft length: 280 mm | Stroke: 150 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
BSF1205EC3Z-280Size: 12 x 5 mm | Shaft length: 280 mm | Stroke: 150 mm | Clearance: Z | Ca: 2.38 kN | C0a: 3.16 kN
BSF1205EC3T-330Size: 12 x 5 mm | Shaft length: 330 mm | Stroke: 200 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
BSF1205EC3Z-330Size: 12 x 5 mm | Shaft length: 330 mm | Stroke: 200 mm | Clearance: Z | Ca: 2.38 kN | C0a: 3.16 kN
BSF1205EC3T-380Size: 12 x 5 mm | Shaft length: 380 mm | Stroke: 250 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
BSF1205EC3Z-380Size: 12 x 5 mm | Shaft length: 380 mm | Stroke: 250 mm | Clearance: Z | Ca: 2.38 kN | C0a: 3.16 kN
BSF1210EC3T-302Size: 12 x 10 mm | Shaft length: 302 mm | Stroke: 150 mm | Clearance: T | Ca: 3.82 kN | C0a: 6.48 kN
BSF1210EC3Z-302Size: 12 x 10 mm | Shaft length: 302 mm | Stroke: 150 mm | Clearance: Z | Ca: 2.41 kN | C0a: 3.24 kN
BSF1210EC3T-352Size: 12 x 10 mm | Shaft length: 352 mm | Stroke: 200 mm | Clearance: T | Ca: 3.82 kN | C0a: 6.48 kN
BSF1210EC3Z-352Size: 12 x 10 mm | Shaft length: 352 mm | Stroke: 200 mm | Clearance: Z | Ca: 2.41 kN | C0a: 3.24 kN
BSF1210EC3T-402Size: 12 x 10 mm | Shaft length: 402 mm | Stroke: 250 mm | Clearance: T | Ca: 3.82 kN | C0a: 6.48 kN
BSF1210EC3Z-402Size: 12 x 10 mm | Shaft length: 402 mm | Stroke: 250 mm | Clearance: Z | Ca: 2.41 kN | C0a: 3.24 kN
BSF1210EC3T-452Size: 12 x 10 mm | Shaft length: 452 mm | Stroke: 300 mm | Clearance: T | Ca: 3.82 kN | C0a: 6.48 kN
BSF1210EC3Z-452Size: 12 x 10 mm | Shaft length: 452 mm | Stroke: 300 mm | Clearance: Z | Ca: 2.41 kN | C0a: 3.24 kN
BSF1220AC3T-377Size: 12 x 20 mm | Shaft length: 377 mm | Stroke: 200 mm | Clearance: T | Ca: 2.41 kN | C0a: 3.92 kN
BSF1220AC3Z-377Size: 12 x 20 mm | Shaft length: 377 mm | Stroke: 200 mm | Clearance: Z | Ca: 1.52 kN | C0a: 1.96 kN
BSF1220AC3T-427Size: 12 x 20 mm | Shaft length: 427 mm | Stroke: 250 mm | Clearance: T | Ca: 2.41 kN | C0a: 3.92 kN
BSF1220AC3Z-427Size: 12 x 20 mm | Shaft length: 427 mm | Stroke: 250 mm | Clearance: Z | Ca: 1.52 kN | C0a: 1.96 kN
BSF1220AC3T-477Size: 12 x 20 mm | Shaft length: 477 mm | Stroke: 300 mm | Clearance: T | Ca: 2.41 kN | C0a: 3.92 kN
BSF1220AC3Z-477Size: 12 x 20 mm | Shaft length: 477 mm | Stroke: 300 mm | Clearance: Z | Ca: 1.52 kN | C0a: 1.96 kN
BSF1220AC3T-527Size: 12 x 20 mm | Shaft length: 527 mm | Stroke: 350 mm | Clearance: T | Ca: 2.41 kN | C0a: 3.92 kN
BSF1220AC3Z-527Size: 12 x 20 mm | Shaft length: 527 mm | Stroke: 350 mm | Clearance: Z | Ca: 1.52 kN | C0a: 1.96 kN
BSF1404EC3T-287Size: 14 x 4 mm | Shaft length: 287 mm | Stroke: 150 mm | Clearance: T | Ca: 4.22 kN | C0a: 7.15 kN
BSF1404EC3Z-287Size: 14 x 4 mm | Shaft length: 287 mm | Stroke: 150 mm | Clearance: Z | Ca: 2.53 kN | C0a: 3.84 kN
BSF1404EC3T-337Size: 14 x 4 mm | Shaft length: 337 mm | Stroke: 200 mm | Clearance: T | Ca: 4.22 kN | C0a: 7.15 kN
BSF1404EC3Z-337Size: 14 x 4 mm | Shaft length: 337 mm | Stroke: 200 mm | Clearance: Z | Ca: 2.53 kN | C0a: 3.84 kN
BSF1404EC3T-387Size: 14 x 4 mm | Shaft length: 387 mm | Stroke: 250 mm | Clearance: T | Ca: 4.22 kN | C0a: 7.15 kN
BSF1404EC3Z-387Size: 14 x 4 mm | Shaft length: 387 mm | Stroke: 250 mm | Clearance: Z | Ca: 2.53 kN | C0a: 3.84 kN
BSF1405EC3T-293Size: 14 x 5 mm | Shaft length: 293 mm | Stroke: 150 mm | Clearance: T | Ca: 6.27 kN | C0a: 11.66 kN
BSF1405EC3Z-293Size: 14 x 5 mm | Shaft length: 293 mm | Stroke: 150 mm | Clearance: Z | Ca: 3.95 kN | C0a: 5.83 kN
BSF1405EC3T-343Size: 14 x 5 mm | Shaft length: 343 mm | Stroke: 200 mm | Clearance: T | Ca: 6.27 kN | C0a: 11.66 kN
BSF1405EC3Z-343Size: 14 x 5 mm | Shaft length: 343 mm | Stroke: 200 mm | Clearance: Z | Ca: 3.95 kN | C0a: 5.83 kN
BSF1405EC3T-393Size: 14 x 5 mm | Shaft length: 393 mm | Stroke: 250 mm | Clearance: T | Ca: 6.27 kN | C0a: 11.66 kN
BSF1405EC3Z-393Size: 14 x 5 mm | Shaft length: 393 mm | Stroke: 250 mm | Clearance: Z | Ca: 3.95 kN | C0a: 5.83 kN
BSF1405EC3T-443Size: 14 x 5 mm | Shaft length: 443 mm | Stroke: 300 mm | Clearance: T | Ca: 6.27 kN | C0a: 11.66 kN
BSF1405EC3Z-443Size: 14 x 5 mm | Shaft length: 443 mm | Stroke: 300 mm | Clearance: Z | Ca: 3.95 kN | C0a: 5.83 kN
BSF1510EC3T-371Size: 15 x 10 mm | Shaft length: 371 mm | Stroke: 200 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.54 kN
BSF1510EC3Z-371Size: 15 x 10 mm | Shaft length: 371 mm | Stroke: 200 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
BSF1510EC3T-471Size: 15 x 10 mm | Shaft length: 471 mm | Stroke: 300 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.54 kN
BSF1510EC3Z-471Size: 15 x 10 mm | Shaft length: 471 mm | Stroke: 300 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
BSF1510EC3T-571Size: 15 x 10 mm | Shaft length: 571 mm | Stroke: 400 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.54 kN
BSF1510EC3Z-571Size: 15 x 10 mm | Shaft length: 571 mm | Stroke: 400 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
BSF1510EC3T-671Size: 15 x 10 mm | Shaft length: 671 mm | Stroke: 500 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.54 kN
BSF1510EC3Z-671Size: 15 x 10 mm | Shaft length: 671 mm | Stroke: 500 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
BSF1520AC3T-484Size: 15 x 20 mm | Shaft length: 484 mm | Stroke: 300 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
BSF1520AC3Z-484Size: 15 x 20 mm | Shaft length: 484 mm | Stroke: 300 mm | Clearance: Z | Ca: 2.66 kN | C0a: 3.92 kN
BSF1520AC3T-584Size: 15 x 20 mm | Shaft length: 584 mm | Stroke: 400 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
BSF1520AC3Z-584Size: 15 x 20 mm | Shaft length: 584 mm | Stroke: 400 mm | Clearance: Z | Ca: 2.66 kN | C0a: 3.92 kN
BSF1520AC3T-684Size: 15 x 20 mm | Shaft length: 684 mm | Stroke: 500 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
BSF1520AC3Z-684Size: 15 x 20 mm | Shaft length: 684 mm | Stroke: 500 mm | Clearance: Z | Ca: 2.66 kN | C0a: 3.92 kN
BSF1520AC3T-784Size: 15 x 20 mm | Shaft length: 784 mm | Stroke: 600 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
BSF1520AC3Z-784Size: 15 x 20 mm | Shaft length: 784 mm | Stroke: 600 mm | Clearance: Z | Ca: 2.66 kN | C0a: 3.92 kN
BSF1604EC3T-339Size: 16 x 4 mm | Shaft length: 339 mm | Stroke: 200 mm | Clearance: T | Ca: 4.64 kN | C0a: 8.53 kN
BSF1604EC3Z-339Size: 16 x 4 mm | Shaft length: 339 mm | Stroke: 200 mm | Clearance: Z | Ca: 2.92 kN | C0a: 4.265 kN
BSF1604EC3T-439Size: 16 x 4 mm | Shaft length: 439 mm | Stroke: 300 mm | Clearance: T | Ca: 4.64 kN | C0a: 8.53 kN
BSF1604EC3Z-439Size: 16 x 4 mm | Shaft length: 439 mm | Stroke: 300 mm | Clearance: Z | Ca: 2.92 kN | C0a: 4.265 kN
BSF1604EC3T-539Size: 16 x 4 mm | Shaft length: 539 mm | Stroke: 400 mm | Clearance: T | Ca: 4.64 kN | C0a: 8.53 kN
BSF1604EC3Z-539Size: 16 x 4 mm | Shaft length: 539 mm | Stroke: 400 mm | Clearance: Z | Ca: 2.92 kN | C0a: 4.265 kN
BSF1616AC3T-371Size: 16 x 16 mm | Shaft length: 371 mm | Stroke: 200 mm | Clearance: T | Ca: 4.38 kN | C0a: 8.23 kN
BSF1616AC3Z-371Size: 16 x 16 mm | Shaft length: 371 mm | Stroke: 200 mm | Clearance: Z | Ca: 2.52 kN | C0a: 3.53 kN
BSF1616AC3T-471Size: 16 x 16 mm | Shaft length: 471 mm | Stroke: 300 mm | Clearance: T | Ca: 4.38 kN | C0a: 8.23 kN
BSF1616AC3Z-471Size: 16 x 16 mm | Shaft length: 471 mm | Stroke: 300 mm | Clearance: Z | Ca: 2.52 kN | C0a: 3.53 kN
BSF1616AC3T-571Size: 16 x 16 mm | Shaft length: 571 mm | Stroke: 400 mm | Clearance: T | Ca: 4.38 kN | C0a: 8.23 kN
BSF1616AC3Z-571Size: 16 x 16 mm | Shaft length: 571 mm | Stroke: 400 mm | Clearance: Z | Ca: 2.52 kN | C0a: 3.53 kN
BSF1616AC3T-671Size: 16 x 16 mm | Shaft length: 671 mm | Stroke: 500 mm | Clearance: T | Ca: 4.38 kN | C0a: 8.23 kN
BSF1616AC3Z-671Size: 16 x 16 mm | Shaft length: 671 mm | Stroke: 500 mm | Clearance: Z | Ca: 2.52 kN | C0a: 3.53 kN
BSF1616AC3T-771Size: 16 x 16 mm | Shaft length: 771 mm | Stroke: 600 mm | Clearance: T | Ca: 4.38 kN | C0a: 8.23 kN
BSF1616AC3Z-771Size: 16 x 16 mm | Shaft length: 771 mm | Stroke: 600 mm | Clearance: Z | Ca: 2.52 kN | C0a: 3.53 kN
BSF2010EC3T-399Size: 20 x 10 mm | Shaft length: 399 mm | Stroke: 200 mm | Clearance: T | Ca: 8.15 kN | C0a: 17.15 kN
BSF2010EC3Z-399Size: 20 x 10 mm | Shaft length: 399 mm | Stroke: 200 mm | Clearance: Z | Ca: 6.99 kN | C0a: 11.05 kN
BSF2010EC3T-499Size: 20 x 10 mm | Shaft length: 499 mm | Stroke: 300 mm | Clearance: T | Ca: 8.15 kN | C0a: 17.15 kN
BSF2010EC3Z-499Size: 20 x 10 mm | Shaft length: 499 mm | Stroke: 300 mm | Clearance: Z | Ca: 6.99 kN | C0a: 11.05 kN
BSF2010EC3T-599Size: 20 x 10 mm | Shaft length: 599 mm | Stroke: 400 mm | Clearance: T | Ca: 8.15 kN | C0a: 17.15 kN
BSF2010EC3Z-599Size: 20 x 10 mm | Shaft length: 599 mm | Stroke: 400 mm | Clearance: Z | Ca: 6.99 kN | C0a: 11.05 kN
BSF2010EC3T-699Size: 20 x 10 mm | Shaft length: 699 mm | Stroke: 500 mm | Clearance: T | Ca: 8.15 kN | C0a: 17.15 kN
BSF2010EC3Z-699Size: 20 x 10 mm | Shaft length: 699 mm | Stroke: 500 mm | Clearance: Z | Ca: 6.99 kN | C0a: 11.05 kN
BSF2010EC3T-799Size: 20 x 10 mm | Shaft length: 799 mm | Stroke: 600 mm | Clearance: T | Ca: 8.15 kN | C0a: 17.15 kN
BSF2010EC3Z-799Size: 20 x 10 mm | Shaft length: 799 mm | Stroke: 600 mm | Clearance: Z | Ca: 6.99 kN | C0a: 11.05 kN
BSF2020AC3T-520Size: 20 x 20 mm | Shaft length: 520 mm | Stroke: 300 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
BSF2020AC3Z-520Size: 20 x 20 mm | Shaft length: 520 mm | Stroke: 300 mm | Clearance: Z | Ca: 4.23 kN | C0a: 6.32 kN
BSF2020AC3T-620Size: 20 x 20 mm | Shaft length: 620 mm | Stroke: 400 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
BSF2020AC3Z-620Size: 20 x 20 mm | Shaft length: 620 mm | Stroke: 400 mm | Clearance: Z | Ca: 4.23 kN | C0a: 6.32 kN
BSF2020AC3T-720Size: 20 x 20 mm | Shaft length: 720 mm | Stroke: 500 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
BSF2020AC3Z-720Size: 20 x 20 mm | Shaft length: 720 mm | Stroke: 500 mm | Clearance: Z | Ca: 4.23 kN | C0a: 6.32 kN
BSF2020AC3T-820Size: 20 x 20 mm | Shaft length: 820 mm | Stroke: 600 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
BSF2020AC3Z-820Size: 20 x 20 mm | Shaft length: 820 mm | Stroke: 600 mm | Clearance: Z | Ca: 4.23 kN | C0a: 6.32 kN
BSF2020AC3T-920Size: 20 x 20 mm | Shaft length: 920 mm | Stroke: 700 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
BSF2020AC3Z-920Size: 20 x 20 mm | Shaft length: 920 mm | Stroke: 700 mm | Clearance: Z | Ca: 4.23 kN | C0a: 6.32 kN

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
