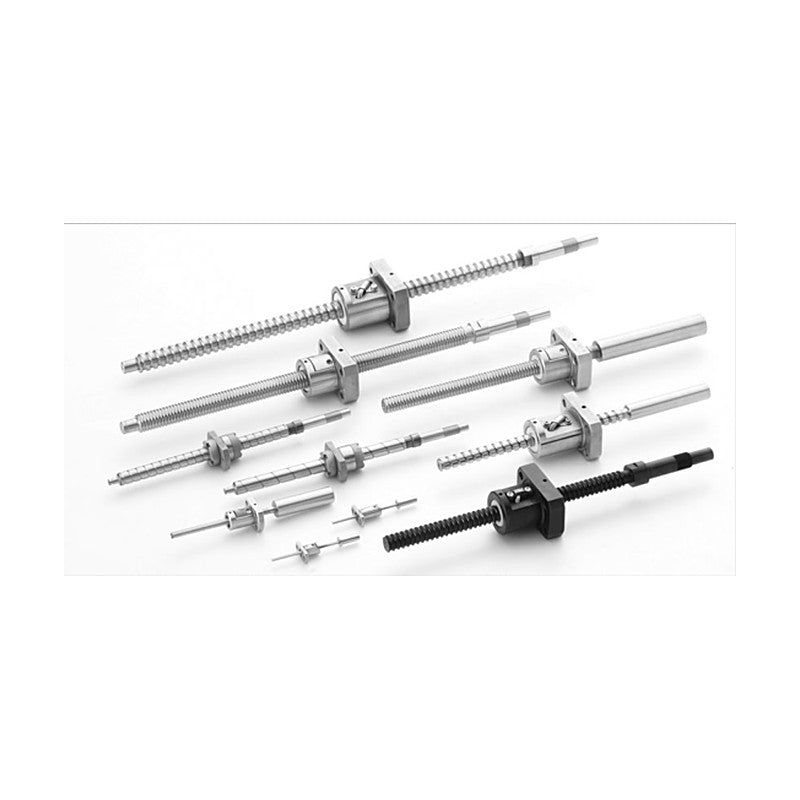

ISSOKU BSP / BSPD Ball Screws (Return Plate, Single & Double Nut)

ISSOKU BSP / BSPD Ball Screws (Return Plate, Single & Double Nut)

ISSOKU BSP single-nut and BSPD double-nut precision ball screws with return-plate recirculation, standard made-to-order sizes for shaft Ø5-Ø20.

Key features

  • Return-plate ball recirculation flange nut
  • BSP single nut and BSPD preloaded double nut (with spacer)
  • Flange nut with wiper seals (synthetic resin) both ends
  • Ca / C0a listed for standard (no preload) condition; oversize-ball preload ratings also catalogued
  • Shaft diameters 5-20 mm

Specifications

Product Precision ball screw
Recirculation Return-plate
Shaft diameter range 5-20 mm
Rating basis Single nut: no preload; double nut: as listed
Supply Standard made-to-order
Source ISSOKU Precision Ground Ball Screw Standard Products catalogue, p. 3-19
BSP0501R Shaft x lead: 5 x 1 mm | Nut: Single nut | Circuits: 2.7x1 | Ca: 570 N | C0a: 900 N
BSPD0501R Shaft x lead: 5 x 1 mm | Nut: Double nut | Circuits: 2.7x1 | Ca: 570 N | C0a: 900 N
BSP0601.5R Shaft x lead: 6 x 1.5 mm | Nut: Single nut | Circuits: 2.7x1 | Ca: 840 N | C0a: 1350 N
BSPD0601R Shaft x lead: 6 x 1 mm | Nut: Double nut | Circuits: 2.7x1 | Ca: 630 N | C0a: 1130 N
BSPD0601.5R Shaft x lead: 6 x 1.5 mm | Nut: Double nut | Circuits: 2.7x1 | Ca: 840 N | C0a: 1350 N
BSPD0602R Shaft x lead: 6 x 2 mm | Nut: Double nut | Circuits: 2.7x1 | Ca: 1350 N | C0a: 2350 N
BSP0801.5R Shaft x lead: 8 x 1.5 mm | Nut: Single nut | Circuits: 2.7x1 | Ca: 950 N | C0a: 1810 N
BSPD0801R Shaft x lead: 8 x 1 mm | Nut: Double nut | Circuits: 2.7x1 | Ca: 750 N | C0a: 1520 N
BSPD0801.5R Shaft x lead: 8 x 1.5 mm | Nut: Double nut | Circuits: 2.7x1 | Ca: 950 N | C0a: 1810 N
BSPD0802R Shaft x lead: 8 x 2 mm | Nut: Double nut | Circuits: 2.7x1 | Ca: 1690 N | C0a: 3085 N
BSP1001R Shaft x lead: 10 x 1 mm | Nut: Single nut | Circuits: 2.7x1 | Ca: 760 N | C0a: 1820 N
BSP1001.5R Shaft x lead: 10 x 1.5 mm | Nut: Single nut | Circuits: 2.7x1 | Ca: 1070 N | C0a: 2335 N
BSP1002.5R Shaft x lead: 10 x 2.5 mm | Nut: Single nut | Circuits: 2.7x1 | Ca: 2950 N | C0a: 4955 N
BSPD1001R Shaft x lead: 10 x 1 mm | Nut: Double nut | Circuits: 2.7x1 | Ca: 760 N | C0a: 1820 N
BSPD1001.5R Shaft x lead: 10 x 1.5 mm | Nut: Double nut | Circuits: 2.7x1 | Ca: 1070 N | C0a: 2335 N
BSPD1002R Shaft x lead: 10 x 2 mm | Nut: Double nut | Circuits: 2.7x1 | Ca: 1980 N | C0a: 3820 N
BSPD1002.5R Shaft x lead: 10 x 2.5 mm | Nut: Double nut | Circuits: 2.7x1 | Ca: 2950 N | C0a: 4955 N
BSP1201R Shaft x lead: 12 x 1 mm | Nut: Single nut | Circuits: 2.7x1 | Ca: 820 N | C0a: 2210 N
BSP1202.5R Shaft x lead: 12 x 2.5 mm | Nut: Single nut | Circuits: 2.7x1 | Ca: 3230 N | C0a: 5955 N
BSPD1201R Shaft x lead: 12 x 1 mm | Nut: Double nut | Circuits: 2.7x1 | Ca: 820 N | C0a: 2210 N
BSPD1202R Shaft x lead: 12 x 2 mm | Nut: Double nut | Circuits: 2.7x1 | Ca: 2240 N | C0a: 4555 N
BSPD1202.5R Shaft x lead: 12 x 2.5 mm | Nut: Double nut | Circuits: 2.7x1 | Ca: 3230 N | C0a: 5955 N
BSP1401R Shaft x lead: 14 x 1 mm | Nut: Single nut | Circuits: 2.7x1 | Ca: 870 N | C0a: 2590 N
BSP1402.5R Shaft x lead: 14 x 2.5 mm | Nut: Single nut | Circuits: 2.7x1 | Ca: 3470 N | C0a: 6970 N
BSPD1401R Shaft x lead: 14 x 1 mm | Nut: Double nut | Circuits: 2.7x1 | Ca: 870 N | C0a: 2590 N
BSPD1402R Shaft x lead: 14 x 2 mm | Nut: Double nut | Circuits: 2.7x1 | Ca: 2470 N | C0a: 5290 N
BSPD1402.5R Shaft x lead: 14 x 2.5 mm | Nut: Double nut | Circuits: 2.7x1 | Ca: 3470 N | C0a: 6970 N
BSP1602.5R Shaft x lead: 16 x 2.5 mm | Nut: Single nut | Circuits: 2.7x1 | Ca: 3670 N | C0a: 7970 N
BSPD1602R Shaft x lead: 16 x 2 mm | Nut: Double nut | Circuits: 2.7x1 | Ca: 2690 N | C0a: 6030 N
BSPD1602.5R Shaft x lead: 16 x 2.5 mm | Nut: Double nut | Circuits: 2.7x1 | Ca: 3670 N | C0a: 7970 N
BSP1802R Shaft x lead: 18 x 2 mm | Nut: Single nut | Circuits: 2.7x1 | Ca: 2600 N | C0a: 6740 N
BSPD1802R Shaft x lead: 18 x 2 mm | Nut: Double nut | Circuits: 2.7x1 | Ca: 2600 N | C0a: 6740 N
BSP2002R Shaft x lead: 20 x 2 mm | Nut: Single nut | Circuits: 2.7x1 | Ca: 2990 N | C0a: 8500 N
BSPD2002R Shaft x lead: 20 x 2 mm | Nut: Double nut | Circuits: 2.7x1 | Ca: 2990 N | C0a: 8500 N
Ball ScrewsISSOKU
34 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ISSOKU BSP / BSPD Ball Screws (Return Plate, Single & Double Nut)

Brand ISSOKU·Ball Screws

Available part numbers (34)

BSP0501R, BSPD0501R, BSP0601.5R, BSPD0601R, BSPD0601.5R, BSPD0602R, BSP0801.5R, BSPD0801R, BSPD0801.5R, BSPD0802R + 24 more — see full table ↓
