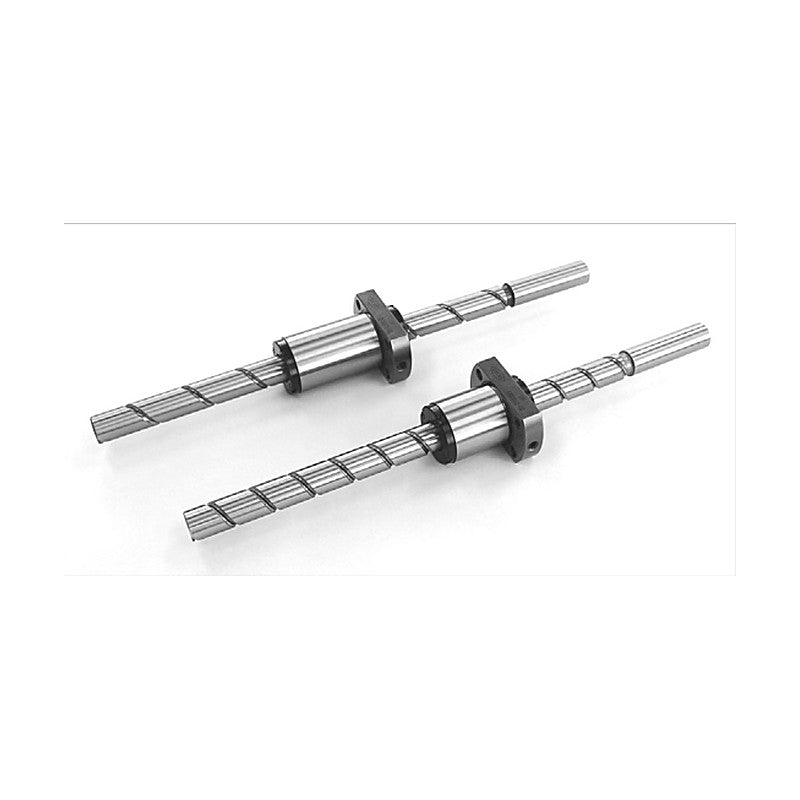

ISSOKU GIR C5 High-Speed Ground Ball Screws (Unfinished End)

ISSOKU GIR C5 High-Speed Ground Ball Screws (Unfinished End)

ISSOKU GIR high-speed precision ground ball screws with high-lead threads in accuracy grade C5, supplied with unfinished shaft ends.

Key features

  • High-speed type for fast feed axes
  • High-lead ground screw shaft, accuracy grade C5
  • Shaft ends left unmachined for end machining
  • Standard shaft lengths up to 2100 mm
  • Clearance symbol T (axial clearance 0.005 mm or less)

Specifications

Product High-speed precision ground ball screw
Accuracy grade C5
Nut type GIR
Shaft end Unfinished (unmachined)
Clearance symbol T (axial clearance 0.005 mm or less)
Supply Standard stock
Source ISSOKU High-Speed Ground Ball Screw GIR (C5) catalogue, p. 3-8
GIR1520TC5T-0650 Shaft x lead: 15 x 20 mm | Stroke: 500 mm | Overall L: 650 mm | Ca: 4360 N | C0a: 7670 N | Mass: 1.2 kg
GIR1520TC5T-0850 Shaft x lead: 15 x 20 mm | Stroke: 700 mm | Overall L: 850 mm | Ca: 4360 N | C0a: 7670 N | Mass: 1.5 kg
GIR1520TC5T-1050 Shaft x lead: 15 x 20 mm | Stroke: 900 mm | Overall L: 1050 mm | Ca: 4360 N | C0a: 7670 N | Mass: 1.8 kg
GIR1520TC5T-1250 Shaft x lead: 15 x 20 mm | Stroke: 1100 mm | Overall L: 1250 mm | Ca: 4360 N | C0a: 7670 N | Mass: 2.0 kg
GIR1520TC5T-1450 Shaft x lead: 15 x 20 mm | Stroke: 1300 mm | Overall L: 1450 mm | Ca: 4360 N | C0a: 7670 N | Mass: 2.3 kg
GIR1530TC5T-0650 Shaft x lead: 15 x 30 mm | Stroke: 470 mm | Overall L: 650 mm | Ca: 4260 N | C0a: 7960 N | Mass: 1.3 kg
GIR1530TC5T-0950 Shaft x lead: 15 x 30 mm | Stroke: 770 mm | Overall L: 950 mm | Ca: 4260 N | C0a: 7960 N | Mass: 1.7 kg
GIR1530TC5T-1250 Shaft x lead: 15 x 30 mm | Stroke: 1070 mm | Overall L: 1250 mm | Ca: 4260 N | C0a: 7960 N | Mass: 2.1 kg
GIR1530TC5T-1550 Shaft x lead: 15 x 30 mm | Stroke: 1370 mm | Overall L: 1550 mm | Ca: 4260 N | C0a: 7960 N | Mass: 2.5 kg
GIR2020TC5T-0900 Shaft x lead: 20 x 20 mm | Stroke: 730 mm | Overall L: 900 mm | Ca: 5230 N | C0a: 10600 N | Mass: 2.6 kg
GIR2020TC5T-1300 Shaft x lead: 20 x 20 mm | Stroke: 1130 mm | Overall L: 1300 mm | Ca: 5230 N | C0a: 10600 N | Mass: 3.6 kg
GIR2020TC5T-1700 Shaft x lead: 20 x 20 mm | Stroke: 1530 mm | Overall L: 1700 mm | Ca: 5230 N | C0a: 10600 N | Mass: 4.6 kg
GIR2020TC5T-2100 Shaft x lead: 20 x 20 mm | Stroke: 1930 mm | Overall L: 2100 mm | Ca: 5230 N | C0a: 10600 N | Mass: 5.6 kg
GIR2040TC5T-1100 Shaft x lead: 20 x 40 mm | Stroke: 870 mm | Overall L: 1100 mm | Ca: 5440 N | C0a: 12500 N | Mass: 3.3 kg
GIR2040TC5T-1500 Shaft x lead: 20 x 40 mm | Stroke: 1270 mm | Overall L: 1500 mm | Ca: 5440 N | C0a: 12500 N | Mass: 4.3 kg
GIR2040TC5T-1900 Shaft x lead: 20 x 40 mm | Stroke: 1670 mm | Overall L: 1900 mm | Ca: 5440 N | C0a: 12500 N | Mass: 5.3 kg
GIR2040TC5T-2100 Shaft x lead: 20 x 40 mm | Stroke: 1870 mm | Overall L: 2100 mm | Ca: 5440 N | C0a: 12500 N | Mass: 5.8 kg
GIR2520TC5T-1100 Shaft x lead: 25 x 20 mm | Stroke: 910 mm | Overall L: 1100 mm | Ca: 5890 N | C0a: 13500 N | Mass: 4.7 kg
GIR2520TC5T-1600 Shaft x lead: 25 x 20 mm | Stroke: 1410 mm | Overall L: 1600 mm | Ca: 5890 N | C0a: 13500 N | Mass: 6.6 kg
GIR2520TC5T-2100 Shaft x lead: 25 x 20 mm | Stroke: 1910 mm | Overall L: 2100 mm | Ca: 5890 N | C0a: 13500 N | Mass: 8.5 kg
GIR2550TC5T-1100 Shaft x lead: 25 x 50 mm | Stroke: 830 mm | Overall L: 1100 mm | Ca: 5330 N | C0a: 13200 N | Mass: 5 kg
GIR2550TC5T-1600 Shaft x lead: 25 x 50 mm | Stroke: 1330 mm | Overall L: 1600 mm | Ca: 5330 N | C0a: 13200 N | Mass: 7 kg
GIR2550TC5T-2100 Shaft x lead: 25 x 50 mm | Stroke: 1830 mm | Overall L: 2100 mm | Ca: 5330 N | C0a: 13200 N | Mass: 8.9 kg
Ball ScrewsISSOKU
23 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ISSOKU GIR C5 High-Speed Ground Ball Screws (Unfinished End)

Brand ISSOKU·Ball Screws

Available part numbers (23)

GIR1520TC5T-0650, GIR1520TC5T-0850, GIR1520TC5T-1050, GIR1520TC5T-1250, GIR1520TC5T-1450, GIR1530TC5T-0650, GIR1530TC5T-0950, GIR1530TC5T-1250, GIR1530TC5T-1550, GIR2020TC5T-0900 + 13 more — see full table ↓

How to order

Send the ISSOKU part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GIR1520TC5T-0650Shaft x lead: 15 x 20 mm | Stroke: 500 mm | Overall L: 650 mm | Ca: 4360 N | C0a: 7670 N | Mass: 1.2 kg
GIR1520TC5T-0850Shaft x lead: 15 x 20 mm | Stroke: 700 mm | Overall L: 850 mm | Ca: 4360 N | C0a: 7670 N | Mass: 1.5 kg
GIR1520TC5T-1050Shaft x lead: 15 x 20 mm | Stroke: 900 mm | Overall L: 1050 mm | Ca: 4360 N | C0a: 7670 N | Mass: 1.8 kg
GIR1520TC5T-1250Shaft x lead: 15 x 20 mm | Stroke: 1100 mm | Overall L: 1250 mm | Ca: 4360 N | C0a: 7670 N | Mass: 2.0 kg
GIR1520TC5T-1450Shaft x lead: 15 x 20 mm | Stroke: 1300 mm | Overall L: 1450 mm | Ca: 4360 N | C0a: 7670 N | Mass: 2.3 kg
GIR1530TC5T-0650Shaft x lead: 15 x 30 mm | Stroke: 470 mm | Overall L: 650 mm | Ca: 4260 N | C0a: 7960 N | Mass: 1.3 kg
GIR1530TC5T-0950Shaft x lead: 15 x 30 mm | Stroke: 770 mm | Overall L: 950 mm | Ca: 4260 N | C0a: 7960 N | Mass: 1.7 kg
GIR1530TC5T-1250Shaft x lead: 15 x 30 mm | Stroke: 1070 mm | Overall L: 1250 mm | Ca: 4260 N | C0a: 7960 N | Mass: 2.1 kg
GIR1530TC5T-1550Shaft x lead: 15 x 30 mm | Stroke: 1370 mm | Overall L: 1550 mm | Ca: 4260 N | C0a: 7960 N | Mass: 2.5 kg
GIR2020TC5T-0900Shaft x lead: 20 x 20 mm | Stroke: 730 mm | Overall L: 900 mm | Ca: 5230 N | C0a: 10600 N | Mass: 2.6 kg
GIR2020TC5T-1300Shaft x lead: 20 x 20 mm | Stroke: 1130 mm | Overall L: 1300 mm | Ca: 5230 N | C0a: 10600 N | Mass: 3.6 kg
GIR2020TC5T-1700Shaft x lead: 20 x 20 mm | Stroke: 1530 mm | Overall L: 1700 mm | Ca: 5230 N | C0a: 10600 N | Mass: 4.6 kg
GIR2020TC5T-2100Shaft x lead: 20 x 20 mm | Stroke: 1930 mm | Overall L: 2100 mm | Ca: 5230 N | C0a: 10600 N | Mass: 5.6 kg
GIR2040TC5T-1100Shaft x lead: 20 x 40 mm | Stroke: 870 mm | Overall L: 1100 mm | Ca: 5440 N | C0a: 12500 N | Mass: 3.3 kg
GIR2040TC5T-1500Shaft x lead: 20 x 40 mm | Stroke: 1270 mm | Overall L: 1500 mm | Ca: 5440 N | C0a: 12500 N | Mass: 4.3 kg
GIR2040TC5T-1900Shaft x lead: 20 x 40 mm | Stroke: 1670 mm | Overall L: 1900 mm | Ca: 5440 N | C0a: 12500 N | Mass: 5.3 kg
GIR2040TC5T-2100Shaft x lead: 20 x 40 mm | Stroke: 1870 mm | Overall L: 2100 mm | Ca: 5440 N | C0a: 12500 N | Mass: 5.8 kg
GIR2520TC5T-1100Shaft x lead: 25 x 20 mm | Stroke: 910 mm | Overall L: 1100 mm | Ca: 5890 N | C0a: 13500 N | Mass: 4.7 kg
GIR2520TC5T-1600Shaft x lead: 25 x 20 mm | Stroke: 1410 mm | Overall L: 1600 mm | Ca: 5890 N | C0a: 13500 N | Mass: 6.6 kg
GIR2520TC5T-2100Shaft x lead: 25 x 20 mm | Stroke: 1910 mm | Overall L: 2100 mm | Ca: 5890 N | C0a: 13500 N | Mass: 8.5 kg
GIR2550TC5T-1100Shaft x lead: 25 x 50 mm | Stroke: 830 mm | Overall L: 1100 mm | Ca: 5330 N | C0a: 13200 N | Mass: 5 kg
GIR2550TC5T-1600Shaft x lead: 25 x 50 mm | Stroke: 1330 mm | Overall L: 1600 mm | Ca: 5330 N | C0a: 13200 N | Mass: 7 kg
GIR2550TC5T-2100Shaft x lead: 25 x 50 mm | Stroke: 1830 mm | Overall L: 2100 mm | Ca: 5330 N | C0a: 13200 N | Mass: 8.9 kg
