• ISSOKU GPR C5 Ground Ball Screws (Unfinished End, Return Plate)
1 1

ISSOKU GPR C5 Ground Ball Screws (Unfinished End, Return Plate)

ISSOKU GPR C5 Ground Ball Screws (Unfinished End, Return Plate)

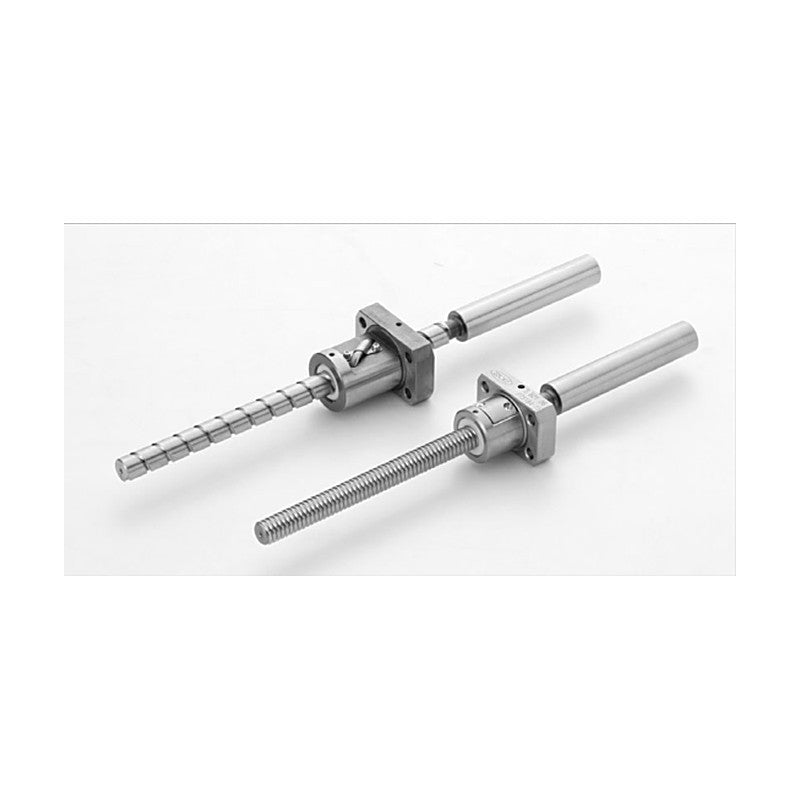

ISSOKU GPR precision ground ball screws in accuracy grade C5 with return plate ball recirculation, supplied as stock items with unfinished shaft ends for customer end machining.

Key features

  • Precision ground screw shaft, lead accuracy grade C5
  • Return plate ball recirculation nut
  • Shaft ends left unmachined for application-specific end machining
  • Several standard stroke / shaft lengths per size
  • Clearance symbol as given in each designation (T or Z)

Specifications

Product Precision ground ball screw
Accuracy grade C5
Nut type GPR (return plate)
Shaft end Unfinished (unmachined)
Clearance symbol Per designation (T or Z)
Supply Standard stock
Source ISSOKU Precision Ground Ball Screw C5 Unfinished End catalogue, p. 2-14
GPR0802RC5T-220 Shaft x lead: 8 x 2 mm | Stroke: 110 mm | Overall L: 220 mm | Ca: 1690 N | C0a: 3085 N | Mass: 0.172 kg
GPR1202RC5T-220 Shaft x lead: 12 x 2 mm | Stroke: 120 mm | Overall L: 220 mm | Ca: 2240 N | C0a: 4555 N | Mass: 0.323 kg
GPR1202RC5T-300 Shaft x lead: 12 x 2 mm | Stroke: 200 mm | Overall L: 300 mm | Ca: 2240 N | C0a: 4555 N | Mass: 0.394 kg
Ball ScrewsISSOKU
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ISSOKU GPR C5 Ground Ball Screws (Unfinished End, Return Plate)

Brand ISSOKU·Ball Screws

Available part numbers (3)

GPR0802RC5T-220, GPR1202RC5T-220, GPR1202RC5T-300

How to order

Send the ISSOKU part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GPR0802RC5T-220Shaft x lead: 8 x 2 mm | Stroke: 110 mm | Overall L: 220 mm | Ca: 1690 N | C0a: 3085 N | Mass: 0.172 kg
GPR1202RC5T-220Shaft x lead: 12 x 2 mm | Stroke: 120 mm | Overall L: 220 mm | Ca: 2240 N | C0a: 4555 N | Mass: 0.323 kg
GPR1202RC5T-300Shaft x lead: 12 x 2 mm | Stroke: 200 mm | Overall L: 300 mm | Ca: 2240 N | C0a: 4555 N | Mass: 0.394 kg
