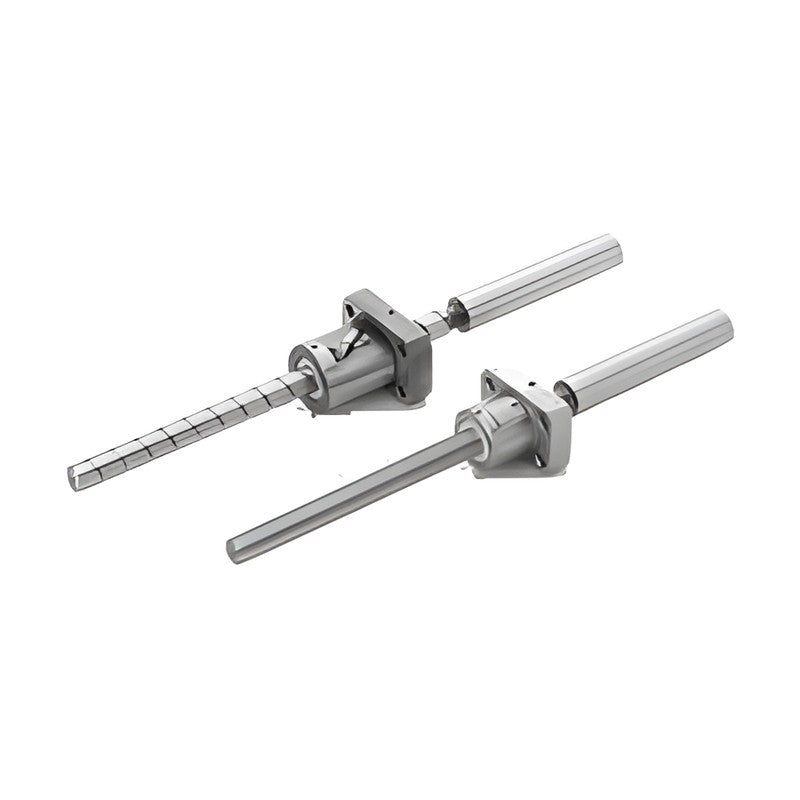

ISSOKU GPR/GTR Precision Ground Ball Screws C3

ISSOKU GPR/GTR Precision Ground Ball Screws C3

Precision ground and lapped ball screws in grade C3, stock items with unmachined ends (some also in stainless steel).

Key features

  • Nut types: GPR (return-plate ground), GTR (return-tube ground)
  • Shaft diameters 4-20 mm
  • Codes include shaft length; stock standard lengths as listed
  • Axial clearance symbols as printed per size (T/Z, S/N or M2)
  • Lapped ball tracks for smooth, quiet running

Specifications

Accuracy standard JIS B 1192
Brand ISSOKU
Product type Ball Screws
Series GPR/GTR
Designations listed 160
Units mm, kN
Source ISSOKU Ball Screw catalogue (HANSAN edition), p. 194-220
GPR0401RC3T-100 Size: 4 x 1 mm | Shaft length: 100 mm | Stroke: 30 mm | Clearance: T | Ca: 0.47 kN | C0a: 0.78 kN
GPR0401RC3Z-100 Size: 4 x 1 mm | Shaft length: 100 mm | Stroke: 30 mm | Clearance: Z | Ca: 0.3 kN | C0a: 0.39 kN
GPR0401RC3T-150 Size: 4 x 1 mm | Shaft length: 150 mm | Stroke: 80 mm | Clearance: T | Ca: 0.47 kN | C0a: 0.78 kN
GPR0401RC3Z-150 Size: 4 x 1 mm | Shaft length: 150 mm | Stroke: 80 mm | Clearance: Z | Ca: 0.3 kN | C0a: 0.39 kN
GPR0601RC3T-140 Size: 6 x 1 mm | Shaft length: 140 mm | Stroke: 50 mm | Clearance: T | Ca: 0.63 kN | C0a: 1.13 kN
GPR0601RC3Z-140 Size: 6 x 1 mm | Shaft length: 140 mm | Stroke: 50 mm | Clearance: Z | Ca: 0.4 kN | C0a: 0.565 kN
GPR0601RC3T-190 Size: 6 x 1 mm | Shaft length: 190 mm | Stroke: 100 mm | Clearance: T | Ca: 0.63 kN | C0a: 1.13 kN
GPR0601RC3Z-190 Size: 6 x 1 mm | Shaft length: 190 mm | Stroke: 100 mm | Clearance: Z | Ca: 0.4 kN | C0a: 0.565 kN
GPR0601RC3T-240 Size: 6 x 1 mm | Shaft length: 240 mm | Stroke: 150 mm | Clearance: T | Ca: 0.63 kN | C0a: 1.13 kN
GPR0601RC3Z-240 Size: 6 x 1 mm | Shaft length: 240 mm | Stroke: 150 mm | Clearance: Z | Ca: 0.4 kN | C0a: 0.565 kN
GPR0602RC3T-150 Size: 6 x 2 mm | Shaft length: 150 mm | Stroke: 50 mm | Clearance: T | Ca: 1.35 kN | C0a: 2.35 kN
GPR0602RC3Z-150 Size: 6 x 2 mm | Shaft length: 150 mm | Stroke: 50 mm | Clearance: Z | Ca: 0.85 kN | C0a: 1.175 kN
GPR0602RC3T-200 Size: 6 x 2 mm | Shaft length: 200 mm | Stroke: 100 mm | Clearance: T | Ca: 1.35 kN | C0a: 2.35 kN
GPR0602RC3Z-200 Size: 6 x 2 mm | Shaft length: 200 mm | Stroke: 100 mm | Clearance: Z | Ca: 0.85 kN | C0a: 1.175 kN
GPR0602RC3T-250 Size: 6 x 2 mm | Shaft length: 250 mm | Stroke: 150 mm | Clearance: T | Ca: 1.35 kN | C0a: 2.35 kN
GPR0602RC3Z-250 Size: 6 x 2 mm | Shaft length: 250 mm | Stroke: 150 mm | Clearance: Z | Ca: 0.85 kN | C0a: 1.175 kN
GPR0801RC3T-150 Size: 8 x 1 mm | Shaft length: 150 mm | Stroke: 50 mm | Clearance: T | Ca: 0.75 kN | C0a: 1.52 kN
GPR0801RC3Z-150 Size: 8 x 1 mm | Shaft length: 150 mm | Stroke: 50 mm | Clearance: Z | Ca: 0.47 kN | C0a: 0.76 kN
GPR0801RC3T-220 Size: 8 x 1 mm | Shaft length: 220 mm | Stroke: 120 mm | Clearance: T | Ca: 0.75 kN | C0a: 1.52 kN
GPR0801RC3Z-220 Size: 8 x 1 mm | Shaft length: 220 mm | Stroke: 120 mm | Clearance: Z | Ca: 0.47 kN | C0a: 0.76 kN
GPR0801RC3T-300 Size: 8 x 1 mm | Shaft length: 300 mm | Stroke: 200 mm | Clearance: T | Ca: 0.75 kN | C0a: 1.52 kN
GPR0801RC3Z-300 Size: 8 x 1 mm | Shaft length: 300 mm | Stroke: 200 mm | Clearance: Z | Ca: 0.47 kN | C0a: 0.76 kN
GPR0802RC3T-160 Size: 8 x 2 mm | Shaft length: 160 mm | Stroke: 50 mm | Clearance: T | Ca: 1.69 kN | C0a: 3.085 kN
GPR0802RC3Z-160 Size: 8 x 2 mm | Shaft length: 160 mm | Stroke: 50 mm | Clearance: Z | Ca: 1.06 kN | C0a: 1.545 kN
GPR0802RC3T-230 Size: 8 x 2 mm | Shaft length: 230 mm | Stroke: 120 mm | Clearance: T | Ca: 1.69 kN | C0a: 3.085 kN
GPR0802RC3Z-230 Size: 8 x 2 mm | Shaft length: 230 mm | Stroke: 120 mm | Clearance: Z | Ca: 1.06 kN | C0a: 1.545 kN
GPR0802RC3T-310 Size: 8 x 2 mm | Shaft length: 310 mm | Stroke: 200 mm | Clearance: T | Ca: 1.69 kN | C0a: 3.085 kN
GPR0802RC3Z-310 Size: 8 x 2 mm | Shaft length: 310 mm | Stroke: 200 mm | Clearance: Z | Ca: 1.06 kN | C0a: 1.545 kN
GPR1002RC3T-220 Size: 10 x 2 mm | Shaft length: 220 mm | Stroke: 100 mm | Clearance: T | Ca: 1.98 kN | C0a: 3.82 kN
GPR1002RC3Z-220 Size: 10 x 2 mm | Shaft length: 220 mm | Stroke: 100 mm | Clearance: Z | Ca: 1.25 kN | C0a: 1.91 kN
GPR1002RC3T-320 Size: 10 x 2 mm | Shaft length: 320 mm | Stroke: 200 mm | Clearance: T | Ca: 1.98 kN | C0a: 3.82 kN
GPR1002RC3Z-320 Size: 10 x 2 mm | Shaft length: 320 mm | Stroke: 200 mm | Clearance: Z | Ca: 1.25 kN | C0a: 1.91 kN
GPR1002RC3T-420 Size: 10 x 2 mm | Shaft length: 420 mm | Stroke: 300 mm | Clearance: T | Ca: 1.98 kN | C0a: 3.82 kN
GPR1002RC3Z-420 Size: 10 x 2 mm | Shaft length: 420 mm | Stroke: 300 mm | Clearance: Z | Ca: 1.25 kN | C0a: 1.91 kN
GPR1202RC3T-220 Size: 12 x 2 mm | Shaft length: 220 mm | Stroke: 100 mm | Clearance: T | Ca: 2.24 kN | C0a: 4.555 kN
GPR1202RC3Z-220 Size: 12 x 2 mm | Shaft length: 220 mm | Stroke: 100 mm | Clearance: Z | Ca: 1.41 kN | C0a: 2.28 kN
GPR1202RC3T-370 Size: 12 x 2 mm | Shaft length: 370 mm | Stroke: 250 mm | Clearance: T | Ca: 2.24 kN | C0a: 4.555 kN
GPR1202RC3Z-370 Size: 12 x 2 mm | Shaft length: 370 mm | Stroke: 250 mm | Clearance: Z | Ca: 1.41 kN | C0a: 2.28 kN
GPR1202RC3T-520 Size: 12 x 2 mm | Shaft length: 520 mm | Stroke: 400 mm | Clearance: T | Ca: 2.24 kN | C0a: 4.555 kN
GPR1202RC3Z-520 Size: 12 x 2 mm | Shaft length: 520 mm | Stroke: 400 mm | Clearance: Z | Ca: 1.41 kN | C0a: 2.28 kN
GPR1402RC3T-330 Size: 14 x 2 mm | Shaft length: 330 mm | Stroke: 200 mm | Clearance: T | Ca: 2.47 kN | C0a: 5.29 kN
GPR1402RC3Z-330 Size: 14 x 2 mm | Shaft length: 330 mm | Stroke: 200 mm | Clearance: Z | Ca: 1.56 kN | C0a: 2.645 kN
GPR1402RC3T-480 Size: 14 x 2 mm | Shaft length: 480 mm | Stroke: 350 mm | Clearance: T | Ca: 2.47 kN | C0a: 5.29 kN
GPR1402RC3Z-480 Size: 14 x 2 mm | Shaft length: 480 mm | Stroke: 350 mm | Clearance: Z | Ca: 1.56 kN | C0a: 2.645 kN
GPR1402RC3T-630 Size: 14 x 2 mm | Shaft length: 630 mm | Stroke: 500 mm | Clearance: T | Ca: 2.47 kN | C0a: 5.29 kN
GPR1402RC3Z-630 Size: 14 x 2 mm | Shaft length: 630 mm | Stroke: 500 mm | Clearance: Z | Ca: 1.56 kN | C0a: 2.645 kN
GPR1602RC3T-380 Size: 16 x 2 mm | Shaft length: 380 mm | Stroke: 200 mm | Clearance: T | Ca: 2.69 kN | C0a: 6.03 kN
GPR1602RC3Z-380 Size: 16 x 2 mm | Shaft length: 380 mm | Stroke: 200 mm | Clearance: Z | Ca: 1.69 kN | C0a: 3.015 kN
GPR1602RC3T-530 Size: 16 x 2 mm | Shaft length: 530 mm | Stroke: 350 mm | Clearance: T | Ca: 2.69 kN | C0a: 6.03 kN
GPR1602RC3Z-530 Size: 16 x 2 mm | Shaft length: 530 mm | Stroke: 350 mm | Clearance: Z | Ca: 1.69 kN | C0a: 3.015 kN
GPR1602RC3T-680 Size: 16 x 2 mm | Shaft length: 680 mm | Stroke: 500 mm | Clearance: T | Ca: 2.69 kN | C0a: 6.03 kN
GPR1602RC3Z-680 Size: 16 x 2 mm | Shaft length: 680 mm | Stroke: 500 mm | Clearance: Z | Ca: 1.69 kN | C0a: 3.015 kN
GTR0805EC3T-180 Size: 8 x 5 mm | Shaft length: 180 mm | Stroke: 60 mm | Clearance: T | Ca: 2.29 kN | C0a: 3.575 kN
GTR0805EC3Z-180 Size: 8 x 5 mm | Shaft length: 180 mm | Stroke: 60 mm | Clearance: Z | Ca: 1.44 kN | C0a: 1.79 kN
GTR0805EC3T-240 Size: 8 x 5 mm | Shaft length: 240 mm | Stroke: 120 mm | Clearance: T | Ca: 2.29 kN | C0a: 3.575 kN
GTR0805EC3Z-240 Size: 8 x 5 mm | Shaft length: 240 mm | Stroke: 120 mm | Clearance: Z | Ca: 1.44 kN | C0a: 1.79 kN
GTR0805EC3T-300 Size: 8 x 5 mm | Shaft length: 300 mm | Stroke: 180 mm | Clearance: T | Ca: 2.29 kN | C0a: 3.575 kN
GTR0805EC3Z-300 Size: 8 x 5 mm | Shaft length: 300 mm | Stroke: 180 mm | Clearance: Z | Ca: 1.44 kN | C0a: 1.79 kN
GTR0808AC3T-200 Size: 8 x 8 mm | Shaft length: 200 mm | Stroke: 60 mm | Clearance: T | Ca: 1.45 kN | C0a: 2.155 kN
GTR0808AC3Z-200 Size: 8 x 8 mm | Shaft length: 200 mm | Stroke: 60 mm | Clearance: Z | Ca: 0.91 kN | C0a: 1.08 kN
GTR0808AC3T-260 Size: 8 x 8 mm | Shaft length: 260 mm | Stroke: 120 mm | Clearance: T | Ca: 1.45 kN | C0a: 2.155 kN
GTR0808AC3Z-260 Size: 8 x 8 mm | Shaft length: 260 mm | Stroke: 120 mm | Clearance: Z | Ca: 0.91 kN | C0a: 1.08 kN
GTR0808AC3T-320 Size: 8 x 8 mm | Shaft length: 320 mm | Stroke: 180 mm | Clearance: T | Ca: 1.45 kN | C0a: 2.155 kN
GTR0808AC3Z-320 Size: 8 x 8 mm | Shaft length: 320 mm | Stroke: 180 mm | Clearance: Z | Ca: 0.91 kN | C0a: 1.08 kN
GTR1004EC3T-230 Size: 10 x 4 mm | Shaft length: 230 mm | Stroke: 100 mm | Clearance: T | Ca: 2.73 kN | C0a: 4.41 kN
GTR1004EC3Z-230 Size: 10 x 4 mm | Shaft length: 230 mm | Stroke: 100 mm | Clearance: Z | Ca: 1.72 kN | C0a: 2.205 kN
GTR1004EC3T-380 Size: 10 x 4 mm | Shaft length: 380 mm | Stroke: 250 mm | Clearance: T | Ca: 2.73 kN | C0a: 4.41 kN
GTR1004EC3Z-380 Size: 10 x 4 mm | Shaft length: 380 mm | Stroke: 250 mm | Clearance: Z | Ca: 1.72 kN | C0a: 2.205 kN
GTR1004EC3T-530 Size: 10 x 4 mm | Shaft length: 530 mm | Stroke: 400 mm | Clearance: T | Ca: 2.73 kN | C0a: 4.41 kN
GTR1004EC3Z-530 Size: 10 x 4 mm | Shaft length: 530 mm | Stroke: 400 mm | Clearance: Z | Ca: 1.72 kN | C0a: 2.205 kN
GTR1005EC3T-240 Size: 10 x 5 mm | Shaft length: 240 mm | Stroke: 100 mm | Clearance: T | Ca: 2.73 kN | C0a: 4.41 kN
GTR1005EC3Z-240 Size: 10 x 5 mm | Shaft length: 240 mm | Stroke: 100 mm | Clearance: Z | Ca: 1.72 kN | C0a: 2.205 kN
GTR1005EC3T-390 Size: 10 x 5 mm | Shaft length: 390 mm | Stroke: 250 mm | Clearance: T | Ca: 2.73 kN | C0a: 4.41 kN
GTR1005EC3Z-390 Size: 10 x 5 mm | Shaft length: 390 mm | Stroke: 250 mm | Clearance: Z | Ca: 1.72 kN | C0a: 2.205 kN
GTR1005EC3T-540 Size: 10 x 5 mm | Shaft length: 540 mm | Stroke: 400 mm | Clearance: T | Ca: 2.73 kN | C0a: 4.41 kN
GTR1005EC3Z-540 Size: 10 x 5 mm | Shaft length: 540 mm | Stroke: 400 mm | Clearance: Z | Ca: 1.72 kN | C0a: 2.205 kN
GTR1010AC3T-240 Size: 10 x 10 mm | Shaft length: 240 mm | Stroke: 100 mm | Clearance: T | Ca: 1.72 kN | C0a: 2.745 kN
GTR1010AC3Z-240 Size: 10 x 10 mm | Shaft length: 240 mm | Stroke: 100 mm | Clearance: Z | Ca: 1.08 kN | C0a: 1.375 kN
GTR1010AC3T-440 Size: 10 x 10 mm | Shaft length: 440 mm | Stroke: 300 mm | Clearance: T | Ca: 1.72 kN | C0a: 2.745 kN
GTR1010AC3Z-440 Size: 10 x 10 mm | Shaft length: 440 mm | Stroke: 300 mm | Clearance: Z | Ca: 1.08 kN | C0a: 1.375 kN
GTR1010AC3T-640 Size: 10 x 10 mm | Shaft length: 640 mm | Stroke: 500 mm | Clearance: T | Ca: 1.72 kN | C0a: 2.745 kN
GTR1010AC3Z-640 Size: 10 x 10 mm | Shaft length: 640 mm | Stroke: 500 mm | Clearance: Z | Ca: 1.08 kN | C0a: 1.375 kN
GTR1204EC3T-240 Size: 12 x 4 mm | Shaft length: 240 mm | Stroke: 100 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
GTR1204EC3Z-240 Size: 12 x 4 mm | Shaft length: 240 mm | Stroke: 100 mm | Clearance: Z | Ca: 2.38 kN | C0a: 3.16 kN
GTR1204EC3T-390 Size: 12 x 4 mm | Shaft length: 390 mm | Stroke: 250 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
GTR1204EC3Z-390 Size: 12 x 4 mm | Shaft length: 390 mm | Stroke: 250 mm | Clearance: Z | Ca: 2.38 kN | C0a: 3.16 kN
GTR1204EC3T-540 Size: 12 x 4 mm | Shaft length: 540 mm | Stroke: 400 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
GTR1204EC3Z-540 Size: 12 x 4 mm | Shaft length: 540 mm | Stroke: 400 mm | Clearance: Z | Ca: 2.38 kN | C0a: 3.16 kN
GTR1205EC3T-240 Size: 12 x 5 mm | Shaft length: 240 mm | Stroke: 100 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
GTR1205EC3Z-240 Size: 12 x 5 mm | Shaft length: 240 mm | Stroke: 100 mm | Clearance: Z | Ca: 2.38 kN | C0a: 3.16 kN
GTR1205EC3T-440 Size: 12 x 5 mm | Shaft length: 440 mm | Stroke: 300 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
GTR1205EC3Z-440 Size: 12 x 5 mm | Shaft length: 440 mm | Stroke: 300 mm | Clearance: Z | Ca: 2.38 kN | C0a: 3.16 kN
GTR1205EC3T-640 Size: 12 x 5 mm | Shaft length: 640 mm | Stroke: 500 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
GTR1205EC3Z-640 Size: 12 x 5 mm | Shaft length: 640 mm | Stroke: 500 mm | Clearance: Z | Ca: 2.38 kN | C0a: 3.16 kN
GTR1210EC3T-260 Size: 12 x 10 mm | Shaft length: 260 mm | Stroke: 100 mm | Clearance: T | Ca: 3.82 kN | C0a: 6.48 kN
GTR1210EC3Z-260 Size: 12 x 10 mm | Shaft length: 260 mm | Stroke: 100 mm | Clearance: Z | Ca: 2.41 kN | C0a: 3.24 kN
GTR1210EC3T-460 Size: 12 x 10 mm | Shaft length: 460 mm | Stroke: 300 mm | Clearance: T | Ca: 3.82 kN | C0a: 6.48 kN
GTR1210EC3Z-460 Size: 12 x 10 mm | Shaft length: 460 mm | Stroke: 300 mm | Clearance: Z | Ca: 2.41 kN | C0a: 3.24 kN
GTR1210EC3T-660 Size: 12 x 10 mm | Shaft length: 660 mm | Stroke: 500 mm | Clearance: T | Ca: 3.82 kN | C0a: 6.48 kN
GTR1210EC3Z-660 Size: 12 x 10 mm | Shaft length: 660 mm | Stroke: 500 mm | Clearance: Z | Ca: 2.41 kN | C0a: 3.24 kN
GTR1220AC3T-370 Size: 12 x 20 mm | Shaft length: 370 mm | Stroke: 200 mm | Clearance: T | Ca: 2.41 kN | C0a: 3.92 kN
GTR1220AC3Z-370 Size: 12 x 20 mm | Shaft length: 370 mm | Stroke: 200 mm | Clearance: Z | Ca: 1.52 kN | C0a: 1.96 kN
GTR1220AC3T-570 Size: 12 x 20 mm | Shaft length: 570 mm | Stroke: 400 mm | Clearance: T | Ca: 2.41 kN | C0a: 3.92 kN
GTR1220AC3Z-570 Size: 12 x 20 mm | Shaft length: 570 mm | Stroke: 400 mm | Clearance: Z | Ca: 1.52 kN | C0a: 1.96 kN
GTR1220AC3T-770 Size: 12 x 20 mm | Shaft length: 770 mm | Stroke: 600 mm | Clearance: T | Ca: 2.41 kN | C0a: 3.92 kN
GTR1220AC3Z-770 Size: 12 x 20 mm | Shaft length: 770 mm | Stroke: 600 mm | Clearance: Z | Ca: 1.52 kN | C0a: 1.96 kN
GTR1405EC3T-360 Size: 14 x 5 mm | Shaft length: 360 mm | Stroke: 200 mm | Clearance: T | Ca: 6.27 kN | C0a: 11.66 kN
GTR1405EC3Z-360 Size: 14 x 5 mm | Shaft length: 360 mm | Stroke: 200 mm | Clearance: Z | Ca: 3.95 kN | C0a: 5.83 kN
GTR1405EC3T-510 Size: 14 x 5 mm | Shaft length: 510 mm | Stroke: 350 mm | Clearance: T | Ca: 6.27 kN | C0a: 11.66 kN
GTR1405EC3Z-510 Size: 14 x 5 mm | Shaft length: 510 mm | Stroke: 350 mm | Clearance: Z | Ca: 3.95 kN | C0a: 5.83 kN
GTR1405EC3T-660 Size: 14 x 5 mm | Shaft length: 660 mm | Stroke: 500 mm | Clearance: T | Ca: 6.27 kN | C0a: 11.66 kN
GTR1405EC3Z-660 Size: 14 x 5 mm | Shaft length: 660 mm | Stroke: 500 mm | Clearance: Z | Ca: 3.95 kN | C0a: 5.83 kN
GTR1504EC3T-500 Size: 15 x 4 mm | Shaft length: 500 mm | Stroke: 300 mm | Clearance: T | Ca: 4.43 kN | C0a: 7.84 kN
GTR1504EC3Z-500 Size: 15 x 4 mm | Shaft length: 500 mm | Stroke: 300 mm | Clearance: Z | Ca: 2.79 kN | C0a: 3.92 kN
GTR1504EC3T-800 Size: 15 x 4 mm | Shaft length: 800 mm | Stroke: 600 mm | Clearance: T | Ca: 4.43 kN | C0a: 7.84 kN
GTR1504EC3Z-800 Size: 15 x 4 mm | Shaft length: 800 mm | Stroke: 600 mm | Clearance: Z | Ca: 2.79 kN | C0a: 3.92 kN
GTR1504EC3T-1200 Size: 15 x 4 mm | Shaft length: 1200 mm | Stroke: 1000 mm | Clearance: T | Ca: 4.43 kN | C0a: 7.84 kN
GTR1504EC3Z-1200 Size: 15 x 4 mm | Shaft length: 1200 mm | Stroke: 1000 mm | Clearance: Z | Ca: 2.79 kN | C0a: 3.92 kN
GTR1505EC3T-510 Size: 15 x 5 mm | Shaft length: 510 mm | Stroke: 300 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
GTR1505EC3Z-510 Size: 15 x 5 mm | Shaft length: 510 mm | Stroke: 300 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
GTR1505EC3T-810 Size: 15 x 5 mm | Shaft length: 810 mm | Stroke: 600 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
GTR1505EC3Z-810 Size: 15 x 5 mm | Shaft length: 810 mm | Stroke: 600 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
GTR1505EC3T-1210 Size: 15 x 5 mm | Shaft length: 1210 mm | Stroke: 1000 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
GTR1505EC3Z-1210 Size: 15 x 5 mm | Shaft length: 1210 mm | Stroke: 1000 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
GTR1510EC3T-520 Size: 15 x 10 mm | Shaft length: 520 mm | Stroke: 300 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
GTR1510EC3Z-520 Size: 15 x 10 mm | Shaft length: 520 mm | Stroke: 300 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
GTR1510EC3T-820 Size: 15 x 10 mm | Shaft length: 820 mm | Stroke: 600 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
GTR1510EC3Z-820 Size: 15 x 10 mm | Shaft length: 820 mm | Stroke: 600 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
GTR1510EC3T-1220 Size: 15 x 10 mm | Shaft length: 1220 mm | Stroke: 1000 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
GTR1510EC3Z-1220 Size: 15 x 10 mm | Shaft length: 1220 mm | Stroke: 1000 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
GTR1515AC3T-540 Size: 15 x 15 mm | Shaft length: 540 mm | Stroke: 300 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
GTR1515AC3Z-540 Size: 15 x 15 mm | Shaft length: 540 mm | Stroke: 300 mm | Clearance: Z | Ca: 2.66 kN | C0a: 3.92 kN
GTR1515AC3T-840 Size: 15 x 15 mm | Shaft length: 840 mm | Stroke: 600 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
GTR1515AC3Z-840 Size: 15 x 15 mm | Shaft length: 840 mm | Stroke: 600 mm | Clearance: Z | Ca: 2.66 kN | C0a: 3.92 kN
GTR1515AC3T-1240 Size: 15 x 15 mm | Shaft length: 1240 mm | Stroke: 1000 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
GTR1515AC3Z-1240 Size: 15 x 15 mm | Shaft length: 1240 mm | Stroke: 1000 mm | Clearance: Z | Ca: 2.66 kN | C0a: 3.92 kN
GTR1520AC3T-550 Size: 15 x 20 mm | Shaft length: 550 mm | Stroke: 300 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
GTR1520AC3Z-550 Size: 15 x 20 mm | Shaft length: 550 mm | Stroke: 300 mm | Clearance: Z | Ca: 2.66 kN | C0a: 3.92 kN
GTR1520AC3T-850 Size: 15 x 20 mm | Shaft length: 850 mm | Stroke: 600 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
GTR1520AC3Z-850 Size: 15 x 20 mm | Shaft length: 850 mm | Stroke: 600 mm | Clearance: Z | Ca: 2.66 kN | C0a: 3.92 kN
GTR1520AC3T-1250 Size: 15 x 20 mm | Shaft length: 1250 mm | Stroke: 1000 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
GTR1520AC3Z-1250 Size: 15 x 20 mm | Shaft length: 1250 mm | Stroke: 1000 mm | Clearance: Z | Ca: 2.66 kN | C0a: 3.92 kN
GTR2005EC3T-630 Size: 20 x 5 mm | Shaft length: 630 mm | Stroke: 400 mm | Clearance: T | Ca: 8.15 kN | C0a: 17.15 kN
GTR2005EC3Z-630 Size: 20 x 5 mm | Shaft length: 630 mm | Stroke: 400 mm | Clearance: Z | Ca: 5.13 kN | C0a: 8.575 kN
GTR2005EC3T-1030 Size: 20 x 5 mm | Shaft length: 1030 mm | Stroke: 800 mm | Clearance: T | Ca: 8.15 kN | C0a: 17.15 kN
GTR2005EC3Z-1030 Size: 20 x 5 mm | Shaft length: 1030 mm | Stroke: 800 mm | Clearance: Z | Ca: 5.13 kN | C0a: 8.575 kN
GTR2005EC3T-1430 Size: 20 x 5 mm | Shaft length: 1430 mm | Stroke: 1200 mm | Clearance: T | Ca: 8.15 kN | C0a: 17.15 kN
GTR2005EC3Z-1430 Size: 20 x 5 mm | Shaft length: 1430 mm | Stroke: 1200 mm | Clearance: Z | Ca: 5.13 kN | C0a: 8.575 kN
GTR2010EC3T-650 Size: 20 x 10 mm | Shaft length: 650 mm | Stroke: 400 mm | Clearance: T | Ca: 11.1 kN | C0a: 22.1 kN
GTR2010EC3Z-650 Size: 20 x 10 mm | Shaft length: 650 mm | Stroke: 400 mm | Clearance: Z | Ca: 6.99 kN | C0a: 11.05 kN
GTR2010EC3T-1050 Size: 20 x 10 mm | Shaft length: 1050 mm | Stroke: 800 mm | Clearance: T | Ca: 11.1 kN | C0a: 22.1 kN
GTR2010EC3Z-1050 Size: 20 x 10 mm | Shaft length: 1050 mm | Stroke: 800 mm | Clearance: Z | Ca: 6.99 kN | C0a: 11.05 kN
GTR2010EC3T-1450 Size: 20 x 10 mm | Shaft length: 1450 mm | Stroke: 1200 mm | Clearance: T | Ca: 11.1 kN | C0a: 22.1 kN
GTR2010EC3Z-1450 Size: 20 x 10 mm | Shaft length: 1450 mm | Stroke: 1200 mm | Clearance: Z | Ca: 6.99 kN | C0a: 11.05 kN
GTR2020AC3T-700 Size: 20 x 20 mm | Shaft length: 700 mm | Stroke: 400 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
GTR2020AC3Z-700 Size: 20 x 20 mm | Shaft length: 700 mm | Stroke: 400 mm | Clearance: Z | Ca: 4.23 kN | C0a: 6.32 kN
GTR2020AC3T-1100 Size: 20 x 20 mm | Shaft length: 1100 mm | Stroke: 800 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
GTR2020AC3Z-1100 Size: 20 x 20 mm | Shaft length: 1100 mm | Stroke: 800 mm | Clearance: Z | Ca: 4.23 kN | C0a: 6.32 kN
GTR2020AC3T-1500 Size: 20 x 20 mm | Shaft length: 1500 mm | Stroke: 1200 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
GTR2020AC3Z-1500 Size: 20 x 20 mm | Shaft length: 1500 mm | Stroke: 1200 mm | Clearance: Z | Ca: 4.23 kN | C0a: 6.32 kN
Ball ScrewsISSOKU
160 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ISSOKU GPR/GTR Precision Ground Ball Screws C3

Brand ISSOKU·Ball Screws

Available part numbers (160)

GPR0401RC3T-100, GPR0401RC3Z-100, GPR0401RC3T-150, GPR0401RC3Z-150, GPR0601RC3T-140, GPR0601RC3Z-140, GPR0601RC3T-190, GPR0601RC3Z-190, GPR0601RC3T-240, GPR0601RC3Z-240 + 150 more — see full table ↓

How to order

Send the ISSOKU part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GPR0401RC3T-100Size: 4 x 1 mm | Shaft length: 100 mm | Stroke: 30 mm | Clearance: T | Ca: 0.47 kN | C0a: 0.78 kN
GPR0401RC3Z-100Size: 4 x 1 mm | Shaft length: 100 mm | Stroke: 30 mm | Clearance: Z | Ca: 0.3 kN | C0a: 0.39 kN
GPR0401RC3T-150Size: 4 x 1 mm | Shaft length: 150 mm | Stroke: 80 mm | Clearance: T | Ca: 0.47 kN | C0a: 0.78 kN
GPR0401RC3Z-150Size: 4 x 1 mm | Shaft length: 150 mm | Stroke: 80 mm | Clearance: Z | Ca: 0.3 kN | C0a: 0.39 kN
GPR0601RC3T-140Size: 6 x 1 mm | Shaft length: 140 mm | Stroke: 50 mm | Clearance: T | Ca: 0.63 kN | C0a: 1.13 kN
GPR0601RC3Z-140Size: 6 x 1 mm | Shaft length: 140 mm | Stroke: 50 mm | Clearance: Z | Ca: 0.4 kN | C0a: 0.565 kN
GPR0601RC3T-190Size: 6 x 1 mm | Shaft length: 190 mm | Stroke: 100 mm | Clearance: T | Ca: 0.63 kN | C0a: 1.13 kN
GPR0601RC3Z-190Size: 6 x 1 mm | Shaft length: 190 mm | Stroke: 100 mm | Clearance: Z | Ca: 0.4 kN | C0a: 0.565 kN
GPR0601RC3T-240Size: 6 x 1 mm | Shaft length: 240 mm | Stroke: 150 mm | Clearance: T | Ca: 0.63 kN | C0a: 1.13 kN
GPR0601RC3Z-240Size: 6 x 1 mm | Shaft length: 240 mm | Stroke: 150 mm | Clearance: Z | Ca: 0.4 kN | C0a: 0.565 kN
GPR0602RC3T-150Size: 6 x 2 mm | Shaft length: 150 mm | Stroke: 50 mm | Clearance: T | Ca: 1.35 kN | C0a: 2.35 kN
GPR0602RC3Z-150Size: 6 x 2 mm | Shaft length: 150 mm | Stroke: 50 mm | Clearance: Z | Ca: 0.85 kN | C0a: 1.175 kN
GPR0602RC3T-200Size: 6 x 2 mm | Shaft length: 200 mm | Stroke: 100 mm | Clearance: T | Ca: 1.35 kN | C0a: 2.35 kN
GPR0602RC3Z-200Size: 6 x 2 mm | Shaft length: 200 mm | Stroke: 100 mm | Clearance: Z | Ca: 0.85 kN | C0a: 1.175 kN
GPR0602RC3T-250Size: 6 x 2 mm | Shaft length: 250 mm | Stroke: 150 mm | Clearance: T | Ca: 1.35 kN | C0a: 2.35 kN
GPR0602RC3Z-250Size: 6 x 2 mm | Shaft length: 250 mm | Stroke: 150 mm | Clearance: Z | Ca: 0.85 kN | C0a: 1.175 kN
GPR0801RC3T-150Size: 8 x 1 mm | Shaft length: 150 mm | Stroke: 50 mm | Clearance: T | Ca: 0.75 kN | C0a: 1.52 kN
GPR0801RC3Z-150Size: 8 x 1 mm | Shaft length: 150 mm | Stroke: 50 mm | Clearance: Z | Ca: 0.47 kN | C0a: 0.76 kN
GPR0801RC3T-220Size: 8 x 1 mm | Shaft length: 220 mm | Stroke: 120 mm | Clearance: T | Ca: 0.75 kN | C0a: 1.52 kN
GPR0801RC3Z-220Size: 8 x 1 mm | Shaft length: 220 mm | Stroke: 120 mm | Clearance: Z | Ca: 0.47 kN | C0a: 0.76 kN
GPR0801RC3T-300Size: 8 x 1 mm | Shaft length: 300 mm | Stroke: 200 mm | Clearance: T | Ca: 0.75 kN | C0a: 1.52 kN
GPR0801RC3Z-300Size: 8 x 1 mm | Shaft length: 300 mm | Stroke: 200 mm | Clearance: Z | Ca: 0.47 kN | C0a: 0.76 kN
GPR0802RC3T-160Size: 8 x 2 mm | Shaft length: 160 mm | Stroke: 50 mm | Clearance: T | Ca: 1.69 kN | C0a: 3.085 kN
GPR0802RC3Z-160Size: 8 x 2 mm | Shaft length: 160 mm | Stroke: 50 mm | Clearance: Z | Ca: 1.06 kN | C0a: 1.545 kN
GPR0802RC3T-230Size: 8 x 2 mm | Shaft length: 230 mm | Stroke: 120 mm | Clearance: T | Ca: 1.69 kN | C0a: 3.085 kN
GPR0802RC3Z-230Size: 8 x 2 mm | Shaft length: 230 mm | Stroke: 120 mm | Clearance: Z | Ca: 1.06 kN | C0a: 1.545 kN
GPR0802RC3T-310Size: 8 x 2 mm | Shaft length: 310 mm | Stroke: 200 mm | Clearance: T | Ca: 1.69 kN | C0a: 3.085 kN
GPR0802RC3Z-310Size: 8 x 2 mm | Shaft length: 310 mm | Stroke: 200 mm | Clearance: Z | Ca: 1.06 kN | C0a: 1.545 kN
GPR1002RC3T-220Size: 10 x 2 mm | Shaft length: 220 mm | Stroke: 100 mm | Clearance: T | Ca: 1.98 kN | C0a: 3.82 kN
GPR1002RC3Z-220Size: 10 x 2 mm | Shaft length: 220 mm | Stroke: 100 mm | Clearance: Z | Ca: 1.25 kN | C0a: 1.91 kN
GPR1002RC3T-320Size: 10 x 2 mm | Shaft length: 320 mm | Stroke: 200 mm | Clearance: T | Ca: 1.98 kN | C0a: 3.82 kN
GPR1002RC3Z-320Size: 10 x 2 mm | Shaft length: 320 mm | Stroke: 200 mm | Clearance: Z | Ca: 1.25 kN | C0a: 1.91 kN
GPR1002RC3T-420Size: 10 x 2 mm | Shaft length: 420 mm | Stroke: 300 mm | Clearance: T | Ca: 1.98 kN | C0a: 3.82 kN
GPR1002RC3Z-420Size: 10 x 2 mm | Shaft length: 420 mm | Stroke: 300 mm | Clearance: Z | Ca: 1.25 kN | C0a: 1.91 kN
GPR1202RC3T-220Size: 12 x 2 mm | Shaft length: 220 mm | Stroke: 100 mm | Clearance: T | Ca: 2.24 kN | C0a: 4.555 kN
GPR1202RC3Z-220Size: 12 x 2 mm | Shaft length: 220 mm | Stroke: 100 mm | Clearance: Z | Ca: 1.41 kN | C0a: 2.28 kN
GPR1202RC3T-370Size: 12 x 2 mm | Shaft length: 370 mm | Stroke: 250 mm | Clearance: T | Ca: 2.24 kN | C0a: 4.555 kN
GPR1202RC3Z-370Size: 12 x 2 mm | Shaft length: 370 mm | Stroke: 250 mm | Clearance: Z | Ca: 1.41 kN | C0a: 2.28 kN
GPR1202RC3T-520Size: 12 x 2 mm | Shaft length: 520 mm | Stroke: 400 mm | Clearance: T | Ca: 2.24 kN | C0a: 4.555 kN
GPR1202RC3Z-520Size: 12 x 2 mm | Shaft length: 520 mm | Stroke: 400 mm | Clearance: Z | Ca: 1.41 kN | C0a: 2.28 kN
GPR1402RC3T-330Size: 14 x 2 mm | Shaft length: 330 mm | Stroke: 200 mm | Clearance: T | Ca: 2.47 kN | C0a: 5.29 kN
GPR1402RC3Z-330Size: 14 x 2 mm | Shaft length: 330 mm | Stroke: 200 mm | Clearance: Z | Ca: 1.56 kN | C0a: 2.645 kN
GPR1402RC3T-480Size: 14 x 2 mm | Shaft length: 480 mm | Stroke: 350 mm | Clearance: T | Ca: 2.47 kN | C0a: 5.29 kN
GPR1402RC3Z-480Size: 14 x 2 mm | Shaft length: 480 mm | Stroke: 350 mm | Clearance: Z | Ca: 1.56 kN | C0a: 2.645 kN
GPR1402RC3T-630Size: 14 x 2 mm | Shaft length: 630 mm | Stroke: 500 mm | Clearance: T | Ca: 2.47 kN | C0a: 5.29 kN
GPR1402RC3Z-630Size: 14 x 2 mm | Shaft length: 630 mm | Stroke: 500 mm | Clearance: Z | Ca: 1.56 kN | C0a: 2.645 kN
GPR1602RC3T-380Size: 16 x 2 mm | Shaft length: 380 mm | Stroke: 200 mm | Clearance: T | Ca: 2.69 kN | C0a: 6.03 kN
GPR1602RC3Z-380Size: 16 x 2 mm | Shaft length: 380 mm | Stroke: 200 mm | Clearance: Z | Ca: 1.69 kN | C0a: 3.015 kN
GPR1602RC3T-530Size: 16 x 2 mm | Shaft length: 530 mm | Stroke: 350 mm | Clearance: T | Ca: 2.69 kN | C0a: 6.03 kN
GPR1602RC3Z-530Size: 16 x 2 mm | Shaft length: 530 mm | Stroke: 350 mm | Clearance: Z | Ca: 1.69 kN | C0a: 3.015 kN
GPR1602RC3T-680Size: 16 x 2 mm | Shaft length: 680 mm | Stroke: 500 mm | Clearance: T | Ca: 2.69 kN | C0a: 6.03 kN
GPR1602RC3Z-680Size: 16 x 2 mm | Shaft length: 680 mm | Stroke: 500 mm | Clearance: Z | Ca: 1.69 kN | C0a: 3.015 kN
GTR0805EC3T-180Size: 8 x 5 mm | Shaft length: 180 mm | Stroke: 60 mm | Clearance: T | Ca: 2.29 kN | C0a: 3.575 kN
GTR0805EC3Z-180Size: 8 x 5 mm | Shaft length: 180 mm | Stroke: 60 mm | Clearance: Z | Ca: 1.44 kN | C0a: 1.79 kN
GTR0805EC3T-240Size: 8 x 5 mm | Shaft length: 240 mm | Stroke: 120 mm | Clearance: T | Ca: 2.29 kN | C0a: 3.575 kN
GTR0805EC3Z-240Size: 8 x 5 mm | Shaft length: 240 mm | Stroke: 120 mm | Clearance: Z | Ca: 1.44 kN | C0a: 1.79 kN
GTR0805EC3T-300Size: 8 x 5 mm | Shaft length: 300 mm | Stroke: 180 mm | Clearance: T | Ca: 2.29 kN | C0a: 3.575 kN
GTR0805EC3Z-300Size: 8 x 5 mm | Shaft length: 300 mm | Stroke: 180 mm | Clearance: Z | Ca: 1.44 kN | C0a: 1.79 kN
GTR0808AC3T-200Size: 8 x 8 mm | Shaft length: 200 mm | Stroke: 60 mm | Clearance: T | Ca: 1.45 kN | C0a: 2.155 kN
GTR0808AC3Z-200Size: 8 x 8 mm | Shaft length: 200 mm | Stroke: 60 mm | Clearance: Z | Ca: 0.91 kN | C0a: 1.08 kN
GTR0808AC3T-260Size: 8 x 8 mm | Shaft length: 260 mm | Stroke: 120 mm | Clearance: T | Ca: 1.45 kN | C0a: 2.155 kN
GTR0808AC3Z-260Size: 8 x 8 mm | Shaft length: 260 mm | Stroke: 120 mm | Clearance: Z | Ca: 0.91 kN | C0a: 1.08 kN
GTR0808AC3T-320Size: 8 x 8 mm | Shaft length: 320 mm | Stroke: 180 mm | Clearance: T | Ca: 1.45 kN | C0a: 2.155 kN
GTR0808AC3Z-320Size: 8 x 8 mm | Shaft length: 320 mm | Stroke: 180 mm | Clearance: Z | Ca: 0.91 kN | C0a: 1.08 kN
GTR1004EC3T-230Size: 10 x 4 mm | Shaft length: 230 mm | Stroke: 100 mm | Clearance: T | Ca: 2.73 kN | C0a: 4.41 kN
GTR1004EC3Z-230Size: 10 x 4 mm | Shaft length: 230 mm | Stroke: 100 mm | Clearance: Z | Ca: 1.72 kN | C0a: 2.205 kN
GTR1004EC3T-380Size: 10 x 4 mm | Shaft length: 380 mm | Stroke: 250 mm | Clearance: T | Ca: 2.73 kN | C0a: 4.41 kN
GTR1004EC3Z-380Size: 10 x 4 mm | Shaft length: 380 mm | Stroke: 250 mm | Clearance: Z | Ca: 1.72 kN | C0a: 2.205 kN
GTR1004EC3T-530Size: 10 x 4 mm | Shaft length: 530 mm | Stroke: 400 mm | Clearance: T | Ca: 2.73 kN | C0a: 4.41 kN
GTR1004EC3Z-530Size: 10 x 4 mm | Shaft length: 530 mm | Stroke: 400 mm | Clearance: Z | Ca: 1.72 kN | C0a: 2.205 kN
GTR1005EC3T-240Size: 10 x 5 mm | Shaft length: 240 mm | Stroke: 100 mm | Clearance: T | Ca: 2.73 kN | C0a: 4.41 kN
GTR1005EC3Z-240Size: 10 x 5 mm | Shaft length: 240 mm | Stroke: 100 mm | Clearance: Z | Ca: 1.72 kN | C0a: 2.205 kN
GTR1005EC3T-390Size: 10 x 5 mm | Shaft length: 390 mm | Stroke: 250 mm | Clearance: T | Ca: 2.73 kN | C0a: 4.41 kN
GTR1005EC3Z-390Size: 10 x 5 mm | Shaft length: 390 mm | Stroke: 250 mm | Clearance: Z | Ca: 1.72 kN | C0a: 2.205 kN
GTR1005EC3T-540Size: 10 x 5 mm | Shaft length: 540 mm | Stroke: 400 mm | Clearance: T | Ca: 2.73 kN | C0a: 4.41 kN
GTR1005EC3Z-540Size: 10 x 5 mm | Shaft length: 540 mm | Stroke: 400 mm | Clearance: Z | Ca: 1.72 kN | C0a: 2.205 kN
GTR1010AC3T-240Size: 10 x 10 mm | Shaft length: 240 mm | Stroke: 100 mm | Clearance: T | Ca: 1.72 kN | C0a: 2.745 kN
GTR1010AC3Z-240Size: 10 x 10 mm | Shaft length: 240 mm | Stroke: 100 mm | Clearance: Z | Ca: 1.08 kN | C0a: 1.375 kN
GTR1010AC3T-440Size: 10 x 10 mm | Shaft length: 440 mm | Stroke: 300 mm | Clearance: T | Ca: 1.72 kN | C0a: 2.745 kN
GTR1010AC3Z-440Size: 10 x 10 mm | Shaft length: 440 mm | Stroke: 300 mm | Clearance: Z | Ca: 1.08 kN | C0a: 1.375 kN
GTR1010AC3T-640Size: 10 x 10 mm | Shaft length: 640 mm | Stroke: 500 mm | Clearance: T | Ca: 1.72 kN | C0a: 2.745 kN
GTR1010AC3Z-640Size: 10 x 10 mm | Shaft length: 640 mm | Stroke: 500 mm | Clearance: Z | Ca: 1.08 kN | C0a: 1.375 kN
GTR1204EC3T-240Size: 12 x 4 mm | Shaft length: 240 mm | Stroke: 100 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
GTR1204EC3Z-240Size: 12 x 4 mm | Shaft length: 240 mm | Stroke: 100 mm | Clearance: Z | Ca: 2.38 kN | C0a: 3.16 kN
GTR1204EC3T-390Size: 12 x 4 mm | Shaft length: 390 mm | Stroke: 250 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
GTR1204EC3Z-390Size: 12 x 4 mm | Shaft length: 390 mm | Stroke: 250 mm | Clearance: Z | Ca: 2.38 kN | C0a: 3.16 kN
GTR1204EC3T-540Size: 12 x 4 mm | Shaft length: 540 mm | Stroke: 400 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
GTR1204EC3Z-540Size: 12 x 4 mm | Shaft length: 540 mm | Stroke: 400 mm | Clearance: Z | Ca: 2.38 kN | C0a: 3.16 kN
GTR1205EC3T-240Size: 12 x 5 mm | Shaft length: 240 mm | Stroke: 100 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
GTR1205EC3Z-240Size: 12 x 5 mm | Shaft length: 240 mm | Stroke: 100 mm | Clearance: Z | Ca: 2.38 kN | C0a: 3.16 kN
GTR1205EC3T-440Size: 12 x 5 mm | Shaft length: 440 mm | Stroke: 300 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
GTR1205EC3Z-440Size: 12 x 5 mm | Shaft length: 440 mm | Stroke: 300 mm | Clearance: Z | Ca: 2.38 kN | C0a: 3.16 kN
GTR1205EC3T-640Size: 12 x 5 mm | Shaft length: 640 mm | Stroke: 500 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
GTR1205EC3Z-640Size: 12 x 5 mm | Shaft length: 640 mm | Stroke: 500 mm | Clearance: Z | Ca: 2.38 kN | C0a: 3.16 kN
GTR1210EC3T-260Size: 12 x 10 mm | Shaft length: 260 mm | Stroke: 100 mm | Clearance: T | Ca: 3.82 kN | C0a: 6.48 kN
GTR1210EC3Z-260Size: 12 x 10 mm | Shaft length: 260 mm | Stroke: 100 mm | Clearance: Z | Ca: 2.41 kN | C0a: 3.24 kN
GTR1210EC3T-460Size: 12 x 10 mm | Shaft length: 460 mm | Stroke: 300 mm | Clearance: T | Ca: 3.82 kN | C0a: 6.48 kN
GTR1210EC3Z-460Size: 12 x 10 mm | Shaft length: 460 mm | Stroke: 300 mm | Clearance: Z | Ca: 2.41 kN | C0a: 3.24 kN
GTR1210EC3T-660Size: 12 x 10 mm | Shaft length: 660 mm | Stroke: 500 mm | Clearance: T | Ca: 3.82 kN | C0a: 6.48 kN
GTR1210EC3Z-660Size: 12 x 10 mm | Shaft length: 660 mm | Stroke: 500 mm | Clearance: Z | Ca: 2.41 kN | C0a: 3.24 kN
GTR1220AC3T-370Size: 12 x 20 mm | Shaft length: 370 mm | Stroke: 200 mm | Clearance: T | Ca: 2.41 kN | C0a: 3.92 kN
GTR1220AC3Z-370Size: 12 x 20 mm | Shaft length: 370 mm | Stroke: 200 mm | Clearance: Z | Ca: 1.52 kN | C0a: 1.96 kN
GTR1220AC3T-570Size: 12 x 20 mm | Shaft length: 570 mm | Stroke: 400 mm | Clearance: T | Ca: 2.41 kN | C0a: 3.92 kN
GTR1220AC3Z-570Size: 12 x 20 mm | Shaft length: 570 mm | Stroke: 400 mm | Clearance: Z | Ca: 1.52 kN | C0a: 1.96 kN
GTR1220AC3T-770Size: 12 x 20 mm | Shaft length: 770 mm | Stroke: 600 mm | Clearance: T | Ca: 2.41 kN | C0a: 3.92 kN
GTR1220AC3Z-770Size: 12 x 20 mm | Shaft length: 770 mm | Stroke: 600 mm | Clearance: Z | Ca: 1.52 kN | C0a: 1.96 kN
GTR1405EC3T-360Size: 14 x 5 mm | Shaft length: 360 mm | Stroke: 200 mm | Clearance: T | Ca: 6.27 kN | C0a: 11.66 kN
GTR1405EC3Z-360Size: 14 x 5 mm | Shaft length: 360 mm | Stroke: 200 mm | Clearance: Z | Ca: 3.95 kN | C0a: 5.83 kN
GTR1405EC3T-510Size: 14 x 5 mm | Shaft length: 510 mm | Stroke: 350 mm | Clearance: T | Ca: 6.27 kN | C0a: 11.66 kN
GTR1405EC3Z-510Size: 14 x 5 mm | Shaft length: 510 mm | Stroke: 350 mm | Clearance: Z | Ca: 3.95 kN | C0a: 5.83 kN
GTR1405EC3T-660Size: 14 x 5 mm | Shaft length: 660 mm | Stroke: 500 mm | Clearance: T | Ca: 6.27 kN | C0a: 11.66 kN
GTR1405EC3Z-660Size: 14 x 5 mm | Shaft length: 660 mm | Stroke: 500 mm | Clearance: Z | Ca: 3.95 kN | C0a: 5.83 kN
GTR1504EC3T-500Size: 15 x 4 mm | Shaft length: 500 mm | Stroke: 300 mm | Clearance: T | Ca: 4.43 kN | C0a: 7.84 kN
GTR1504EC3Z-500Size: 15 x 4 mm | Shaft length: 500 mm | Stroke: 300 mm | Clearance: Z | Ca: 2.79 kN | C0a: 3.92 kN
GTR1504EC3T-800Size: 15 x 4 mm | Shaft length: 800 mm | Stroke: 600 mm | Clearance: T | Ca: 4.43 kN | C0a: 7.84 kN
GTR1504EC3Z-800Size: 15 x 4 mm | Shaft length: 800 mm | Stroke: 600 mm | Clearance: Z | Ca: 2.79 kN | C0a: 3.92 kN
GTR1504EC3T-1200Size: 15 x 4 mm | Shaft length: 1200 mm | Stroke: 1000 mm | Clearance: T | Ca: 4.43 kN | C0a: 7.84 kN
GTR1504EC3Z-1200Size: 15 x 4 mm | Shaft length: 1200 mm | Stroke: 1000 mm | Clearance: Z | Ca: 2.79 kN | C0a: 3.92 kN
GTR1505EC3T-510Size: 15 x 5 mm | Shaft length: 510 mm | Stroke: 300 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
GTR1505EC3Z-510Size: 15 x 5 mm | Shaft length: 510 mm | Stroke: 300 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
GTR1505EC3T-810Size: 15 x 5 mm | Shaft length: 810 mm | Stroke: 600 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
GTR1505EC3Z-810Size: 15 x 5 mm | Shaft length: 810 mm | Stroke: 600 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
GTR1505EC3T-1210Size: 15 x 5 mm | Shaft length: 1210 mm | Stroke: 1000 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
GTR1505EC3Z-1210Size: 15 x 5 mm | Shaft length: 1210 mm | Stroke: 1000 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
GTR1510EC3T-520Size: 15 x 10 mm | Shaft length: 520 mm | Stroke: 300 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
GTR1510EC3Z-520Size: 15 x 10 mm | Shaft length: 520 mm | Stroke: 300 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
GTR1510EC3T-820Size: 15 x 10 mm | Shaft length: 820 mm | Stroke: 600 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
GTR1510EC3Z-820Size: 15 x 10 mm | Shaft length: 820 mm | Stroke: 600 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
GTR1510EC3T-1220Size: 15 x 10 mm | Shaft length: 1220 mm | Stroke: 1000 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
GTR1510EC3Z-1220Size: 15 x 10 mm | Shaft length: 1220 mm | Stroke: 1000 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
GTR1515AC3T-540Size: 15 x 15 mm | Shaft length: 540 mm | Stroke: 300 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
GTR1515AC3Z-540Size: 15 x 15 mm | Shaft length: 540 mm | Stroke: 300 mm | Clearance: Z | Ca: 2.66 kN | C0a: 3.92 kN
GTR1515AC3T-840Size: 15 x 15 mm | Shaft length: 840 mm | Stroke: 600 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
GTR1515AC3Z-840Size: 15 x 15 mm | Shaft length: 840 mm | Stroke: 600 mm | Clearance: Z | Ca: 2.66 kN | C0a: 3.92 kN
GTR1515AC3T-1240Size: 15 x 15 mm | Shaft length: 1240 mm | Stroke: 1000 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
GTR1515AC3Z-1240Size: 15 x 15 mm | Shaft length: 1240 mm | Stroke: 1000 mm | Clearance: Z | Ca: 2.66 kN | C0a: 3.92 kN
GTR1520AC3T-550Size: 15 x 20 mm | Shaft length: 550 mm | Stroke: 300 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
GTR1520AC3Z-550Size: 15 x 20 mm | Shaft length: 550 mm | Stroke: 300 mm | Clearance: Z | Ca: 2.66 kN | C0a: 3.92 kN
GTR1520AC3T-850Size: 15 x 20 mm | Shaft length: 850 mm | Stroke: 600 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
GTR1520AC3Z-850Size: 15 x 20 mm | Shaft length: 850 mm | Stroke: 600 mm | Clearance: Z | Ca: 2.66 kN | C0a: 3.92 kN
GTR1520AC3T-1250Size: 15 x 20 mm | Shaft length: 1250 mm | Stroke: 1000 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
GTR1520AC3Z-1250Size: 15 x 20 mm | Shaft length: 1250 mm | Stroke: 1000 mm | Clearance: Z | Ca: 2.66 kN | C0a: 3.92 kN
GTR2005EC3T-630Size: 20 x 5 mm | Shaft length: 630 mm | Stroke: 400 mm | Clearance: T | Ca: 8.15 kN | C0a: 17.15 kN
GTR2005EC3Z-630Size: 20 x 5 mm | Shaft length: 630 mm | Stroke: 400 mm | Clearance: Z | Ca: 5.13 kN | C0a: 8.575 kN
GTR2005EC3T-1030Size: 20 x 5 mm | Shaft length: 1030 mm | Stroke: 800 mm | Clearance: T | Ca: 8.15 kN | C0a: 17.15 kN
GTR2005EC3Z-1030Size: 20 x 5 mm | Shaft length: 1030 mm | Stroke: 800 mm | Clearance: Z | Ca: 5.13 kN | C0a: 8.575 kN
GTR2005EC3T-1430Size: 20 x 5 mm | Shaft length: 1430 mm | Stroke: 1200 mm | Clearance: T | Ca: 8.15 kN | C0a: 17.15 kN
GTR2005EC3Z-1430Size: 20 x 5 mm | Shaft length: 1430 mm | Stroke: 1200 mm | Clearance: Z | Ca: 5.13 kN | C0a: 8.575 kN
GTR2010EC3T-650Size: 20 x 10 mm | Shaft length: 650 mm | Stroke: 400 mm | Clearance: T | Ca: 11.1 kN | C0a: 22.1 kN
GTR2010EC3Z-650Size: 20 x 10 mm | Shaft length: 650 mm | Stroke: 400 mm | Clearance: Z | Ca: 6.99 kN | C0a: 11.05 kN
GTR2010EC3T-1050Size: 20 x 10 mm | Shaft length: 1050 mm | Stroke: 800 mm | Clearance: T | Ca: 11.1 kN | C0a: 22.1 kN
GTR2010EC3Z-1050Size: 20 x 10 mm | Shaft length: 1050 mm | Stroke: 800 mm | Clearance: Z | Ca: 6.99 kN | C0a: 11.05 kN
GTR2010EC3T-1450Size: 20 x 10 mm | Shaft length: 1450 mm | Stroke: 1200 mm | Clearance: T | Ca: 11.1 kN | C0a: 22.1 kN
GTR2010EC3Z-1450Size: 20 x 10 mm | Shaft length: 1450 mm | Stroke: 1200 mm | Clearance: Z | Ca: 6.99 kN | C0a: 11.05 kN
GTR2020AC3T-700Size: 20 x 20 mm | Shaft length: 700 mm | Stroke: 400 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
GTR2020AC3Z-700Size: 20 x 20 mm | Shaft length: 700 mm | Stroke: 400 mm | Clearance: Z | Ca: 4.23 kN | C0a: 6.32 kN
GTR2020AC3T-1100Size: 20 x 20 mm | Shaft length: 1100 mm | Stroke: 800 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
GTR2020AC3Z-1100Size: 20 x 20 mm | Shaft length: 1100 mm | Stroke: 800 mm | Clearance: Z | Ca: 4.23 kN | C0a: 6.32 kN
GTR2020AC3T-1500Size: 20 x 20 mm | Shaft length: 1500 mm | Stroke: 1200 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
GTR2020AC3Z-1500Size: 20 x 20 mm | Shaft length: 1500 mm | Stroke: 1200 mm | Clearance: Z | Ca: 4.23 kN | C0a: 6.32 kN

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
