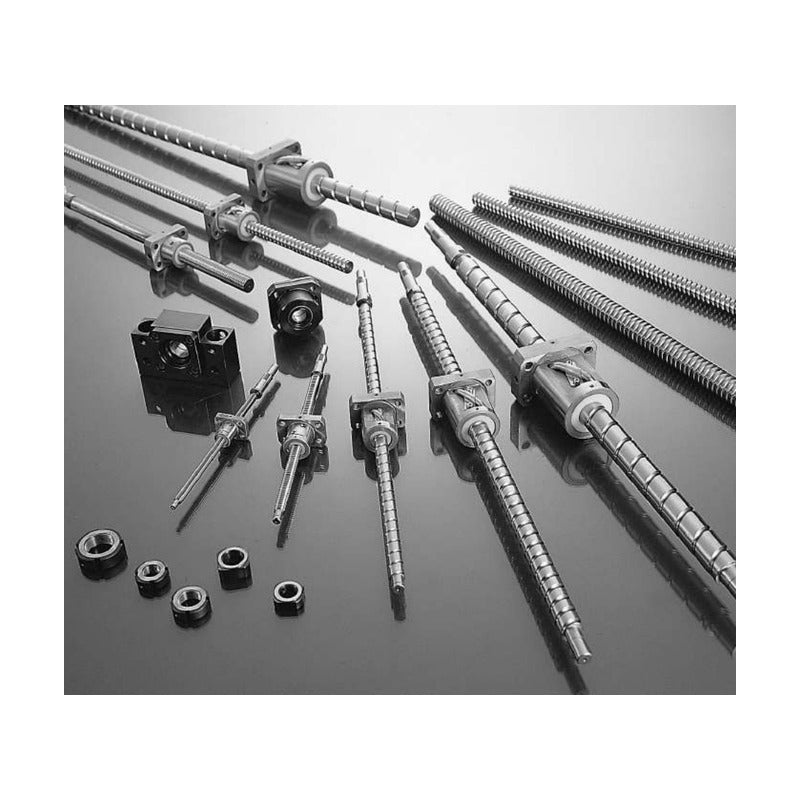

• ISSOKU GPR/GTR/GHR Precision Ground Ball Screws C5
1 1

ISSOKU GPR/GTR/GHR Precision Ground Ball Screws C5

ISSOKU GPR/GTR/GHR Precision Ground Ball Screws C5

Precision ground ball screws in grade C5, stock items with unmachined ends.

Key features

  • Nut types: GHR (end-cap ground), GPR (return-plate ground), GTR (return-tube ground)
  • Shaft diameters 10-32 mm
  • Codes include shaft length; stock standard lengths as listed
  • Axial clearance symbols as printed per size (T/Z, S/N or M2)
  • Lapped ball tracks for smooth, quiet running

Specifications

Accuracy standard JIS B 1192
Brand ISSOKU
Product type Ball Screws
Series GPR/GTR/GHR
Designations listed 104
Units mm, kN
Source ISSOKU Ball Screw catalogue (HANSAN edition), p. 245-266
GTR1010AC5T-200 Size: 10 x 10 mm | Shaft length: 200 mm | Stroke: 60 mm | Clearance: T | Ca: 1.72 kN | C0a: 2.745 kN
GTR1010AC5Z-200 Size: 10 x 10 mm | Shaft length: 200 mm | Stroke: 60 mm | Clearance: Z | Ca: 1.08 kN | C0a: 1.375 kN
GTR1205EC5T-300 Size: 12 x 5 mm | Shaft length: 300 mm | Stroke: 180 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
GTR1205EC5Z-300 Size: 12 x 5 mm | Shaft length: 300 mm | Stroke: 180 mm | Clearance: Z | Ca: 2.38 kN | C0a: 3.16 kN
GTR1205EC5T-450 Size: 12 x 5 mm | Shaft length: 450 mm | Stroke: 330 mm | Clearance: T | Ca: 3.77 kN | C0a: 6.32 kN
GTR1205EC5Z-450 Size: 12 x 5 mm | Shaft length: 450 mm | Stroke: 330 mm | Clearance: Z | Ca: 2.38 kN | C0a: 3.16 kN
GTR1210EC5T-300 Size: 12 x 10 mm | Shaft length: 300 mm | Stroke: 160 mm | Clearance: T | Ca: 3.82 kN | C0a: 6.48 kN
GTR1210EC5Z-300 Size: 12 x 10 mm | Shaft length: 300 mm | Stroke: 160 mm | Clearance: Z | Ca: 2.41 kN | C0a: 3.24 kN
GTR1210EC5T-450 Size: 12 x 10 mm | Shaft length: 450 mm | Stroke: 310 mm | Clearance: T | Ca: 3.82 kN | C0a: 6.48 kN
GTR1210EC5Z-450 Size: 12 x 10 mm | Shaft length: 450 mm | Stroke: 310 mm | Clearance: Z | Ca: 2.41 kN | C0a: 3.24 kN
GTR1220AC5T-450 Size: 12 x 20 mm | Shaft length: 450 mm | Stroke: 300 mm | Clearance: T | Ca: 2.41 kN | C0a: 3.92 kN
GTR1220AC5Z-450 Size: 12 x 20 mm | Shaft length: 450 mm | Stroke: 300 mm | Clearance: Z | Ca: 1.52 kN | C0a: 1.96 kN
GTR1220AC5T-600 Size: 12 x 20 mm | Shaft length: 600 mm | Stroke: 450 mm | Clearance: T | Ca: 2.41 kN | C0a: 3.92 kN
GTR1220AC5Z-600 Size: 12 x 20 mm | Shaft length: 600 mm | Stroke: 450 mm | Clearance: Z | Ca: 1.52 kN | C0a: 1.96 kN
GTR1505EC5T-300 Size: 15 x 5 mm | Shaft length: 300 mm | Stroke: 160 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
GTR1505EC5Z-300 Size: 15 x 5 mm | Shaft length: 300 mm | Stroke: 160 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
GTR1505EC5T-450 Size: 15 x 5 mm | Shaft length: 450 mm | Stroke: 310 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
GTR1505EC5Z-450 Size: 15 x 5 mm | Shaft length: 450 mm | Stroke: 310 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
GTR1505EC5T-600 Size: 15 x 5 mm | Shaft length: 600 mm | Stroke: 460 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
GTR1505EC5Z-600 Size: 15 x 5 mm | Shaft length: 600 mm | Stroke: 460 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
GTR1505EC5T-750 Size: 15 x 5 mm | Shaft length: 750 mm | Stroke: 610 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
GTR1505EC5Z-750 Size: 15 x 5 mm | Shaft length: 750 mm | Stroke: 610 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
GTR1505EC5T-900 Size: 15 x 5 mm | Shaft length: 900 mm | Stroke: 760 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
GTR1505EC5Z-900 Size: 15 x 5 mm | Shaft length: 900 mm | Stroke: 760 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
GTR1510EC5T-300 Size: 15 x 10 mm | Shaft length: 300 mm | Stroke: 150 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
GTR1510EC5Z-300 Size: 15 x 10 mm | Shaft length: 300 mm | Stroke: 150 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
GTR1510EC5T-450 Size: 15 x 10 mm | Shaft length: 450 mm | Stroke: 300 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
GTR1510EC5Z-450 Size: 15 x 10 mm | Shaft length: 450 mm | Stroke: 300 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
GTR1510EC5T-600 Size: 15 x 10 mm | Shaft length: 600 mm | Stroke: 450 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
GTR1510EC5Z-600 Size: 15 x 10 mm | Shaft length: 600 mm | Stroke: 450 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
GTR1510EC5T-750 Size: 15 x 10 mm | Shaft length: 750 mm | Stroke: 600 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
GTR1510EC5Z-750 Size: 15 x 10 mm | Shaft length: 750 mm | Stroke: 600 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
GTR1510EC5T-900 Size: 15 x 10 mm | Shaft length: 900 mm | Stroke: 750 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
GTR1510EC5Z-900 Size: 15 x 10 mm | Shaft length: 900 mm | Stroke: 750 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
GTR1510EC5T-1100 Size: 15 x 10 mm | Shaft length: 1100 mm | Stroke: 950 mm | Clearance: T | Ca: 6.61 kN | C0a: 12.545 kN
GTR1510EC5Z-1100 Size: 15 x 10 mm | Shaft length: 1100 mm | Stroke: 950 mm | Clearance: Z | Ca: 4.16 kN | C0a: 6.275 kN
GTR1520AC5T-450 Size: 15 x 20 mm | Shaft length: 450 mm | Stroke: 270 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
GTR1520AC5Z-450 Size: 15 x 20 mm | Shaft length: 450 mm | Stroke: 270 mm | Clearance: Z | Ca: 2.26 kN | C0a: 3.92 kN
GTR1520AC5T-600 Size: 15 x 20 mm | Shaft length: 600 mm | Stroke: 420 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
GTR1520AC5Z-600 Size: 15 x 20 mm | Shaft length: 600 mm | Stroke: 420 mm | Clearance: Z | Ca: 2.26 kN | C0a: 3.92 kN
GTR1520AC5T-750 Size: 15 x 20 mm | Shaft length: 750 mm | Stroke: 570 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
GTR1520AC5Z-750 Size: 15 x 20 mm | Shaft length: 750 mm | Stroke: 570 mm | Clearance: Z | Ca: 2.26 kN | C0a: 3.92 kN
GTR1520AC5T-900 Size: 15 x 20 mm | Shaft length: 900 mm | Stroke: 720 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
GTR1520AC5Z-900 Size: 15 x 20 mm | Shaft length: 900 mm | Stroke: 720 mm | Clearance: Z | Ca: 2.26 kN | C0a: 3.92 kN
GTR1520AC5T-1000 Size: 15 x 20 mm | Shaft length: 1000 mm | Stroke: 820 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
GTR1520AC5Z-1000 Size: 15 x 20 mm | Shaft length: 1000 mm | Stroke: 820 mm | Clearance: Z | Ca: 2.26 kN | C0a: 3.92 kN
GTR1520AC5T-1100 Size: 15 x 20 mm | Shaft length: 1100 mm | Stroke: 920 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
GTR1520AC5Z-1100 Size: 15 x 20 mm | Shaft length: 1100 mm | Stroke: 920 mm | Clearance: Z | Ca: 2.26 kN | C0a: 3.92 kN
GTR1520AC5T-1300 Size: 15 x 20 mm | Shaft length: 1300 mm | Stroke: 1120 mm | Clearance: T | Ca: 4.23 kN | C0a: 7.84 kN
GTR1520AC5Z-1300 Size: 15 x 20 mm | Shaft length: 1300 mm | Stroke: 1120 mm | Clearance: Z | Ca: 2.26 kN | C0a: 3.92 kN
GTR2005EC5T-400 Size: 20 x 5 mm | Shaft length: 400 mm | Stroke: 240 mm | Clearance: T | Ca: 8.15 kN | C0a: 17.15 kN
GTR2005EC5Z-400 Size: 20 x 5 mm | Shaft length: 400 mm | Stroke: 240 mm | Clearance: Z | Ca: 5.13 kN | C0a: 8.575 kN
GTR2005EC5T-600 Size: 20 x 5 mm | Shaft length: 600 mm | Stroke: 440 mm | Clearance: T | Ca: 8.15 kN | C0a: 17.15 kN
GTR2005EC5Z-600 Size: 20 x 5 mm | Shaft length: 600 mm | Stroke: 440 mm | Clearance: Z | Ca: 5.13 kN | C0a: 8.575 kN
GTR2005EC5T-800 Size: 20 x 5 mm | Shaft length: 800 mm | Stroke: 640 mm | Clearance: T | Ca: 8.15 kN | C0a: 17.15 kN
GTR2005EC5Z-800 Size: 20 x 5 mm | Shaft length: 800 mm | Stroke: 640 mm | Clearance: Z | Ca: 5.13 kN | C0a: 8.575 kN
GTR2005EC5T-1000 Size: 20 x 5 mm | Shaft length: 1000 mm | Stroke: 840 mm | Clearance: T | Ca: 8.15 kN | C0a: 17.15 kN
GTR2005EC5Z-1000 Size: 20 x 5 mm | Shaft length: 1000 mm | Stroke: 840 mm | Clearance: Z | Ca: 5.13 kN | C0a: 8.575 kN
GTR2010EC5T-600 Size: 20 x 10 mm | Shaft length: 600 mm | Stroke: 415 mm | Clearance: T | Ca: 11.1 kN | C0a: 22.1 kN
GTR2010EC5Z-600 Size: 20 x 10 mm | Shaft length: 600 mm | Stroke: 415 mm | Clearance: Z | Ca: 6.99 kN | C0a: 11.05 kN
GTR2010EC5T-800 Size: 20 x 10 mm | Shaft length: 800 mm | Stroke: 615 mm | Clearance: T | Ca: 11.1 kN | C0a: 22.1 kN
GTR2010EC5Z-800 Size: 20 x 10 mm | Shaft length: 800 mm | Stroke: 615 mm | Clearance: Z | Ca: 6.99 kN | C0a: 11.05 kN
GTR2010EC5T-1000 Size: 20 x 10 mm | Shaft length: 1000 mm | Stroke: 815 mm | Clearance: T | Ca: 11.1 kN | C0a: 22.1 kN
GTR2010EC5Z-1000 Size: 20 x 10 mm | Shaft length: 1000 mm | Stroke: 815 mm | Clearance: Z | Ca: 6.99 kN | C0a: 11.05 kN
GTR2010EC5T-1300 Size: 20 x 10 mm | Shaft length: 1300 mm | Stroke: 1115 mm | Clearance: T | Ca: 11.1 kN | C0a: 22.1 kN
GTR2010EC5Z-1300 Size: 20 x 10 mm | Shaft length: 1300 mm | Stroke: 1115 mm | Clearance: Z | Ca: 6.99 kN | C0a: 11.05 kN
GTR2010EC5T-1500 Size: 20 x 10 mm | Shaft length: 1500 mm | Stroke: 1315 mm | Clearance: T | Ca: 11.1 kN | C0a: 22.1 kN
GTR2010EC5Z-1500 Size: 20 x 10 mm | Shaft length: 1500 mm | Stroke: 1315 mm | Clearance: Z | Ca: 6.99 kN | C0a: 11.05 kN
GTR2020AC5T-800 Size: 20 x 20 mm | Shaft length: 800 mm | Stroke: 565 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
GTR2020AC5Z-800 Size: 20 x 20 mm | Shaft length: 800 mm | Stroke: 565 mm | Clearance: Z | Ca: 4.23 kN | C0a: 6.32 kN
GTR2020AC5T-1000 Size: 20 x 20 mm | Shaft length: 1000 mm | Stroke: 765 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
GTR2020AC5Z-1000 Size: 20 x 20 mm | Shaft length: 1000 mm | Stroke: 765 mm | Clearance: Z | Ca: 4.23 kN | C0a: 6.32 kN
GTR2020AC5T-1300 Size: 20 x 20 mm | Shaft length: 1300 mm | Stroke: 1065 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
GTR2020AC5Z-1300 Size: 20 x 20 mm | Shaft length: 1300 mm | Stroke: 1065 mm | Clearance: Z | Ca: 4.23 kN | C0a: 6.32 kN
GTR2020AC5T-1500 Size: 20 x 20 mm | Shaft length: 1500 mm | Stroke: 1265 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
GTR2020AC5Z-1500 Size: 20 x 20 mm | Shaft length: 1500 mm | Stroke: 1265 mm | Clearance: Z | Ca: 4.23 kN | C0a: 6.32 kN
GTR2020AC5T-1650 Size: 20 x 20 mm | Shaft length: 1650 mm | Stroke: 1415 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
GTR2020AC5Z-1650 Size: 20 x 20 mm | Shaft length: 1650 mm | Stroke: 1415 mm | Clearance: Z | Ca: 4.23 kN | C0a: 6.32 kN
GTR2020AC5T-1800 Size: 20 x 20 mm | Shaft length: 1800 mm | Stroke: 1565 mm | Clearance: T | Ca: 6.71 kN | C0a: 12.64 kN
GTR2020AC5Z-1800 Size: 20 x 20 mm | Shaft length: 1800 mm | Stroke: 1565 mm | Clearance: Z | Ca: 4.23 kN | C0a: 6.32 kN
GTR2505FC5Z-600 Size: 25 x 5 mm | Shaft length: 600 mm | Stroke: 350 mm | Clearance: Z | Ca: 9.28 kN | C0a: 19.35 kN
GTR2505FC5Z-1000 Size: 25 x 5 mm | Shaft length: 1000 mm | Stroke: 750 mm | Clearance: Z | Ca: 9.28 kN | C0a: 19.35 kN
GTR2510BC5Z-1000 Size: 25 x 10 mm | Shaft length: 1000 mm | Stroke: 800 mm | Clearance: Z | Ca: 9.68 kN | C0a: 16.2 kN
GTR2510BC5Z-1500 Size: 25 x 10 mm | Shaft length: 1500 mm | Stroke: 1300 mm | Clearance: Z | Ca: 9.68 kN | C0a: 16.2 kN
GTR3205FC5Z-600 Size: 32 x 5 mm | Shaft length: 600 mm | Stroke: 300 mm | Clearance: Z | Ca: 10.15 kN | C0a: 25.03 kN
GTR3205FC5Z-1000 Size: 32 x 5 mm | Shaft length: 1000 mm | Stroke: 700 mm | Clearance: Z | Ca: 10.15 kN | C0a: 25.03 kN
GTR3210FC5Z-1000 Size: 32 x 10 mm | Shaft length: 1000 mm | Stroke: 650 mm | Clearance: Z | Ca: 25.5 kN | C0a: 48.05 kN
GTR3210FC5Z-1500 Size: 32 x 10 mm | Shaft length: 1500 mm | Stroke: 1150 mm | Clearance: Z | Ca: 25.5 kN | C0a: 48.05 kN
GPR1602RC5T-300 Size: 16 x 2 mm | Shaft length: 300 mm | Stroke: 160 mm | Clearance: T | Ca: 2.69 kN | C0a: 6.03 kN
GPR1602RC5Z-300 Size: 16 x 2 mm | Shaft length: 300 mm | Stroke: 160 mm | Clearance: Z | Ca: 1.69 kN | C0a: 3.015 kN
GPR1602RC5T-400 Size: 16 x 2 mm | Shaft length: 400 mm | Stroke: 260 mm | Clearance: T | Ca: 2.69 kN | C0a: 6.03 kN
GPR1602RC5Z-400 Size: 16 x 2 mm | Shaft length: 400 mm | Stroke: 260 mm | Clearance: Z | Ca: 1.69 kN | C0a: 3.015 kN
GHR1632U2NC5T-600 Size: 16 x 32 mm | Shaft length: 600 mm | Stroke: 450 mm | Clearance: T | Ca: 3.84 kN | C0a: 7.5 kN
GHR1632U2NC5Z-600 Size: 16 x 32 mm | Shaft length: 600 mm | Stroke: 450 mm | Clearance: Z | Ca: 2.42 kN | C0a: 3.75 kN
GHR1632U2NC5T-1100 Size: 16 x 32 mm | Shaft length: 1100 mm | Stroke: 950 mm | Clearance: T | Ca: 3.84 kN | C0a: 7.5 kN
GHR1632U2NC5Z-1100 Size: 16 x 32 mm | Shaft length: 1100 mm | Stroke: 950 mm | Clearance: Z | Ca: 2.42 kN | C0a: 3.75 kN
GHR1632U2NC5T-1500 Size: 16 x 32 mm | Shaft length: 1500 mm | Stroke: 1350 mm | Clearance: T | Ca: 3.84 kN | C0a: 7.5 kN
GHR1632U2NC5Z-1500 Size: 16 x 32 mm | Shaft length: 1500 mm | Stroke: 1350 mm | Clearance: Z | Ca: 2.42 kN | C0a: 3.75 kN
GHR2040U2NC5T-1000 Size: 20 x 40 mm | Shaft length: 1000 mm | Stroke: 800 mm | Clearance: T | Ca: 4.24 kN | C0a: 9.4 kN
GHR2040U2NC5Z-1000 Size: 20 x 40 mm | Shaft length: 1000 mm | Stroke: 800 mm | Clearance: Z | Ca: 2.67 kN | C0a: 4.7 kN
GHR2040U2NC5T-1500 Size: 20 x 40 mm | Shaft length: 1500 mm | Stroke: 1300 mm | Clearance: T | Ca: 4.24 kN | C0a: 9.4 kN
GHR2040U2NC5Z-1500 Size: 20 x 40 mm | Shaft length: 1500 mm | Stroke: 1300 mm | Clearance: Z | Ca: 2.67 kN | C0a: 4.7 kN
GHR2040U2NC5T-1800 Size: 20 x 40 mm | Shaft length: 1800 mm | Stroke: 1600 mm | Clearance: T | Ca: 4.24 kN | C0a: 9.4 kN
GHR2040U2NC5Z-1800 Size: 20 x 40 mm | Shaft length: 1800 mm | Stroke: 1600 mm | Clearance: Z | Ca: 2.67 kN | C0a: 4.7 kN
