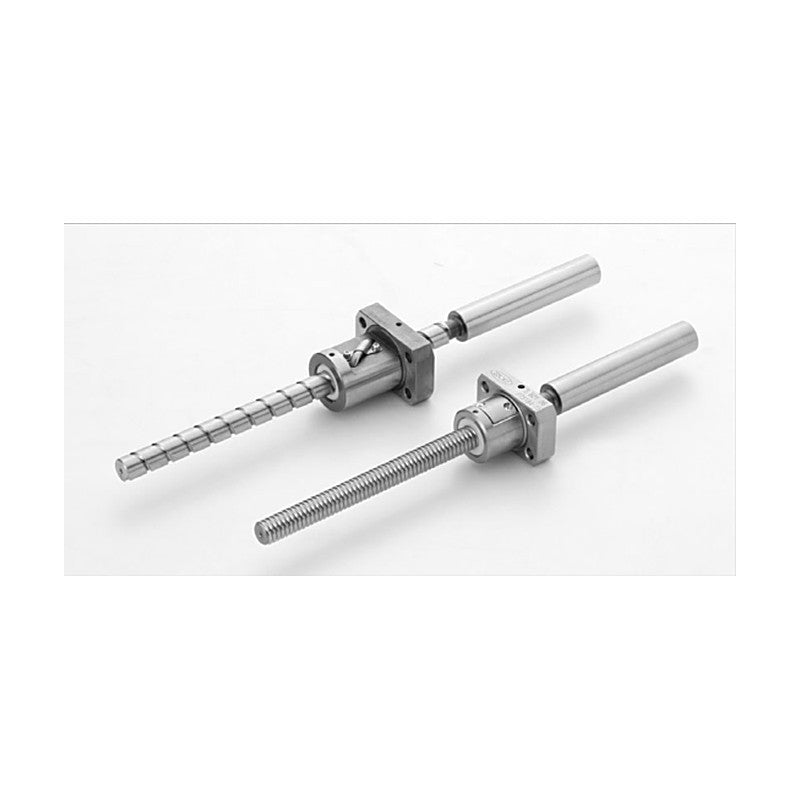

ISSOKU GTR C5 Ground Ball Screws (Unfinished End, Return Tube)

ISSOKU GTR C5 Ground Ball Screws (Unfinished End, Return Tube)

ISSOKU GTR precision ground ball screws in accuracy grade C5 with return tube ball recirculation, supplied as stock items with unfinished shaft ends for customer end machining.

Key features

  • Precision ground screw shaft, lead accuracy grade C5
  • Return tube ball recirculation nut
  • Shaft ends left unmachined for application-specific end machining
  • Several standard stroke / shaft lengths per size
  • Clearance symbol as given in each designation (T or Z)

Specifications

Product Precision ground ball screw
Accuracy grade C5
Nut type GTR (return tube)
Shaft end Unfinished (unmachined)
Clearance symbol Per designation (T or Z)
Supply Standard stock
Source ISSOKU Precision Ground Ball Screw C5 Unfinished End catalogue, p. 3-23
GTR0805EC5T-220 Shaft x lead: 8 x 5 mm | Stroke: 100 mm | Overall L: 220 mm | Ca: 2290 N | C0a: 3575 N | Mass: 0.243 kg
GTR0808AC5T-220 Shaft x lead: 8 x 8 mm | Stroke: 90 mm | Overall L: 220 mm | Ca: 1450 N | C0a: 2155 N | Mass: 0.244 kg
GTR1004EC5T-280 Shaft x lead: 10 x 4 mm | Stroke: 170 mm | Overall L: 280 mm | Ca: 2730 N | C0a: 4410 N | Mass: 0.367 kg
GTR1004EC5T-380 Shaft x lead: 10 x 4 mm | Stroke: 270 mm | Overall L: 380 mm | Ca: 2730 N | C0a: 4410 N | Mass: 1.022 kg
GTR1010AC5T-300 Shaft x lead: 10 x 10 mm | Stroke: 160 mm | Overall L: 300 mm | Ca: 1720 N | C0a: 2745 N | Mass: 0.408 kg
GTR1010AC5T-500 Shaft x lead: 10 x 10 mm | Stroke: 360 mm | Overall L: 500 mm | Ca: 1720 N | C0a: 2745 N | Mass: 0.531 kg
Ball ScrewsISSOKU
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ISSOKU GTR C5 Ground Ball Screws (Unfinished End, Return Tube)

Brand ISSOKU·Ball Screws

Available part numbers (6)

GTR0805EC5T-220, GTR0808AC5T-220, GTR1004EC5T-280, GTR1004EC5T-380, GTR1010AC5T-300, GTR1010AC5T-500

How to order

Send the ISSOKU part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GTR0805EC5T-220Shaft x lead: 8 x 5 mm | Stroke: 100 mm | Overall L: 220 mm | Ca: 2290 N | C0a: 3575 N | Mass: 0.243 kg
GTR0808AC5T-220Shaft x lead: 8 x 8 mm | Stroke: 90 mm | Overall L: 220 mm | Ca: 1450 N | C0a: 2155 N | Mass: 0.244 kg
GTR1004EC5T-280Shaft x lead: 10 x 4 mm | Stroke: 170 mm | Overall L: 280 mm | Ca: 2730 N | C0a: 4410 N | Mass: 0.367 kg
GTR1004EC5T-380Shaft x lead: 10 x 4 mm | Stroke: 270 mm | Overall L: 380 mm | Ca: 2730 N | C0a: 4410 N | Mass: 1.022 kg
GTR1010AC5T-300Shaft x lead: 10 x 10 mm | Stroke: 160 mm | Overall L: 300 mm | Ca: 1720 N | C0a: 2745 N | Mass: 0.408 kg
GTR1010AC5T-500Shaft x lead: 10 x 10 mm | Stroke: 360 mm | Overall L: 500 mm | Ca: 1720 N | C0a: 2745 N | Mass: 0.531 kg
